Description

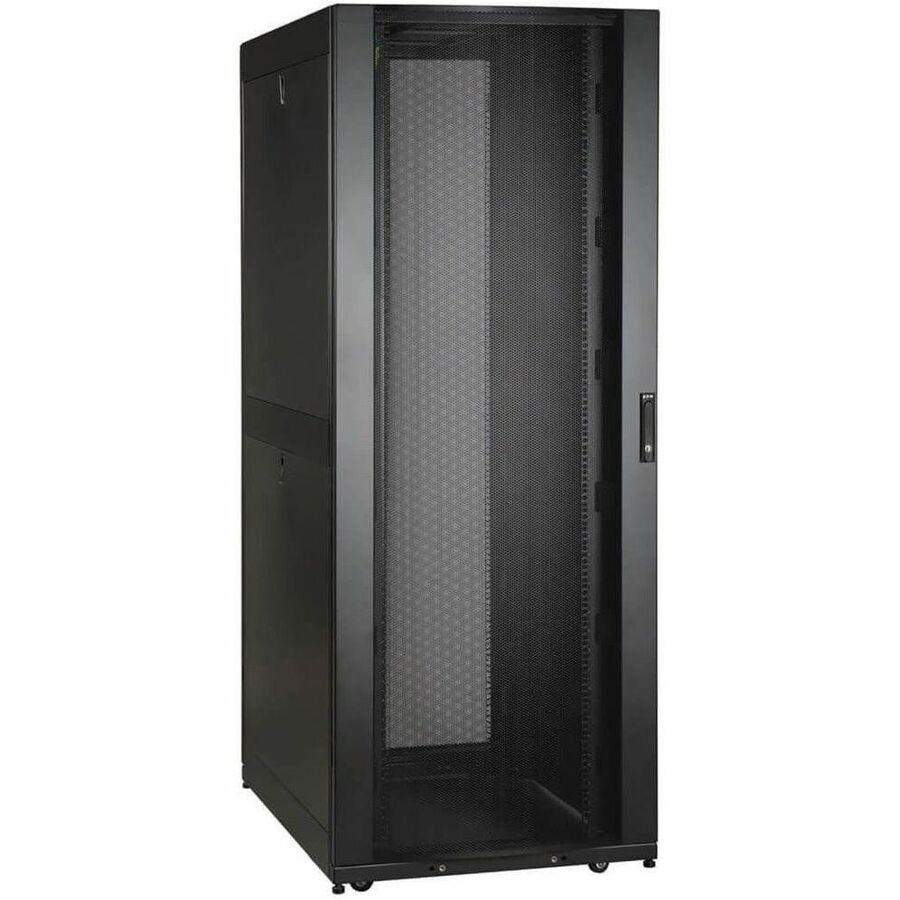

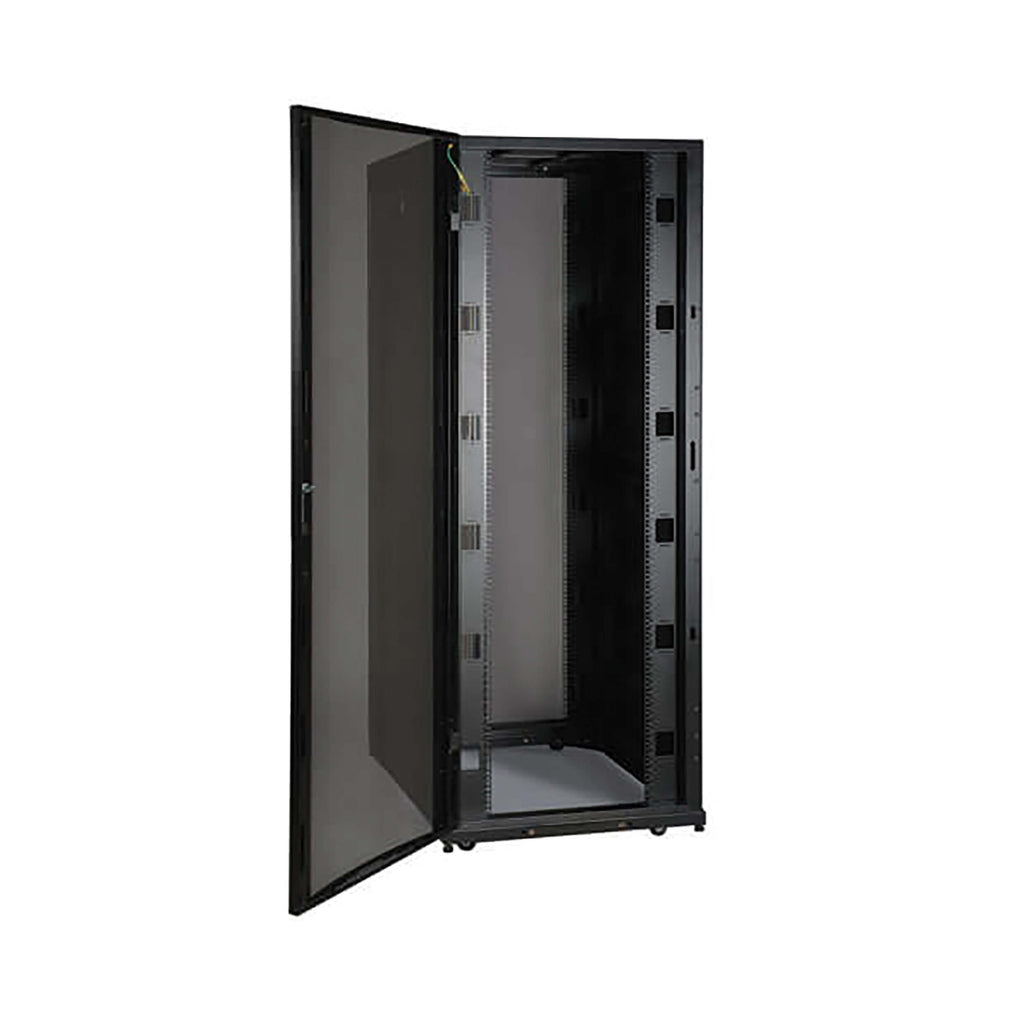

The Eaton Tripp Lite SR48UBWDSP1 is a 48U extra-wide (30") SmartRack enclosure cabinet designed for high-density server, networking, and IT applications. Featuring shock pallet packaging with included loading ramps, this model enables safe pre-configuration and re-shipping. The cabinet ships fully assembled with locking reversible doors, side panels, and heavy-duty casters. It supports up to 3,500 lbs stationary and includes integrated cable access, ventilation, and tool-less accessory mounting. Ideal for data centers requiring enhanced airflow and organized cable management, while meeting PCI DSS compliance.
| Specification | Details |
|---|---|
| Model Number | SR48UBWDSP1 |
| Brand | Eaton (Tripp Lite Series) |
| Rack Type | Enclosure Cabinet |
| Rack Height | 48U |
| Rack Width | 30 in (750 mm) – Extra Wide |
| Rack Depth | 42 in (1050 mm) – Standard Depth |
| Unit Dimensions (H x W x D) | 89.0 x 29.53 x 43.0 in (226.06 x 75.01 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 95.0 x 26.0 x 45.0 in (241.3 x 66.04 x 114.3 cm) |
| Weight (Unit/Shipping) | 343 lbs / 397 lbs (155.6 kg / 180.1 kg) |
| Load Capacity (Stationary) | 3,500 lbs (1,588 kg) |
| Load Capacity (Rolling) | 2,250 lbs (1,021 kg) |

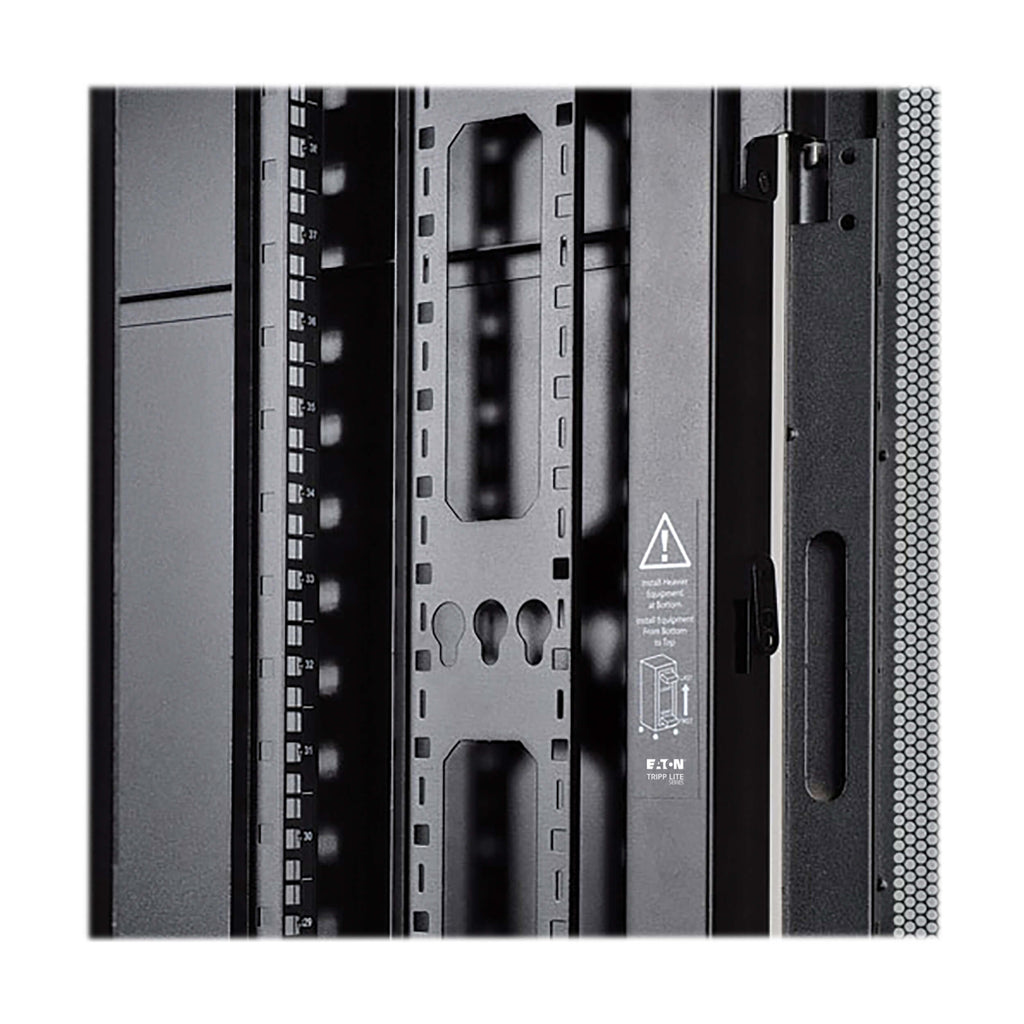

| Rails | 4 vertical mounting rails, square hole, adjustable |
| Max Mounting Depth | 37 in (940 mm) |
| Min Mounting Depth | 4 in (102 mm) |
| Grounding | Front and rear grounding points |
| Casters/Levelers | Pre-installed casters, adjustable/removable levelers |
| Ventilation | >65% perforated doors, vented top panel |

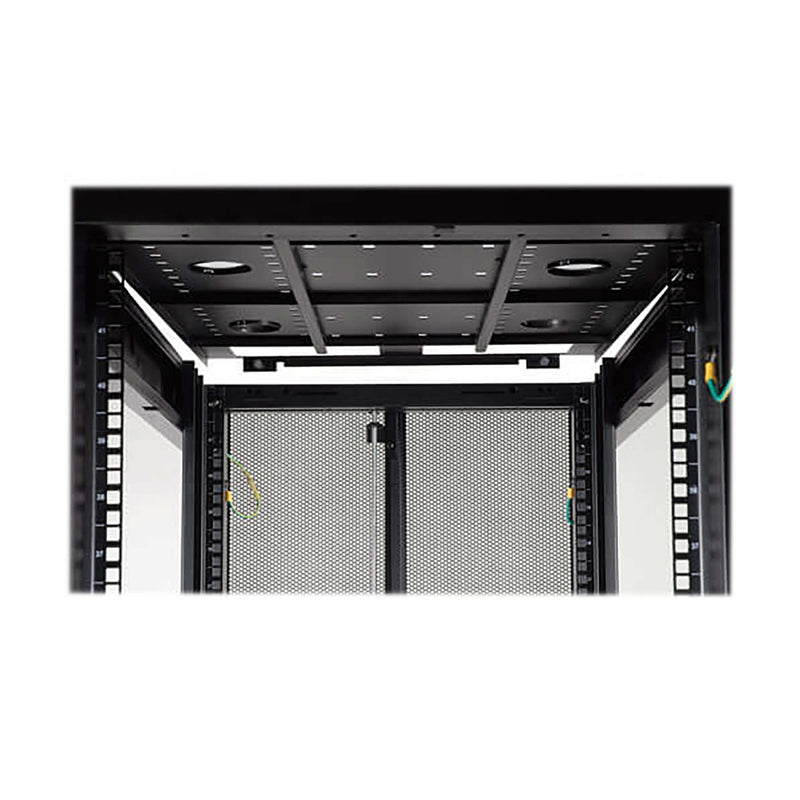

| Cable Access | Open bottom and removable top panel |
| Included Accessories | (50) M6 screws, washers, cage nuts; keys; locks |
| Compliance | PCI DSS, UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-Year Limited Warranty |
| UPC Code | 037332178961 |
