Description
The Eaton Tripp Lite BP48RT2UTAA is a 48V extended battery module designed to provide additional runtime for compatible SmartOnline UPS systems in mission-critical environments. Ideal for government, education, healthcare, and military applications, this battery module ensures continuous power protection while meeting strict TAA compliance requirements.

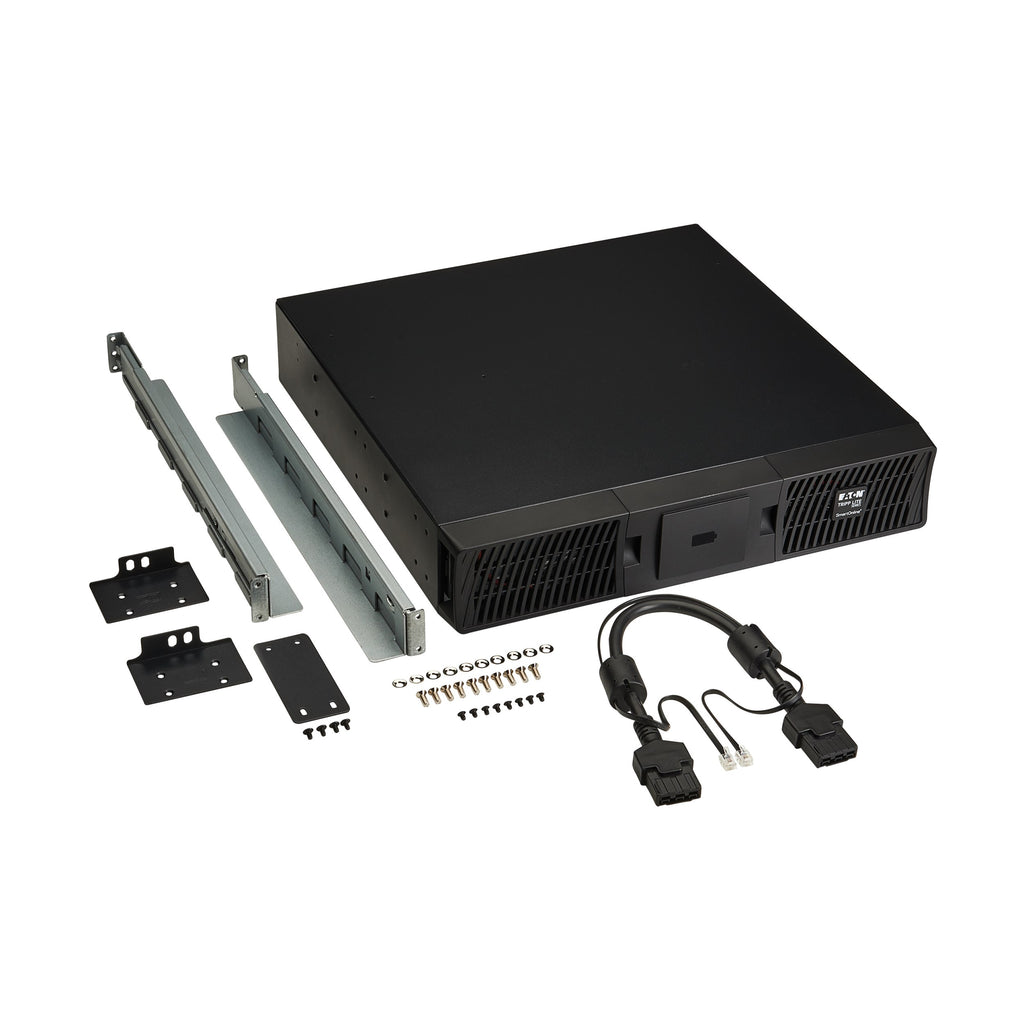

Built with valve-regulated lead-acid (VRLA) batteries, the BP48RT2UTAA supports daisy-chaining of multiple battery packs to scale runtime as power demands grow. It includes heavy-gauge cabling with high-current DC connectors for safe, reliable installation. The versatile 2U rack or tower form factor allows seamless deployment in standard 19-inch racks or upright configurations, making it a flexible solution for data centers and network closets.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite Series |
| Model Number | BP48RT2UTAA |
| Product Type | Extended Battery Module (EBM) |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| DC System Voltage | 48V |
| Battery Capacity | 9 Ah |
| Expandable Runtime | Yes (supports daisy-chaining) |
| Compatible UPS Systems | SmartOnline SU1500RTXLCD2UTAA |
| Form Factor | Rackmount / Tower |
| Rack Height | 2U |
| Rack Compatibility | 19-inch 4-post (included), 2-post (optional) |
| Installation Orientation | Horizontal rack or vertical tower |
| Battery Replacement | Hot-swappable, user-replaceable |
| Certifications | UL 1778, cTUVus |
| Compliance | TAA, CE, FCC, RoHS, REACH |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 0–96% non-condensing |
| Unit Dimensions (H x W x D) | 3.41 x 17.33 x 17.72 in |
| Unit Weight | 59.5 lb (26.99 kg) |
| Warranty | 2-Year Limited Warranty |
