Description

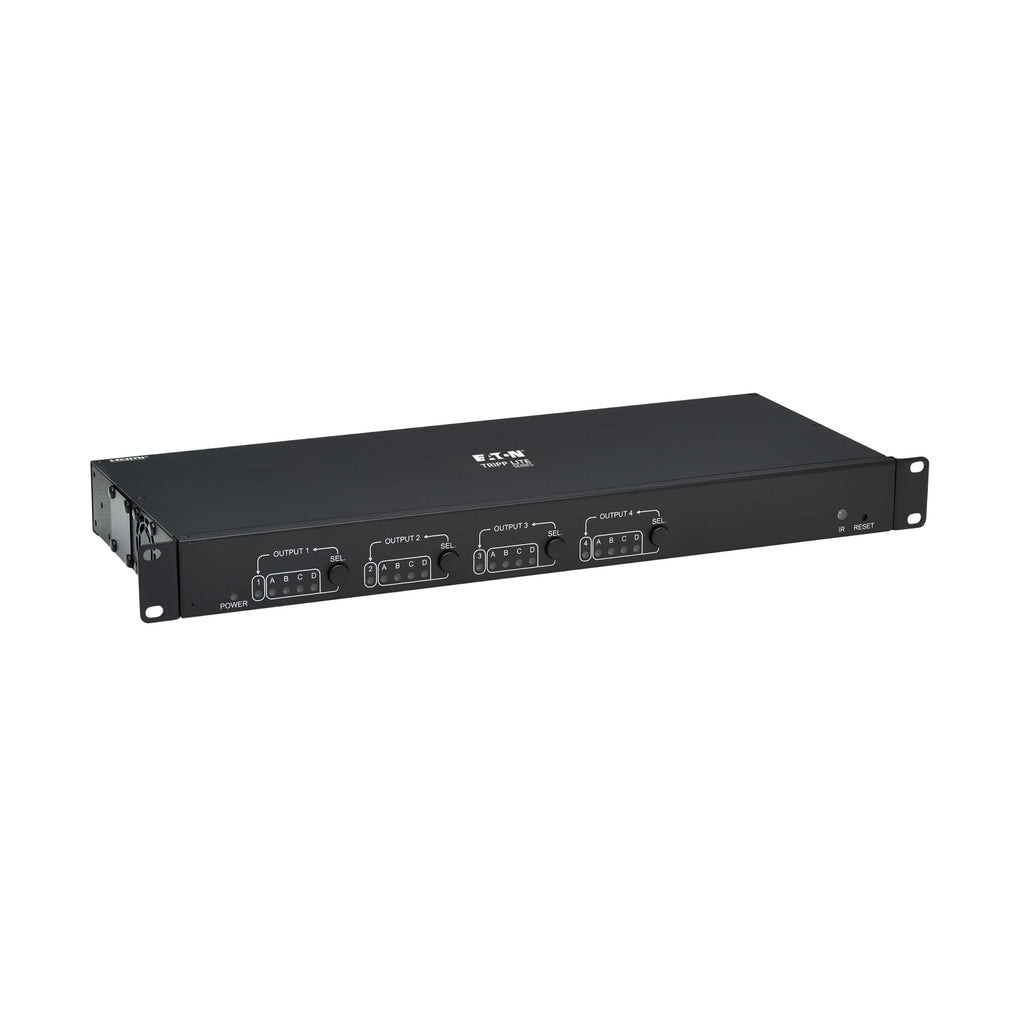

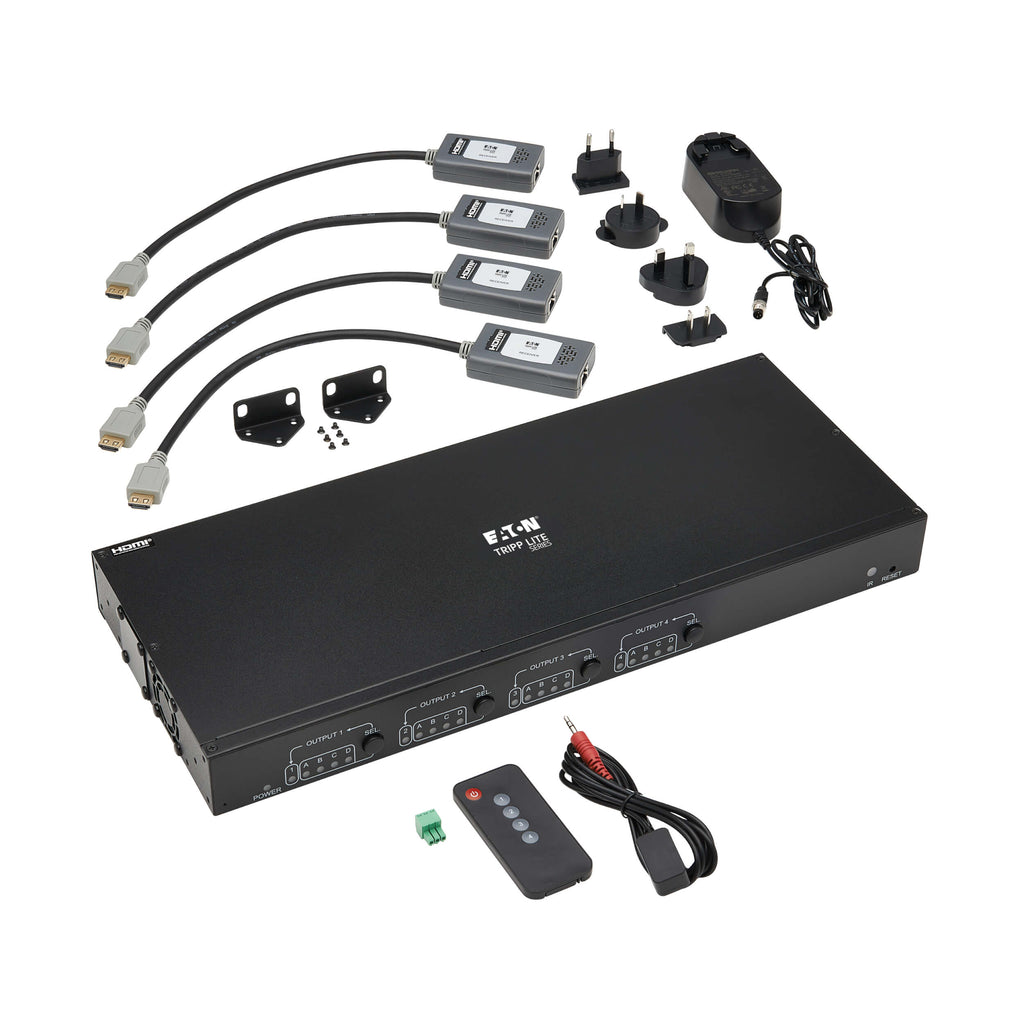

The Eaton Tripp Lite B127A-4X4-BH4PH is a professional-grade 4x4 HDMI over Cat6 matrix switch kit designed for flexible 4K video distribution in commercial, educational, and enterprise environments. It allows any of four HDMI source devices to be routed to any of four remote HDMI displays independently.
Supporting Ultra HD resolutions up to 4K at 60 Hz with full 4:4:4 chroma sampling and HDR, this matrix delivers crisp, vibrant video with zero latency. HDMI signals are extended up to 230 feet over Cat6 cabling, making it ideal for digital signage, conference rooms, classrooms, houses of worship, and trade show installations.

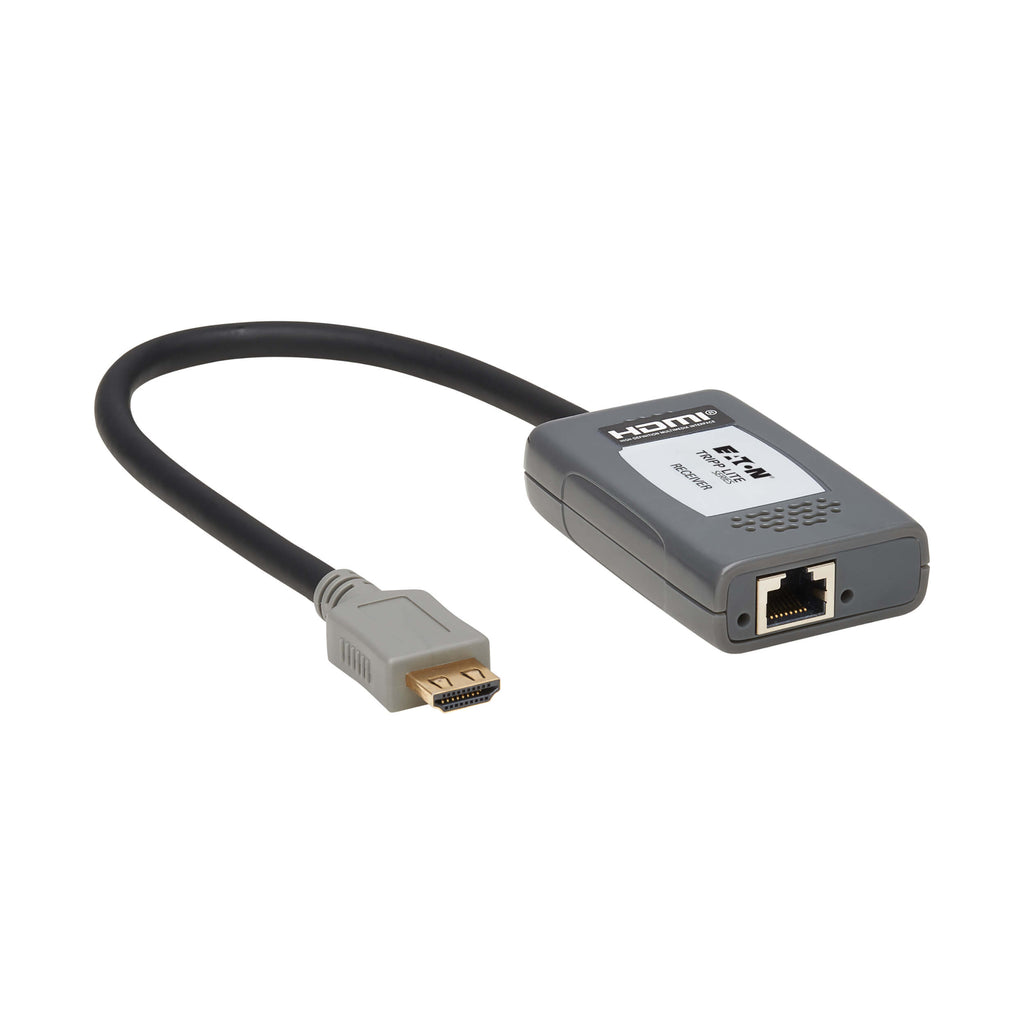

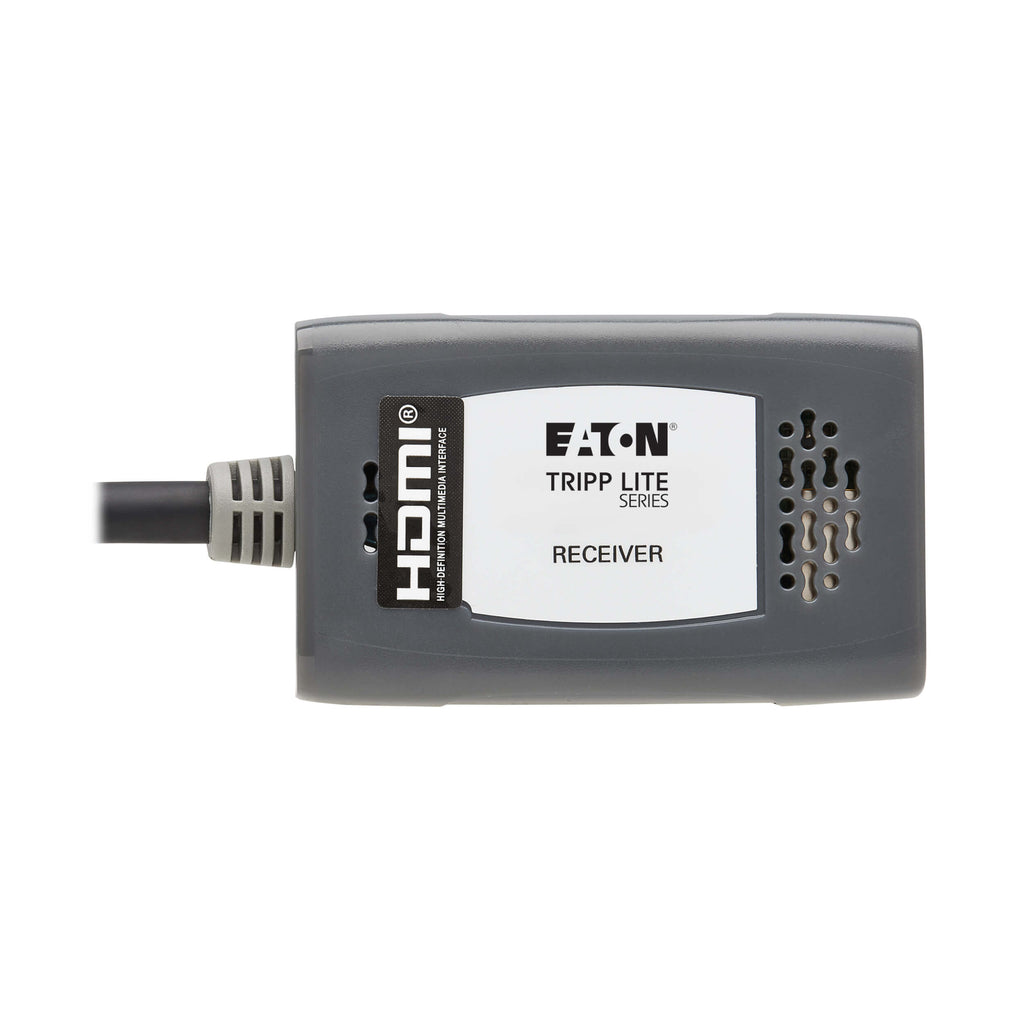

Power over Cable (PoC) technology powers the included pigtail receivers directly from the matrix switch, eliminating the need for local power adapters at each display. Switching can be controlled via front-panel buttons, IR remote control, or RS-232 for integration into AV control systems. The kit is TAA compliant, making it suitable for government and GSA procurement.
| Specification | Details |
|---|---|
| Product Type | HDMI over Cat6 Matrix Switch Kit |
| Matrix Configuration | 4 x 4 |
| Video Resolution | Up to 3840 x 2160 (4K) @ 60 Hz |
| HDMI Standard | HDMI 2.0 |
| HDCP Support | HDCP 1.4 & 2.2 |
| Chroma Subsampling | 4:4:4 |
| HDR Support | Yes |
| Audio Support | Lossless audio including LPCM 7.1 |
| Maximum Distance | 230 ft (70 m) over Cat6 |
| Power over Cable (PoC) | Yes (receivers powered from switch) |

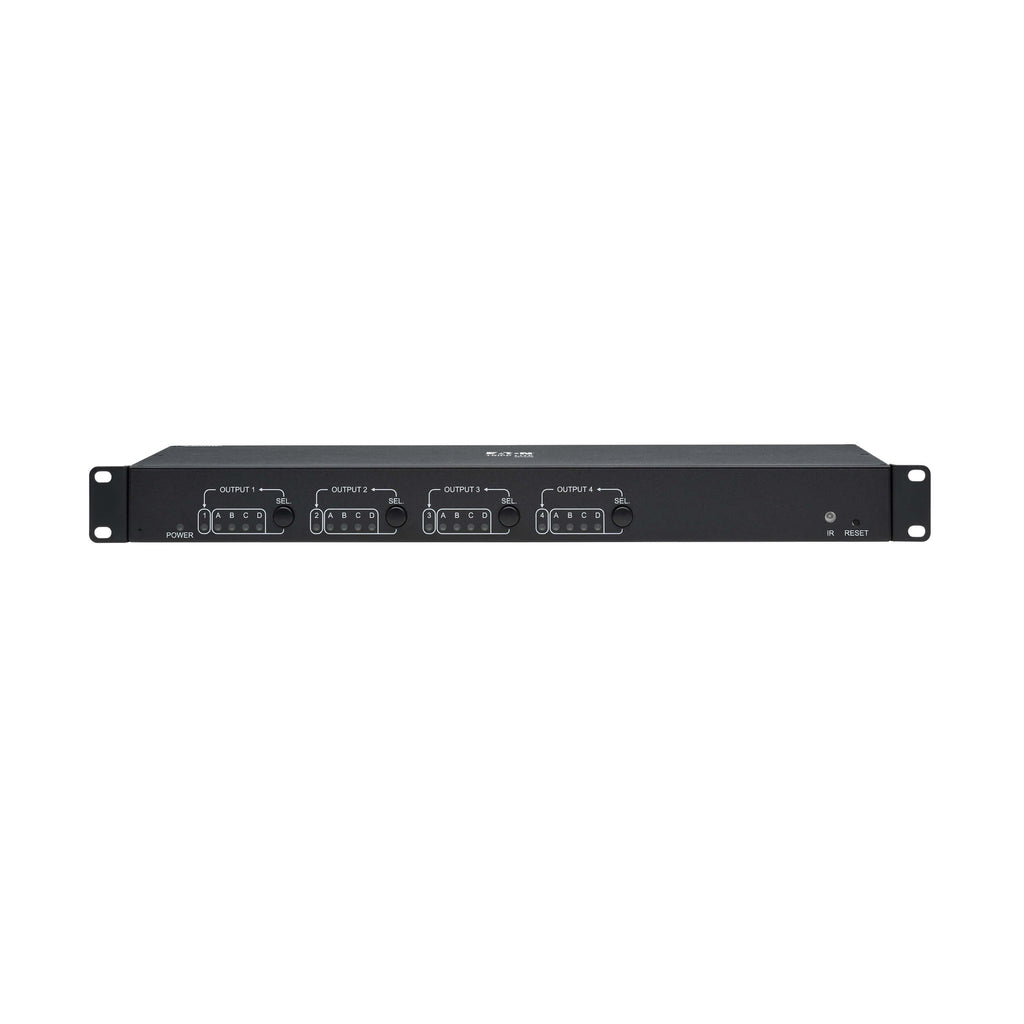

| Control Methods | Front-panel buttons, IR remote, RS-232 |

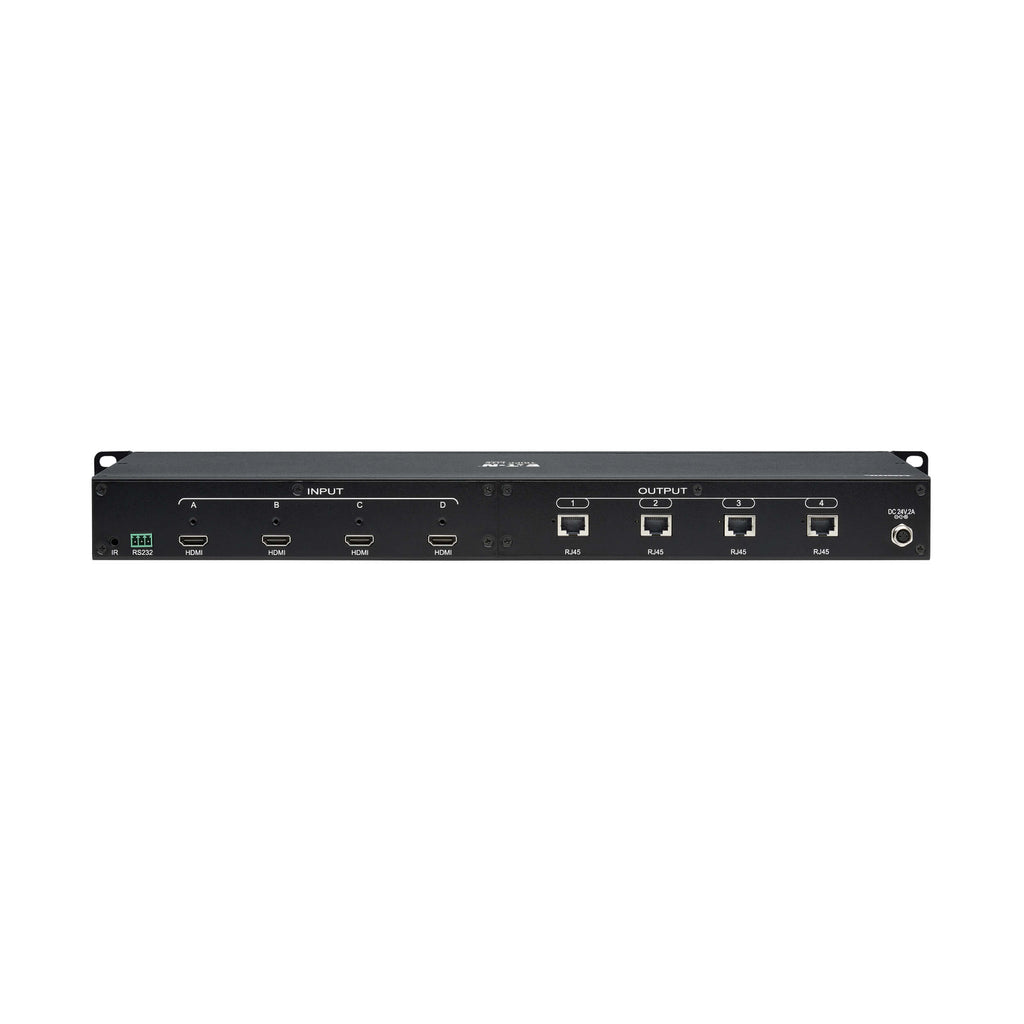

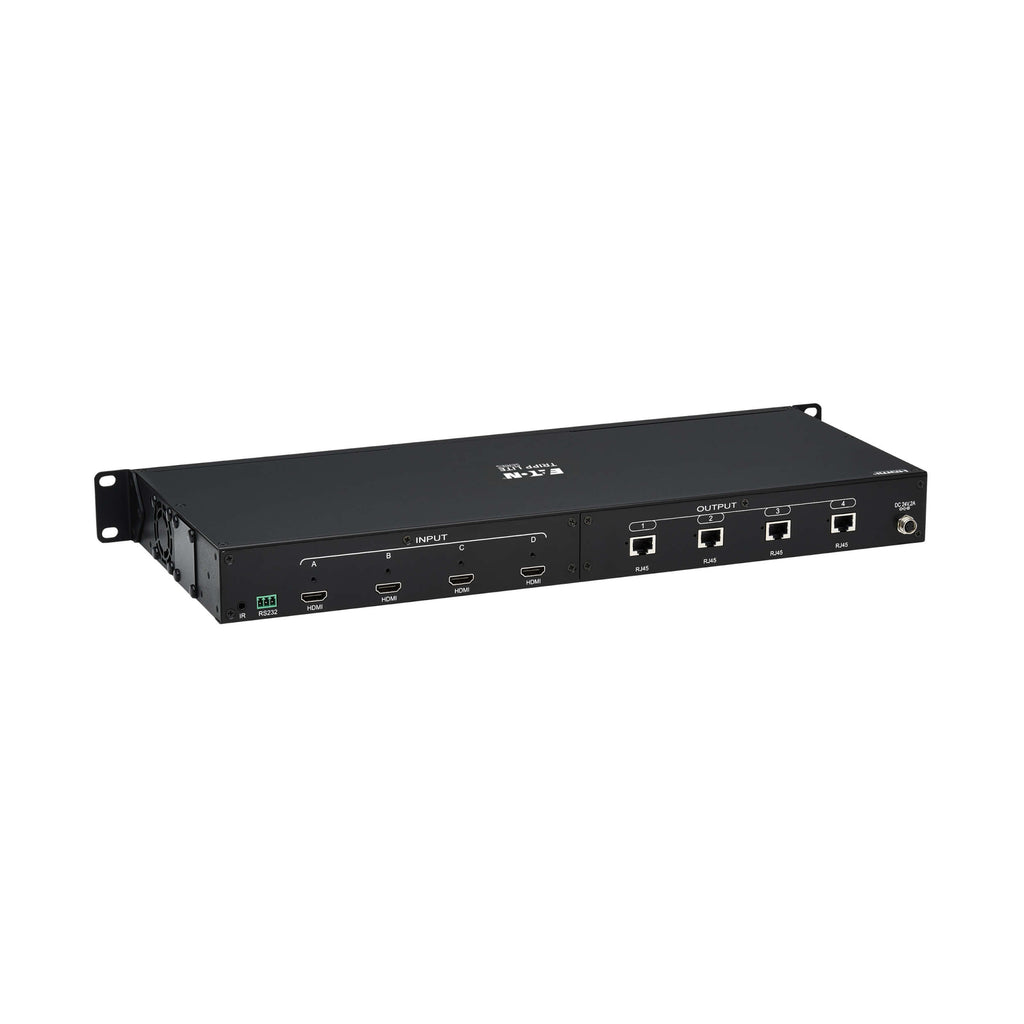

| Video Inputs | 4 x HDMI (Female) |

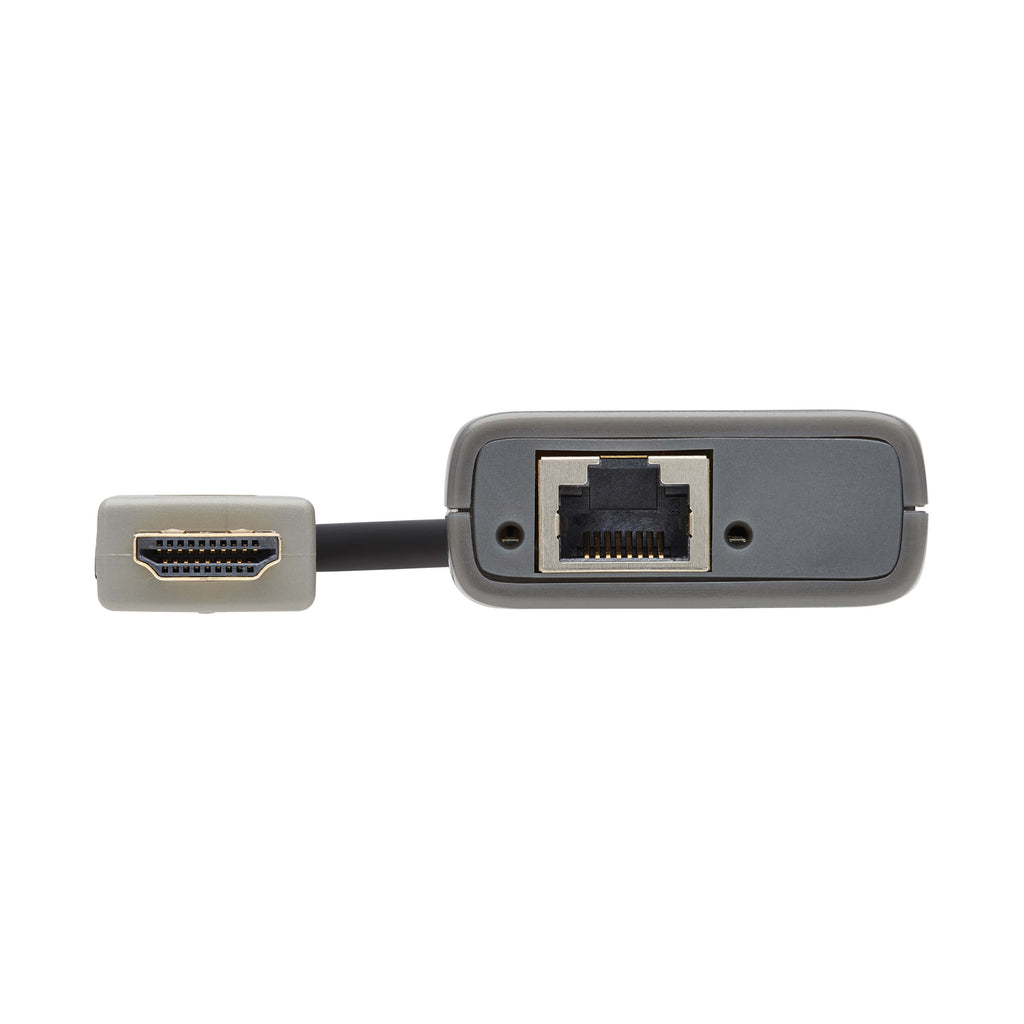

| Video Outputs | 4 x HDMI (via pigtail receivers) |
| Cat6 Ports | 4 x RJ45 |
| Mounting Options | Rack, wall, tabletop |
| Rack Height | 1U |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | TAA, RoHS, CE, FCC |
| Color | Black |
