Description

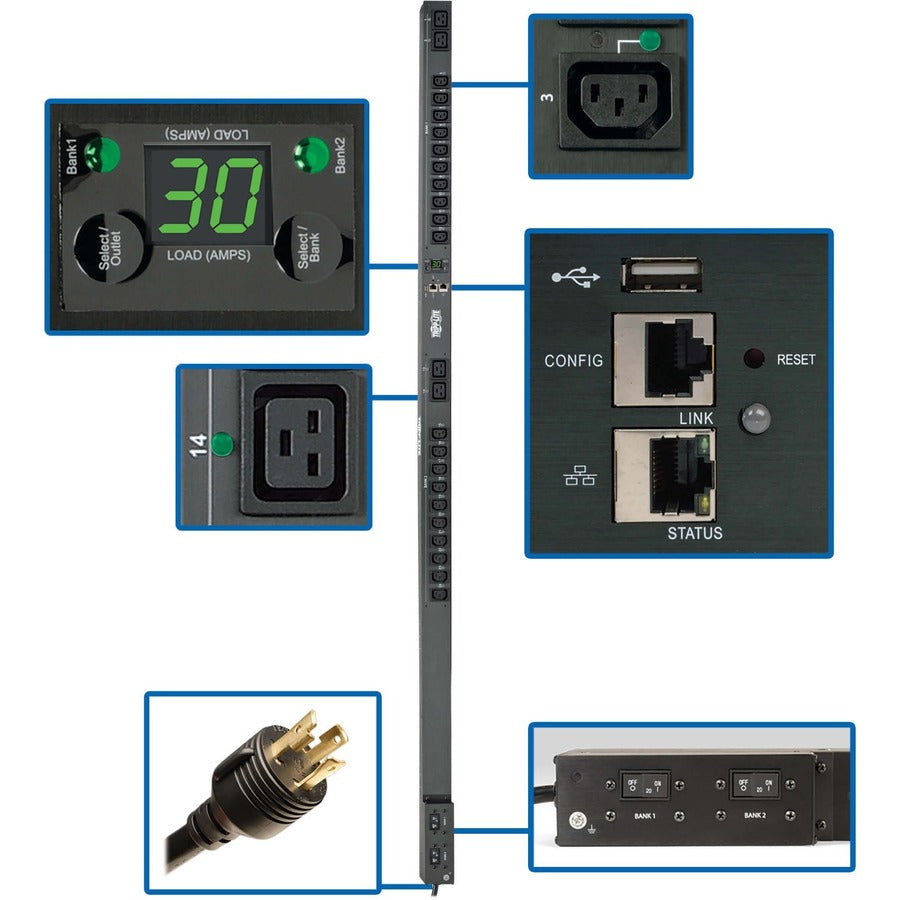

Power your mission-critical infrastructure with precision using the Eaton PDUNVR30HVLX — a 5.5kW single-phase monitored per-outlet PDU designed for high-density rack environments. Featuring 24 total outlets (20 C13 and 4 C19), advanced real-time monitoring via the built-in LX Platform (WEBCARDLX), and TAA compliance, this vertical 0U PDU ensures reliability and control for data centers, server rooms, and government installations.
Monitor voltage, current (per outlet and bank), and power consumption trends with 1% billing-grade accuracy. The LCD panel offers clear local load visibility, while remote access through HTML5, SNMP, SSH, and PowerAlert Device Manager (PADM20) enhances management capabilities. Includes tool-less mounting, C13/C19 plug-locks, and a 10-ft L6-30P power cord.
| Specification | Details |
|---|---|
| Model Number | PDUNVR30HVLX |
| Power Capacity | 5.5kW @ 230V / 5.0kW @ 208V |
| Input Voltage | 208/230V, Single-Phase |
| Input Plug | NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Max Input Current | 30A max (agency de-rated to 24A continuous) |
| Output Outlets | 20 × C13, 4 × C19 |
| Output Voltage | 208/230V |
| Outlet Bank Protection | 2 × 20A breakers (12 outlets per bank) |
| Monitoring Features | Per-outlet and per-bank current monitoring, load meters, IP address display |
| Interface | Built-in WEBCARDLX, PowerAlert Device Manager (PADM20), Auto Probe feature |
| Form Factor | 0U Vertical Rackmount (70 in height) |
| Dimensions (H × W × D) | 178 × 5.6 × 6.6 cm (70 × 2.2 × 2.6 in) |
| Weight | 5.44 kg (12 lbs) |
| Material | Metal construction |
| TAA Compliant | Yes |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Network Interface | RJ45, USB A (Envirosense2 support), Serial DB9 |
| Network Speed | 10/100 Mbps |
| Certifications | UL 60950-1, CAN/CSA-C22.2, NOM, FCC Class A, RoHS |
| Warranty | 2-Year Limited Warranty |
