Description

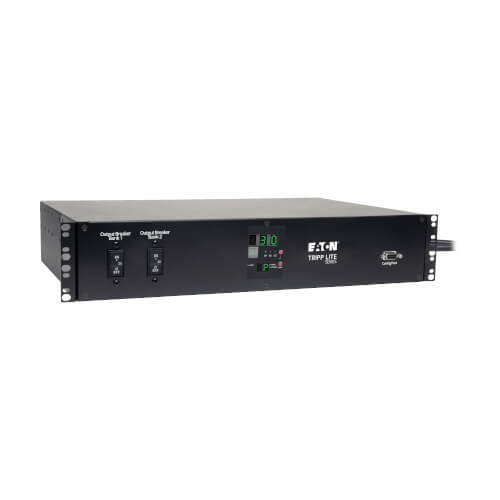

The Eaton Tripp Lite PDUMH30HVAT is a high-availability, single-phase Automatic Transfer Switch (ATS) rack PDU designed to provide uninterrupted power to critical IT and network equipment. Built for 200–240V environments, this 2U horizontal rackmount PDU automatically switches between two independent power sources to maintain continuous operation for single-corded devices.
This locally metered ATS PDU features a front-panel digital display that provides real-time visibility into voltage, amperage, and kilowatt load across four output segments. With 19 total outlets—including C13, C19, and L6-30R—along with plug-lock cable retention, the PDUMH30HVAT supports dense rack deployments while minimizing accidental power disconnections.
Engineered for fast and reliable failover, the solid-state transfer mechanism switches power sources in milliseconds when primary power becomes unstable. Ideal for data centers, network closets, and mission-critical environments, this TAA-compliant PDU supports redundant UPS configurations, generators, or separate utility feeds for maximum uptime and operational resilience.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMH30HVAT |
| PDU Type | Local Metered Automatic Transfer Switch (ATS) |
| Phase | Single-Phase |
| Input Voltage | 200–240V |
| Input Current | 30A (24A continuous) |
| Input Plugs | (2) NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | Up to 5.8 kW |
| Output Voltage | 200–240V |
| Output Receptacles | 16 × C13, 2 × C19, 1 × L6-30R |
| Metering | Local metering with digital front display |
| Display Metrics | Voltage, amperage, kilowatts (by segment & total) |
| Transfer Time | 1–5 milliseconds |
| Circuit Protection | Dual 20A breakers for C13/C19 banks |
| Rack Size | 2U |
| Mounting Orientation | Horizontal rackmount |
| Construction | Metal |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | TAA Compliant |
| Certifications | UL, FCC Class A, RoHS |
| Warranty | 2-Year Limited |
