Description

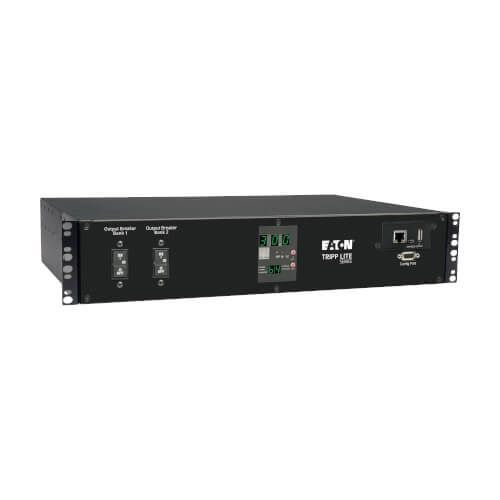

The Eaton Tripp Lite PDUMH30HVATNET is a 5.8 kW single-phase switched Automatic Transfer Switch Power Distribution Unit (ATS PDU) engineered to deliver redundant power and intelligent control for critical IT environments. Featuring two 200–240 V L6-30P inputs, this 2U rackmount unit ensures continuous uptime by automatically switching between primary and secondary power sources within 2–6 milliseconds during outages or instability.
Equipped with 19 switched outlets (16 C13, 2 C19, 1 L6-30R), the PDU supports individual outlet control and remote monitoring through its pre-installed WEBCARDLX running PowerAlert Device Manager (PADM20). A front-panel LCD and LED indicators provide real-time current, voltage, and load segment readings, while the Auto Probe feature autonomously restores connectivity when disruptions occur.
Built for demanding enterprise and data-center applications, this model supports solid-state switching, sequential power-on, and SNMP/SSH/HTTP management. Fully compliant with TAA, RoHS, and FCC Part 15 Class A, it provides reliable power management, redundancy, and visibility for mission-critical infrastructure.
| Category | Details |
|---|---|
| Model Number | PDUMH30HVATNET |
| Type | Switched Automatic Transfer Switch (ATS) Rack PDU |
| Phase | Single-Phase |
| Input Voltage | 200 / 208 / 220 / 230 / 240 V AC |
| Input Connectors | (2) NEMA L6-30P (Primary & Secondary) |
| Input Cord Length | 10 ft (3.05 m) each |
| Maximum Input Amps | 30 A (de-rated to 24 A continuous) |
| Output Capacity | 5.8 kW @ 240 V / 24 A max |
| Output Voltage | 200–240 V AC |
| Output Receptacles | (16) C13 / (2) C19 / (1) L6-30R (total 19 outlets) |
| Overload Protection | (2) 20 A circuit breakers + unbreakered L6-30R |
| Form Factor | 2U Horizontal Rackmount |
| Dimensions (H × W × D) | 3.5 × 17.5 × 12.5 in (8.8 × 44.5 × 31.8 cm) |
| Weight | 13.7 lb (6.21 kg) |
| Display | 2-digit LCD shows amps, kW, voltage per bank and input line |
| Network Interface | Pre-installed WEBCARDLX (LX Platform), 10/100 Mbps Ethernet |
| Remote Management | PowerAlert Device Manager (PADM20), SNMP, SSH, Telnet, HTTP/HTTPS |
| Switching Speed | 2–6 milliseconds between sources |
| Power Monitoring Accuracy | ±1% (Amps, Volts, Watts) |
| Operating Temperature | 0 °– 40 °C (32 °– 104 °F) |
| Humidity | 5 %– 95 % non-condensing |
| Compliance | UL 60950-1, RoHS, FCC Part 15 Class A, TAA |
| Warranty | 2-Year Limited Warranty |
| Package Includes | 2U ATS PDU, rackmount brackets, retention sleeves, USB config cable, manual |
