Description
The Eaton Tripp Lite SU6000XFMR2U is a 6kVA/6kW step-down isolation transformer designed to convert 208V or 240V high-voltage input from a utility, generator, or UPS into standard 120V output. With 8 NEMA 5-15/20R, 4 NEMA 5-15R, and 1 L6-30R receptacle, this transformer accommodates a wide range of IT equipment and high-voltage plugs. Housed in a compact 2U rack/tower form factor, it is ideal for 4-post or 2-post rack mounting and tower installations. It’s the perfect solution for facilities that require safe voltage conversion with isolation for sensitive electronics.
| Category | Details |
|---|---|
| Model Number | SU6000XFMR2U |
| Type | Step-Down Isolation Transformer |
| Power Capacity | 6kVA / 6,000W |
| Input Voltage | 208V / 240V AC |
| Input Connection | L6-30P plug (included) or hardwire |
| Input Cord Length | 4 ft (1.2 m) |
| Max Input Amps | 24A (L6-30P); 30A (hardwire) |
| Output Voltage | 120V AC (with isolation); 208/240V pass-through |

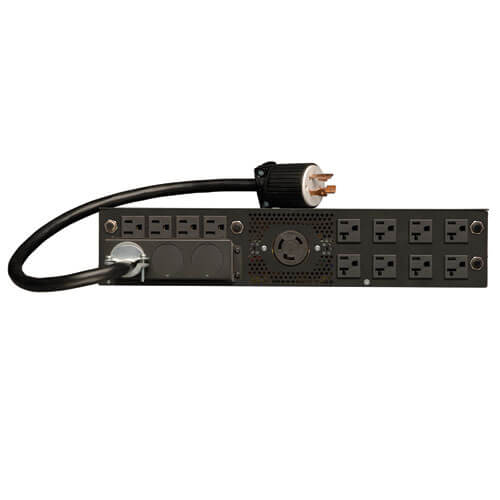

| Output Receptacles | (8) NEMA 5-15/20R, (4) NEMA 5-15R, (1) L6-30R |
| Overload Protection | (2) 15A breakers for 5-15R; (2) 20A breakers for 5-20R; L6-30R is unbreakered |
| Frequency | 60 Hz |
| Form Factor | 2U Rackmount / Tower |
| Material | Steel |
| Rack Depth Required | Minimum 25 in. (63.5 cm) |
| Unit Dimensions (HxWxD) | 3.5 x 17.5 x 21.76 in (8.9 x 44.5 x 55.4 cm) |
| Shipping Dimensions | 8.8 x 22.0 x 27.0 in (22.35 x 55.88 x 68.58 cm) |
| Unit Weight | 72.6 lbs (32.93 kg) |
| Shipping Weight | 83 lbs (37.65 kg) |
| Humidity | 0–95% non-condensing |
| Certifications | RoHS compliant |
| Warranty | 2-Year Limited Warranty |
| UPC | 037332151612 |
