Description

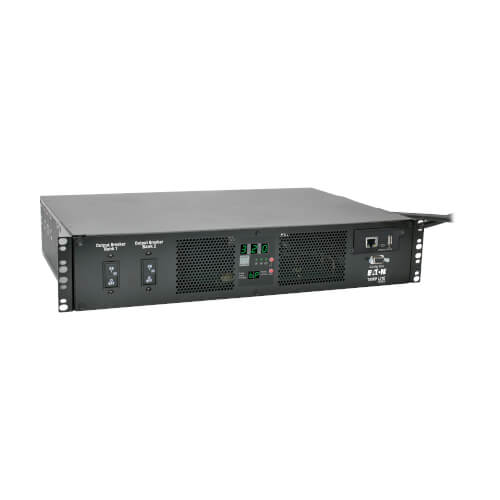

The Eaton Tripp Lite PDUMH32HVATNET is a high-capacity 7.7 kW single-phase switched automatic transfer switch (ATS) PDU that provides redundant power and real-time monitoring for mission-critical IT environments. Designed for data centers, network closets, and server rooms, this 2U rackmount PDU features dual 200–240 V IEC309 32A Blue (2P+E) inputs, 18 switched outlets (16 × C13, 2 × C19) in two breaker-protected load banks, and TRIAC-based transfer switching for fast, seamless failover between primary and secondary power sources.
The integrated LX Platform network interface allows secure remote monitoring, outlet control, and environmental data collection via HTTP/HTTPS, SNMP (v1/v2/v3), Telnet, SSH, and FTP. Real-time load reporting and automated alerts help prevent overloads and downtime. A bright digital LED display provides local insight into voltage, current, kilowatts, and power factor.
Engineered for TAA compliance and EIA 19-inch racks, the PDUMH32HVATNET includes plug-lock cable retention sleeves, rack brackets, and a 2-year limited warranty — delivering reliability, safety, and visibility for high-availability infrastructures.
| Category | Details |
|---|---|
| Model | PDUMH32HVATNET |
| Power Capacity | 7.7 kW (240 V), 7.4 kW (230 V), 7.0 kW (220 V), 6.7 kW (208 V), 6.4 kW (200 V) |
| Input Voltage / Phase | 200–240 V AC / Single-Phase |
| Input Type | (2) IEC 309 32A Blue (2P+E) Plugs |
| Input Cord Length | 3 m (10 ft) each |
| Output Receptacles | (16) C13, (2) C19 switched outlets |
| Output Voltage | 200–240 V |
| Output Capacity | 32 A total (16 A per bank, 16 A per C19, 10 A per C13) |
| Form Factor | 2U Rackmount / Horizontal |
| Transfer Switching | Solid-state (TRIAC) automatic transfer switch (1–5 ms transfer time) |
| Monitoring Interface | LX Platform – HTML5, HTTP/HTTPS, SNMP v1/v2/v3, Telnet, SSH, FTP, DHCP, NTP |
| Display | Multifunction digital LED – line voltage, frequency, amps, kW, power factor |
| Accuracy | ±1 % (Amps, Volts, Watts) |
| Circuit Protection | (2) 20 A breakers – each load bank |
| Construction | Metal chassis |
| Dimensions (H×W×D) | 3.5 × 17.5 × 12.5 in (8.8 × 44.4 × 31.7 cm) |
| Weight | 13.7 lb (6.21 kg) |
| Rack Compatibility | EIA-standard 19 in 4-post racks |
| Environment | Operating 0 – 40 °C / 32 – 104 °F; Humidity 5–95 % non-condensing |
| Certifications | CE, FCC Part 15 Class A, UKCA, RoHS, TAA, CAN/CSA-C22.2 No. 60950-1, NOM |
| Warranty | 2-Year Limited Warranty |
