Description
The Eaton Tripp Lite SmartOnline BP72RT2UTAA is a 72V extended battery module designed to provide additional runtime for select SmartOnline UPS systems in mission-critical environments. Ideal for government, healthcare, education, and enterprise applications, this battery pack ensures continued power availability during extended outages while meeting strict TAA compliance requirements.

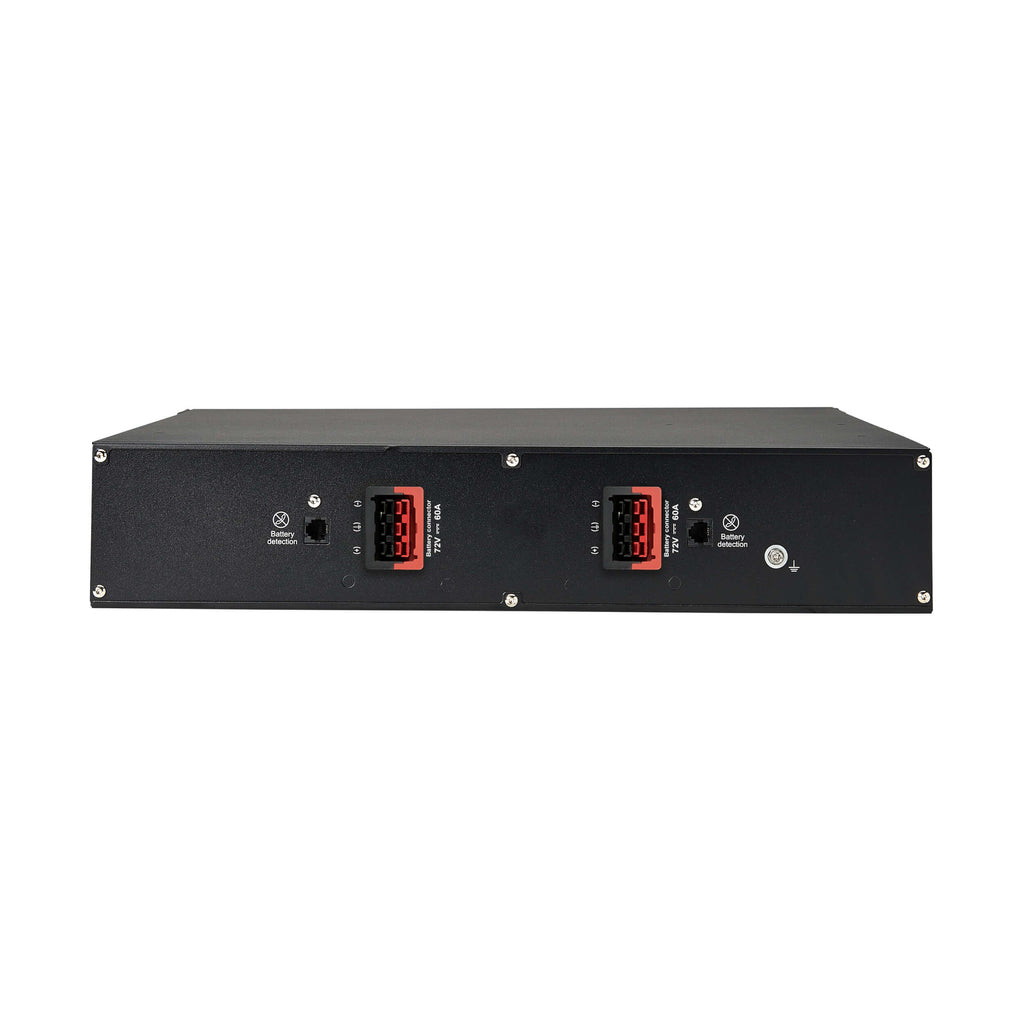

Built with valve-regulated lead-acid (VRLA) batteries, the BP72RT2UTAA supports hot-swappable, user-replaceable battery cartridges for simplified maintenance and reduced downtime. It connects via high-current DC connectors and can be daisy-chained with additional battery packs to further extend runtime as power demands grow.

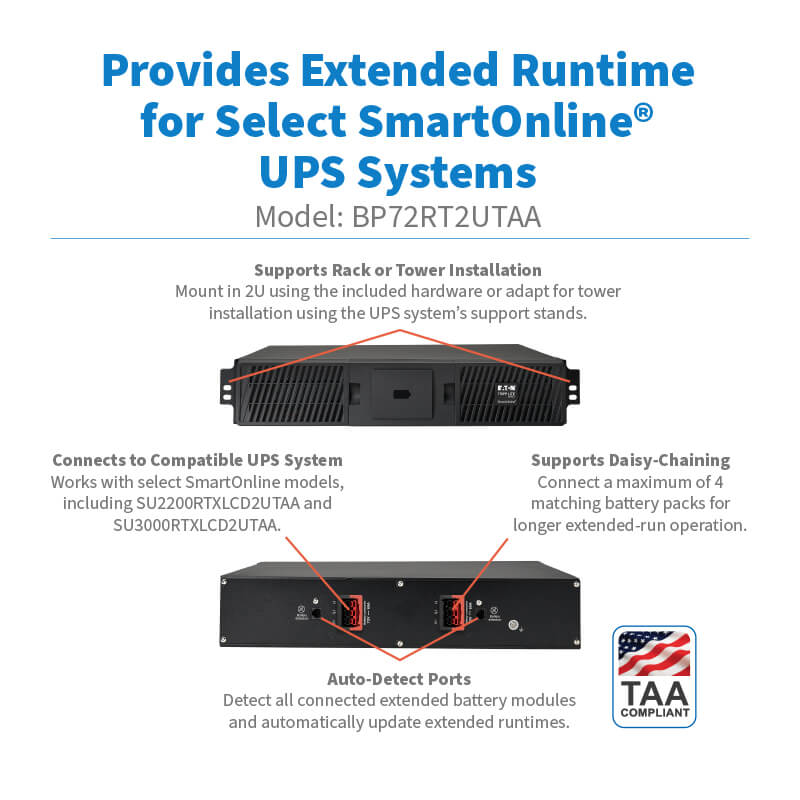

The versatile 2U rack/tower form factor allows deployment in standard 19-inch racks or upright tower configurations, making it easy to integrate into existing infrastructure. Designed for reliability, scalability, and federal procurement readiness, this extended battery module is an essential companion for compatible SmartOnline UPS systems.
| Specification | Details |
|---|---|
| Product Type | Extended Battery Module (EBM) |
| Brand | Eaton Tripp Lite Series |
| Model Number | BP72RT2UTAA |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| DC System Voltage | 72V |
| Battery Capacity | 9Ah |
| Expandable Runtime | Yes, supports daisy-chaining |
| Maximum Supported Battery Packs | Up to 4 total |
| Form Factor | Rackmount / Tower |
| Rack Height | 2U |
| Rack Compatibility | 19-inch EIA standard |
| Minimum Rack Depth | 27 in (68.58 cm) |

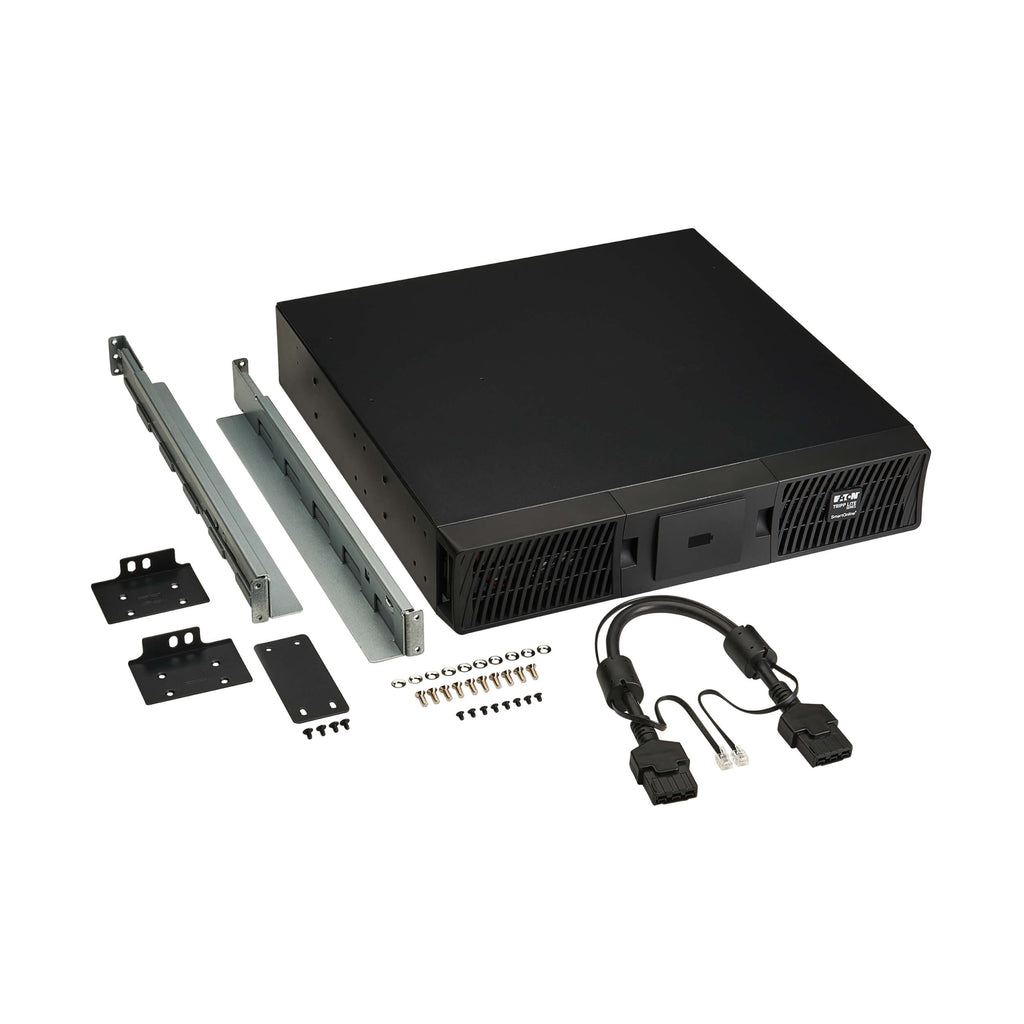

| Installation Options | 4-post rack (included), 2-post rack (optional), tower |
| Compatible UPS Systems | SU2200RTXLCD2UTAA, SU3000RTXLCD2UTAA |
| Battery Replacement | Hot-swappable, user-replaceable |
| Unit Dimensions (H × W × D) | 3.41 × 17.33 × 23.82 in |
| Unit Weight | 86.4 lb (39.19 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity Range | 0–96% non-condensing |
| Compliance | TAA, UL 1778, CE, FCC, RoHS, REACH |
| Warranty | 2-Year Limited Warranty |
