Description
The Eaton B024-H4U08 8-Port 4K HDMI/USB KVM Switch lets you control and manage up to eight HDMI-enabled computers or devices using a single 4K monitor, USB keyboard, and mouse. Perfect for server rooms, AV control stations, and multimedia environments, this space-saving 1U rackmount KVM delivers true 4K UHD clarity at 60 Hz and includes a built-in 2-port USB 3.2 Gen 1 hub for sharing peripherals between systems.
Easily switch between connected devices via front-panel push buttons, keyboard hotkeys, or a multilingual on-screen display (OSD). For large-scale installations, you can cascade up to three levels to control as many as 512 computers from a single console. The B024-H4U08 also supports independent audio switching, letting you listen to one computer while working on another.
With plug-and-play compatibility across Windows, Mac, Linux, UNIX, and Novell systems, this KVM switch simplifies setup and integration. Its durable metal chassis supports both 1U rackmount and desktop deployment. Fully TAA-compliant, it’s ideal for government or enterprise applications that demand secure, high-performance control.
| Category | Specification |
|---|---|
| Model | Eaton B024-H4U08 |
| Type | 8-Port 4K HDMI/USB KVM Switch |
| Video Resolution | Up to 4096 × 2160 @ 60 Hz (4K UHD) |
| Audio Support | 2.1-Channel Surround Sound |
| USB Hub | 2 × USB 3.2 Gen 1 ports (up to 5 Gbps, backward compatible) |
| Computer Ports | 8 × HDMI (F), 8 × USB B (F), 8 × 3.5 mm Audio (F) |
| Console Ports | HDMI (F), 2 × USB A (F), 3.5 mm Audio (F) |
| Video/Audio Switching | Independent control; supports HDCP 2.2 |
| Control Methods | Front-panel push buttons, hotkeys, OSD, Auto-Scan mode |
| Maximum Cascade | Up to 3 levels (512 computers) |
| Operating Systems | Windows, Mac, Linux, UNIX, Novell |
| Rackmountable | Yes, 1U (mounting hardware included) |
| Construction | Metal chassis with rubber feet for desktop use |
| Power Supply | 100–240 V AC, 50/60 Hz (12 V 5 A output) |
| Dimensions (W × D × H) | 17.02 × 8.44 × 1.73 in (43.24 × 21.43 × 4.40 cm) |
| Weight | 6.85 lb (3.11 kg) |
| Environmental Conditions | Operating 0 – 40 °C; Storage –20 – 60 °C; 0–80% RH non-condensing |
| Certifications | CE, FCC, RoHS, REACH, WEEE, UL, TAA Compliant |
| Warranty | 3-Year Limited Warranty |

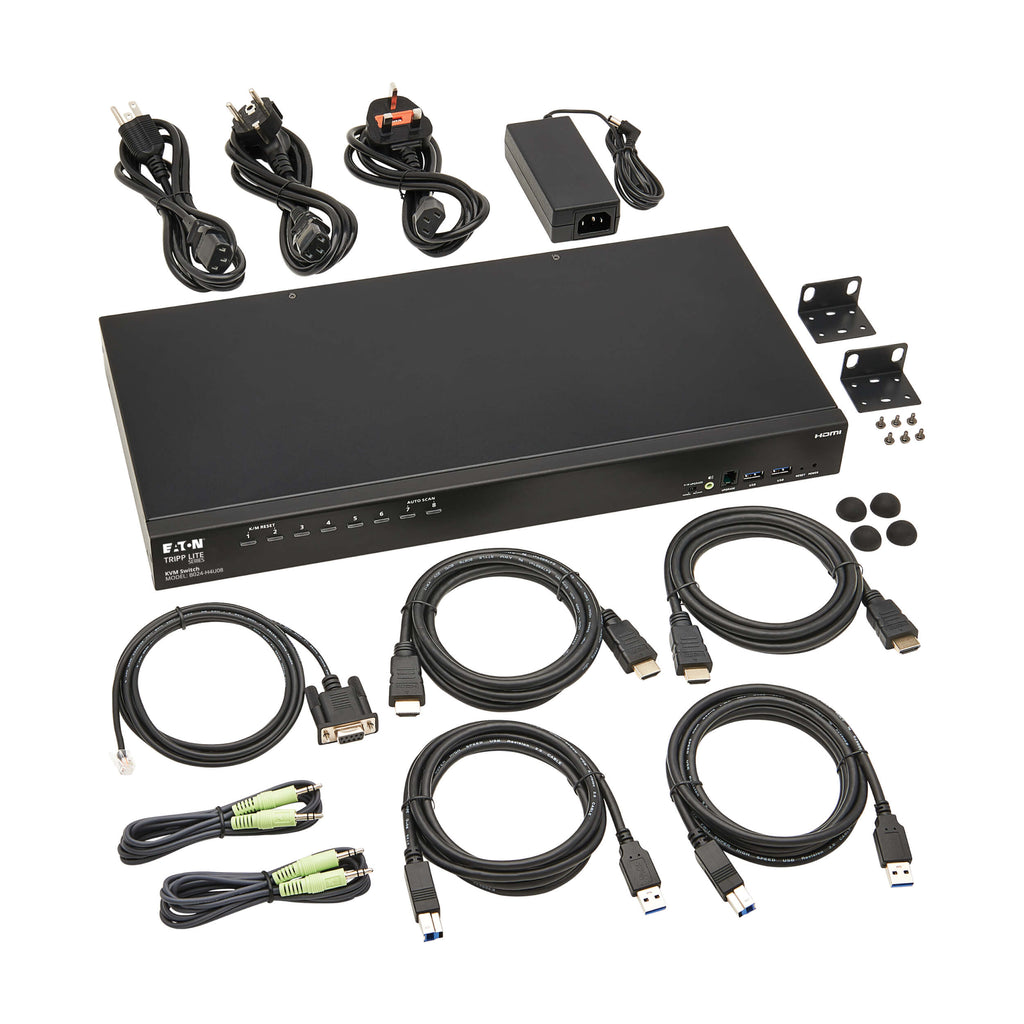

| Package Includes | KVM switch, (2) HDMI/USB KVM cable kits (6 ft), firmware upgrade cable, power supply + intl. cords, rack mount kit, rubber feet, Quick Start Guide |
