Description

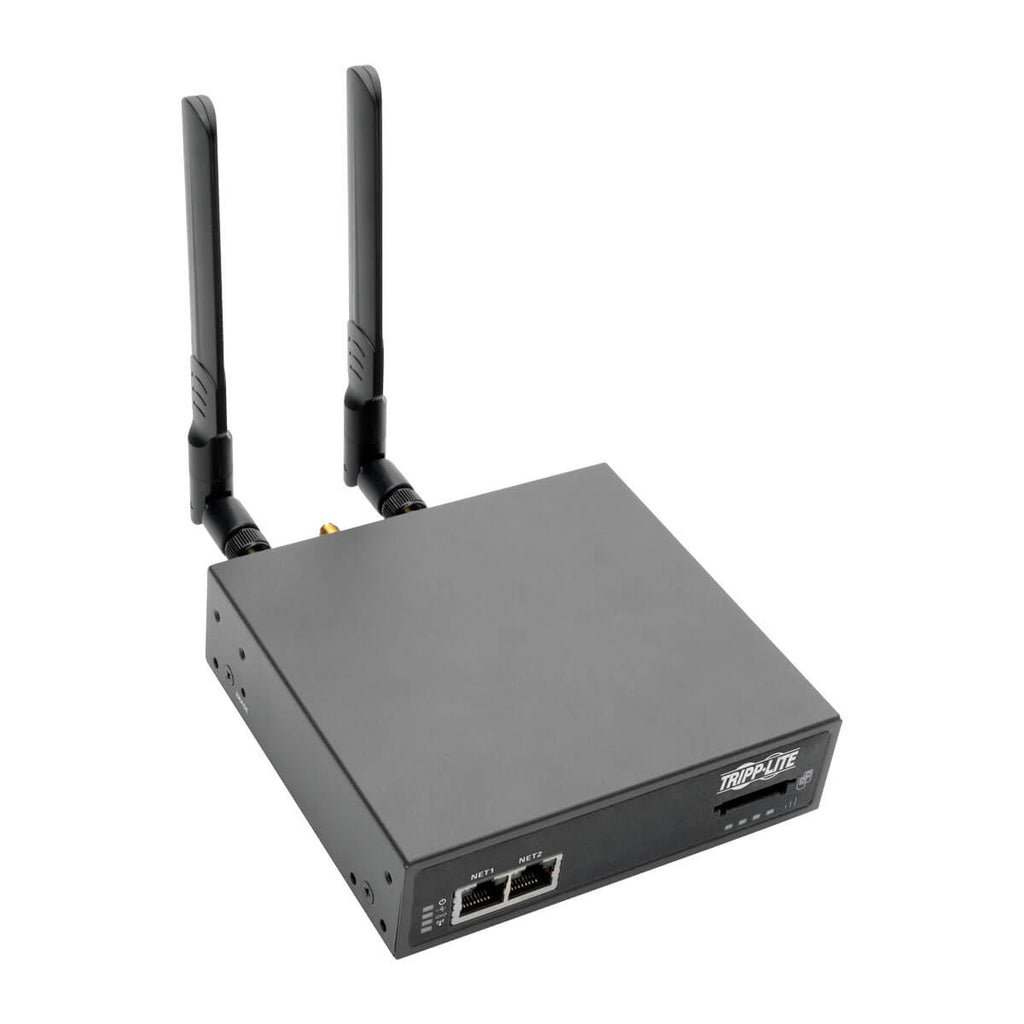

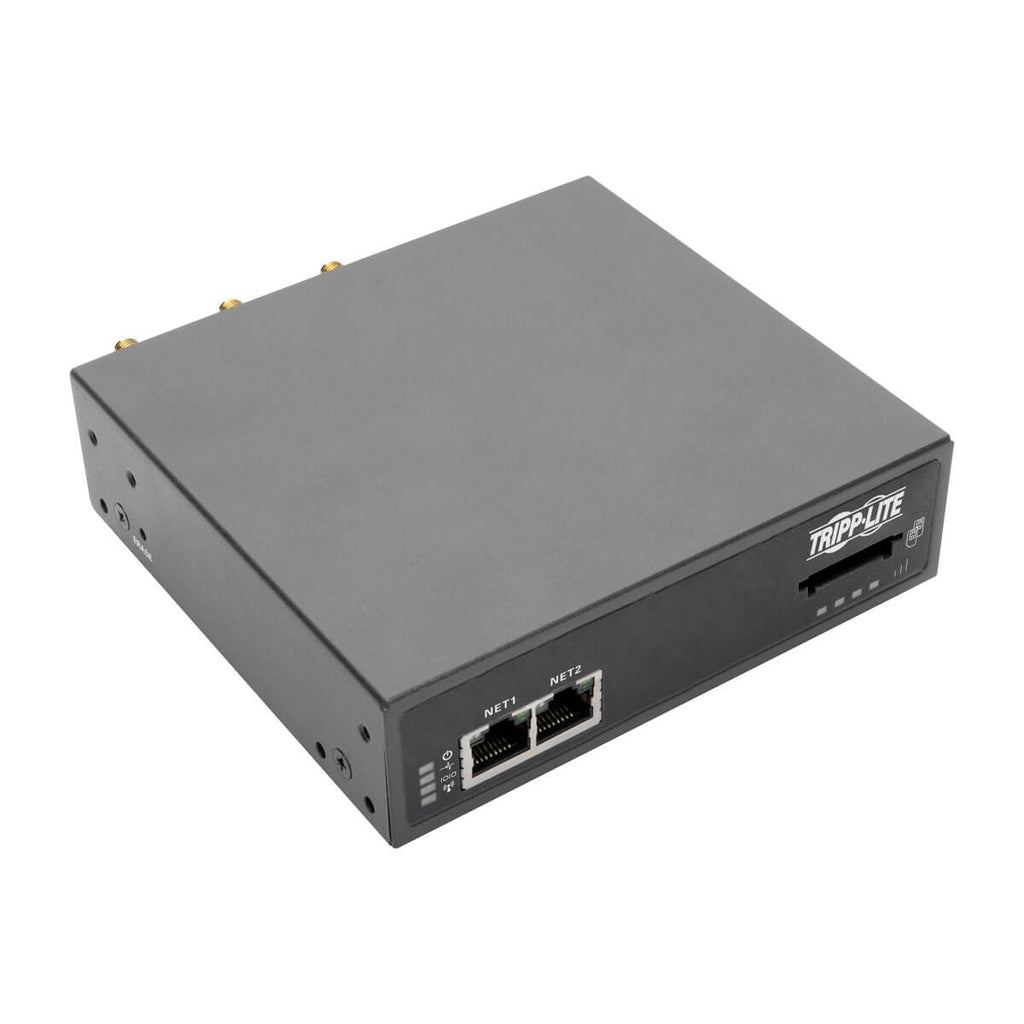

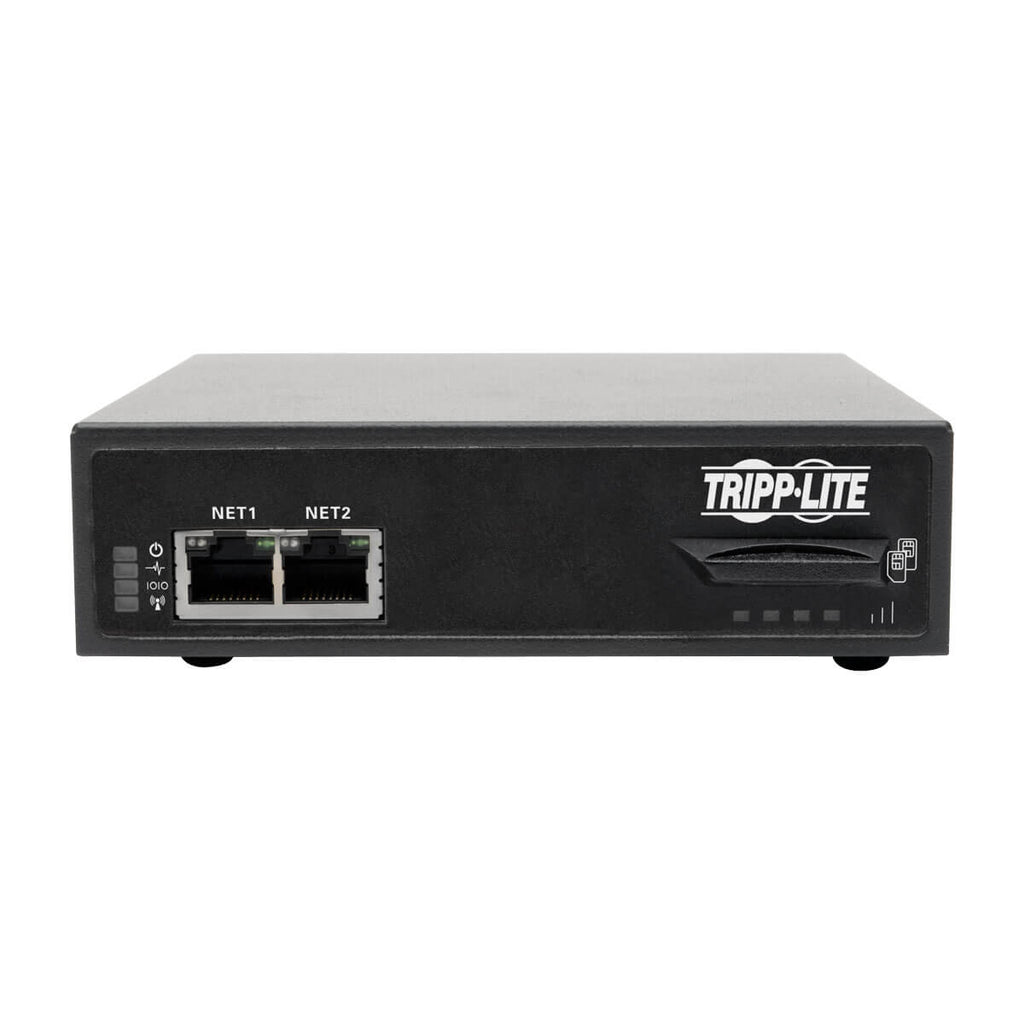

The Eaton Tripp Lite B093-008-2E4U-V is a high-performance 8-port serial console server engineered for secure, reliable, and flexible remote management of IT and networking equipment. Designed for enterprise environments, it combines dual Gigabit Ethernet and 4G LTE out-of-band connectivity to ensure uninterrupted access to mission-critical systems — even during network outages.
Ideal for data centers, branch offices, and remote network sites, it enables administrators to remotely monitor, configure, and troubleshoot routers, switches, PDUs, UPS systems, and other serial-based devices from anywhere in the world. Featuring dual SIM slots, redundant connectivity, and support for industry-standard authentication (TACACS+, RADIUS, LDAP, Kerberos), it ensures top-tier security and operational continuity.
The compact, rackmountable design and fanless operation allow seamless integration in any IT rack or desktop setup. With FIPS 140-2 encryption, SSL/SSH, and IPSec VPN support, the B093-008-2E4U-V meets stringent data security and compliance standards — including TAA and RoHS.
| Category | Details |
|---|---|
| Model | B093-008-2E4U-V |
| Function | 8-Port Serial Console Server with 4G LTE Cellular Gateway |

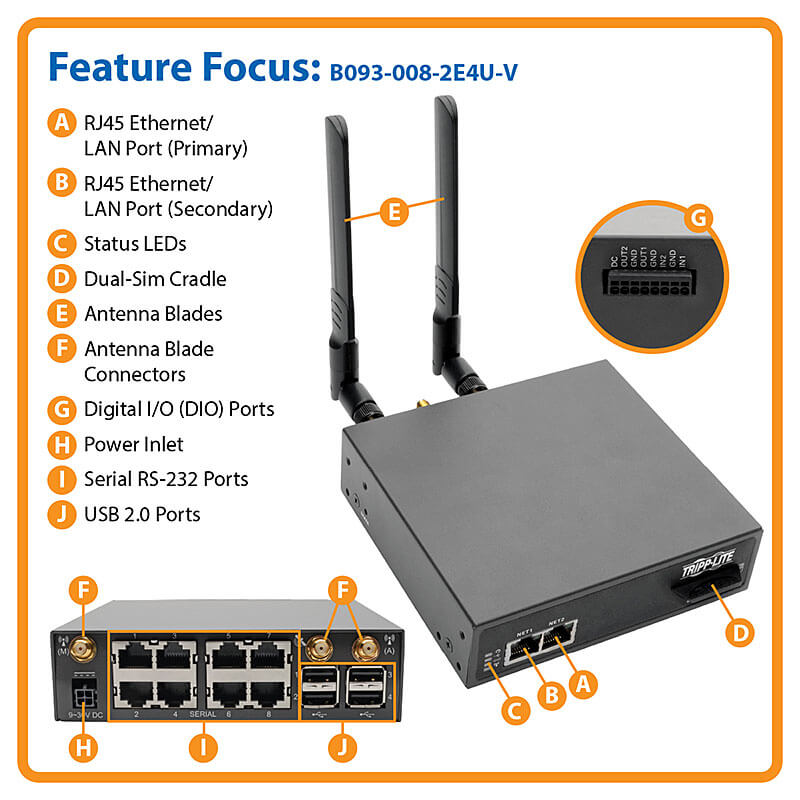

| Connectivity | (2) RJ45 Gigabit Ethernet (primary & failover), (8) RJ45 serial ports, (4) USB 2.0 ports |
| Cellular Modem | 4G LTE multi-carrier (Verizon default; supports AT&T, Rogers, Telus) |
| SIM Slots | Dual SIM (for redundancy) |
| Memory | 4GB NAND flash |
| Network Security | SSL, SSH, OpenVPN, IPSec VPN, stateful firewall |
| Authentication Support | TACACS+, RADIUS, LDAP, Kerberos |
| Compliance Standards | PCI DSS 3.2, FIPS 140-2 (Certificate #2473), RoHS, CE, FCC, REACH, TAA |
| Power Input | 100–240V AC, 50/60Hz, 0.4A |
| Power Output | 12V DC, 1.25A (AC adapter included) |
| Power Consumption | 11.5W |
| Mounting | Rackmount (EIA 19”) or desktop (rubber feet included) |
| Material | Metal chassis, fanless design |
| Operating Temperature | -13° to 140°F (-25° to 60°C) |
| Storage Temperature | -40° to 167°F (-40° to 75°C) |
| Humidity Range | 5–90% RH (non-condensing) |
| LED Indicators | Power, Firmware, Serial Connectivity, Cellular, Network, RSSI |
| Certifications | UL, CE, FCC, TUV, C-Tick, GS, PSE |
| Dimensions (H×W×D) | 1.4 × 5.1 × 4.7 in (3.56 × 16.51 × 10.16 cm) |
| Weight | 1.3 lb (0.59 kg) |
| Warranty | 2-Year Limited Warranty |
