Description
The Tripp Lite B093-008-2E4U is a secure 8-port serial console server designed for centralized, remote management of serial-based IT and network equipment. It provides reliable in-band and out-of-band access to routers, switches, firewalls, UPS systems, PDUs, and other critical infrastructure through a single hardened gateway.
Equipped with dual Gigabit Ethernet ports for primary and failover connectivity, this console server ensures continuous access even during network disruptions. Eight RS-232 serial ports support standard Cat5e/6 cabling for streamlined deployment, while four USB console ports enable management of modern USB-based devices. Integrated security features—including FIPS 140-2 validation, VPN support, and a stateful firewall—protect sensitive management traffic in enterprise and government environments.
With rack-mount and desktop installation options, TAA compliance, and multi-user support, the B093-008-2E4U is ideal for data centers, branch offices, wiring closets, and remote sites where secure, always-on device access is essential.
| Specification | Details |
|---|---|
| Product Type | Serial Console Server |
| Model Number | B093-008-2E4U |

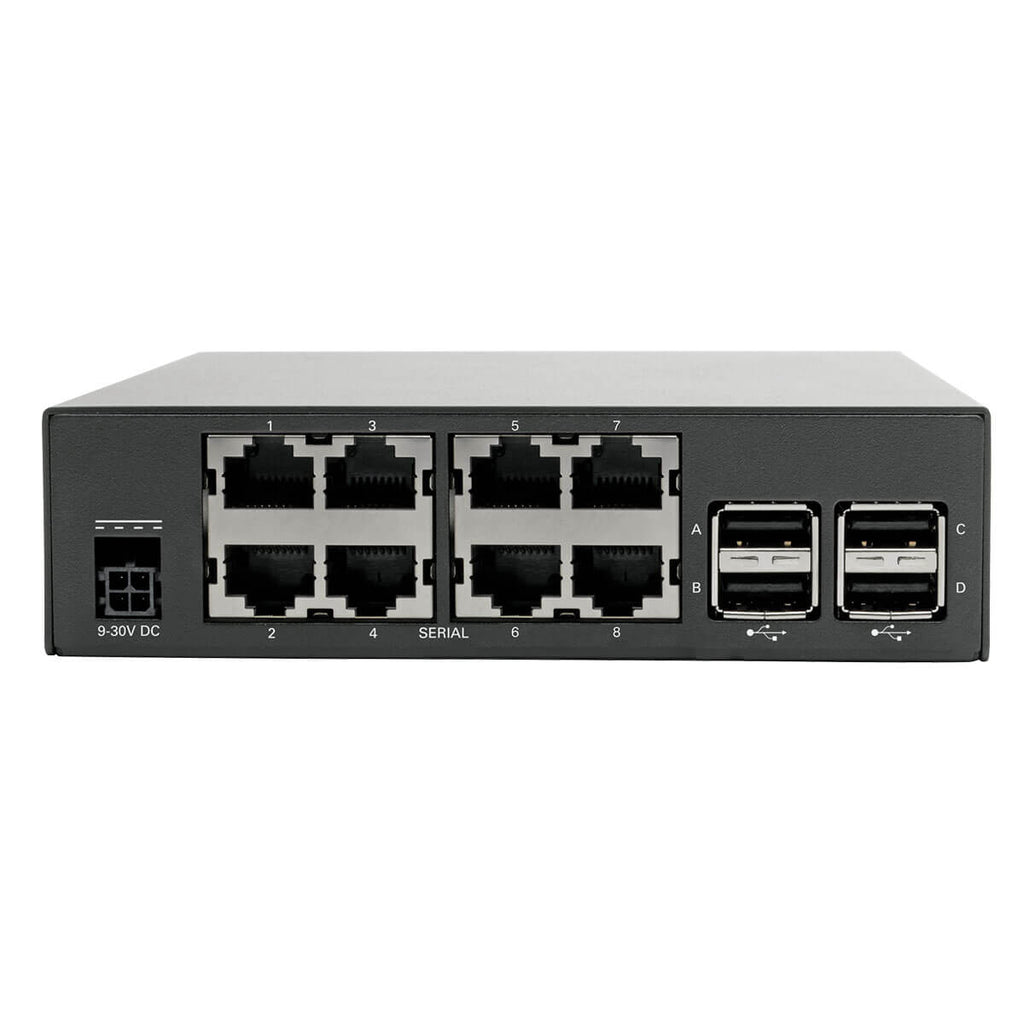

| Serial Ports | 8 × RS-232 (RJ45) |
| USB Ports | 4 × USB 2.0 |
| Network Interfaces | 2 × Gigabit Ethernet (primary + failover) |
| Network Speed | 1 Gbps |
| Flash Memory | 4 GB internal NAND |
| Authentication | RADIUS, LDAP, TACACS+, Kerberos |
| Security Features | FIPS 140-2 validated, SSL, SSH, IPSec, OpenVPN, Stateful Firewall |
| Power Management Support | PowerMan (PDU), Network UPS Tools (UPS) |
| Digital I/O | 2 × DIO ports |
| Mounting Options | Rack-mount or desktop |
| Rack Size | 1U (19-inch rack compatible) |
| Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption | 11.5 W |
| Operating Temperature | -25°C to 60°C |
| Compliance | TAA, RoHS, CE, FCC |
| Warranty | 4-Year Limited Warranty |
