Description
The Eaton Tripp Lite B024-DPU08 8-Port DisplayPort/USB KVM Switch offers powerful centralized control over up to eight DisplayPort-enabled computers, servers, or media systems from a single console. Supporting ultra-clear 4K @ 60 Hz video with 2.1-channel stereo audio, this rack-mount KVM switch is designed for professional workstations, control rooms, and enterprise IT environments.
Switch between connected systems effortlessly using front-panel buttons, hotkeys, RS-232 commands, or an intuitive on-screen display (OSD). For expanded scalability, you can cascade up to two KVM levels to manage as many as 128 computers from one display, keyboard, and mouse.
The B024-DPU08 also features a dual-port USB 3.1 Gen 1 hub that enables peripheral sharing across systems, allowing you to use a single printer, storage drive, or scanner with multiple connected devices. It installs easily in a 1U EIA-standard rack or can sit securely on a desktop with included rubber feet.
| Category | Specification |
|---|---|
| Model | B024-DPU08 |
| Type | 8-Port DisplayPort/USB KVM Switch |
| Video Resolution | Up to 4K @ 60 Hz (4096 × 2160) |
| Video Standard | DisplayPort 1.2, HDCP 2.2 |
| Audio | Stereo, 2.1-channel surround sound |
| USB Hub | Dual-port USB 3.1 Gen 1 (backward compatible) |

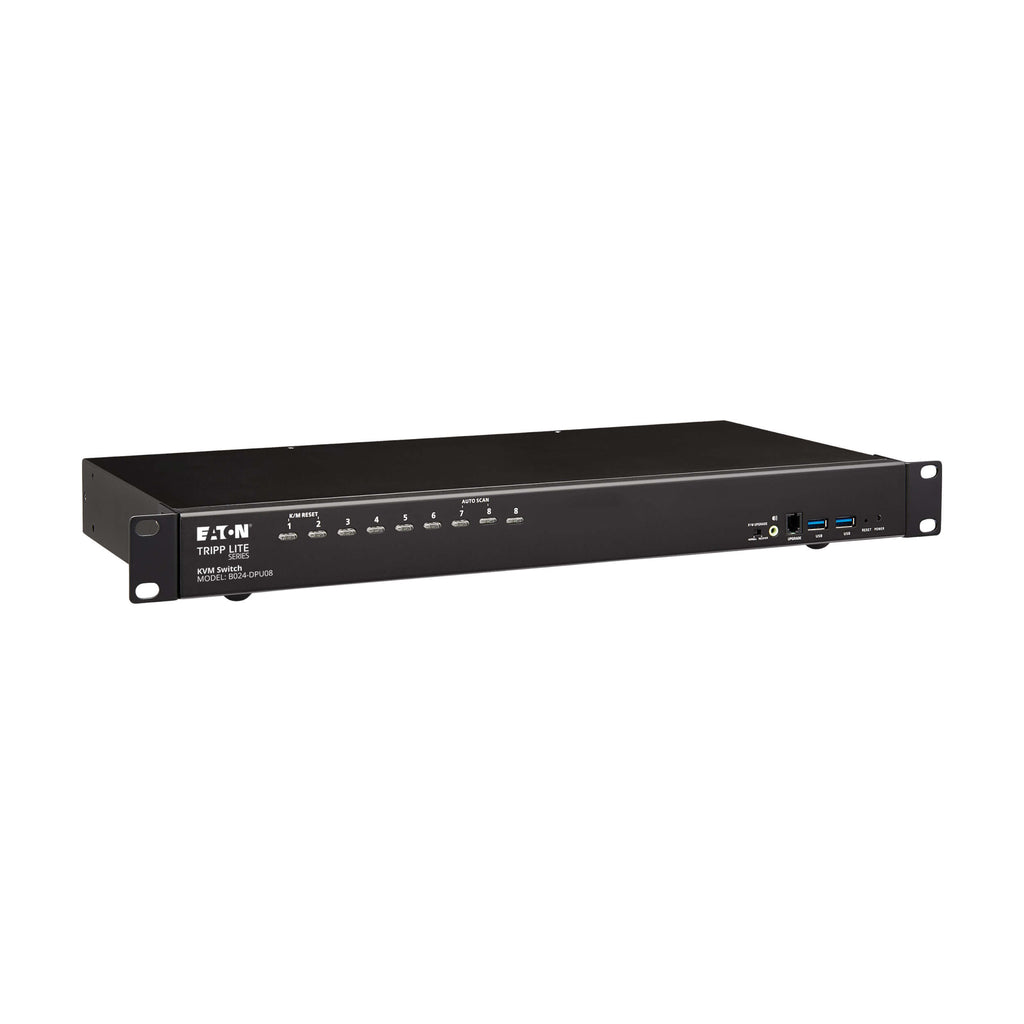

| Port Control | Front-panel pushbuttons, hotkeys, OSD, RS-232 |
| Cascade Support | Up to 2 levels (control up to 128 computers) |
| Connectors (Console Side) | 1 × DisplayPort (F), 2 × USB-A (F), 1 × 3.5 mm audio (F) |

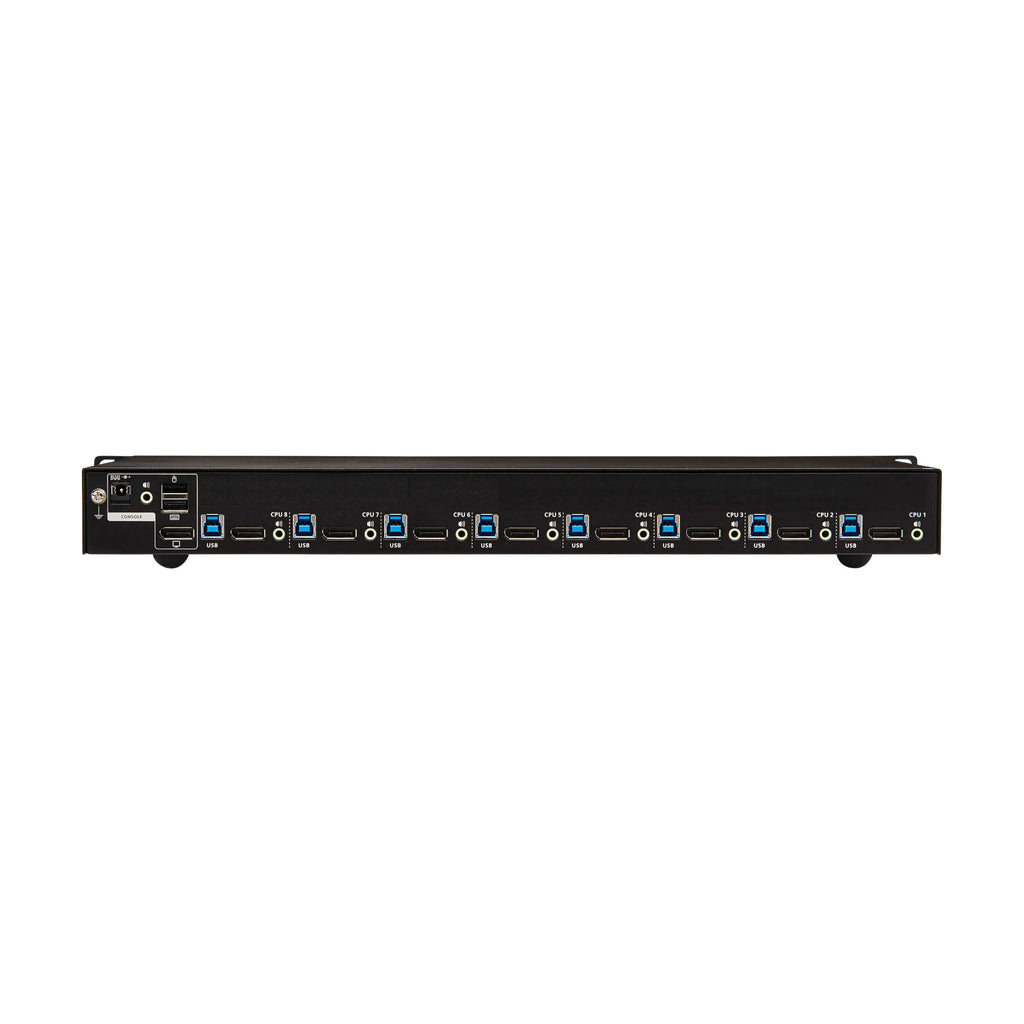

| Connectors (Computer Side) | 8 × DisplayPort (F), 8 × USB-B (F), 8 × 3.5 mm audio (F) |
| Power Supply | AC 100–240 V, 50/60 Hz (12 V 3.3 A output), detachable C13-to-C14 cord |
| Power Consumption | 18.44 W (136 BTU/hr) |
| Material | Metal housing, rack-mountable (1U) |
| Dimensions (H × W × D) | 1.73 × 17.02 × 8.44 in (4.4 × 43.24 × 21.43 cm) |
| Weight | 6.85 lb (3.11 kg) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Compliance | RoHS, CE, REACH, WEEE, FCC, TAA-Compliant |
| Warranty | 1-Year Limited Warranty |

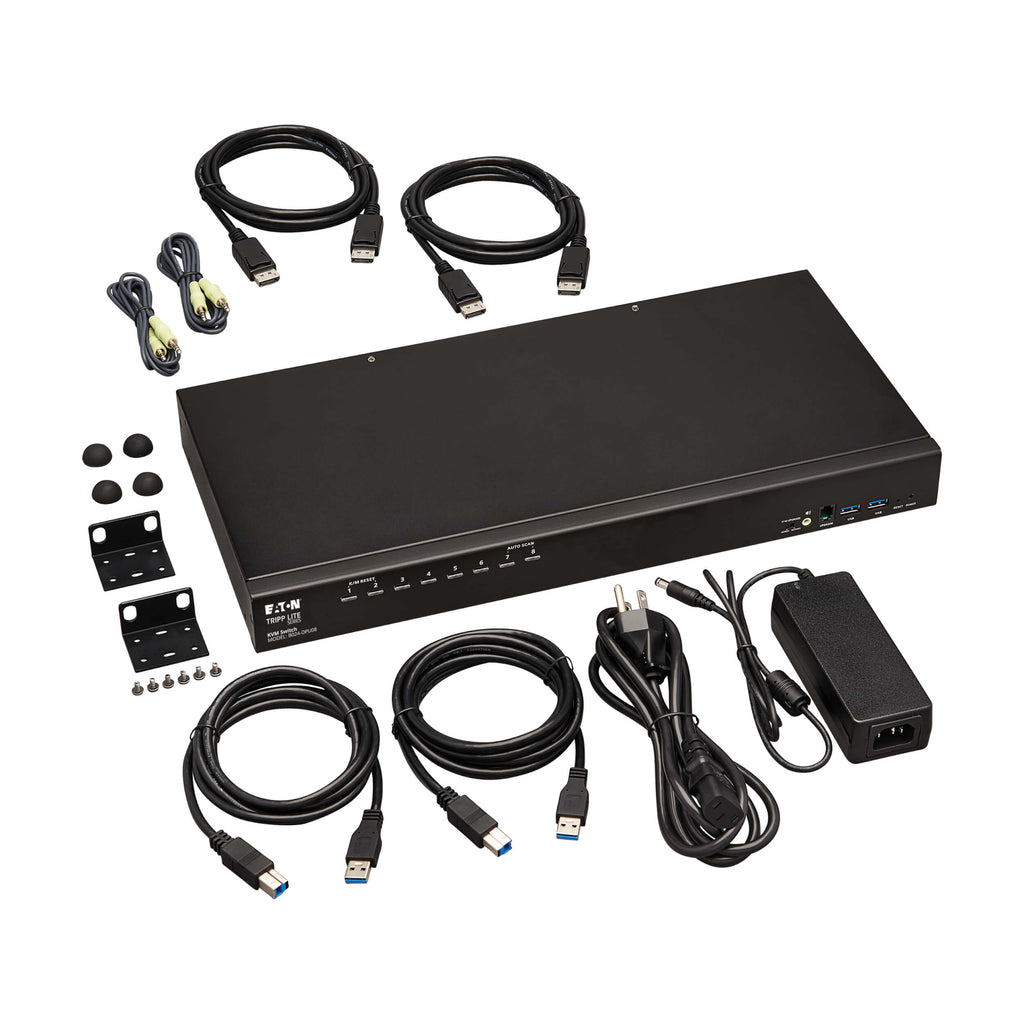

| Package Includes | B024-DPU08 KVM Switch, (2) DP Cables, (2) USB Cables, (2) Audio Cables, Firmware Cable, Power Supply, Rack Hardware, Rubber Feet, Quick Start Guide |
