Description
The Tripp Lite B127F-1A1-SM-DD DisplayPort over Fiber Extender Kit delivers reliable long-distance 4K video transmission for professional AV, digital signage, education, and command-and-control environments. Designed for installations where standard copper cabling falls short, this transmitter and receiver kit extends DisplayPort video and audio signals up to 6.2 miles (10 km) over singlemode LC fiber.
Supporting Ultra HD resolutions up to 3840 x 2160 at 30 Hz with full 4:4:4 chroma subsampling, this extender ensures sharp image quality and accurate color reproduction for detailed visuals, PC content, and video presentations. It also carries uncompressed multi-channel digital audio, including DTS-HD, Dolby AC-3, and 8-channel LPCM.

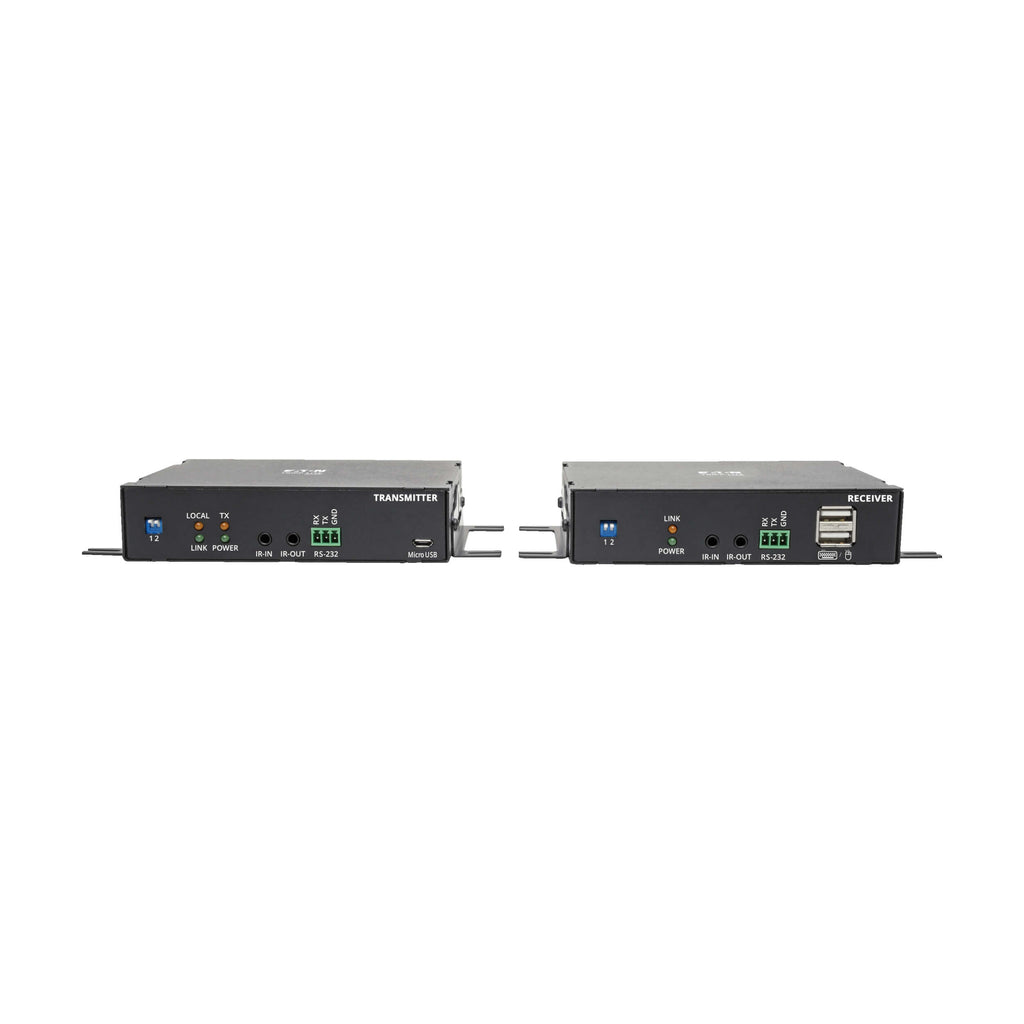

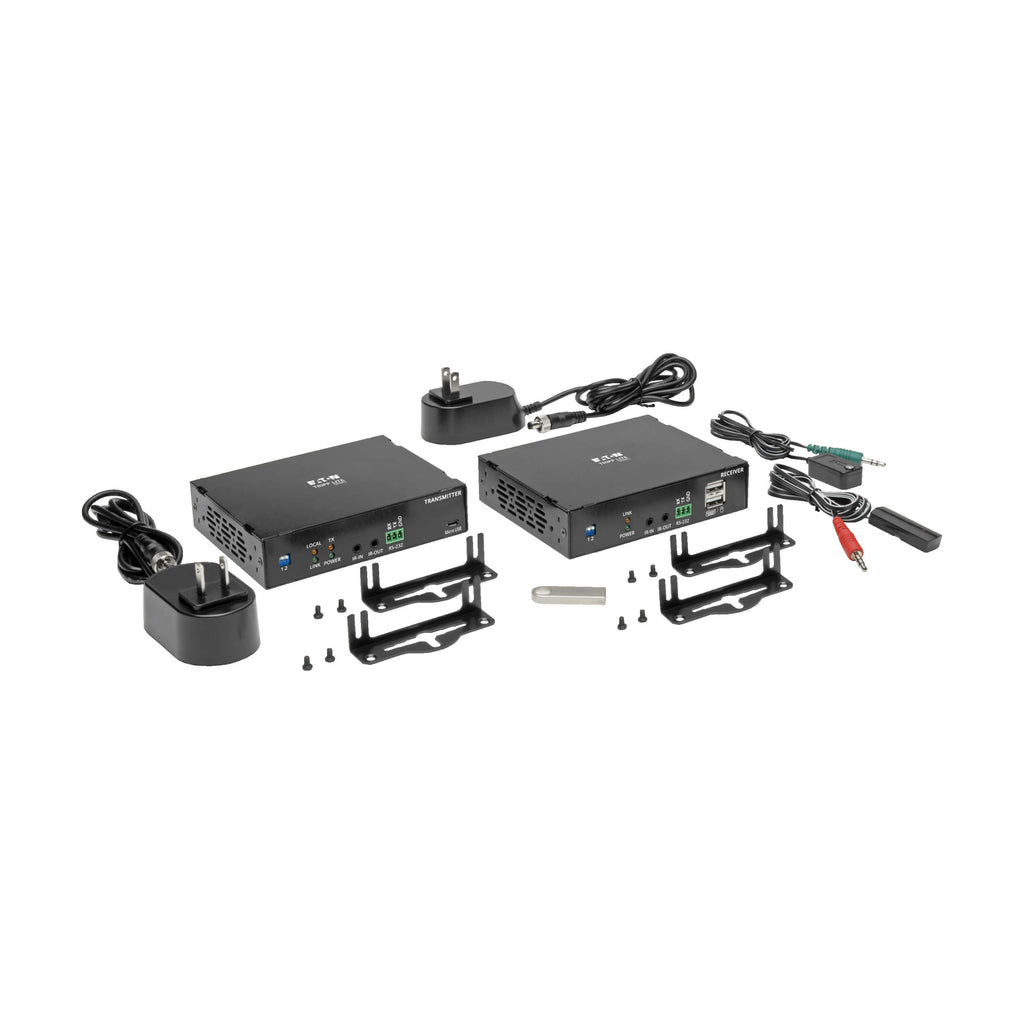

The system features selectable USB 1.1, bidirectional IR, or RS-232 signal extension via onboard DIP switches, allowing flexible control options based on application needs. A local HDMI output on the transmitter enables on-site monitoring without affecting the remote display. Plug-and-play operation, included mounting hardware, and rugged metal housings make this kit ideal for permanent installations in commercial and institutional settings.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model | B127F-1A1-SM-DD |
| Product Type | DisplayPort over Fiber Extender Kit (Transmitter & Receiver) |
| Video Input | DisplayPort (Female) |
| Video Output | DisplayPort (Female) |

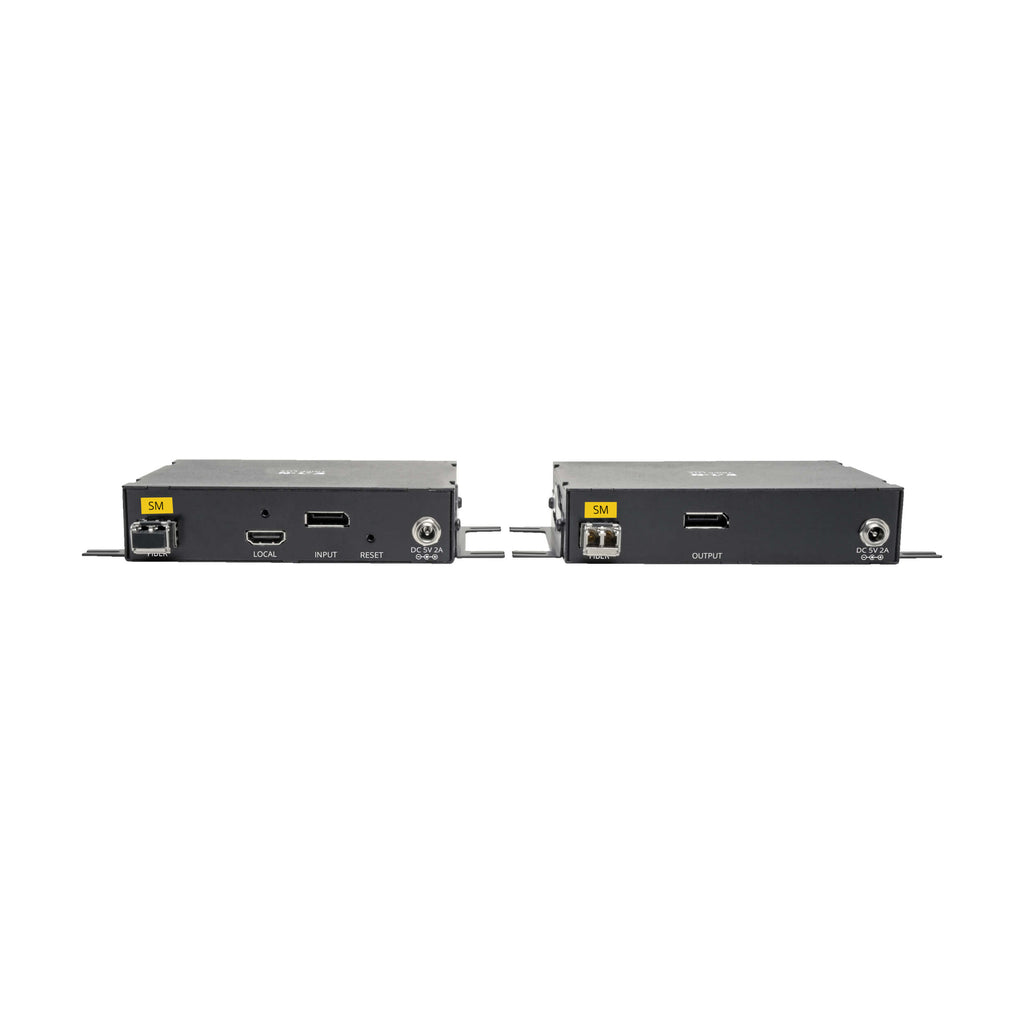

| Local Output | HDMI (Transmitter) |
| Maximum Resolution | 3840 x 2160 (4K) @ 30 Hz |
| Chroma Subsampling | 4:4:4 |
| Audio Support | DTS-HD, Dolby AC-3, 8-Channel LPCM |
| Maximum Distance | Up to 6.2 miles / 10 km |
| Fiber Type | Singlemode LC Duplex (user-supplied) |
| Wavelength | 1310 nm |
| DisplayPort Standard | DisplayPort 1.2a |
| HDCP Support | HDCP 1.4 and 2.2 |
| USB Extension | USB 1.1 (selectable) |
| Control Options | USB, IR, or RS-232 (one at a time) |
| EDID Support | Yes |
| Built-In Equalization | Yes |
| Power | External AC Adapters (included) |

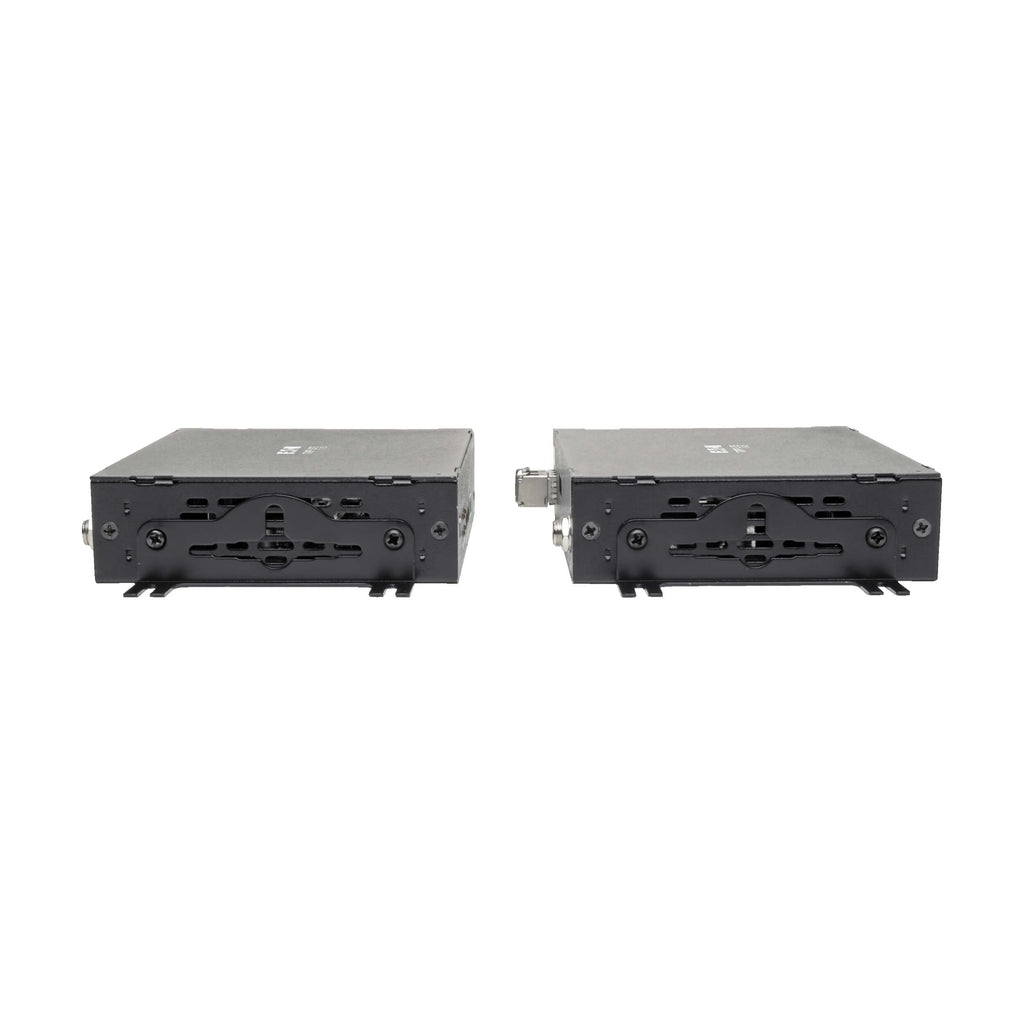

| Mounting Options | Wall, pole, or rack mounting |
| Enclosure Material | Metal |
| Compliance | TAA Compliant |
| Warranty | 1-Year Limited Warranty |
