Description

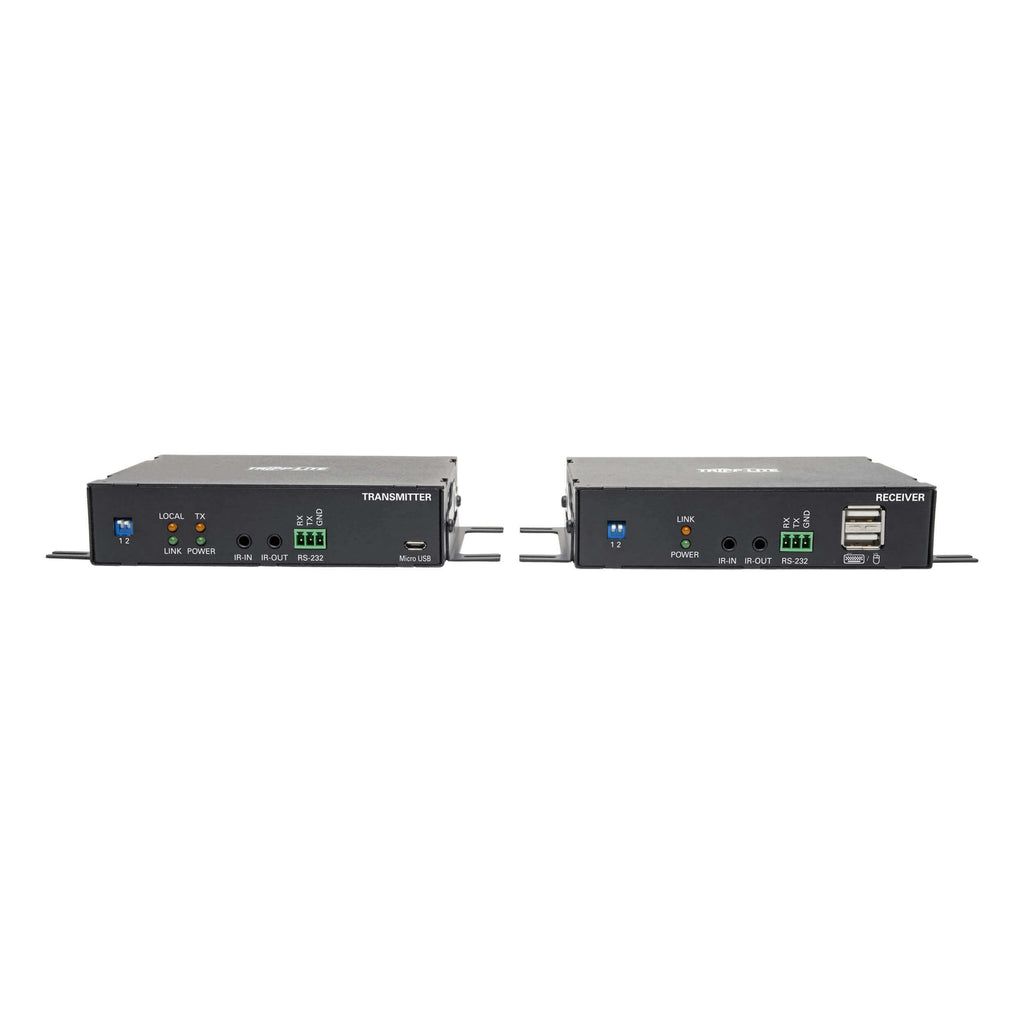

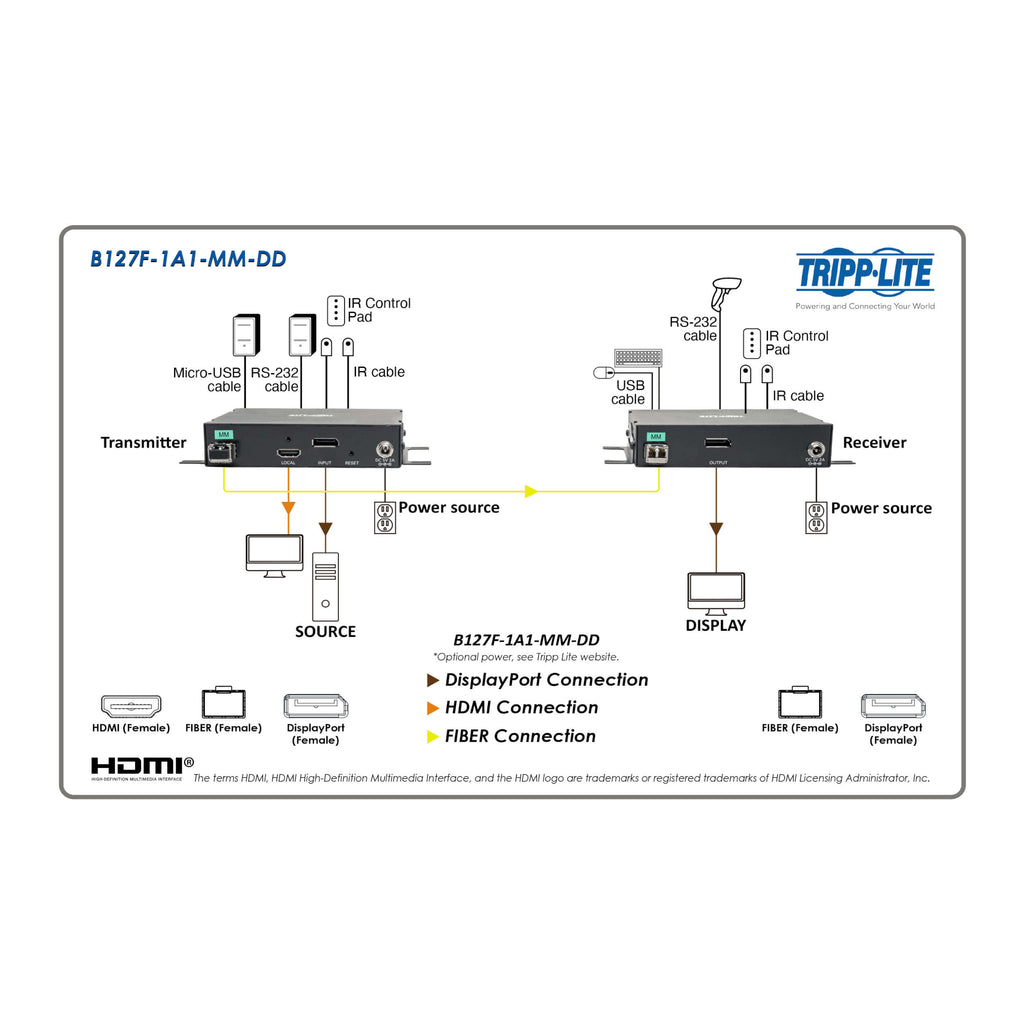

The Eaton Tripp Lite B127F-1A1-MM-DD DisplayPort over Fiber Extender Kit enables reliable long-distance transmission of ultra-high-definition video, audio, and control signals over multimode fiber. Designed for professional AV, digital signage, education, and commercial installations, this transmitter and receiver kit extends DisplayPort signals up to 985 ft (300 m) without signal degradation.
Supporting resolutions up to 4K (3840 x 2160) at 30 Hz with full 4:4:4 chroma subsampling, the system delivers crisp, accurate visuals ideal for data-intensive content, interactive displays, and high-quality presentations. The kit also supports uncompressed multi-channel digital audio and offers selectable USB, IR, or RS-232 signal extension via onboard DIP switches.
With plug-and-play installation, integrated mounting hardware, and TAA compliance, the B127F-1A1-MM-DD is a dependable solution for enterprise, government, and institutional deployments requiring secure, long-range DisplayPort connectivity.
| Specification | Details |
|---|---|
| Product Type | DisplayPort Over Fiber Extender Kit (Transmitter & Receiver) |
| Video Input | DisplayPort (Female) |
| Video Output | DisplayPort (Female) |
| Local Display Output | HDMI |
| Maximum Resolution | 3840 × 2160 (4K @ 30 Hz) |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 24-bit True Color |
| Audio Support | Uncompressed 8-channel LPCM, Dolby AC-3, DTS |
| Maximum Distance | 985 ft / 300 m |
| Fiber Type | Multimode LC Duplex |
| Wavelength | 850 nm |
| DisplayPort Standard | DisplayPort 1.2a |
| HDCP Support | HDCP 1.4 & 2.2 |
| Control Signal Extension | USB 1.1, Bi-Directional IR, RS-232 (selectable) |
| USB Support | USB 1.1 (up to 12 Mbps) |
| Power Source | External AC Adapters (Included) |
| Installation | Plug-and-Play |
| Mounting Options | Wall, Pole, or Rack |
| Housing | Metal |
| Compliance | TAA Compliant |
| Warranty | 1-Year Limited |
