Description

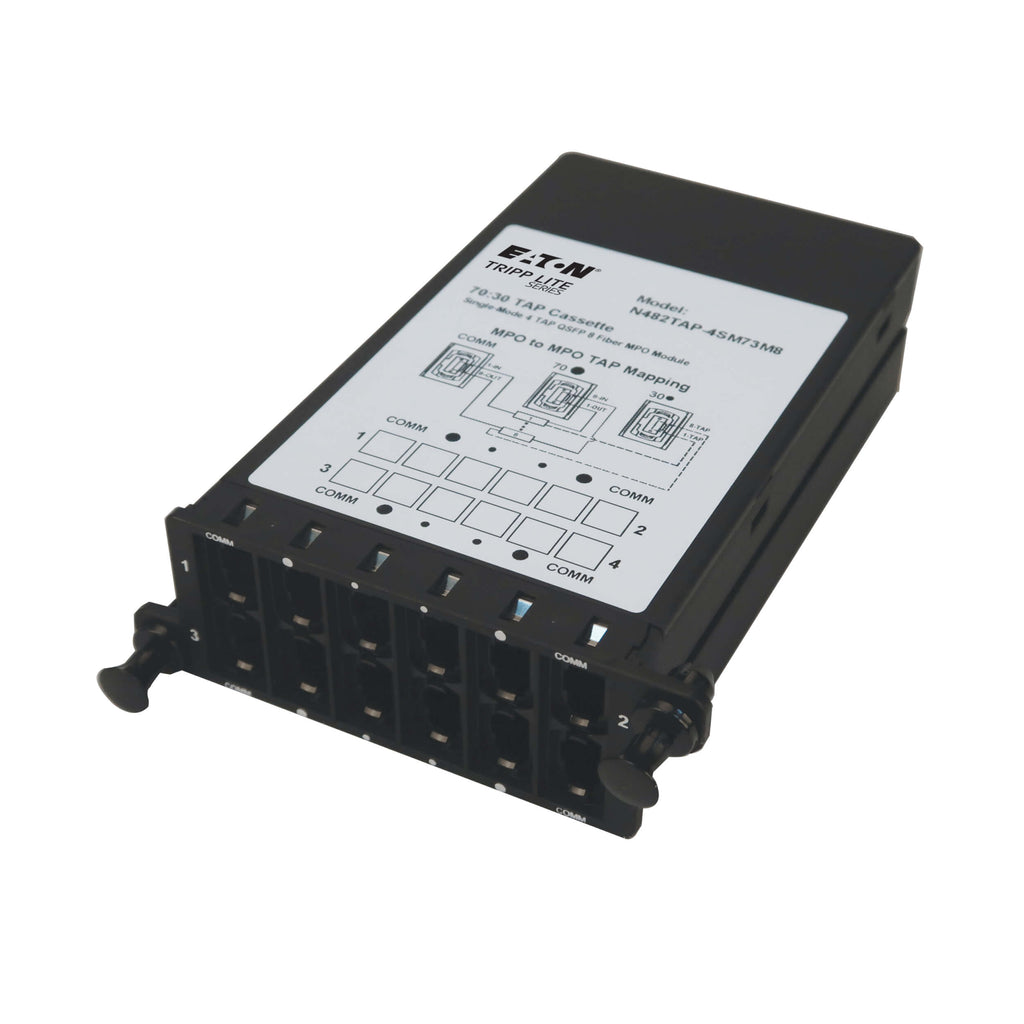

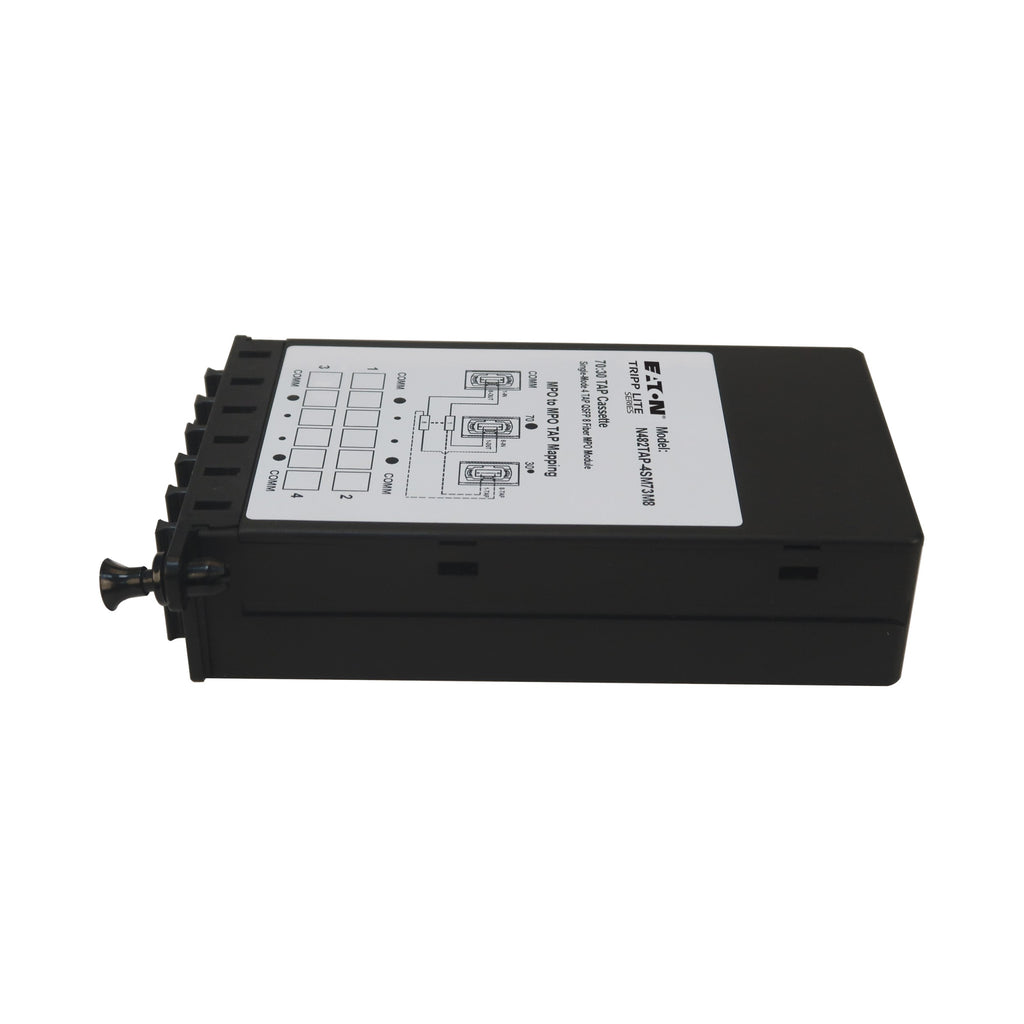

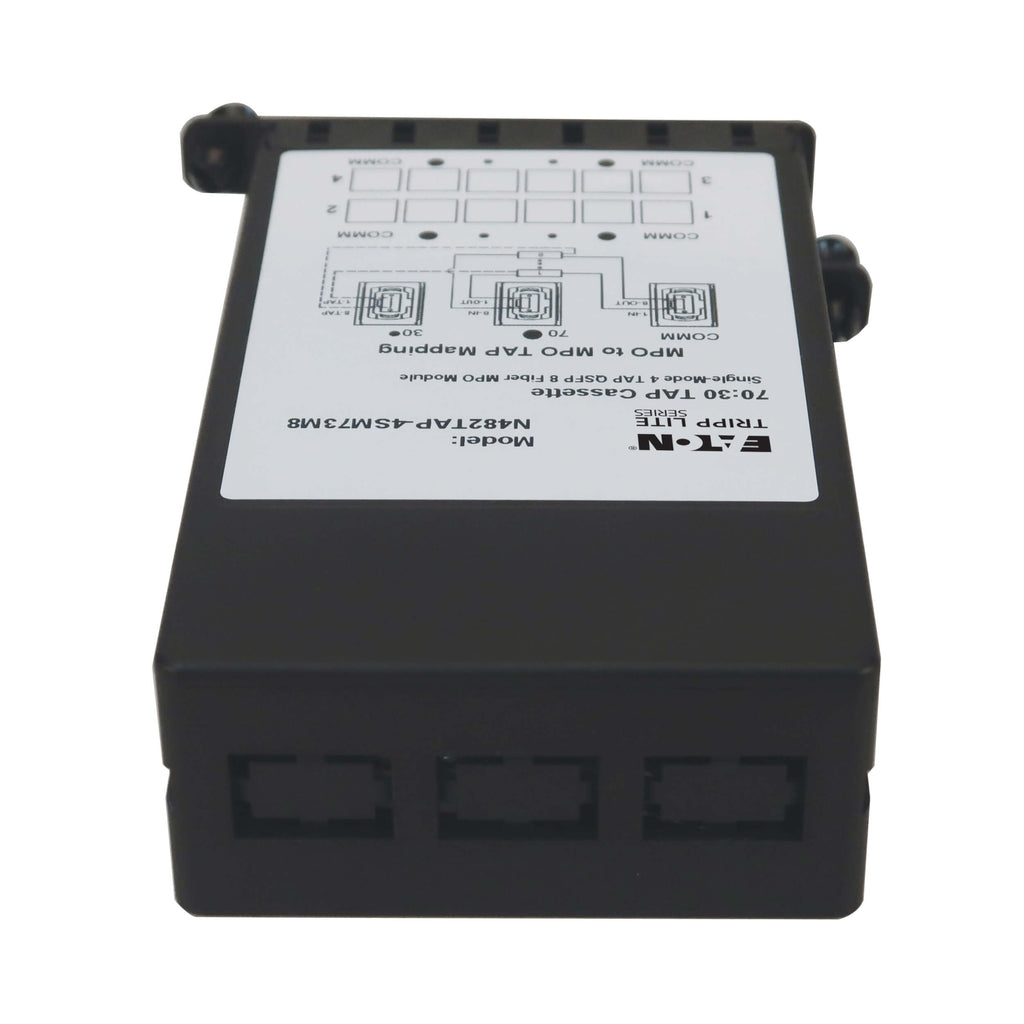

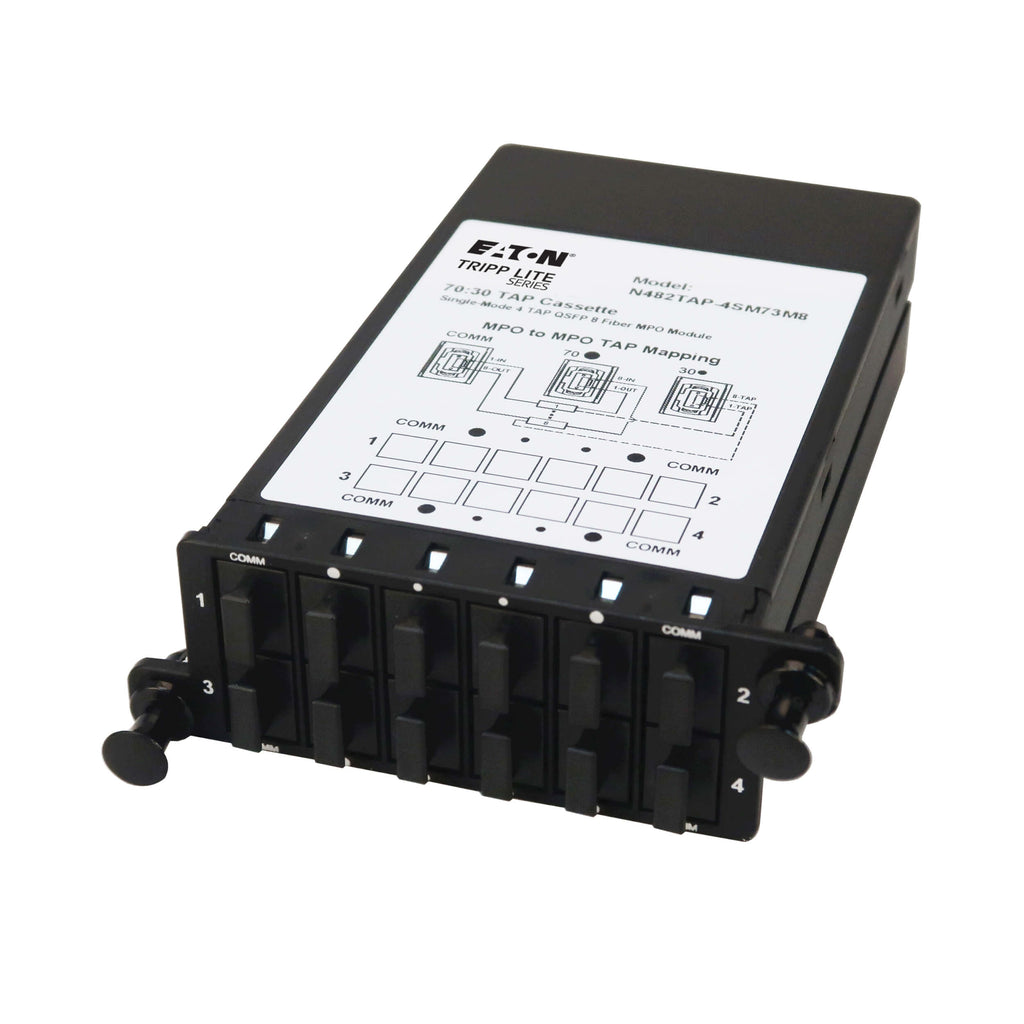

The Eaton Tripp Lite N482TAP-4SM73M8 is a high-performance singlemode fiber TAP (Traffic Access Point) cassette designed to provide real-time network monitoring without disrupting live traffic. Featuring a 70/30 split ratio, it directs 30% of the optical signal to monitoring equipment while transmitting the remaining 70% to the primary network, ensuring seamless performance and zero latency impact.
Ideal for data centers, telecom networks, and R&D environments, this passive optical TAP supports 40/100/400 Gbps network compatibility and complies with IEEE 802.3ae and ANSI T11.2 Fibre Channel standards. With a modular design compatible with Eaton’s N482-Series enclosures, the cassette ensures easy installation, reduced downtime, and optimal scalability for modern fiber infrastructures.
| Category | Details |
|---|---|
| Model Number | N482TAP-4SM73M8 |
| Product Type | Passive Fiber TAP Cassette |
| Technology | Singlemode |
| Optical Mode | OM4 |
| Split Ratio | 70/30 |
| Network Compatibility | 40 Gbps / 100 Gbps / 400 Gbps |
| Wavelengths Supported | 1310 nm, 1550 nm |
| Insertion Loss | 2.30 dB / 6.30 dB @ 1550 nm |
| Monitoring Ports | 4 |
| Input Ports | 4 |
| Output Ports | 4 |
| Connector Type (Side A/B) | 12F MTP/MPO (Male) |
| Number of Fibers | 32 |
| Enclosure Compatibility | N482-00U (1 Cassette), N482-01U (5 Cassettes), N482-02U (14 Cassettes), N482-04U (28 Cassettes) |
| Operating Temperature | -4° to 140°F (-20° to 60°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Humidity | 5% to 85% RH, Non-Condensing |
| Dimensions (H x W x D) | 4.72 x 3.46 x 1.18 in |
| Shipping Dimensions (H x W x D) | 2.00 x 7.50 x 4.80 in |
| Shipping Weight | 0.50 lbs |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
