Description

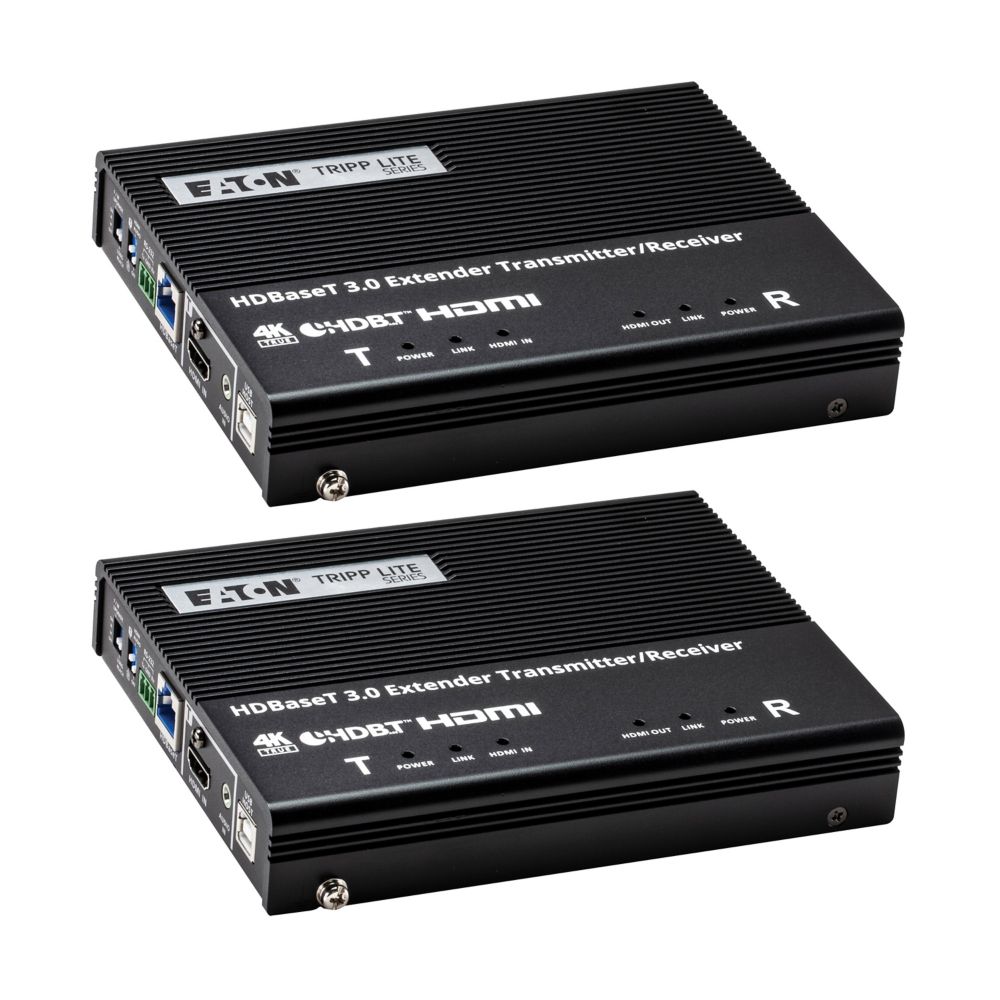

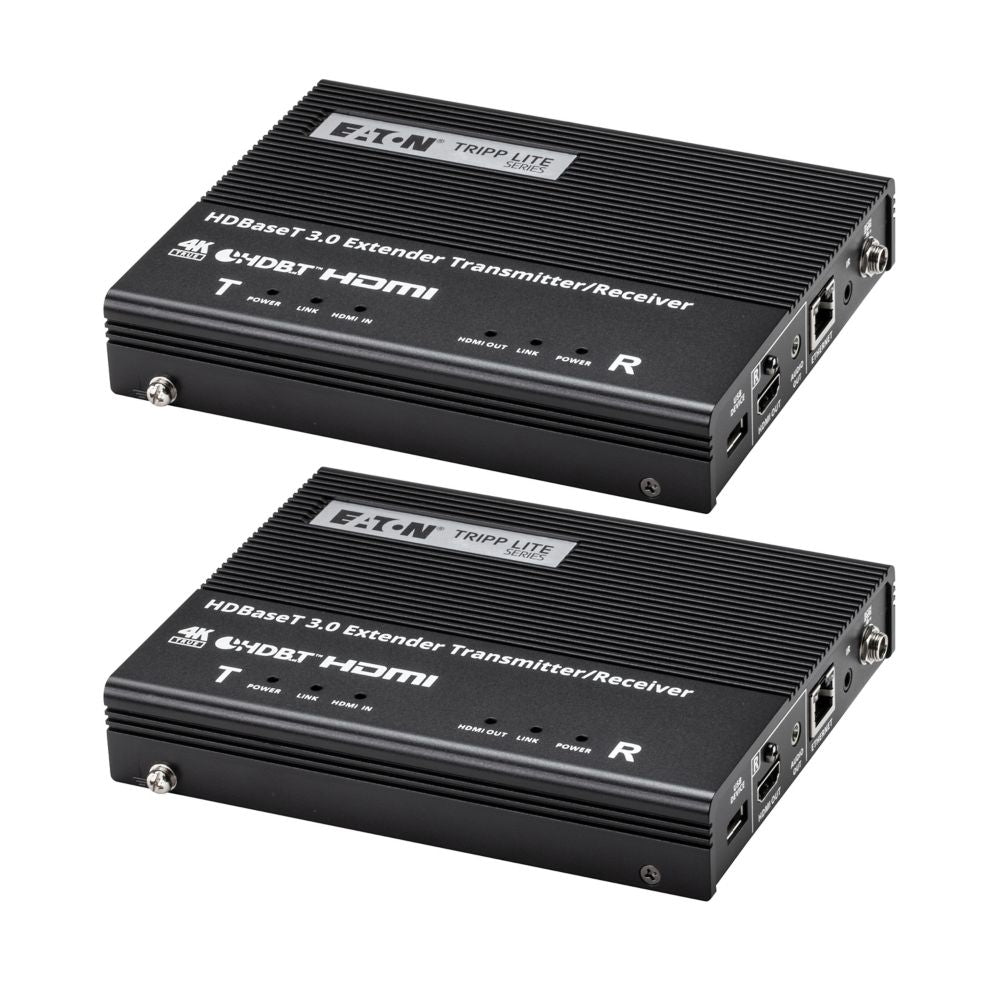

The Tripp Lite by Eaton BHDBT3-TRX2 HDMI HDBaseT 3.0 Transmitter and Receiver Kit delivers uncompromised 4K video, audio, and control signal extension over a single Cat6/Cat6a cable up to 328 feet (100 meters). Designed for professional AV deployments, this extender kit supports 4K at 60 Hz with 4:4:4 chroma subsampling and HDR, ensuring crystal-clear image quality for digital signage, conference rooms, classrooms, and control centers.

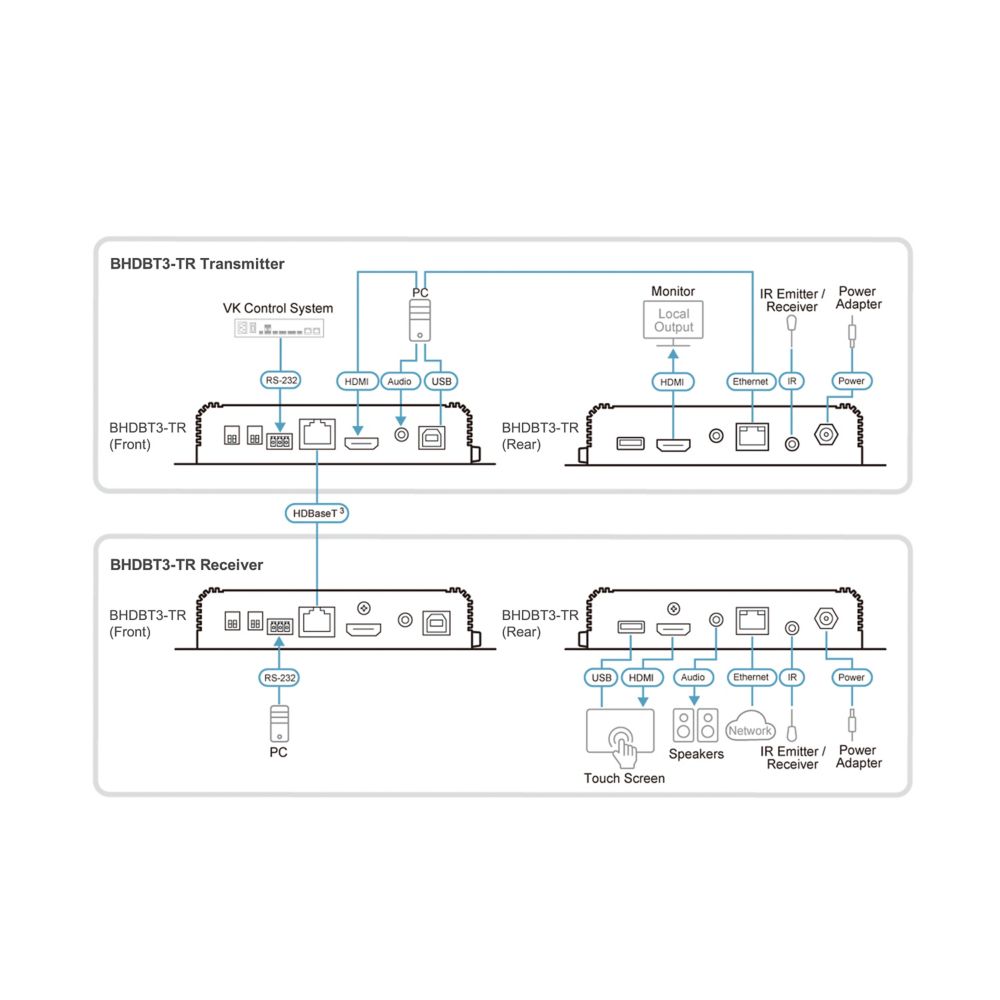

With integrated RS-232 and IR pass-through, the system enables seamless remote device control, while USB 2.0 extension supports peripheral connectivity across long distances. Built with durable metal housing and wall-mount capability, the kit is engineered for reliable, long-term installations. TAA compliance makes it ideal for government and enterprise procurement requirements.
| Specification | Details |
|---|---|
| Brand | Tripp Lite by Eaton |
| Product Type | HDMI HDBaseT 3.0 Extender Kit (Transmitter & Receiver) |
| Maximum Video Resolution | 4096 x 2160 @ 60 Hz (4:4:4) |
| HDR Support | Yes |
| HDCP Support | HDCP 2.3 |
| Maximum Transmission Distance | Up to 328 ft (100 m) via Cat6/Cat6a |
| Video Interface | HDMI 2.0 |
| Audio Support | HDMI and 3.5 mm stereo audio |
| USB Support | USB 2.0 (up to 480 Mbps) |
| Control Signals | RS-232 and IR pass-through |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 36-bit Deep Color |
| Data Transfer Rate | Up to 300 Mbps |
| Number of Displays Supported | 1 |

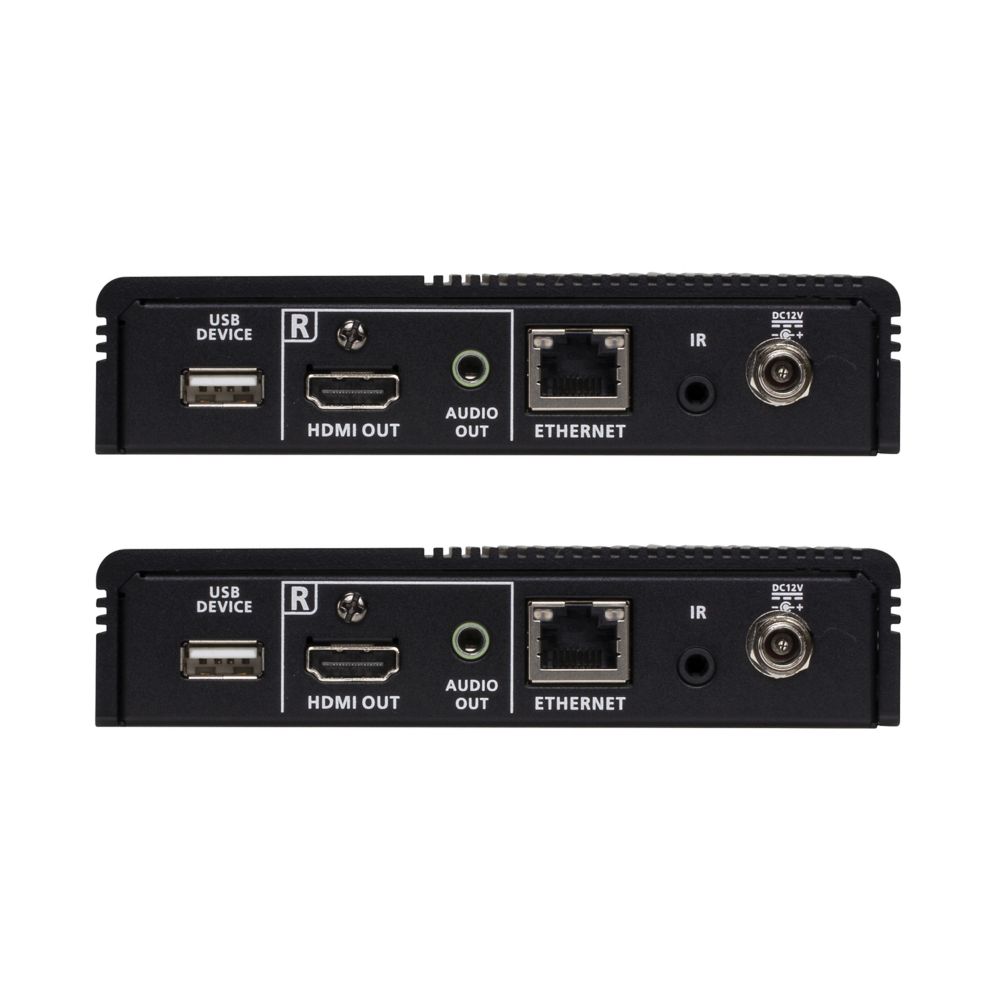

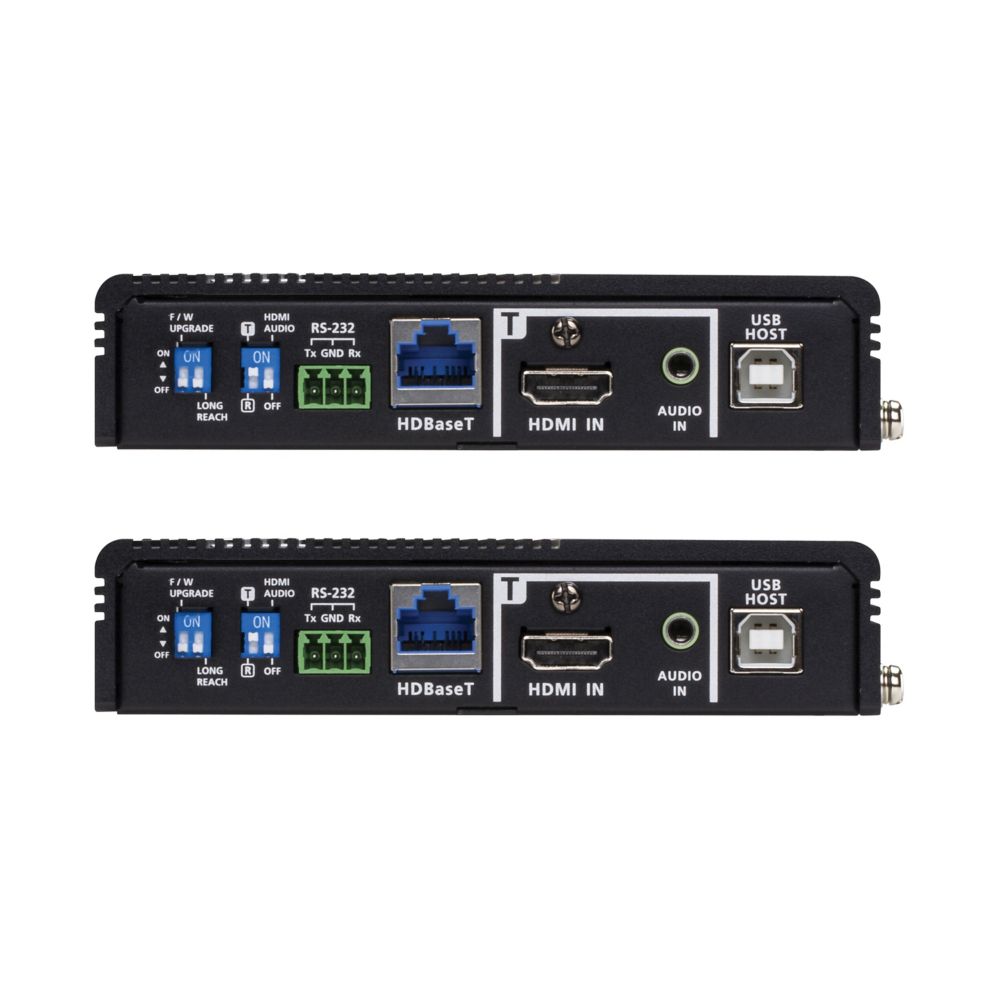

| Connectors | HDMI (F), RJ45 (F), USB-B (TX), USB-A (RX), 3.5 mm audio |
| Recommended Cabling | Cat6 / Cat6a HDBaseT-certified cable |
| Power Supply | External AC adapter (100–240V input, 12V output) |
| Power Consumption | 6.45 W |
| Mounting Options | Wall-mount with included brackets |
| Construction | Metal housing |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 0% to 80% non-condensing |
| Compliance | TAA, RoHS, CE, FCC, WEEE |
| Certifications | UL, cUL, TUV, CCC, GS |
| Dimensions (H x W x D) | 1.2 in x 5 in x 4 in |
| Weight | 1.41 lb |

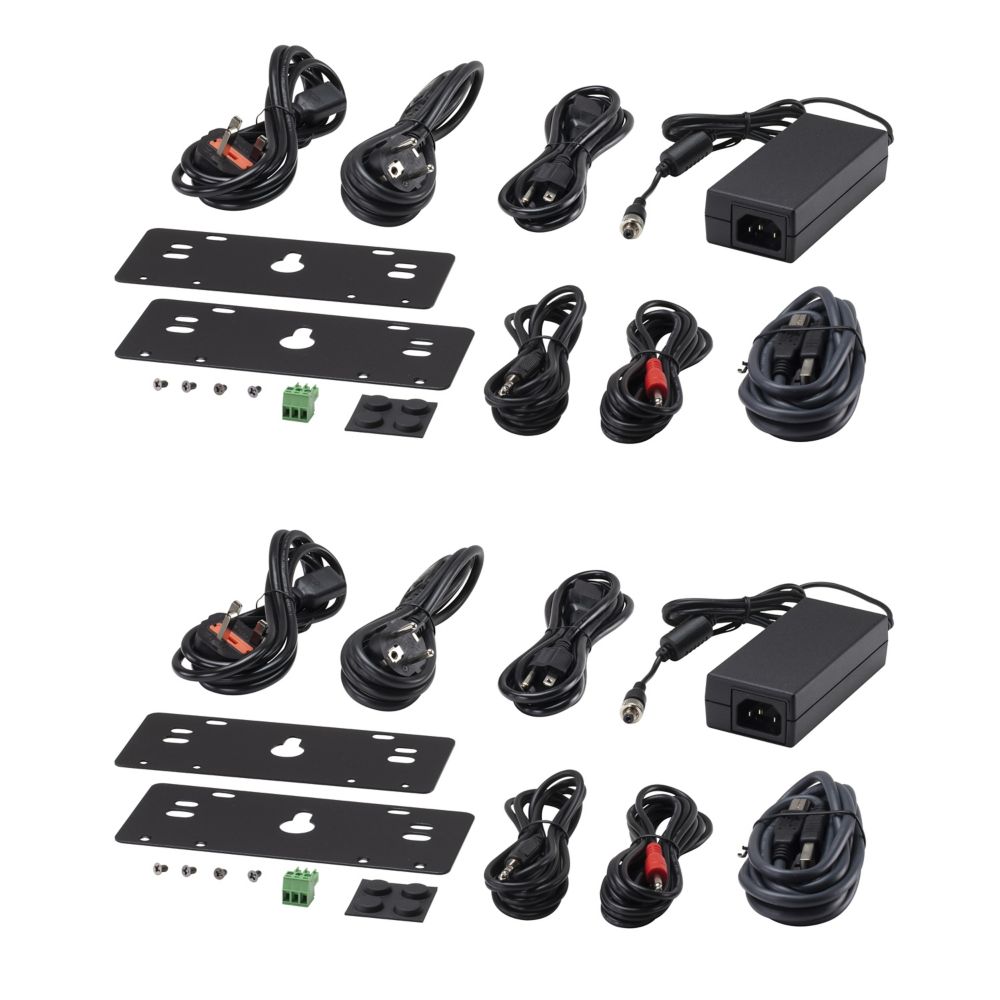

| Package Contents | Transmitter, receiver, power adapters, mounting brackets, IR emitters/receivers, RS-232 blocks, USB cables, power cords, quick start guide |
