Description

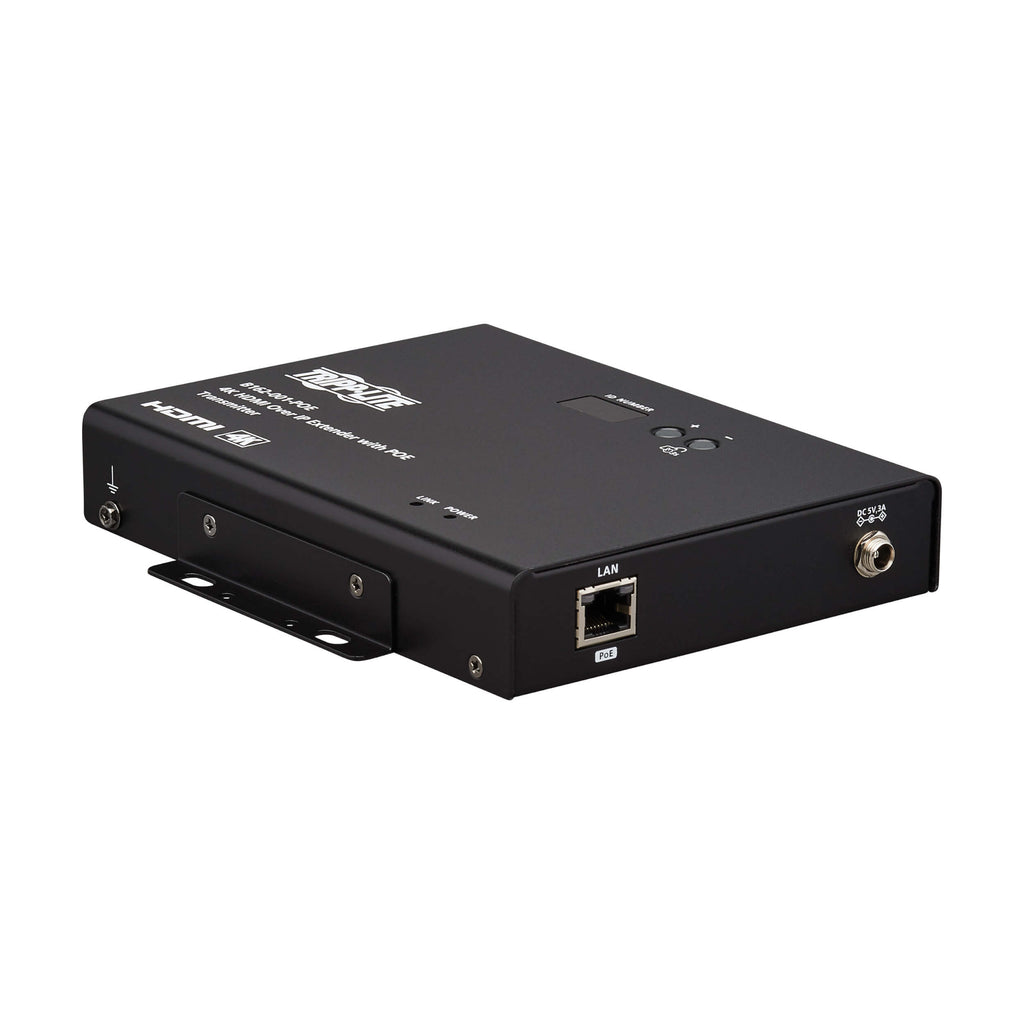

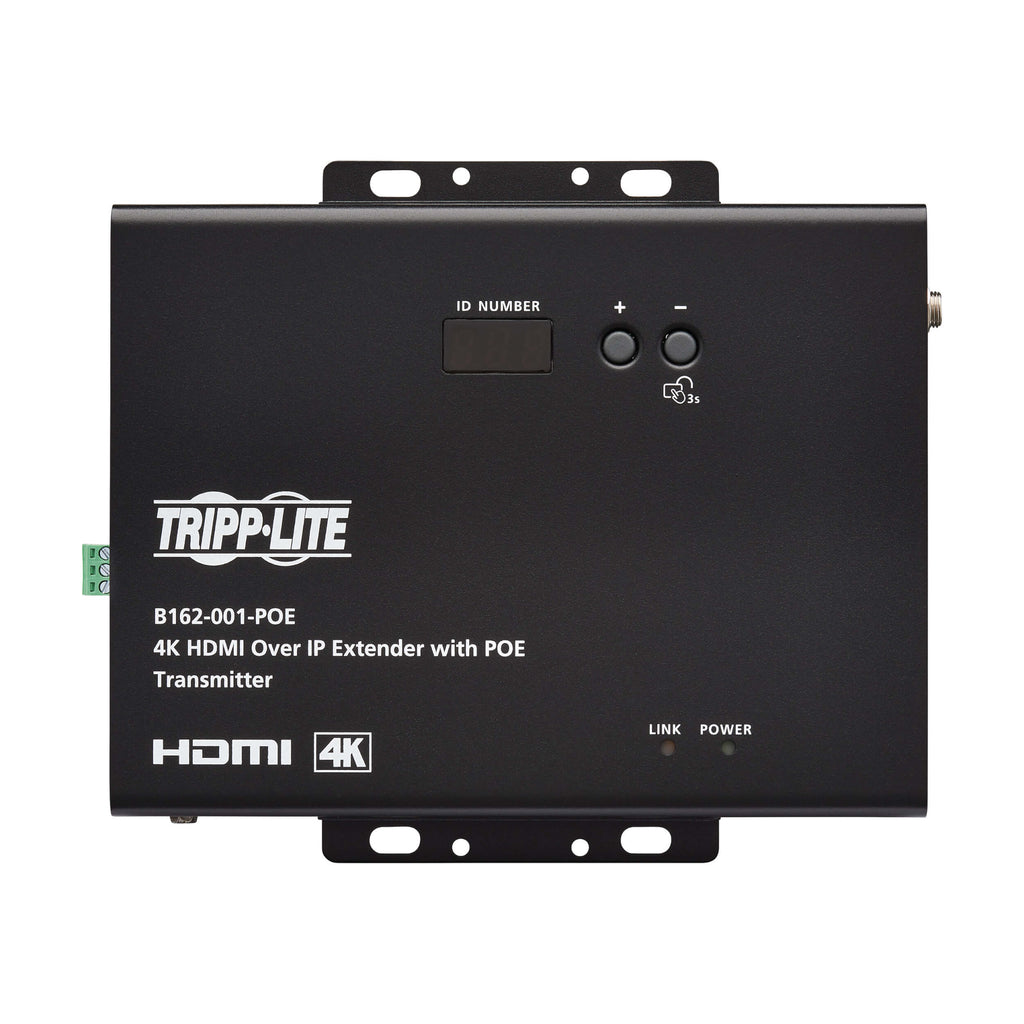

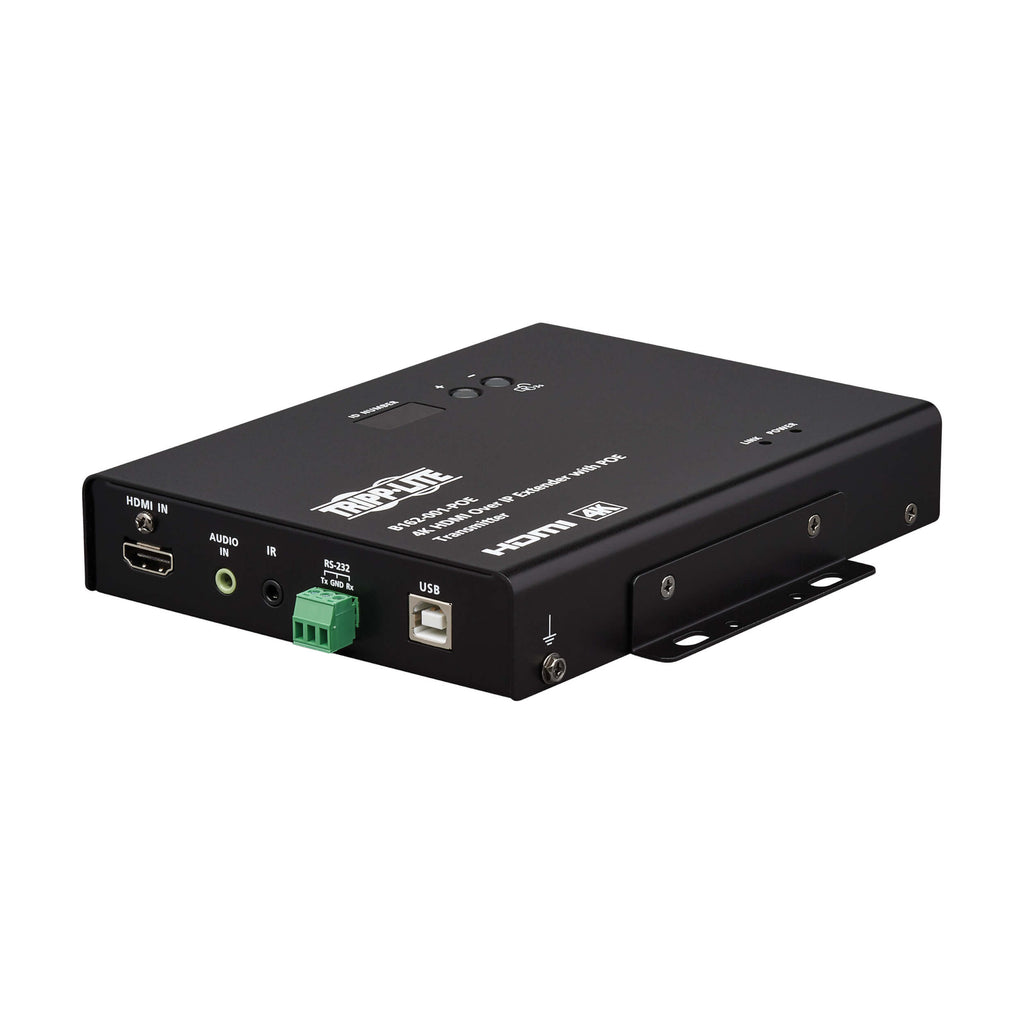

The B162-001-POE HDMI over IP Encoder Transmitter delivers visually lossless 4K video with ultra-low latency over standard Cat6 cabling or a Gigabit Ethernet network. Designed for scalable digital signage and AV distribution, it supports point-to-point and multipoint-to-multipoint deployments across LAN environments without distance limitations.
Supporting true 4K video up to 3840 × 2160 with 4:4:4 chroma subsampling, this encoder is ideal for professional AV installations in conference centers, airports, campuses, retail spaces, and trade shows. Power over Ethernet (PoE) capability allows flexible placement away from AC outlets, while advanced compression modes let installers balance quality and bandwidth requirements.

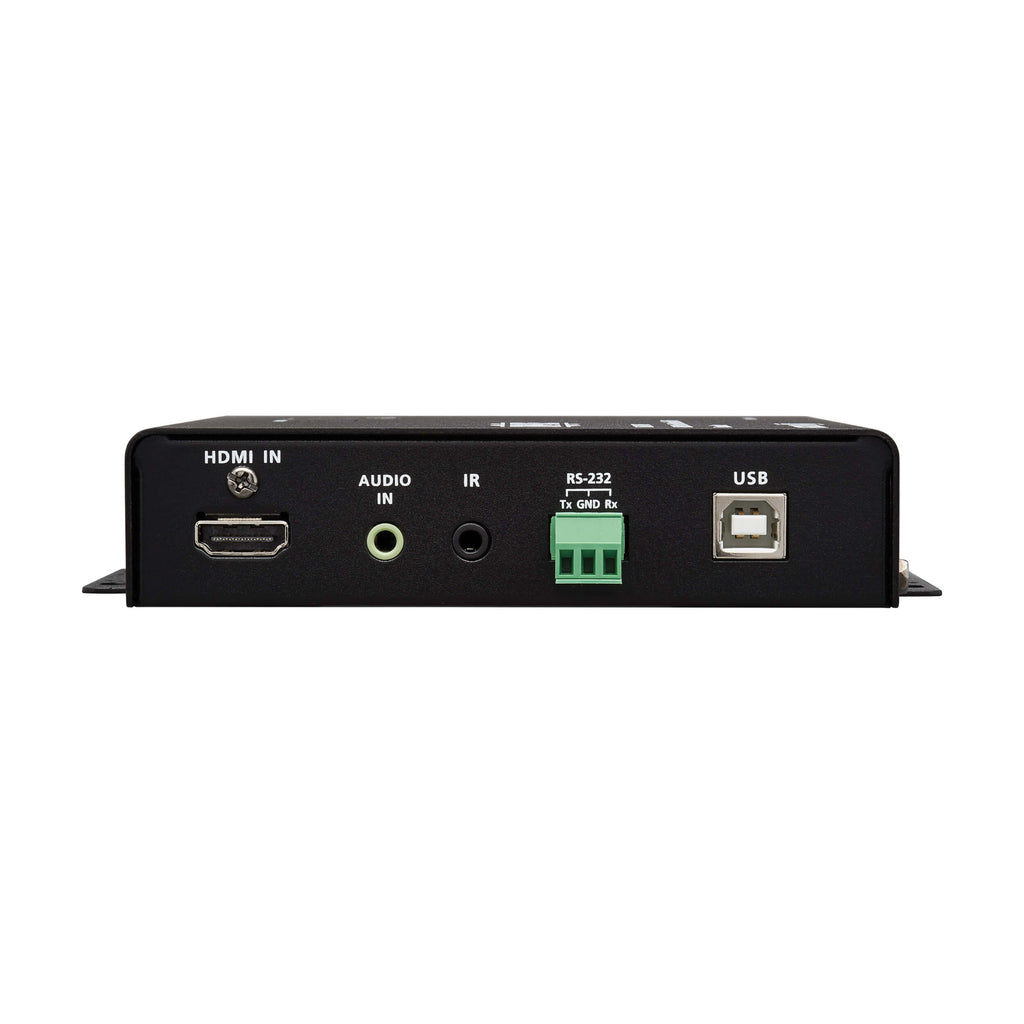

With web-based management, RS-232, USB, and IR control support, and compatibility with B162-Series receivers, the B162-001-POE enables reliable video walls, daisy-chain configurations, and centralized AV control in demanding commercial environments.
| Specification | Details |
|---|---|
| Product Type | HDMI over IP Encoder Transmitter |
| Video Resolution | Up to 3840 × 2160 (4K) @ 30 Hz |
| Chroma Subsampling | 4:4:4 |
| Compression Modes | Smooth, Balanced, High Quality |
| Max Transmission Distance | Up to 328 ft (100 m) |
| Network Interface | RJ45 Gigabit Ethernet |

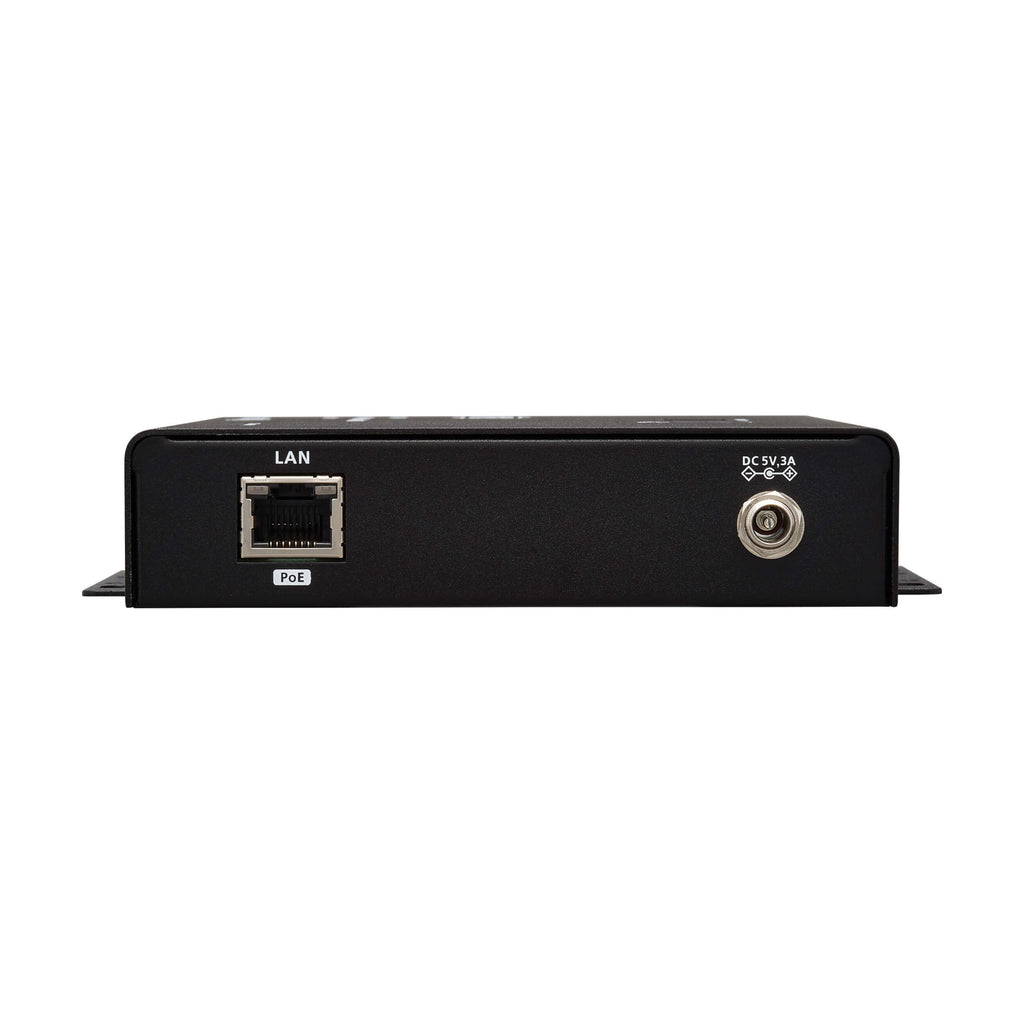

| Power Options | Power over Ethernet (PoE) or External Power Adapter |
| Video Input | HDMI (Female) |
| Local HDMI Output | Yes |
| Audio Support | Embedded HDMI Audio |
| Control Methods | Web GUI, RS-232, USB, IR |
| Daisy-Chain Support | Yes, up to 30 units |
| Video Wall Support | Up to 8 × 8 (64 displays) |
| LED Indicators | Power, Connection |
| Construction | Metal Housing |
| Color | Black |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | TAA, RoHS, CE, REACH |
| Warranty | 1-Year Limited Warranty |
