Description

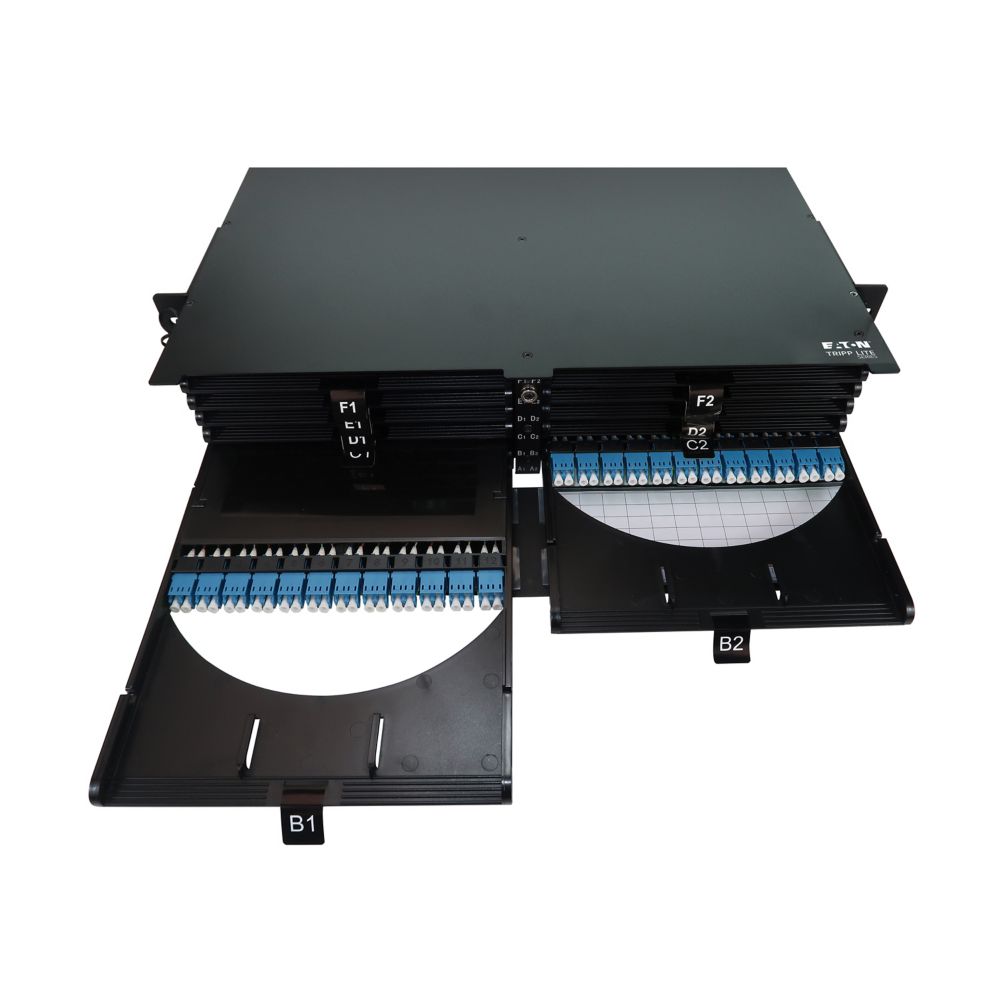

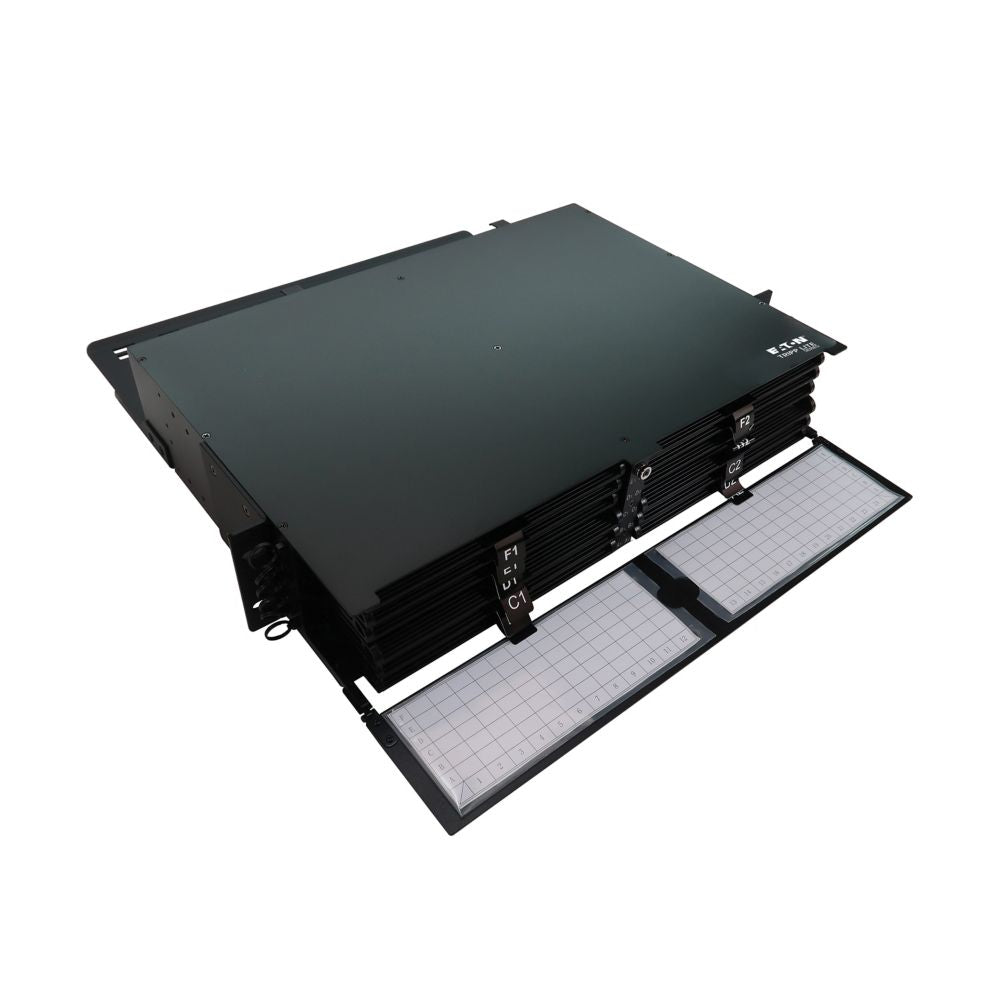

The Eaton Tripp Lite N600P-288U-12 is a high-density 2U fiber patch panel engineered for enterprise, colocation, and hyperscale environments requiring scalable and organized fiber infrastructure. Designed to support up to 288 LC/UPC singlemode connections, this enclosure enables efficient on-site splicing with pre-installed splice cassettes and 1.5M pigtails, reducing deployment time and complexity.
With integrated cable management, numbered and labeled ports, and a durable rackmount metal design, this panel ensures clean routing, simplified maintenance, and reliable performance across high-speed network environments. Supporting speeds up to 800G, it is ideal for modern data centers requiring high bandwidth and precision connectivity.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model Number | N600P-288U-12 |
| Product Type | Fiber Patch Panel and Splice Enclosure |
| Form Factor | Rackmount |
| Rack Units | 2U |
| Dimensions (H x W x D) | 3.46 x 19 x 18.5 in |
| Panel Dimensions | 19.10 x 3.46 x 18.51 in |
| Weight | 15.43 lb |
| Material | Metal |
| Fiber Capacity | 288 Fibers |
| Number of Ports | 144 LC Duplex (288 fibers total) |
| Connector Type | LC |
| Endface Polish | UPC |
| Optical Mode | OS2 Singlemode |
| Cassette Capacity | 12 Splice Cassettes |
| Splice Tray Capacity | 24 per cassette |
| Included Pigtails | LC/UPC Singlemode, 1.5M, 0.9 mm |
| Connector Color | Green |

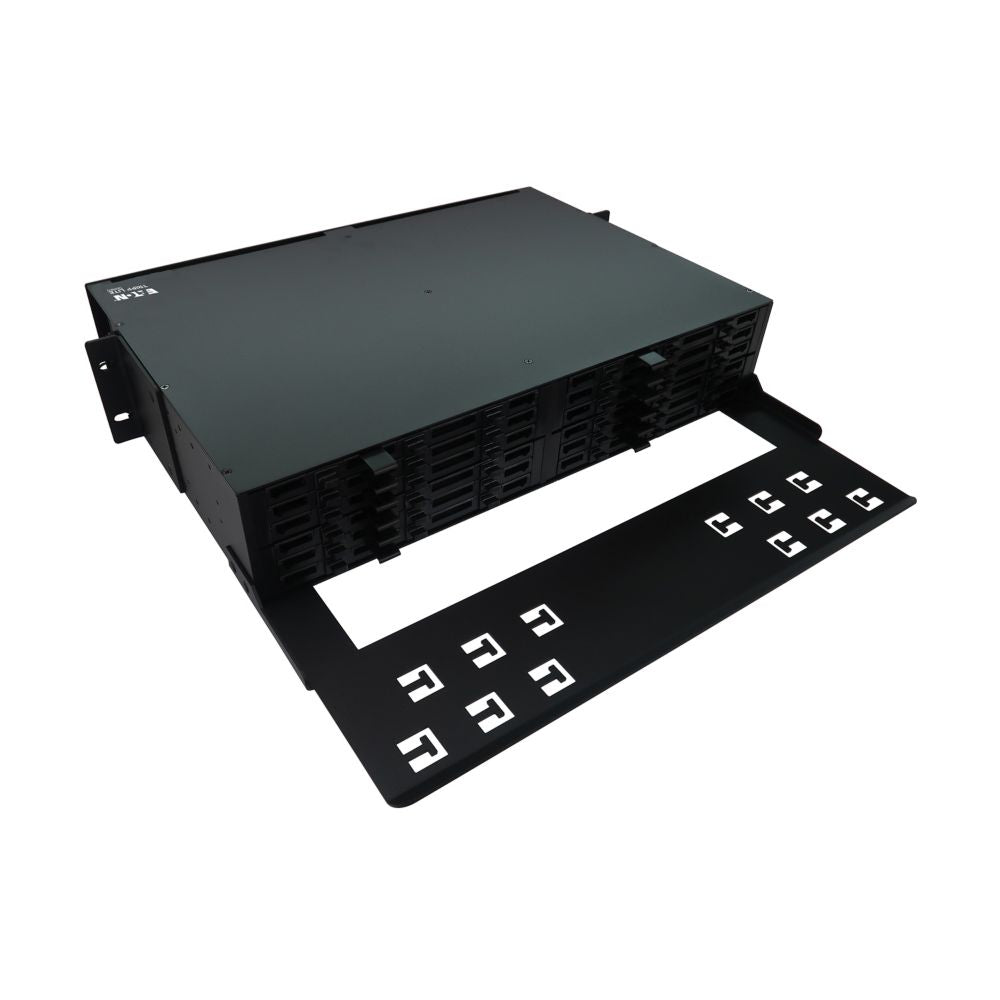

| Cable Management | Built-in |

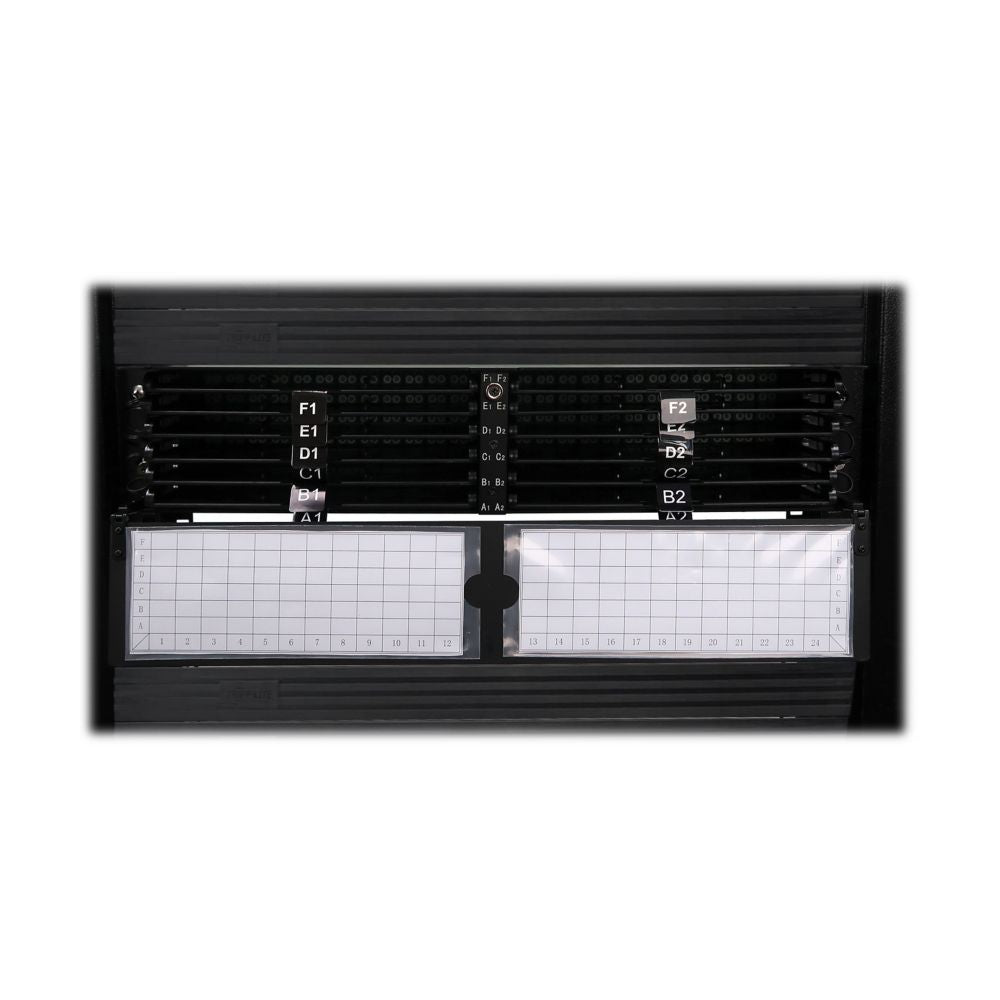

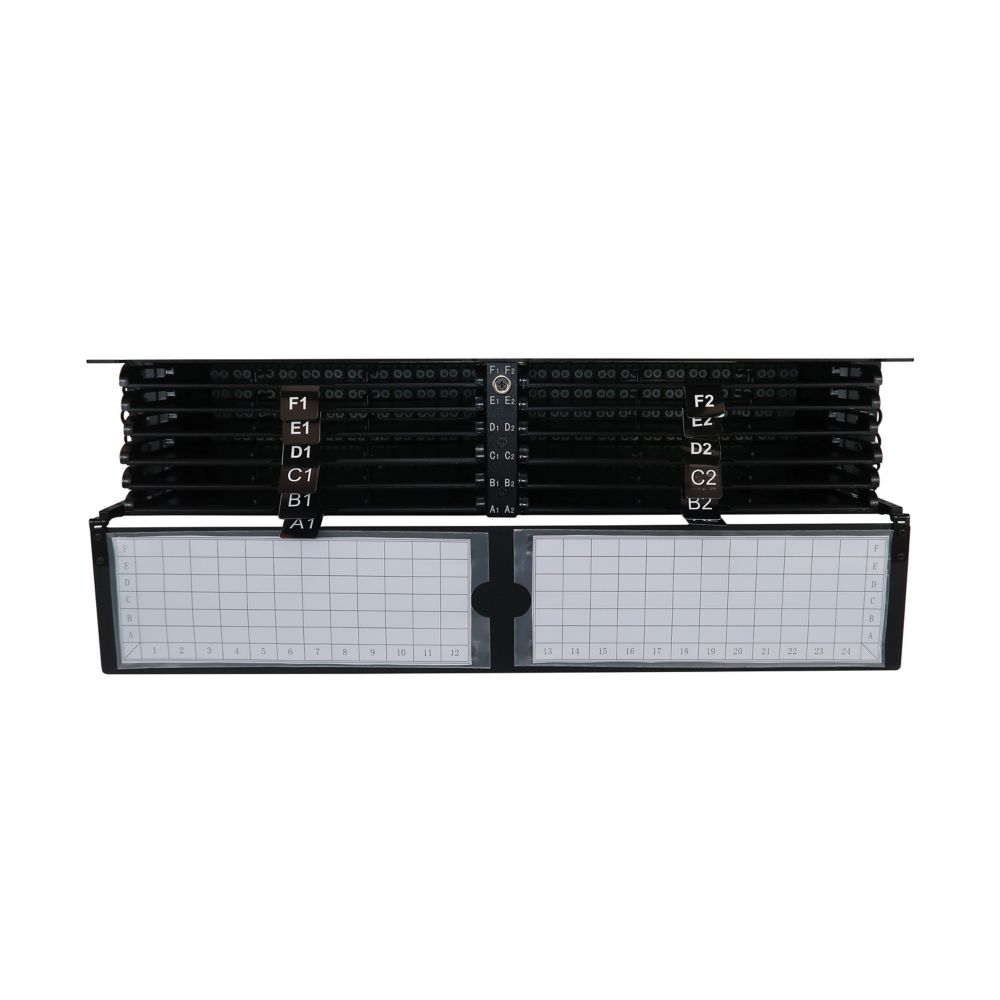

| Port Identification | Numbered and Labeled |
| Mounting | Rackmount with included hardware |
| Minimum Rack Depth | 21.5 in |
| Network Speeds Supported | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Insertion Loss | ≤0.30 dB |
| Wavelength | 1550 nm |
| Attenuation | ≤0.30 dB/km |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Included Accessories | Mounting hardware, nylon ties, Velcro tie, spiral wrap, splice protection tubes, owner’s manual |
