Description
The Eaton Tripp Lite N600P-288A-12 is a high-density 2U fiber patch panel engineered for enterprise, colocation, and hyperscale data center environments requiring scalable and organized fiber connectivity. Designed to support up to 288 singlemode LC/APC fiber connections, this enclosure enables efficient on-site splicing while maintaining optimal cable management and performance.

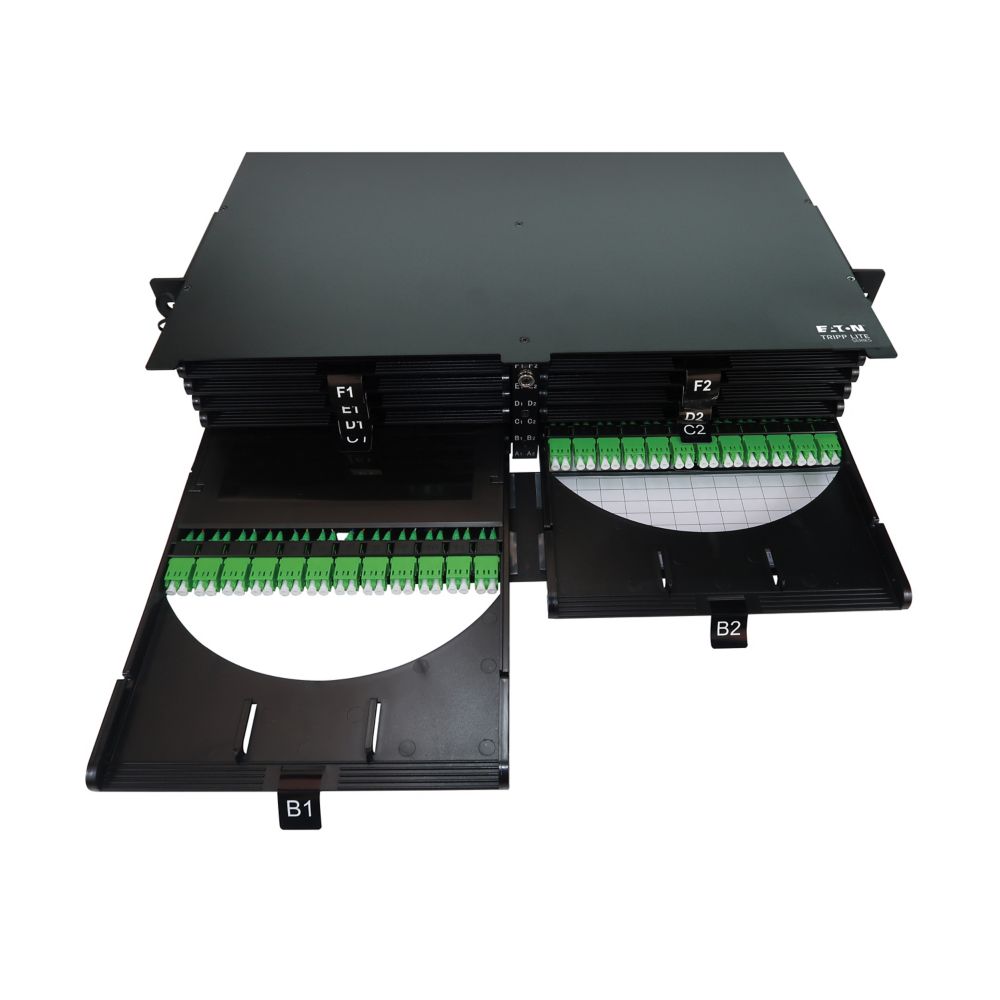

Equipped with 12 splice cassettes, each supporting 24 fibers, the panel delivers structured, high-capacity fiber termination in a compact footprint. Pre-installed LC/APC singlemode pigtails ensure consistent optical performance with low insertion loss, while numbered and labeled ports streamline identification, troubleshooting, and network mapping.
The durable metal construction and integrated cable management system, including ties, wraps, and protective tubing, ensure long-term reliability and organized routing. Supporting speeds up to 800G, this panel is built to meet the demands of modern high-bandwidth infrastructure deployments.
| Specification | Details |
|---|---|
| Product Name | Eaton Tripp Lite Fiber Patch Panel and Enclosure |
| Model / Catalog Number | N600P-288A-12 |
| Product Type | Fiber Patch Panel |
| Form Factor | Rackmount |
| Rack Units | 2U |
| Fiber Capacity | 288 fibers |
| Number of Cassettes | 12 splice cassettes |
| Cassette Capacity | 24 fibers per cassette |
| Connector Type | LC/APC |
| Optical Mode | Singlemode (OS2) |
| Endface Polish | APC |
| Pigtail Type | LC/APC Singlemode, 1.5 m, 0.9 mm |
| Network Speeds Supported | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Insertion Loss | ≤0.30 dB |
| Wavelength | 1550 nm |
| Attenuation (1550 nm) | ≤0.30 dB/km |
| Port Features | Numbered and labeled for quick identification |
| Cable Management | Built-in with ties, wraps, tubing, and spiral band |
| Construction Material | Metal |
| Mounting Type | Standard 19-inch rackmount |
| Minimum Rack Depth | 19 inches |
| Dimensions (W x H x D) | 19 x 3.46 x 18.5 in |
| Panel Dimensions | 19.10 x 3.46 x 18.51 in |
| Weight | 15.43 lb |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Included Accessories | Mounting hardware, cable ties, Velcro tie, spiral wrap, protective tubes, owner's manual |
