Description

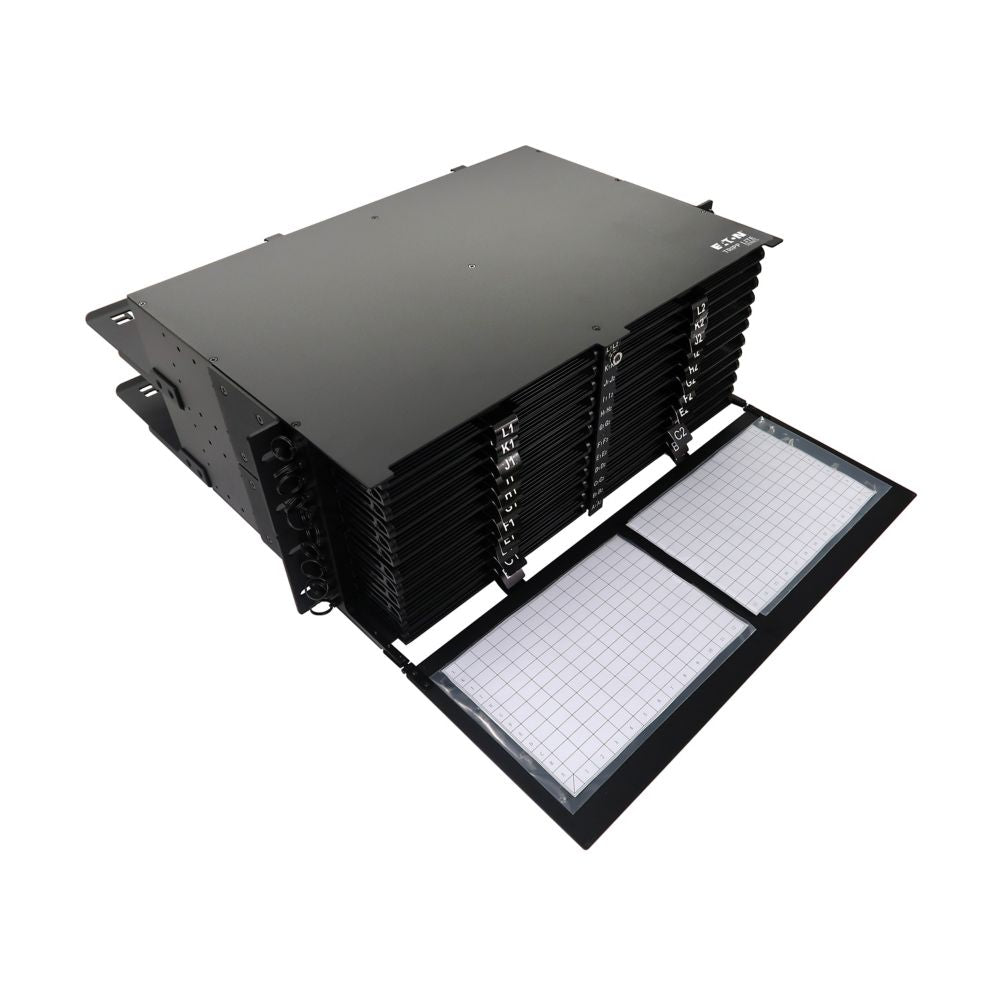

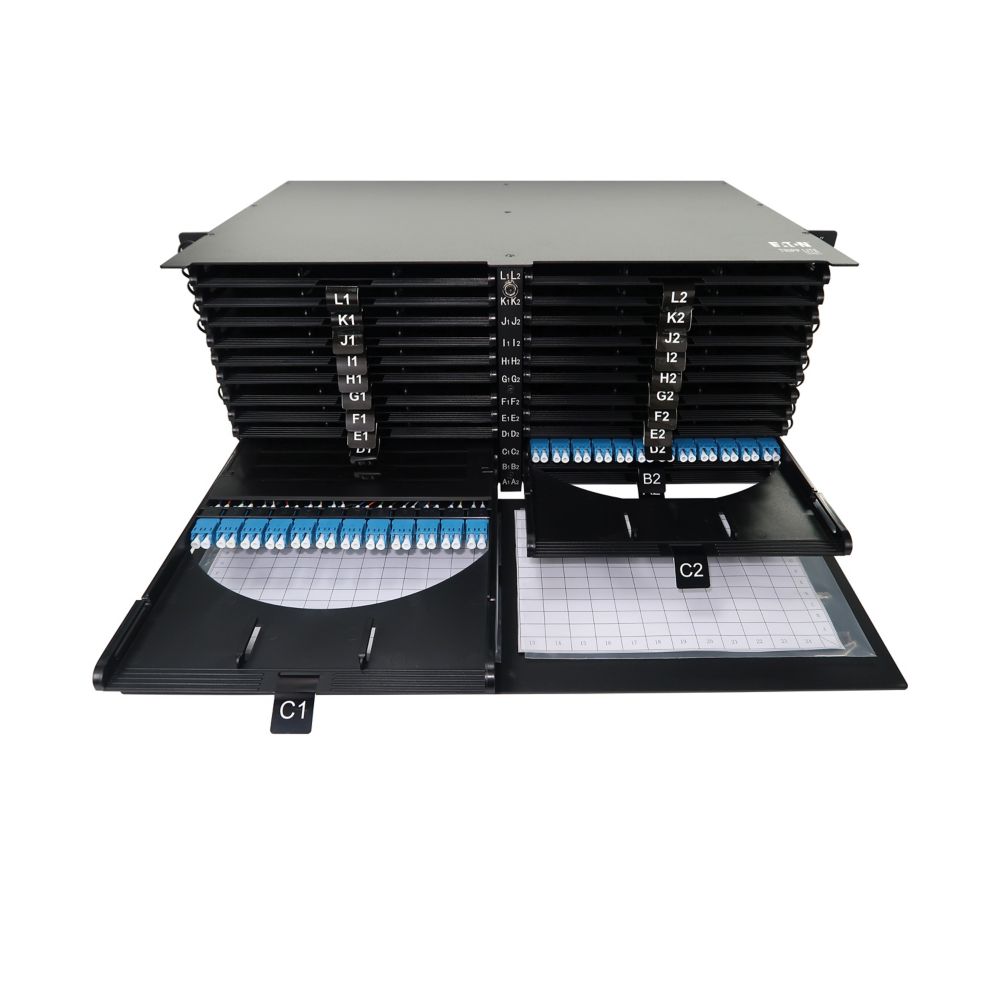

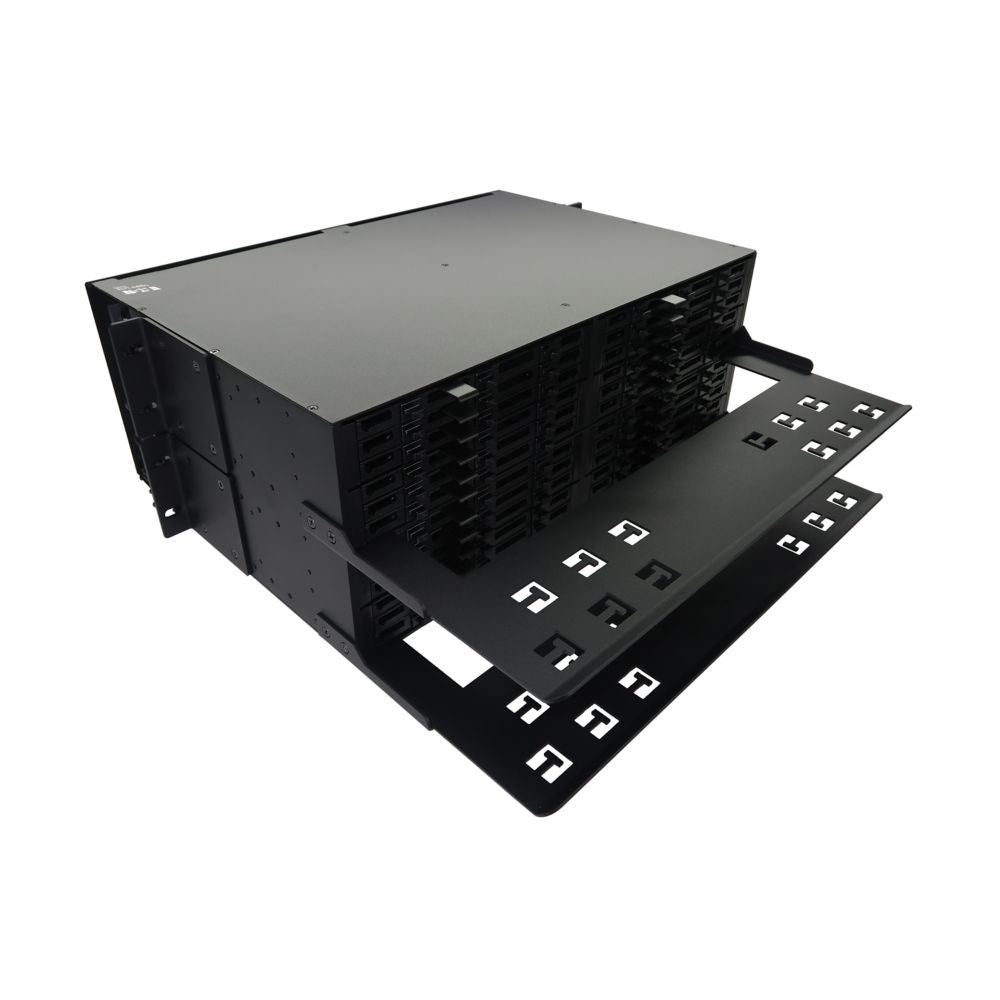

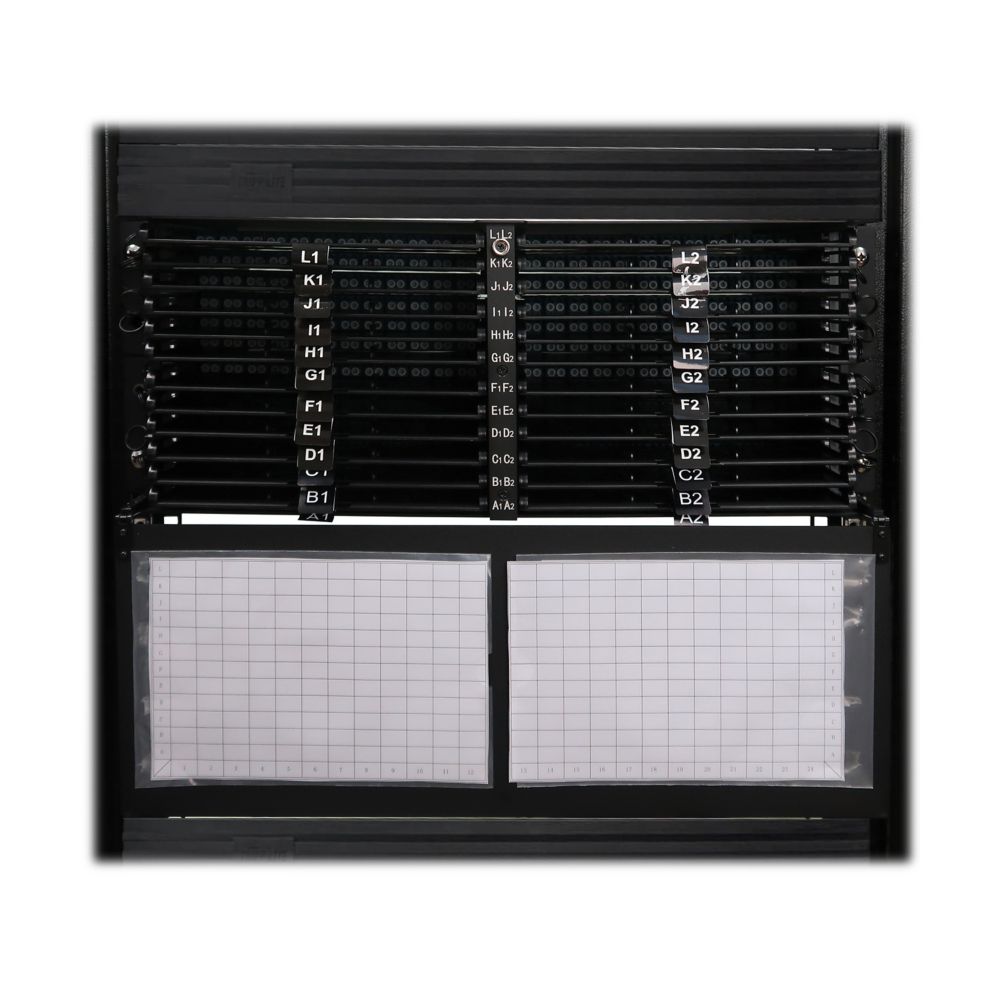

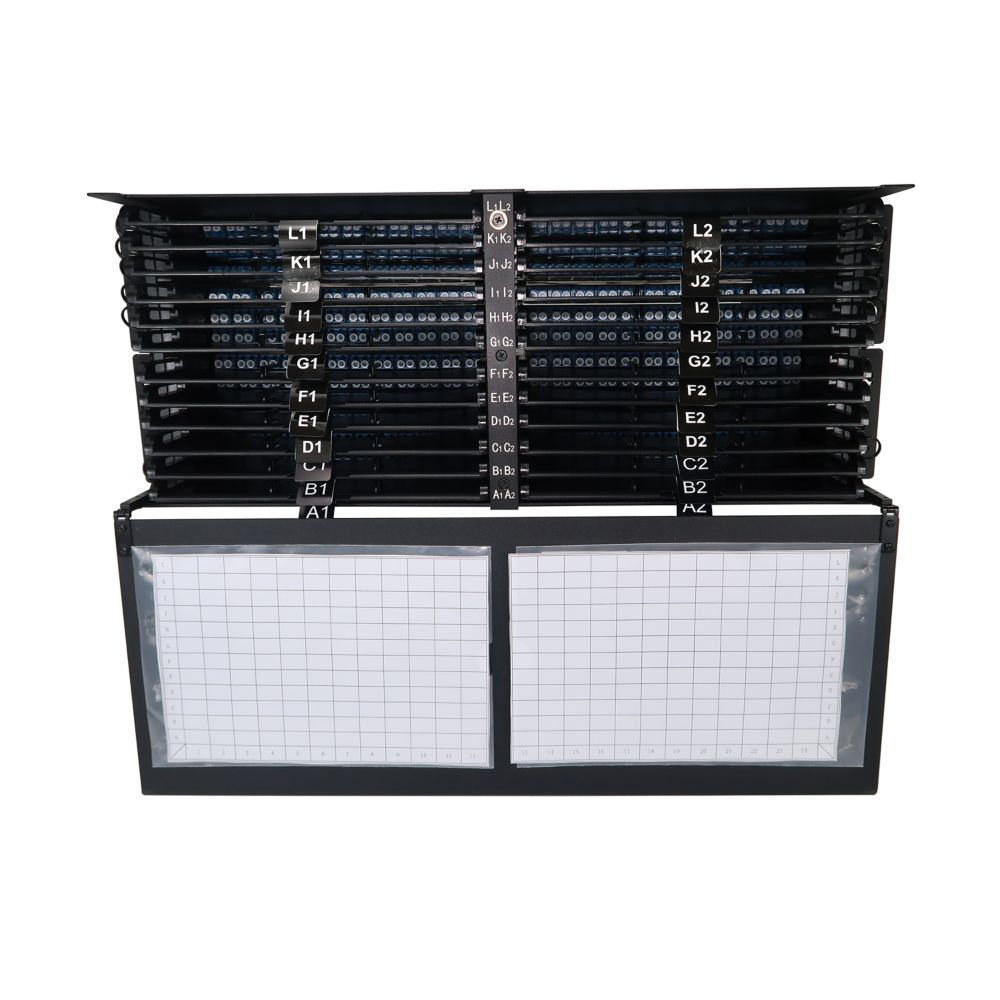

The Eaton Tripp Lite N600P-576U-24 is a high-density 4U fiber patch panel engineered for large-scale enterprise, hyperscale, and multi-tenant data center environments. Designed to support up to 576 LC/UPC singlemode fiber connections, this solution enables efficient, organized, and scalable fiber management within standard 19-inch racks.
Equipped with 24 splice cassettes and pre-installed LC/UPC pigtails, this enclosure allows for streamlined on-site splicing while maintaining optimal signal performance with low insertion loss. Built-in cable management, clearly labeled and numbered ports, and included cable organization accessories ensure fast deployment, simplified maintenance, and reliable long-term operation.
Its durable metal construction, rackmount-ready design, and support for high-speed network environments up to 800G make it an ideal solution for modern fiber infrastructure requiring precision, scalability, and performance.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Product Type | Fiber Patch Panel and Splice Enclosure |
| Form Factor | Rackmount |
| Rack Units | 4U |
| Fiber Capacity | 576 Fibers |
| Number of Cassettes | 24 |
| Splicing Tray Capacity | 24 fibers per tray |
| Total Splicing Capacity | 576 fibers |
| Connector Type | LC |
| Connector Polish | UPC |
| Optical Mode | Singlemode (OS2) |
| Pigtail Type | LC/UPC Singlemode, 1.5 m, 0.9 mm |
| Network Speeds Supported | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Insertion Loss | ≤ 0.30 dB |
| Wavelength | 1550 nm |
| Attenuation | ≤ 0.30 dB/km |
| Cable Management | Built-in with labeled and numbered ports |
| Mounting Type | Standard 19-inch rackmount |
| Minimum Rack Depth | 19 inches |
| Construction Material | Metal |
| Dimensions (H x W x D) | 6.93 x 19 x 18.5 in |
| Weight | 30.2 lb |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Included Accessories | Mounting hardware, cable ties, spiral wrap, Velcro tie, protective tubes, owner’s manual |
