Description

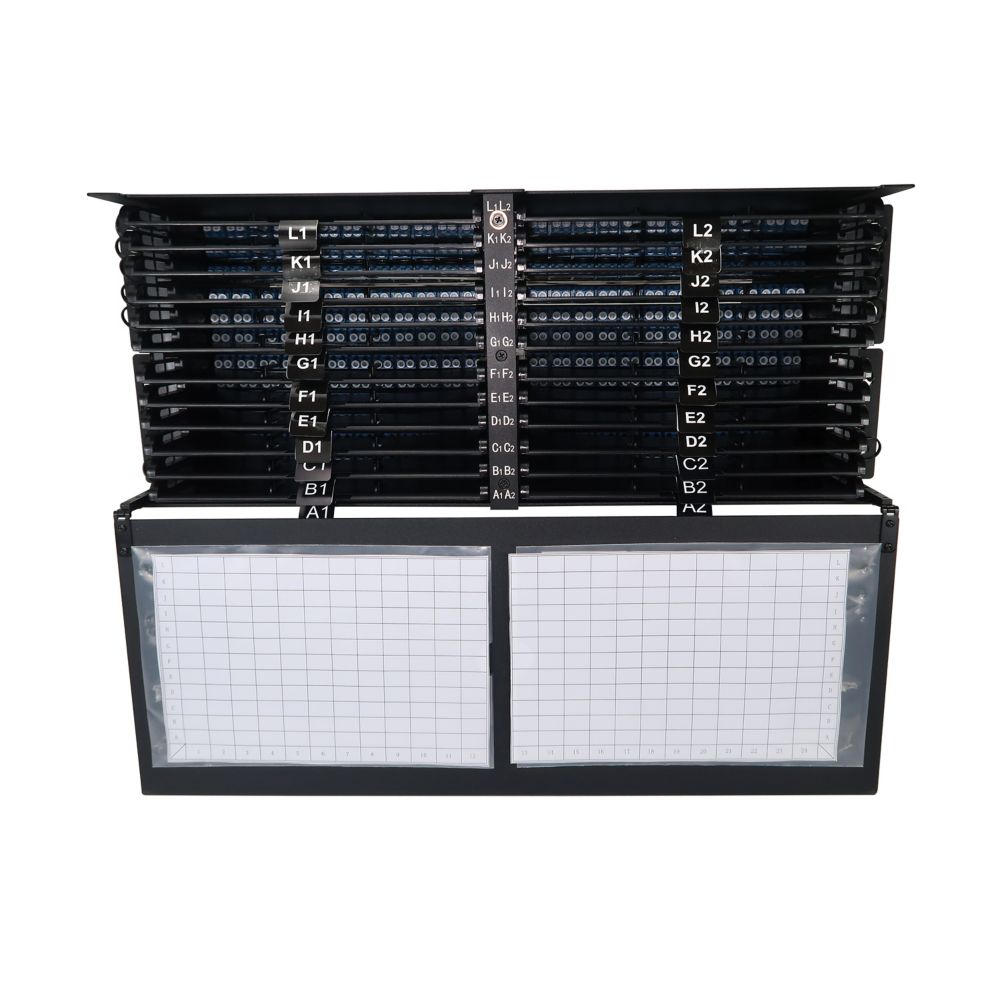

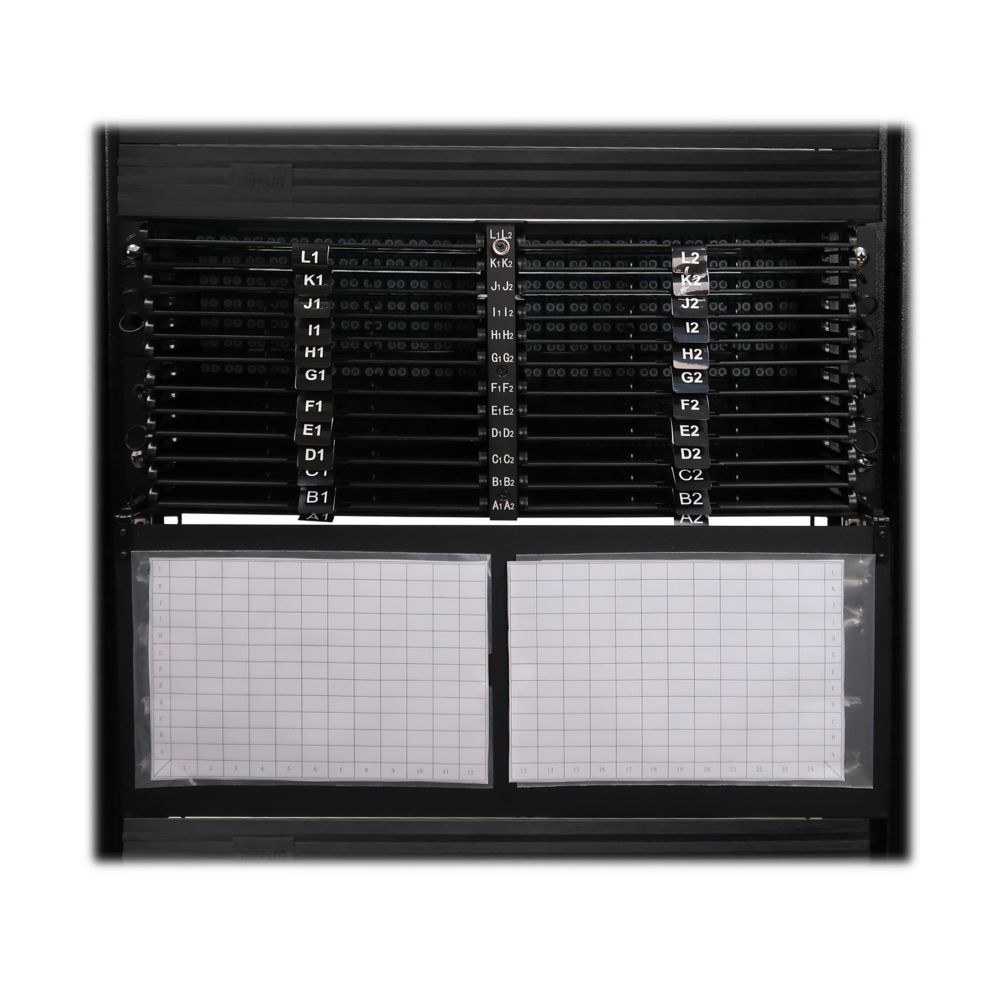

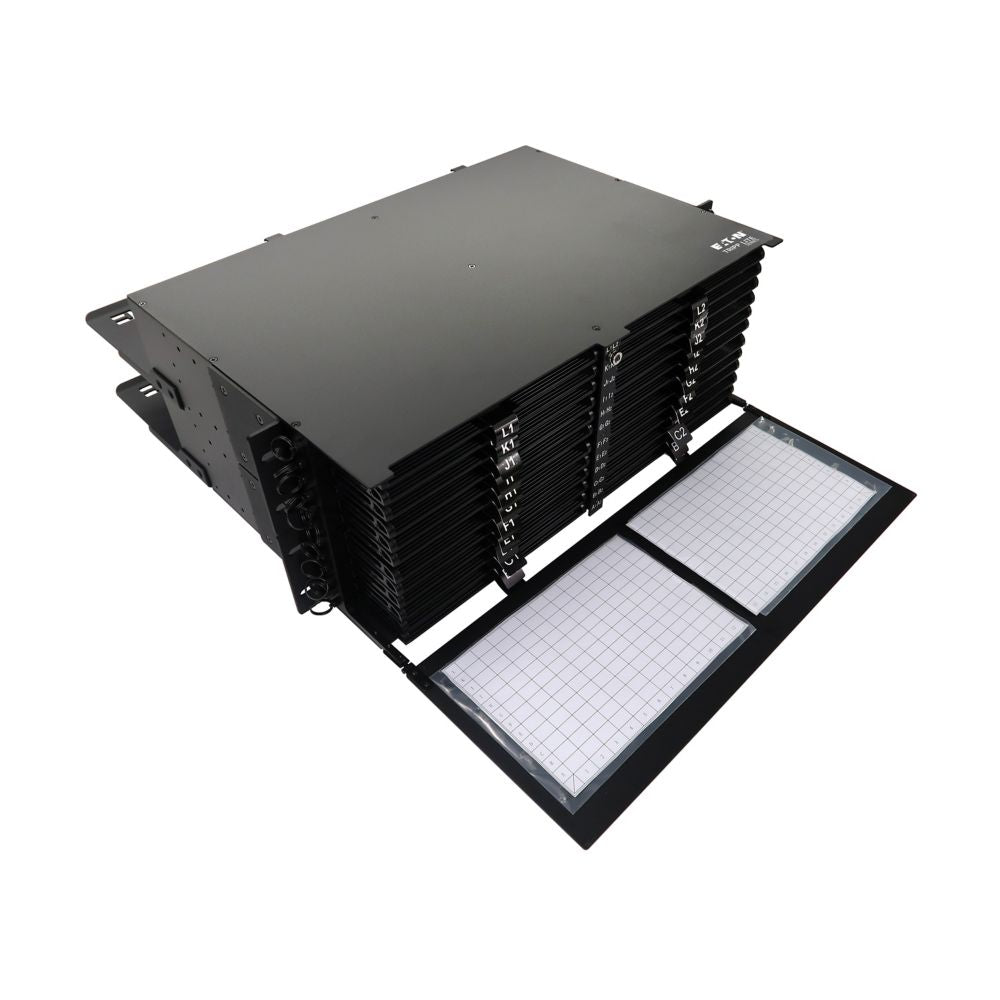

The Eaton Tripp Lite N600P-576A-24 high-density fiber patch panel is engineered for large-scale enterprise, hyperscale, and multi-tenant data center environments that demand maximum fiber capacity in a compact footprint. Supporting up to 576 singlemode LC/APC fiber connections, this 4U rackmount enclosure delivers exceptional scalability, organization, and performance for modern high-bandwidth infrastructure.

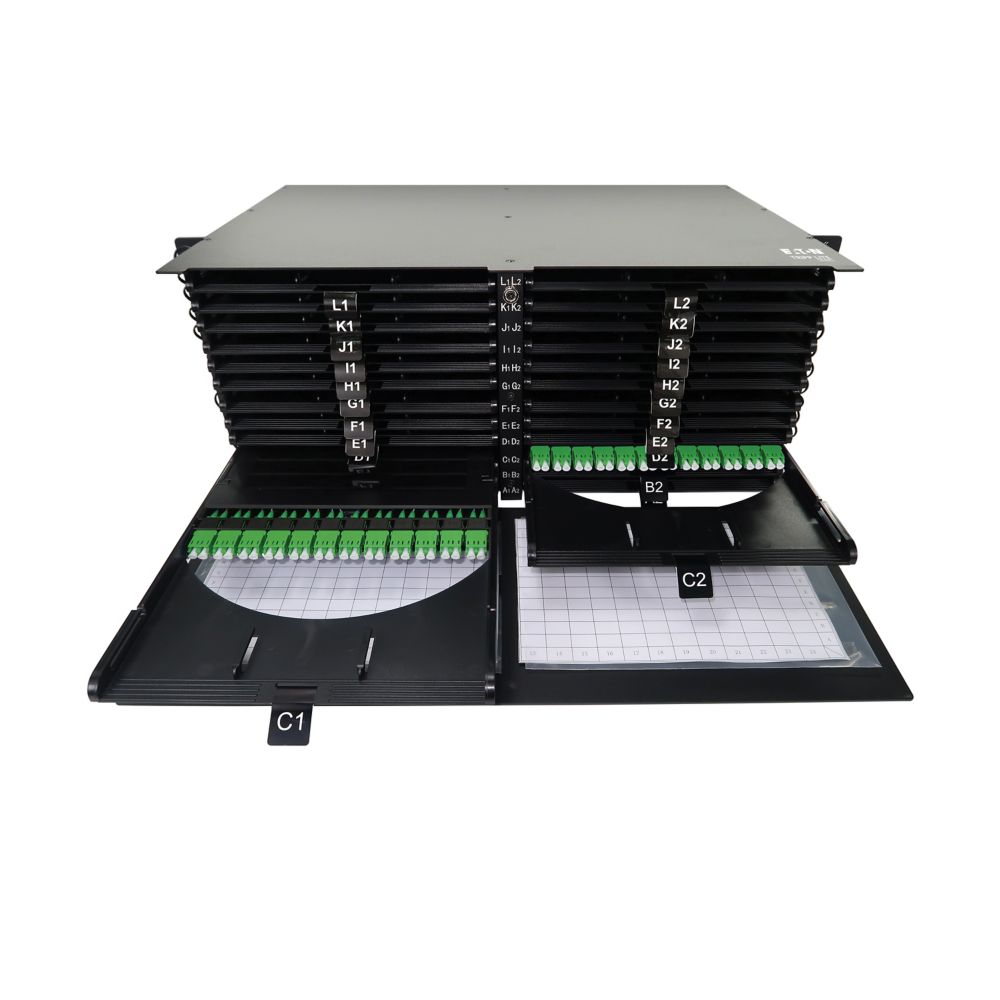

Designed with 24 integrated splice cassettes, each supporting 24 fibers, this panel enables efficient on-site splicing while maintaining structured cable routing. Numbered and labeled ports simplify identification and network mapping, reducing installation time and ongoing maintenance complexity.

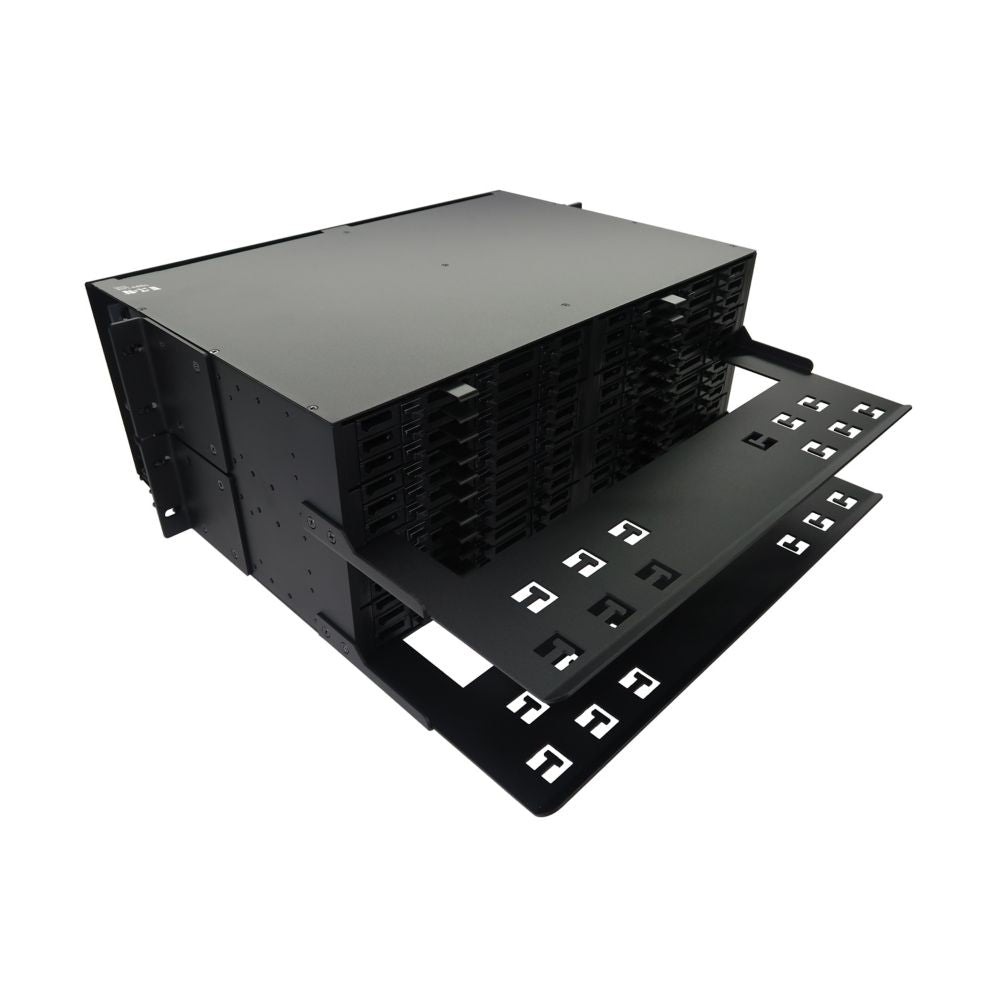

Built-in cable management, along with included wraps, ties, and tubing, ensures clean routing and protection of internal fiber connections. The rugged metal enclosure and included mounting hardware provide secure installation in standard 19-inch racks, making it ideal for mission-critical deployments requiring reliability and long-term performance.
Optimized for high-speed applications up to 800G, this fiber patch panel ensures low insertion loss and consistent signal integrity across demanding network environments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Product Type | Fiber Patch Panel and Splice Enclosure |
| Form Factor | Rackmount |
| Rack Units | 4U |
| Fiber Capacity | 576 Fibers |
| Connector Type | LC/APC |
| Optical Mode | Singlemode (OS2) |
| Endface Polish | APC |
| Cassette Quantity | 24 Splice Cassettes |
| Cassette Capacity | 24 Fibers per Cassette |
| Patch Cord Type | LC/APC Singlemode, 1.5M Pigtail, 0.9 mm |
| Network Speeds Supported | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Insertion Loss | ≤0.30 dB |
| Wavelength | 1550 nm |
| Attenuation @1550nm | ≤0.30 dB/km |
| Connector Color | Green |
| Cable Management | Built-in with ties, wraps, and tubing included |
| Port Identification | Numbered and labeled ports |
| Mounting | Rack mount (19-inch rack compatible) |
| Minimum Rack Depth | 19 in |
| Material | Metal |
| Dimensions (H x W x D) | 19.10 x 8.86 x 18.51 in |
| Weight | 30.2 lb |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Included Accessories | Mounting hardware, nylon cable ties, spiral wrap, Velcro tie, protective splice tubes, owner’s manual |
