Description

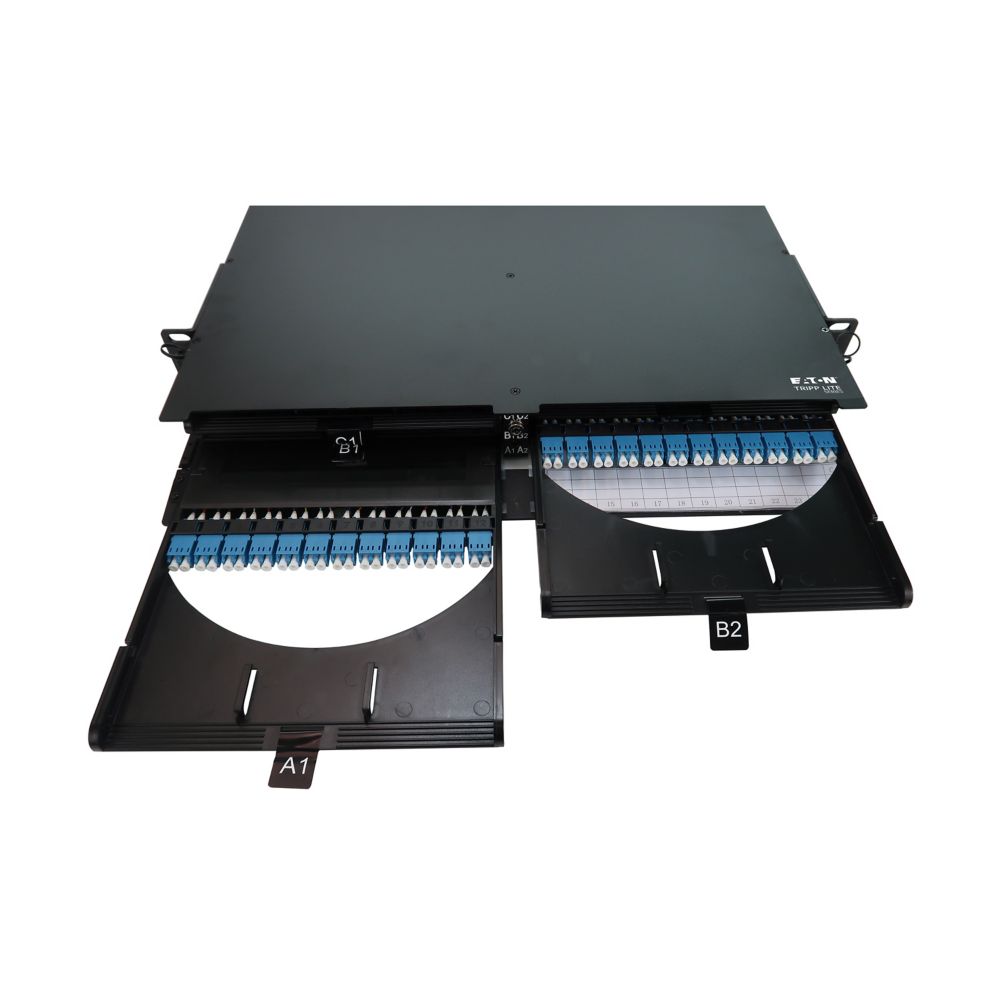

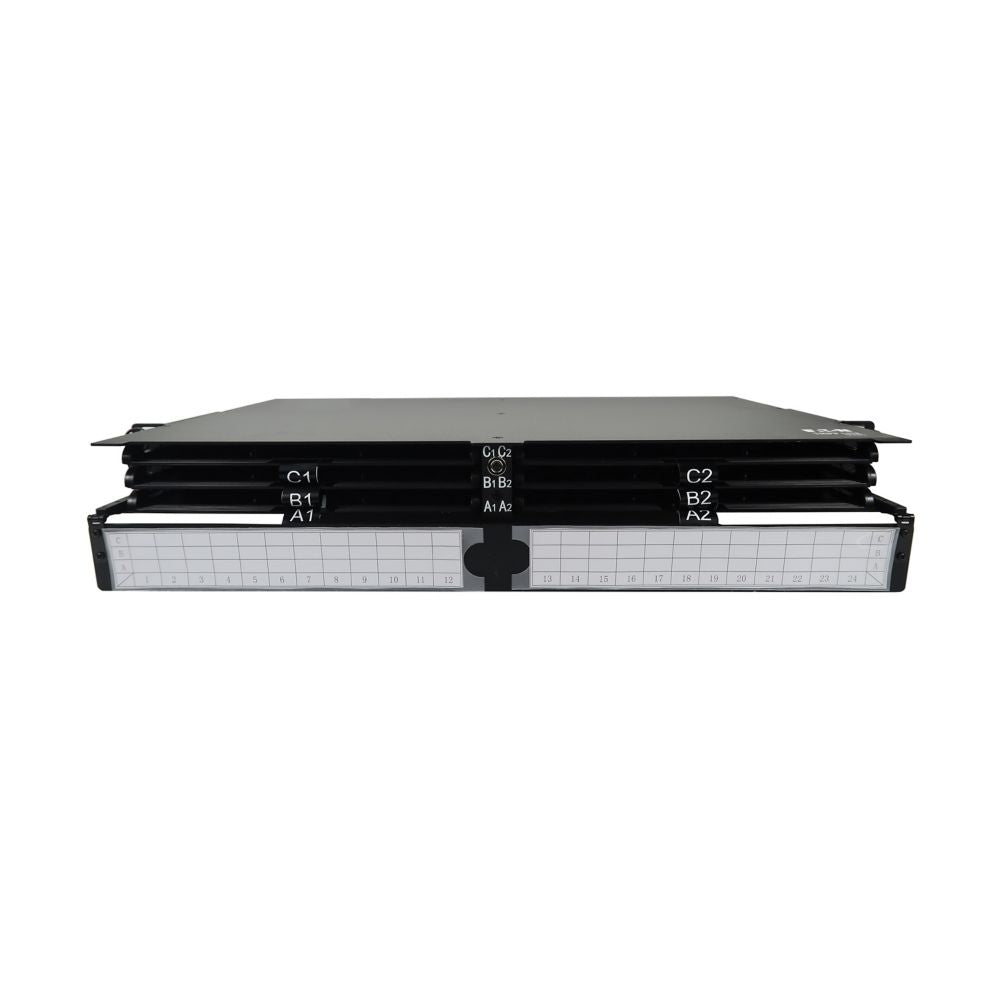

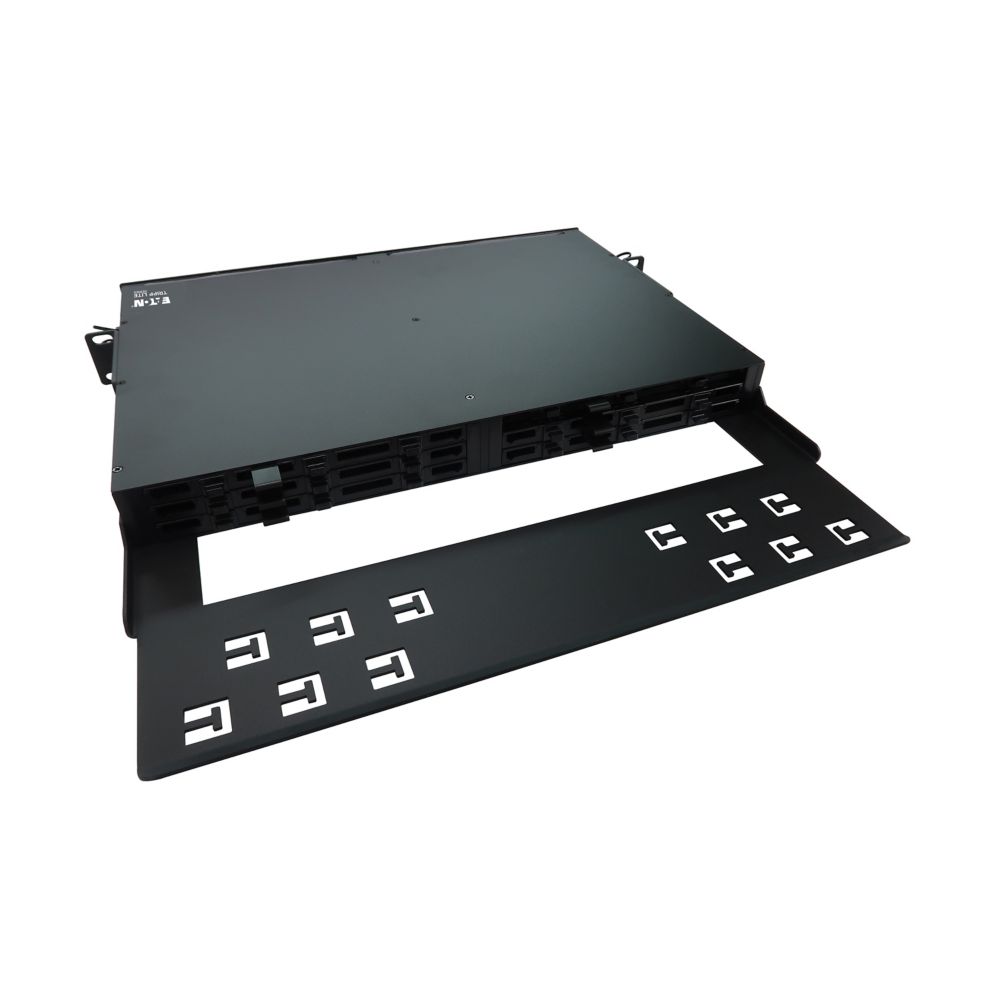

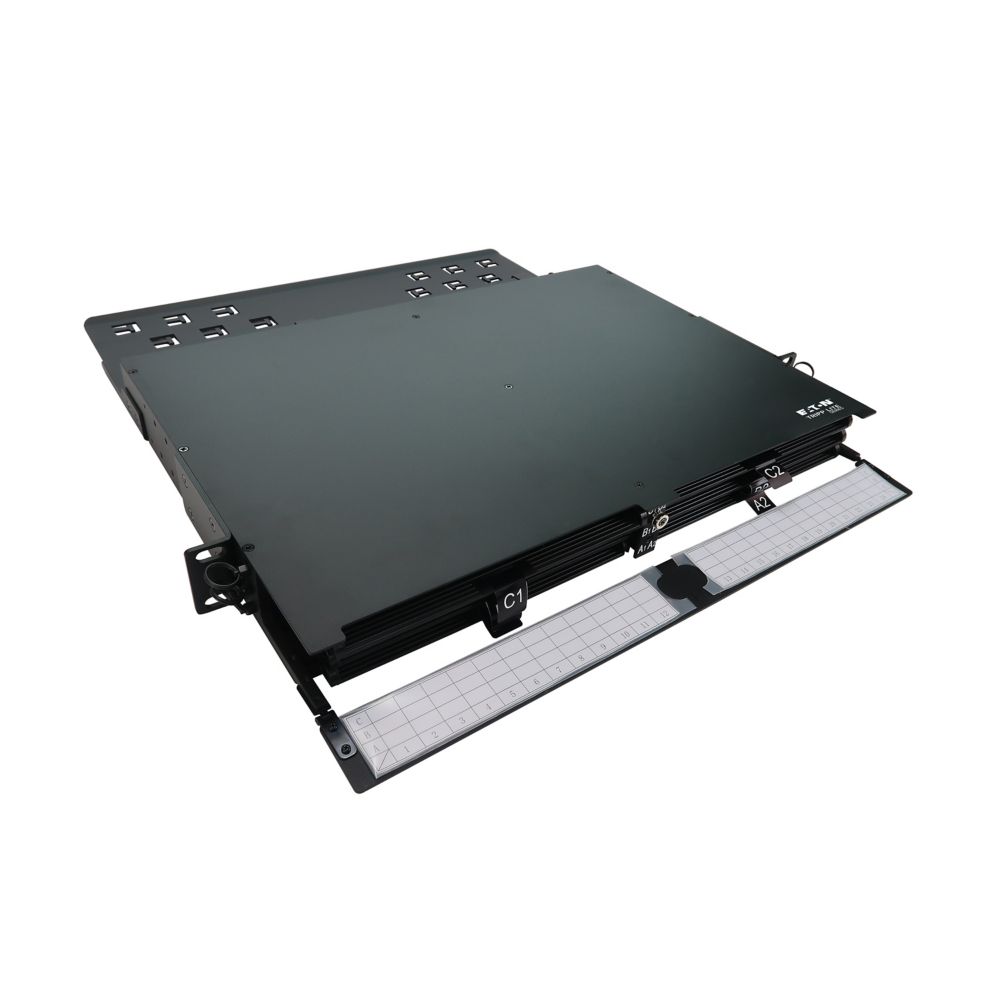

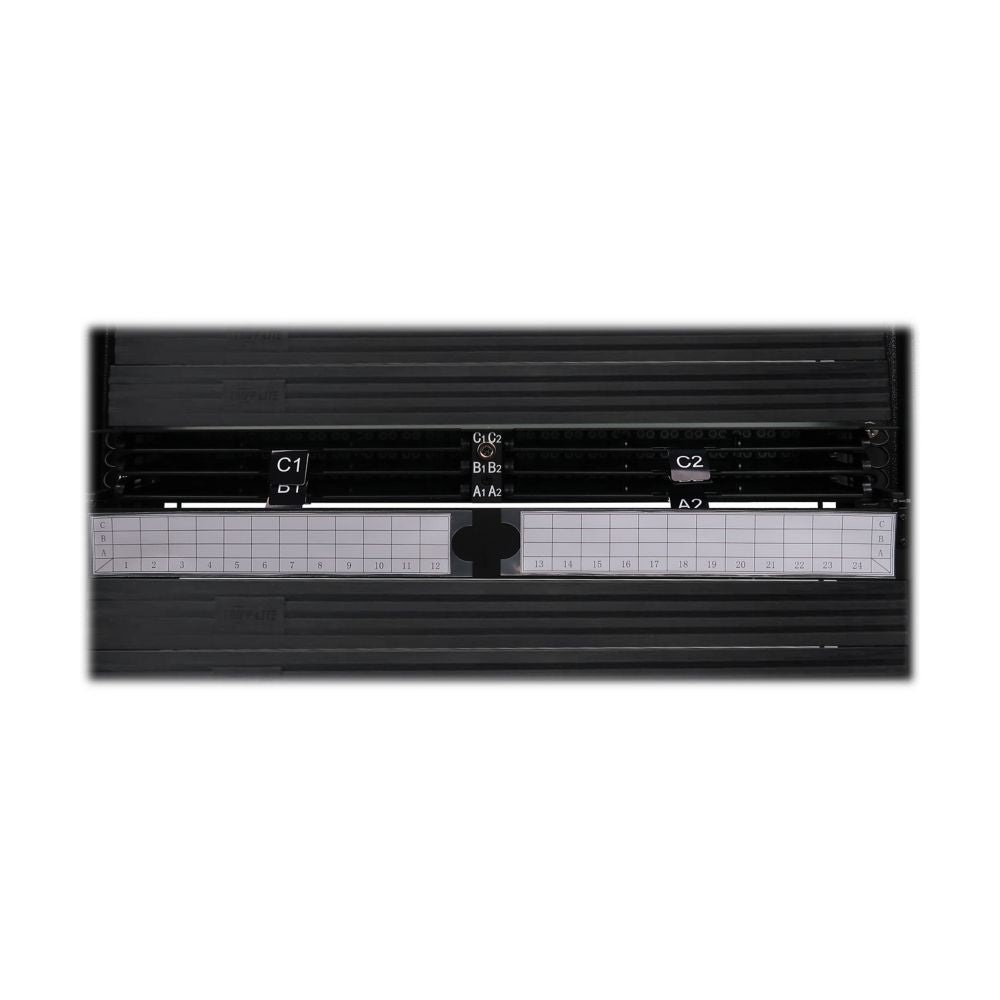

The Eaton Tripp Lite N600P-144U-6 high-density fiber patch panel is engineered for enterprise-grade network environments requiring scalable, high-performance fiber connectivity. Designed for data centers, colocation facilities, and hyperscale deployments, this 1U rackmount enclosure supports up to 144 singlemode LC/UPC fiber connections, enabling efficient space utilization without compromising performance.
Equipped with six integrated splice cassettes, each supporting 24 fibers, this solution allows for streamlined on-site splicing and organized fiber management. The panel features clearly numbered LC duplex ports for fast identification and simplified network mapping, reducing installation time and minimizing operational errors.
Built with integrated cable management, labeled ports, and included accessories such as splice protection tubes, cable ties, and spiral wrap, the N600P-144U-6 ensures clean, secure, and reliable fiber routing. Its robust metal construction and support for high-speed network standards up to 800G make it a future-ready solution for mission-critical infrastructure.
| Specification | Details |
|---|---|
| Product Type | Fiber Patch Panel and Splice Cassette Enclosure |
| Form Factor | Rackmount |
| Rack Units | 1U |
| Fiber Capacity | 144 Fibers |
| Connector Type | LC/UPC |
| Optical Mode | Singlemode (OS2) |
| Endface Polish | UPC |
| Number of Ports | 72 LC Duplex Ports |
| Number of Splice Cassettes | 6 |
| Splice Tray Capacity | 24 Fibers per Cassette |
| Cable Type | 0.9 mm Singlemode Pigtail |
| Cable Length | 1.5 m |
| Network Speeds Supported | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Insertion Loss | ≤ 0.30 dB |
| Wavelength | 1550 nm |
| Attenuation | ≤ 0.30 dB/km |
| Mounting Type | 19-inch Rack Mount |
| Minimum Rack Depth | 21.5 in |
| Material | Metal |
| Dimensions (W x H x D) | 19 x 1.73 x 18.5 in |
| Weight | 9.26 lb |
| Operating Temperature | 14° to 140°F (-10° to 60°C) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Temperature | 14° to 140°F (-10° to 60°C) |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Features | Numbered Ports, Labeled Ports, Built-in Cable Management, Mounting Hardware Included |
| Included Accessories | Splice protection tubes, Velcro ties, spiral wrap, nylon cable ties, mounting hardware |
