Description

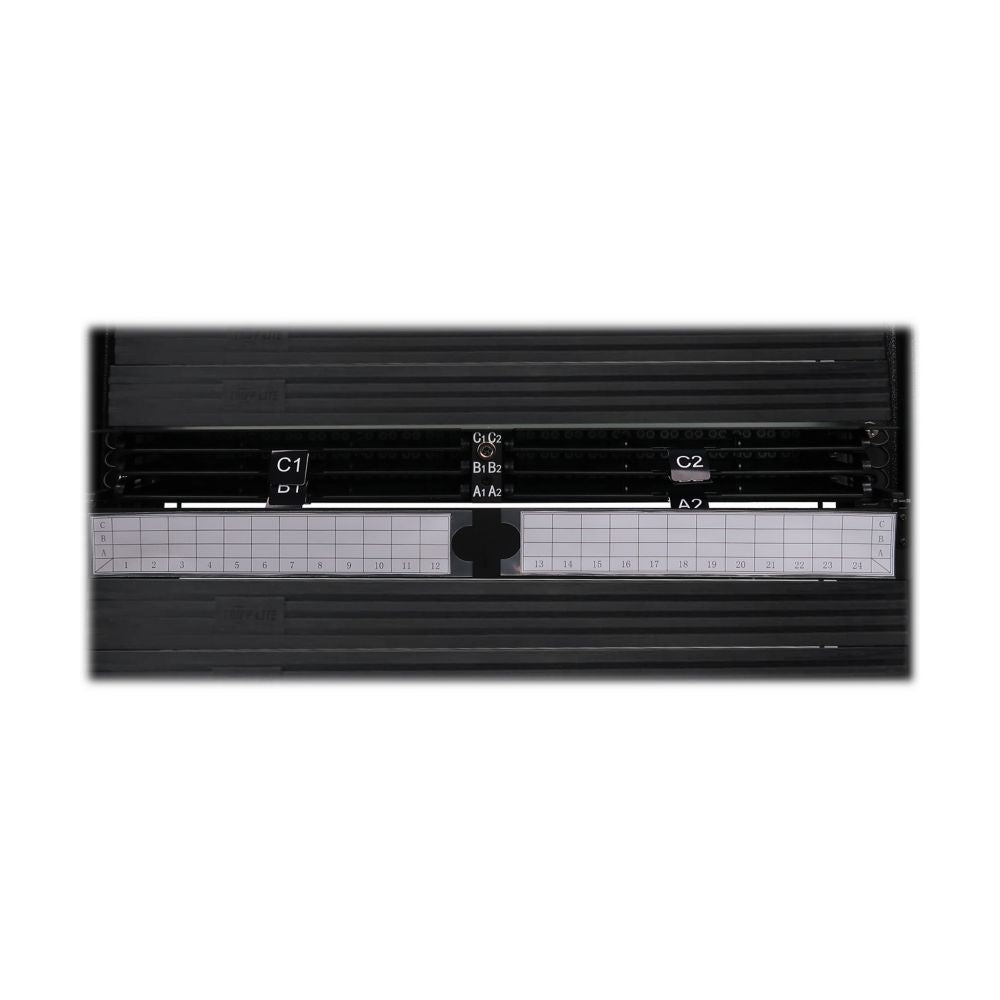

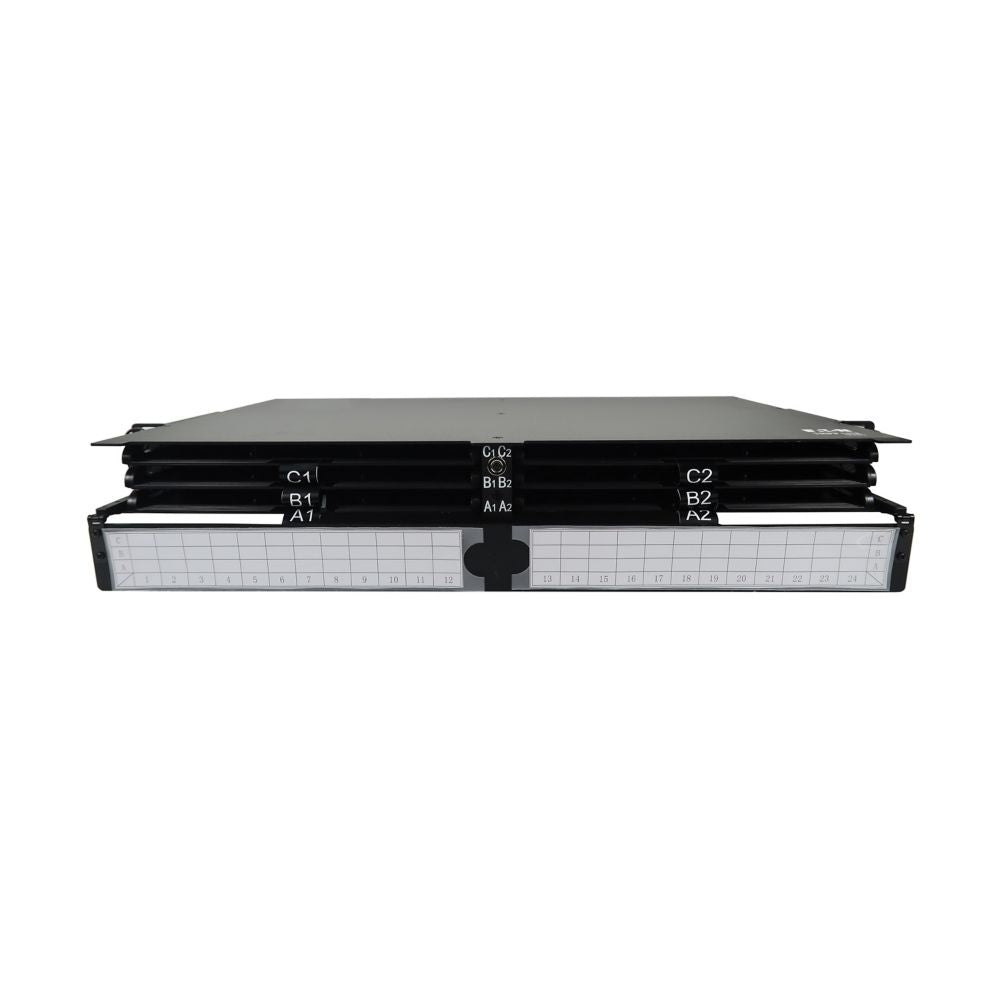

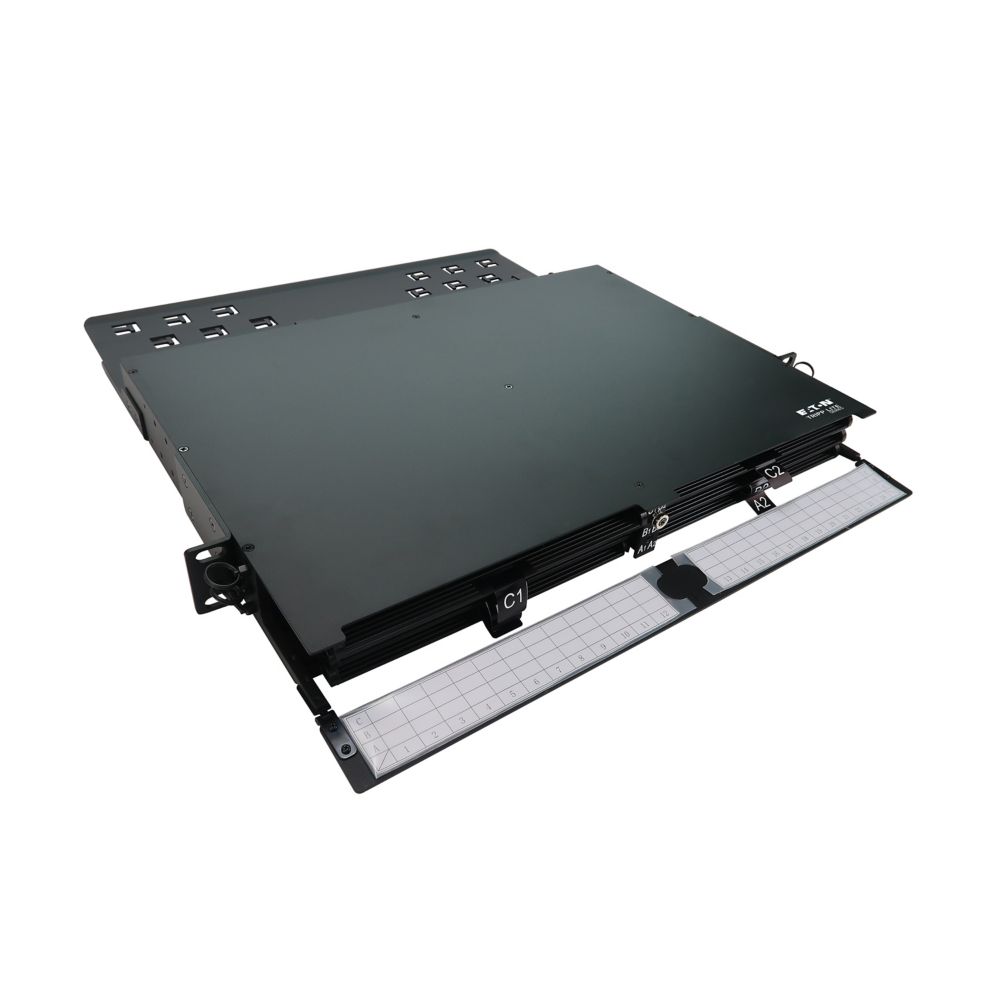

The Eaton Tripp Lite N600P-144A-6 high-density fiber patch panel is engineered for modern data centers, colocation facilities, and hyperscale environments that demand scalable, high-performance fiber management. Designed to fit in just 1U of standard 19-inch rack space, this enclosure delivers exceptional port density with 144 LC/APC singlemode connections, enabling efficient use of valuable rack real estate.

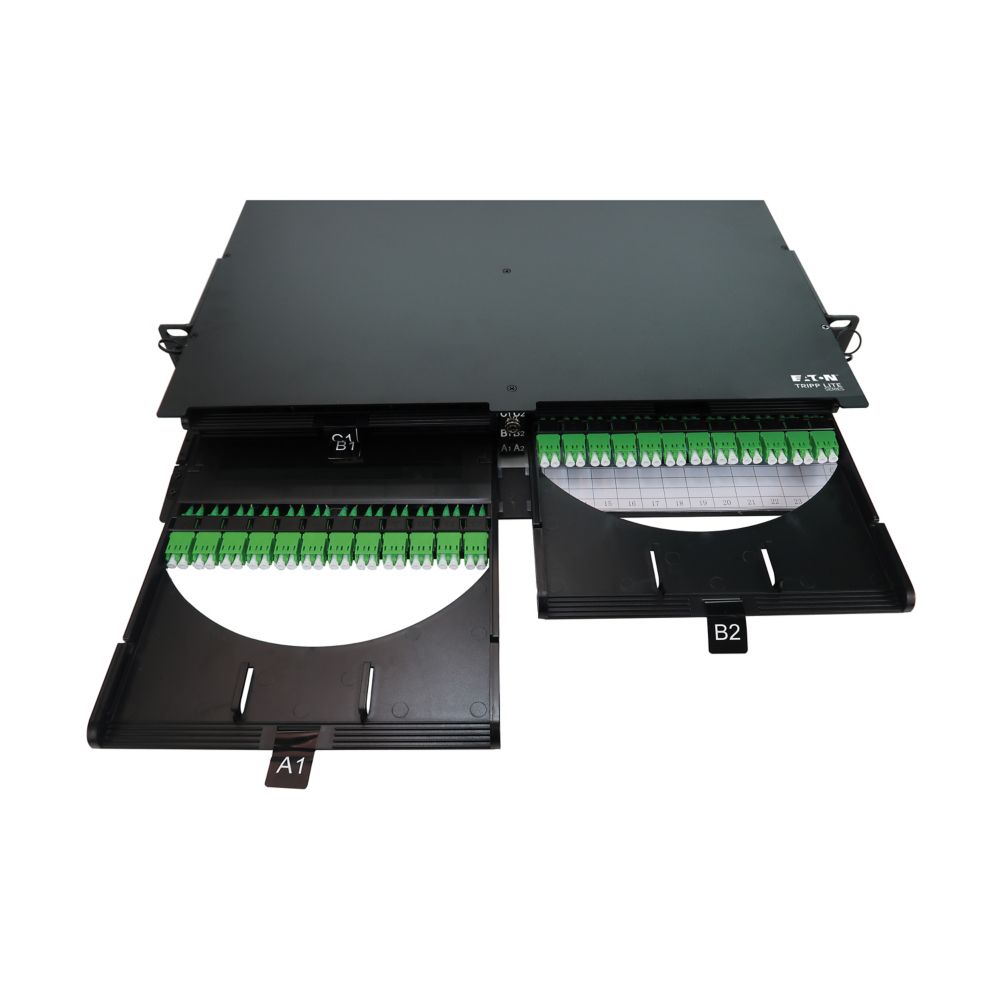

Equipped with six splice cassettes, each supporting 24 fibers, this panel allows for on-site splicing and streamlined fiber deployment. The integrated LC/APC pigtails (1.5 meters, 0.9 mm) ensure precise, low-loss connectivity, making it ideal for high-speed applications up to 800G. Clearly labeled and numbered ports simplify identification, reduce installation time, and improve network organization.

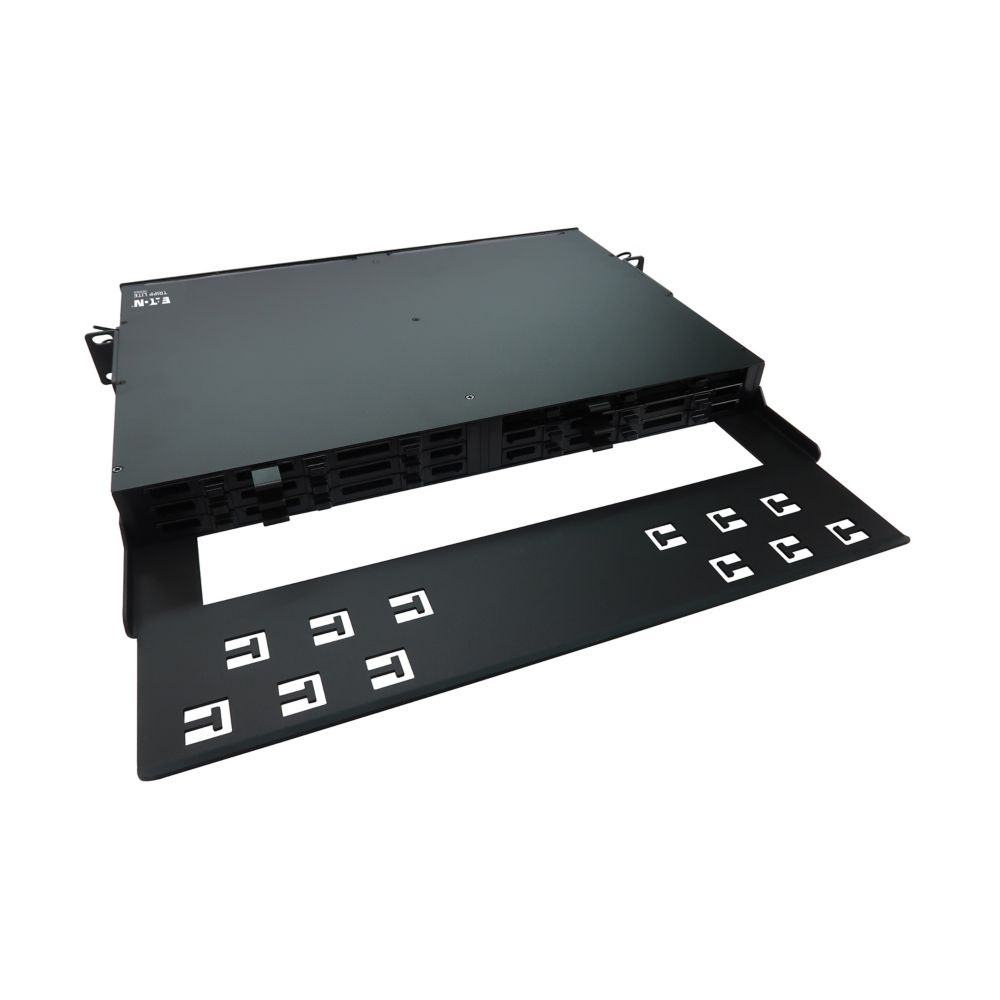

Built with durable metal construction and integrated cable management features, this patch panel keeps fiber infrastructure protected, organized, and easy to maintain. It includes all necessary accessories such as splice protection sleeves, cable ties, and mounting hardware, ensuring a complete and efficient installation.
| Specification | Details |
|---|---|
| Product Type | Fiber Patch Panel with Splice Cassettes |
| Form Factor | Rackmount (1U, 19-inch rack compatible) |
| Total Fiber Capacity | 144 fibers |
| Number of Ports | 72 LC duplex (144 LC/APC connections) |
| Connector Type | LC/APC |
| Fiber Type | Singlemode (OS2) |
| Endface Polish | APC |
| Number of Splice Cassettes | 6 |
| Splice Tray Capacity | 24 fibers per cassette |
| Pigtail Type | LC/APC Singlemode |
| Pigtail Length | 1.5 meters |
| Cable Diameter | 0.9 mm |
| Insertion Loss | ≤0.30 dB |
| Wavelength | 1550 nm |
| Supported Network Speeds | 1G, 10G, 25G, 40G, 100G, 400G, 800G |
| Cable Management | Built-in cable management system |
| Port Identification | Numbered and labeled ports |
| Construction Material | Metal |
| Mounting | Rack mount with included brackets |
| Minimum Rack Depth | 19 inches |
| Dimensions (H x W x D) | 1.73 in x 19 in x 18.5 in |
| Weight | 9.26 lb |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Included Accessories | Splice protection tubes, cable ties, Velcro ties, spiral wrap, mounting hardware, owner’s manual |
