Description
The Tripp Lite by Eaton N392-30M-3X8-AP is a high-performance OS2 singlemode MTP/MPO trunk cable designed for high-density 40G, 100G, and emerging 400G data center applications. Featuring factory-terminated APC-polished MTP/MPO connectors, this slim trunk cable ensures low insertion loss and reduced back reflection for stable, long-distance optical performance.

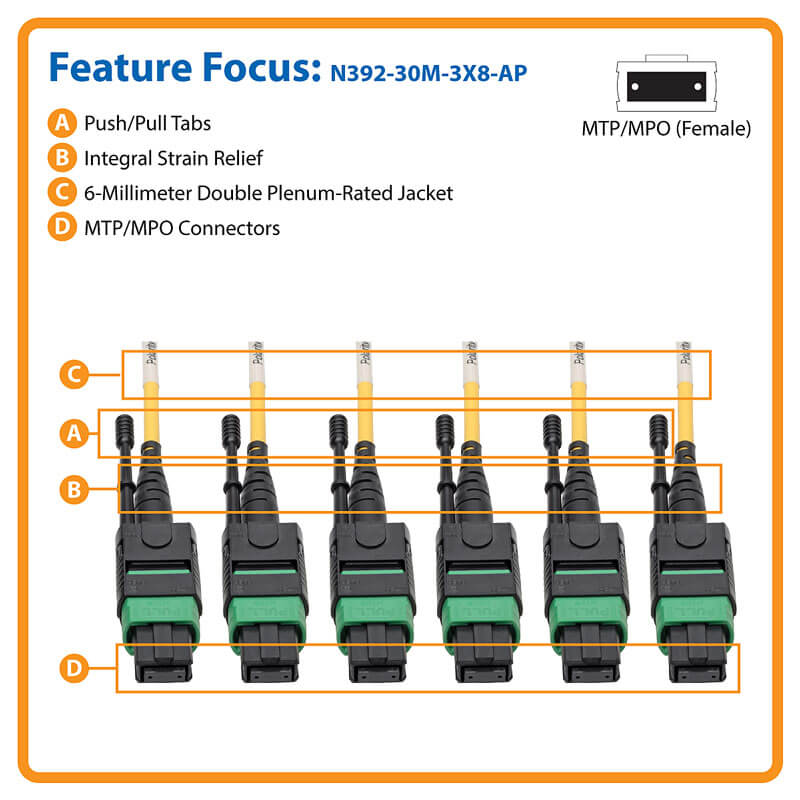

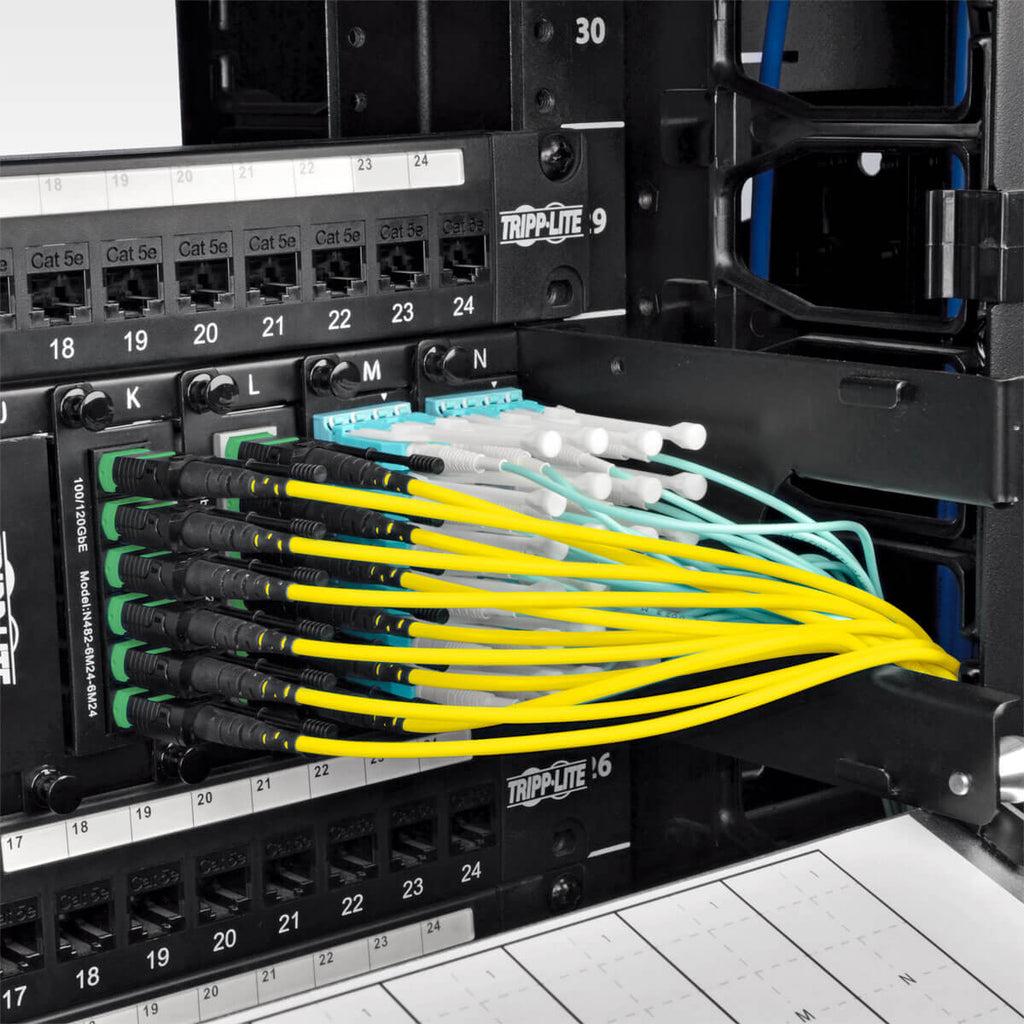

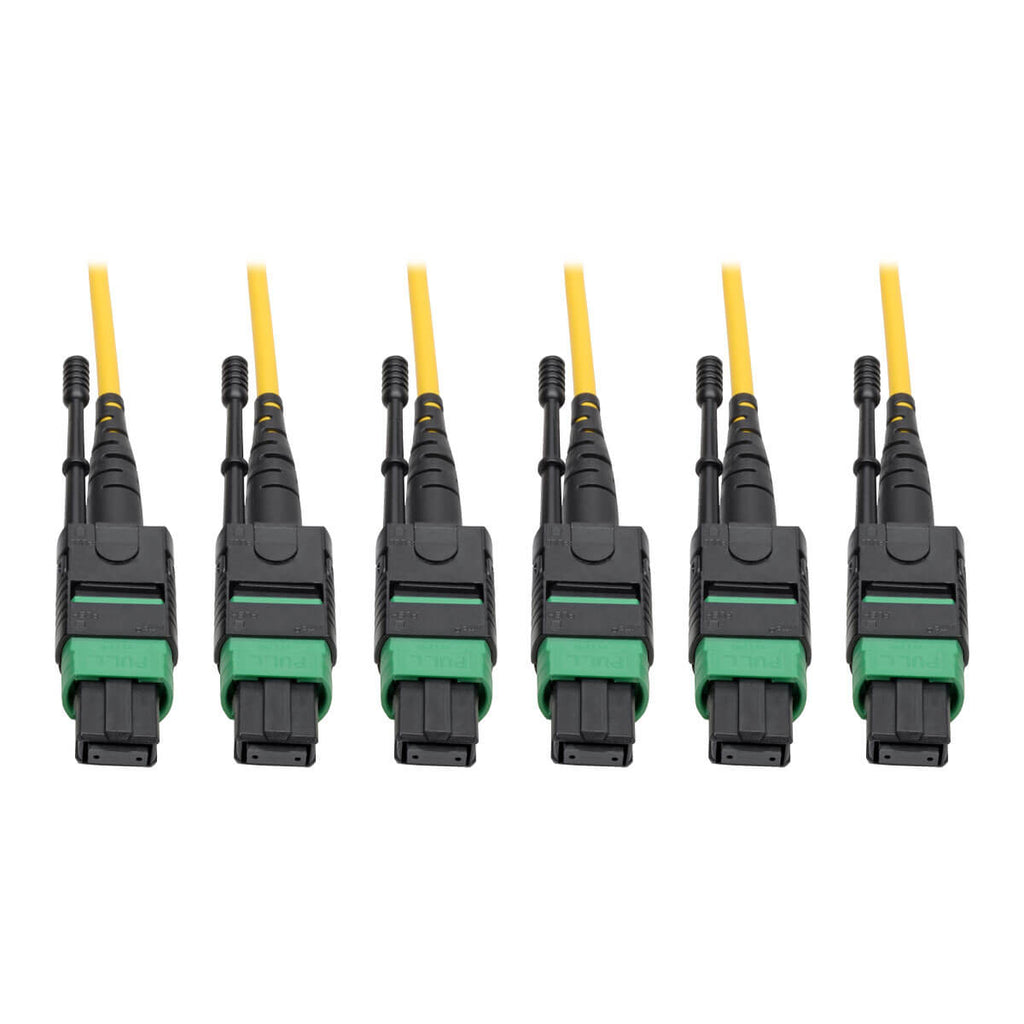

With 24 total fibers arranged in three 8-fiber female MTP/MPO connectors on each end, this cable supports efficient backbone connections between MDFs, IDFs, and network equipment. The plenum-rated dual-jacket design and bend-insensitive fiber make it ideal for installation in ceilings, walls, and raised floors. Push/pull tabs allow fast, tool-free deployment in high-density environments.
| Specification | Details |
|---|---|
| Brand | Tripp Lite by Eaton |
| Manufacturer SKU | N392-30M-3X8-AP |
| Cable Type | MTP/MPO Slim Trunk Cable |
| Fiber Type | OS2 Singlemode (9/125 µm) |
| Total Fiber Count | 24 Fibers |
| Connector – Side A | (3) 8-Fiber MTP/MPO Female |
| Connector – Side B | (3) 8-Fiber MTP/MPO Female |
| Connector Polish | APC (Angled Physical Contact) |
| Polarity | Type B (Cross) |
| Cable Length | 30 m (98.4 ft) |
| Jacket Rating | OFNP (Plenum-Rated) |
| Jacket Diameter | 6 mm |
| Jacket Color | Yellow |
| Connector Color | Green / Black |
| Supported Data Rates | 40GbE, 100GbE, 400GbE |
| Optimized For | QSFP+ 40GBASE-PLR4, QSFP28 100G |
| Insertion Loss | ≤ 0.70 dB |
| Attenuation @ 1310 nm | 0.36 dB/km |
| Attenuation @ 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 20 mm (dynamic), 10 mm (static) |
| Operating Temperature | -20°C to 60°C |
| Compliance | RoHS, REACH |
| Warranty | Limited Lifetime |
