Description

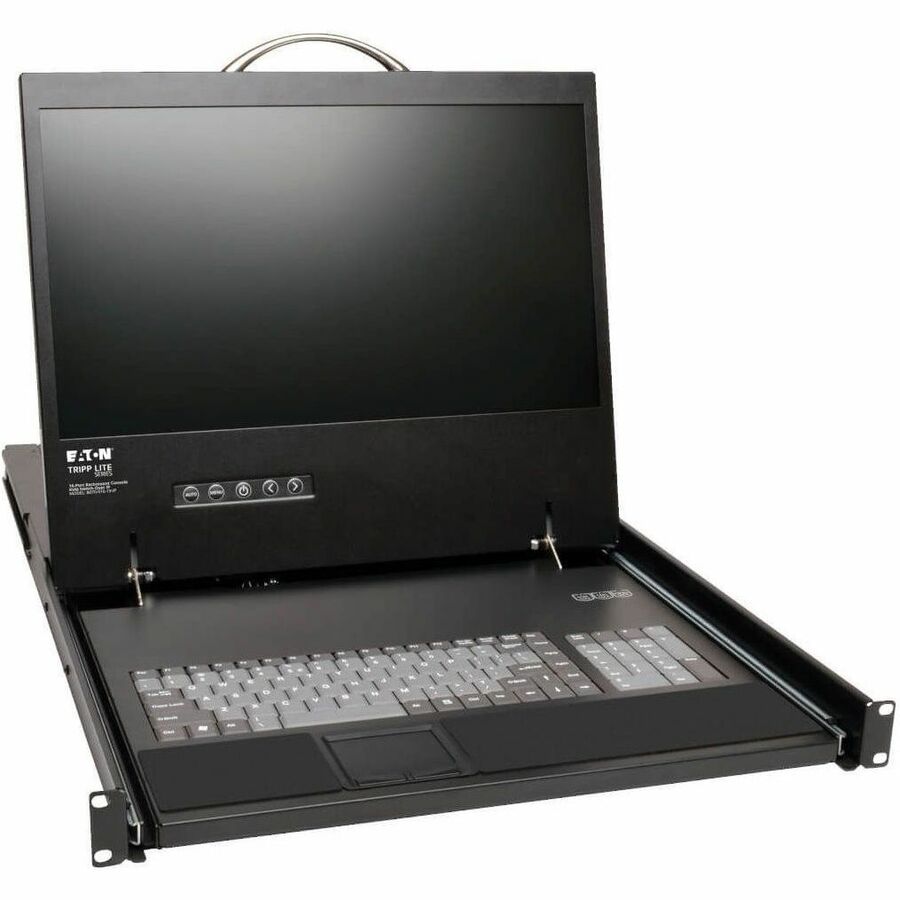

The Eaton Tripp Lite B070-016-19-IP is a 16-port Cat5 KVM over IP switch with an integrated 19-inch LCD console, designed for centralized management of up to 16 servers either locally or remotely over IP. Ideal for enterprise and data center environments, this 1U rack-mountable switch allows one local and one remote user to access connected servers simultaneously.
Compatible with Windows and Linux, the B070-016-19-IP supports resolutions up to 1366x768 locally and 1920x1080 remotely, and includes dual Ethernet ports for failover protection. It also provides advanced features like Fast Virtual Media, multi-level user access control, and optional NetCommander-AXS software for seamless management of multiple IP KVMs and connected IP PDUs. TAA-compliant and built with durable steel housing, it’s a reliable, space-saving solution for mission-critical environments.
| Specification | Details |
|---|---|
| Model Number | B070-016-19-IP |
| Form Factor | 1U Rackmount with Slide-Out LCD Console |
| Display | 19" LCD Monitor (1366 x 768), 16:9 Aspect Ratio |
| Number of Ports | 16 RJ45 (KVM Ports) |
| User Access | 1 Local + 1 Remote User Simultaneously |
| Video Resolution | Local: 1366 x 768 @ 60HzRemote: Up to 1920 x 1080 @ 60Hz |
| Connectivity | RJ45, USB, VGA, PS/2 |
| Virtual Media | Up to 12 Mbps (with B078-101-USB2) |
| Remote Access | Java and non-browser client over LAN/WAN/Internet |
| Authentication | RADIUS, LDAP/S, Multi-level Passwords |
| Management Software | Free NetCommander-AXS |
| Console Inputs | (4) RJ45, (1) USB A |
| Console Outputs | (16) RJ45 for server connections |
| Serial Device Support | 2 Serial Ports for IP PDUs, Firewalls, Routers |
| Recommended Cable | Cat5e/6/6a |
| Power Consumption | 30W (Line Mode), 5W (Standby) |
| Input Voltage Range | 100–240V AC, 50/60Hz |
| Input Connection | IEC-320-C14 |
| Material | Steel, Electrogalvanized |
| Unit Dimensions (HxWxD) | 1.71 x 17.36 x 28.43 in (43.4 x 441 x 722.1 mm) |
| Shipping Dimensions | 6.30 x 23.40 x 32.30 in (16 x 59.4 x 82 cm) |
| Unit Weight | 29 lbs (13.15 kg) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Compliance | TAA, RoHS, CE, FCC Part 15 Class A, UL 60950-1 |
| Warranty | 1-Year Limited Warranty |
