Description

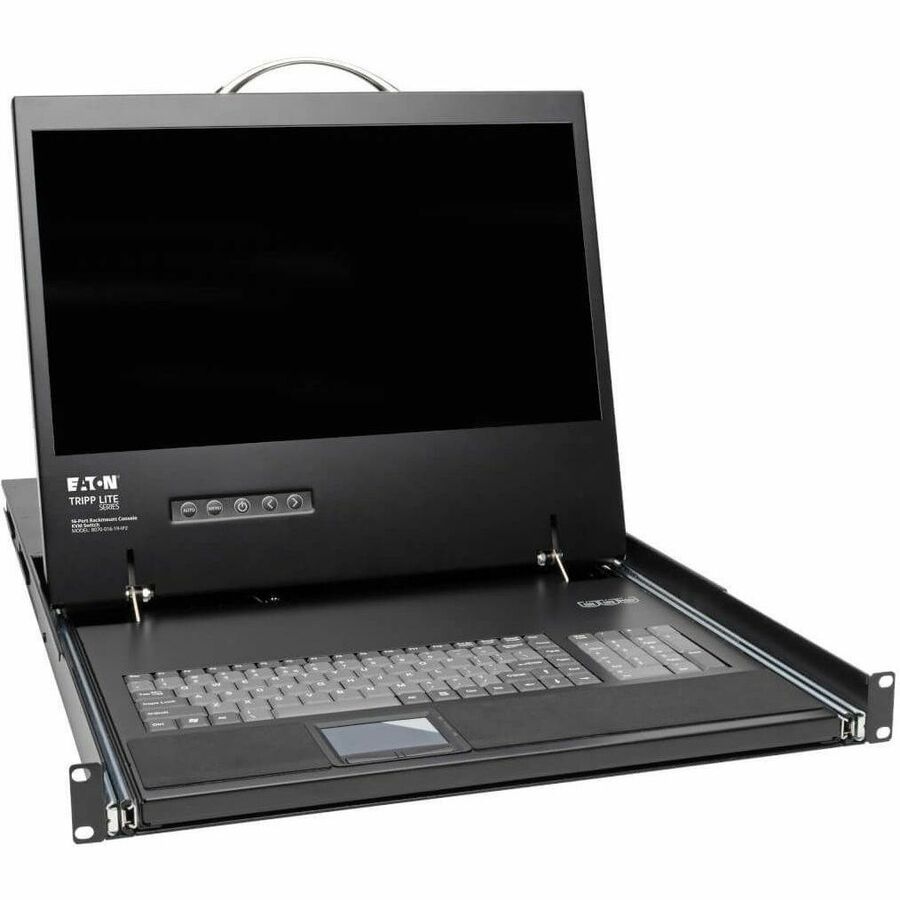

The Eaton Tripp Lite B070-016-19-IP2 NetCommander is a 16-Port Cat5 KVM over IP Switch with a built-in 19" LCD, keyboard, and touchpad, offering BIOS-level access and remote management for up to 16 servers or computers. This 1U rack-mount solution supports simultaneous access by up to 3 users (1 local, 2 remote) and includes dual 10/100 LAN ports for failover redundancy. Compatible with both IPv4 and IPv6, this console KVM switch enables remote access via secure web browser or Java-free applications and supports Virtual Media for file mounting. Ideal for data centers and IT administrators, it complies with TAA standards and includes multi-level password protection for secure operations.
| Specification | Details |
|---|---|
| Model Number | B070-016-19-IP2 |
| Form Factor | 1U Rack-Mount Console with KVM Switch |
| Display | 19" LCD, up to 1366 x 768 resolution (remote up to 1920 x 1080) |
| Keyboard/Touchpad | Integrated |
| Ports | 16 x RJ45 for server connection (via B078 SIUs) |
| User Sessions | 3 Simultaneous (1 Local, 2 Remote) |
| Remote Access | Web browser or standalone non-Java client |
| Networking | Dual 10/100 Mbps LAN ports |
| Compatibility | Windows, Linux; requires B078 SIUs and Cat5e/6 cables |
| Virtual Media Support | Yes (Fast speeds up to 12 Mbps using B078-101-USB2) |
| Authentication | RADIUS, LDAP/S, multi-level password protection |
| Serial Ports | 2 x RJ45 for IP device control (e.g., PDUs, routers) |
| Video Inputs | VGA (DisplayPort/HDMI via optional adapters) |
| Max Distance to Server | Up to 100 ft (30.5 m) via Cat5e/6 |
| Environmental | 0–40°C Operating, -20–60°C Storage, 0–80% RH (non-condensing) |
| Power Input | 100–240V AC, 50/60Hz, 1.2A (120V) / 0.7A (230V) |
| BTU Output | 102 BTU/hr (line mode), 17.06 BTU/hr (standby mode) |
| Unit Dimensions (HWD) | 1.71 x 18.79 x 27.26 in. (4.34 x 47.73 x 69.24 cm) |
| Shipping Dimensions (HWD) | 5.9 x 23.3 x 35.1 in. (14.99 x 59.18 x 89.15 cm) |
| Unit Weight / Shipping Weight | 28.46 lbs / 43.60 lbs (12.91 kg / 19.78 kg) |
| Certifications & Compliance | UL, CE, FCC Class A, RoHS, TAA-Compliant |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | C13 to NEMA 5-15P Power Cord, Rack-Mount Kit, Quick Start Guide |
