Description

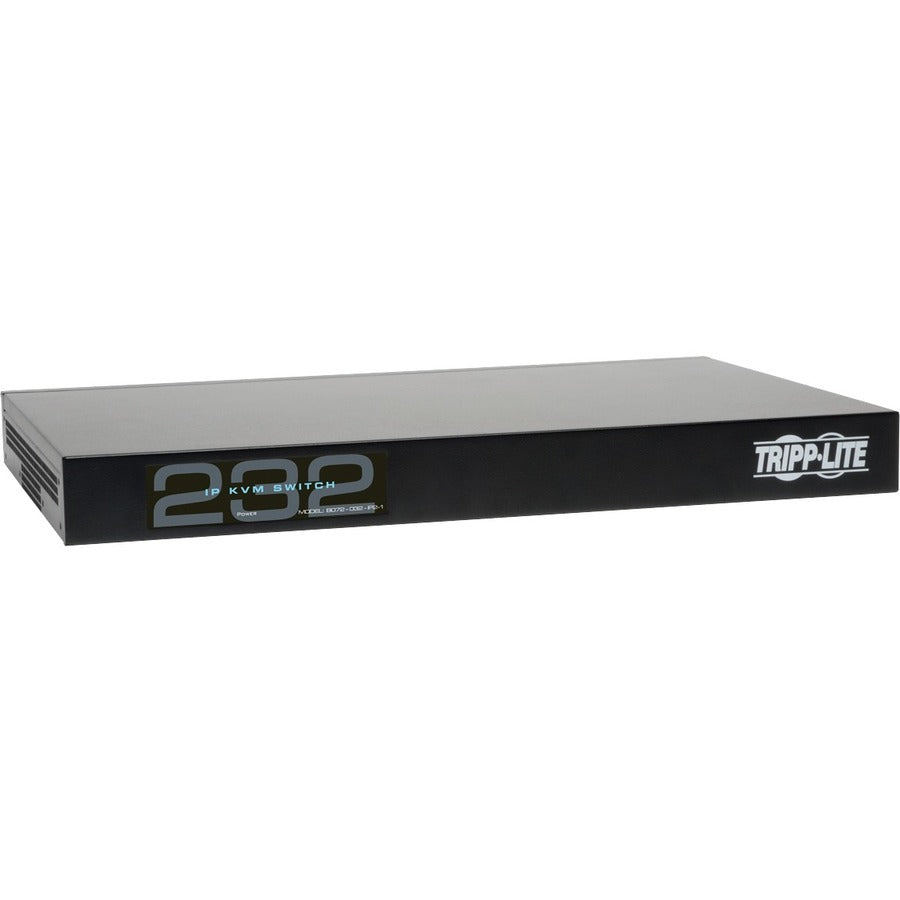

The Eaton Tripp Lite B072-032-IP2-K NetCommander KVM over IP switch allows secure and efficient remote or local control of up to 32 computers or servers. Supporting two simultaneous remote users and one local user, this 1U rack-mountable device is perfect for managing enterprise IT environments with limited on-site access.
Engineered for flexibility and scalability, it uses cost-effective Cat5e/6/6a cabling and includes 16 USB Server Interface Units (SIUs). With support for Virtual Media, SNMP alerts, and LDAP/RADIUS authentication, this TAA-compliant switch offers BIOS-level access and remote reboot control. Dual Ethernet and dual power inputs ensure maximum uptime and resilience.
Whether across the room or across the globe, the B072-032-IP2-K streamlines server management with advanced features, secure IP access, and comprehensive management software.
| Category | Details |
|---|---|
| Model Number | B072-032-IP2-K |
| Form Factor | 1U Rack-Mountable |
| Number of Ports | 32 RJ45 KVM Ports |
| User Support | 1 Local User + 2 Simultaneous Remote Users |
| Included Accessories | 16 USB SIUs (B078-101-USB-1), 2x Power Cords, Rack Hardware, Quick Start Guide |
| Supported OS | Windows, Linux |
| Remote Access | Java-based Web Interface, Non-browser Client, NetCommander-AXS Software |
| Virtual Media | Yes (up to 12 Mbps with USB2 SIU) |
| Authentication | Multi-level Password, RADIUS, LDAP/S, TLS 1.2, SSL Certificates |
| Redundancy | Dual Ethernet & Dual Power Inputs |
| Max Video Resolution | Local: 1920x1200 @ 60Hz / Remote: 1920x1080 @ 60Hz |
| Connections - Console | USB Keyboard/Mouse, VGA Monitor |
| Connections - Server | USB or PS/2 Keyboard/Mouse, VGA Monitor |
| Input Voltage | 100–240V AC, 50/60Hz |
| Power Consumption | 50W (171 BTU/hr) |
| Dimensions (in.) | 1.71 (H) x 17.28 (W) x 10.99 (D) |
| Shipping Dimensions (in.) | 5.7 x 14.4 x 23 |
| Weight | 7.7 lbs (3.49 kg) / Shipping: 14.2 lbs (6.44 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Certifications | UL, CE, FCC Part 15 Class A, RoHS, REACH, TAA Compliant |
| Warranty | 3-Year Limited Warranty |
