Description

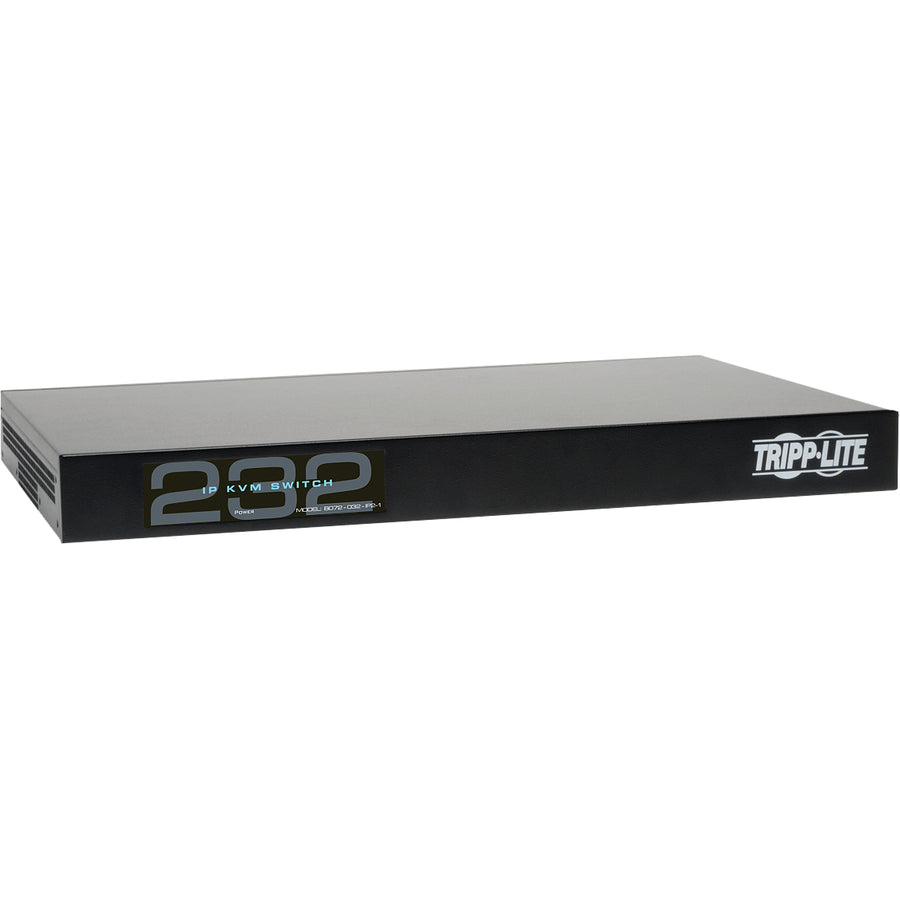

The Eaton Tripp Lite B072-032-IP2 is a 32-port Cat5 KVM over IP switch designed for managing multiple servers from virtually anywhere. Supporting 2 remote and 1 local user simultaneously, this 1U rack-mountable switch provides secure, BIOS-level access via LAN, WAN, or Internet using cost-effective Cat5e/6 cabling.
It features dual Ethernet and dual power for redundancy, Virtual Media support up to 12 Mbps, remote access with NetCommander-AXS software, and advanced security via RADIUS, LDAP/S, and TLS 1.2. Compatible with Windows and Linux systems, the B072-032-IP2 is ideal for enterprise server rooms, datacenters, and remote IT management environments.
| Feature | Specification |
|---|---|
| Model Number | B072-032-IP2 |
| Form Factor | 1U Rack-Mountable |
| Ports | 32 RJ45 (Cat5/6); Supports USB & PS/2 via interface units |
| User Access | 1 Local + 2 Remote Users Simultaneously |
| Remote Access | Yes (via Java-based browser/client or standalone client) |
| Max Video Resolution | Local: 1920x1200 @ 60 Hz; Remote: 1920x1080 @ 60 Hz |
| Redundant Power/Ethernet | Yes, Dual Inputs for Each |
| Virtual Media | Yes, up to 12 Mbps (with B078-101-USB2) |
| Authentication Protocols | RADIUS, LDAP/S, TLS 1.2 |
| IP Protocols | IPv4, IPv6 |
| KVM Management Software | NetCommander-AXS (Free Download) |
| Computer Interfaces | USB, PS/2, VGA |
| Console Interfaces | USB (Keyboard/Mouse), VGA (Monitor) |
| Serial Ports | 2 (for IP PDUs, Firewalls, Routers) |
| LED Indicators | Blue (Power) |
| Construction | Steel Housing (Black) |
| Power Input | IEC-320-C14, 100–240V AC, 50/60Hz |
| Power Consumption | 50W, 171 BTU/hr |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Humidity | 0–80% RH, non-condensing |
| Unit Dimensions (HWD) | 1.71 x 17.28 x 10.99 in (4.3 x 43.9 x 27.9 cm) |
| Unit Weight | 7.7 lbs (3.49 kg) |
| TAA Compliance | Yes |
| Warranty | 3-Year Limited Warranty |
| Certifications | UL 60950-1, FCC Part 15 Class A, CE, RoHS, REACH, TAA |
| Package Includes | KVM Switch, Rack Hardware, 2x Power Cords, Quick Start Guide |
