Description

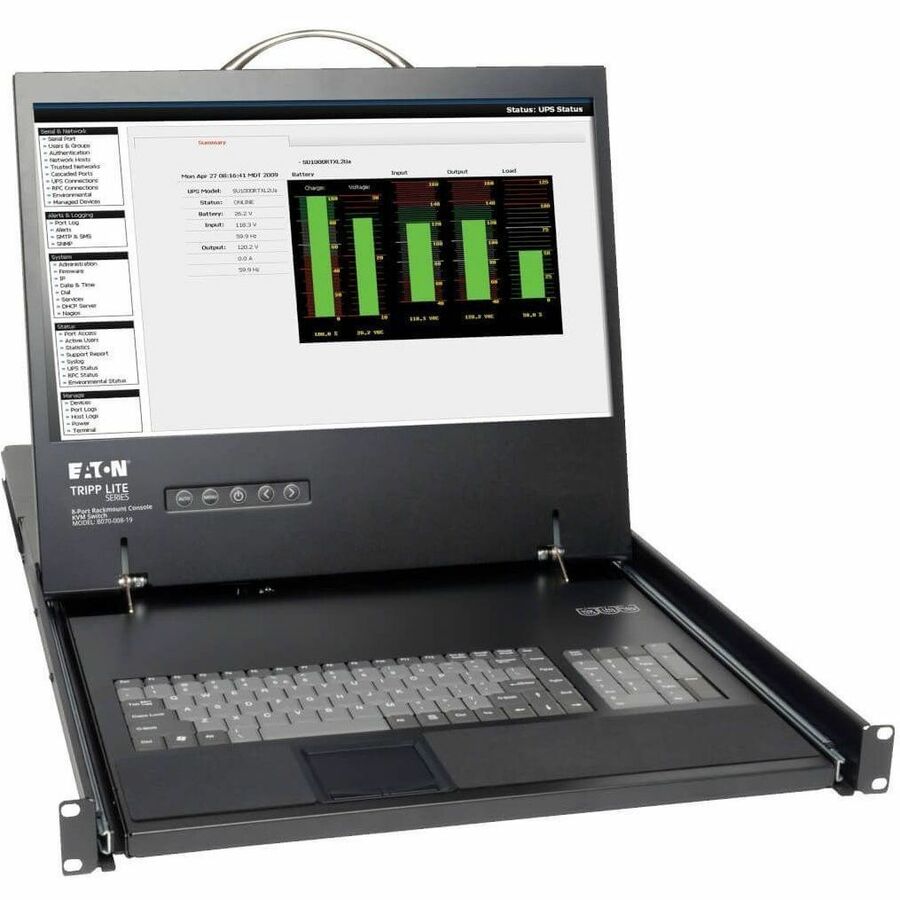

The Eaton Tripp Lite NetCommander B070-008-19-IP is an 8-port Cat5 KVM over IP switch with a built-in 19" LCD console, keyboard, and touchpad in a compact 1U rack-mountable drawer. It provides both local and remote access for managing up to 8 computers or servers, making it ideal for data centers, server rooms, and IT closets.
Key Features:
-
Control up to 8 servers via Cat5e/6 cabling—up to 100 ft. away
-
Integrated 19" widescreen LCD supports up to 1366 x 768 (local) / 1920 x 1080 (remote)
-
Simultaneous 1 local + 1 remote user support
-
2 serial ports for IP PDU, firewall, or router control
-
Fast Virtual Media and remote access via web or non-browser clients
-
Built-in security: TLS 1.2, RADIUS/LDAP/S authentication, SSL certificates
-
Free NetCommander-AXS centralized management software
-
TAA-compliant; supports Windows and Linux systems
Ideal for enterprise server management across LAN, WAN, or the internet—no need to travel to the server room.
| Specification | Details |
|---|---|
| Model Number | B070-008-19-IP |
| Form Factor | 1U Rack-Mount Console |
| Number of Ports | 8 x RJ45 (Cat5 KVM) |
| User Support | 1 Local + 1 Remote User (Simultaneous) |
| LCD Display | 19" Widescreen LCD (1366 x 768) |
| Remote Resolution | Up to 1920 x 1080 |
| Power Input | IEC-320-C14, 100–240V AC, 50/60 Hz |
| Power Consumption | 30W max (Line), 5W (Standby) |
| Video Interface | VGA |
| Keyboard/Mouse Interface | USB or PS/2 |
| Serial Device Support | 2 Serial Ports (for IP PDUs, Firewalls, Routers) |
| Remote Access Interface | Dual 10/100 Mbps Ethernet, IPv4/IPv6 |
| Security Protocols | TLS 1.2, SSL, RADIUS, LDAP/S, Multi-level password access |
| Virtual Media Support | Yes, up to 12 Mbps |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (HxWxD) | 1.71 x 17.36 x 28.43 in (43.4 x 441 x 722 mm) |
| Weight | 29 lbs (13.15 kg) |
| TAA Compliant | Yes |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | Power cord, rackmount hardware, quick start guide |
