Description

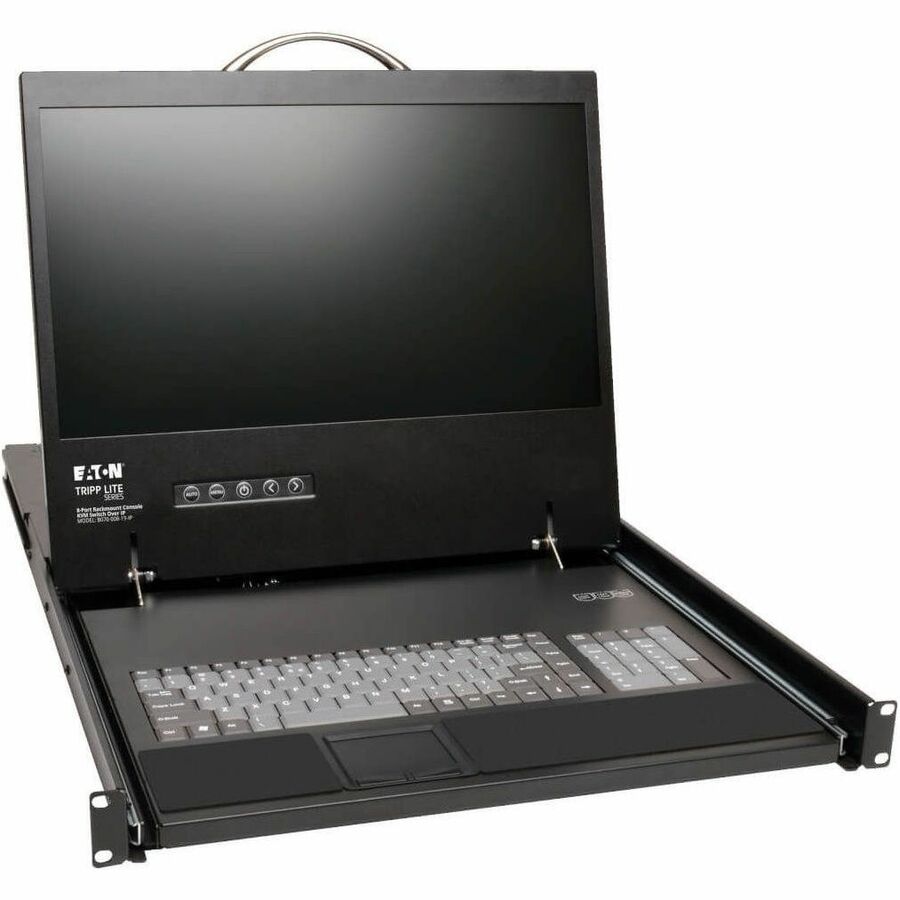

The Eaton Tripp Lite series NetCommander B070-008-19-IP is an 8-Port Cat5 KVM over IP Switch with a built-in 19” LCD console, designed for remote and local access to servers in enterprise, data center, and industrial IT environments. Housed in a space-saving 1U rack-mount drawer, this unit integrates keyboard, monitor, and touchpad functionality with advanced IP-based remote management. It supports one local and one remote user simultaneously and includes TAA compliance for GSA schedule contracts. Dual LAN ports offer failover support, while virtual media capabilities, multi-level security, and compatibility with both Windows and Linux OS make it a secure and flexible centralized access point. Includes free NetCommander-AXS software.
| Specification | Details |
|---|---|
| Brand Name | Eaton Tripp Lite Series |
| Model Number | B070-008-19-IP |
| Product Type | Cat5 KVM over IP Switch with LCD Console |
| Ports | 8 x RJ45 (Cat5); Supports PS/2, USB, VGA |
| Users Supported | 1 Local + 1 Remote (simultaneous) |
| Console Display | 19” LCD, 1366 x 768 resolution |
| Remote Video Resolution | Up to 1920 x 1080 |
| Form Factor | 1U Rackmount |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Power Consumption | 30W (Line Mode), 5W (Standby) |
| Built-in Console Interfaces | PS/2 & USB Keyboard/Mouse; VGA Display |
| Remote Access | IP-based, Java and non-Java options |
| Virtual Media Support | Yes, up to 12 Mbps |
| Security Features | TLS 1.2, RADIUS, LDAP/S, Multi-level password protection |
| Serial Device Support | 2 x Serial Ports for PDU/firewall/router control |
| Cabling Requirements | Cat5e/6/6a + B078-101-USB-1 SIUs |
| Dimensions (H x W x D) | 1.71 x 17.36 x 28.43 in |
| Shipping Weight | 39.9 lbs (18.1 kg) |
| Material | Cold-rolled steel |
| TAA Compliant | Yes |
| Certifications | UL, CE, FCC, RoHS, REACH |
| Warranty | 1-Year Limited Warranty |
