Description

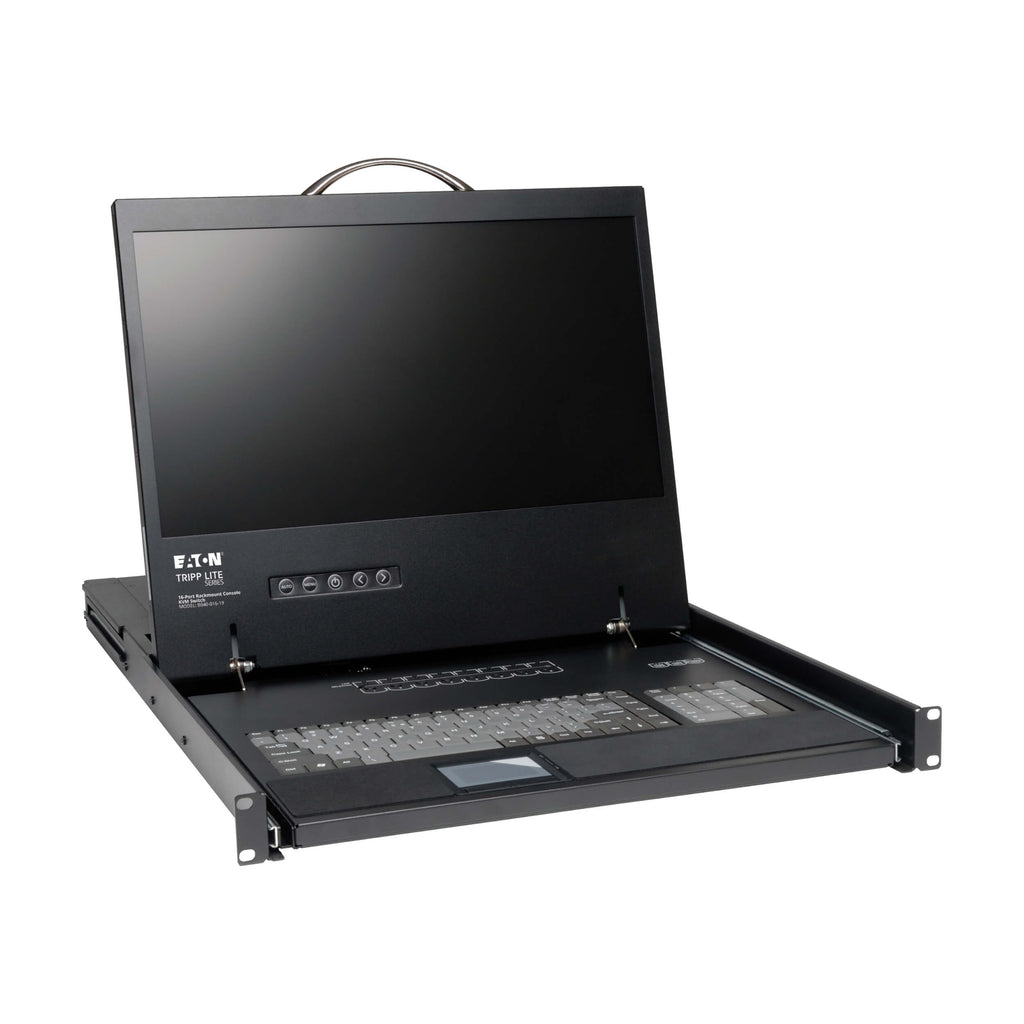

The Eaton Tripp Lite B040-016-19 is a 16-port rackmount KVM switch with an integrated 19-inch LCD console, keyboard, and touchpad — all within a compact 1U design. This all-in-one unit provides centralized control of up to 16 directly connected computers or servers, expandable to 256 through daisy-chaining with compatible B042-Series KVM switches.
Designed for efficiency and reliability, it supports video resolutions up to 1366 x 768, features password protection, and includes on-screen display (OSD) and hotkey switching for seamless management. The unit’s steel chassis ensures durability, while its TAA compliance makes it suitable for government and enterprise environments.
Ideal for data centers and IT environments, the B040-016-19 combines space-saving practicality with superior control flexibility—reducing clutter and simplifying rack operations.
| Category | Specification |
|---|---|
| Model Number | B040-016-19 |
| Form Factor | 1U Rackmount Console KVM Switch |
| Number of Ports | 16 (up to 256 via daisy-chain) |
| Display | 19-inch LCD, 1366 x 768 @ 60Hz |
| Aspect Ratio | 16:9 |
| Video Interface | VGA (HD15) |
| Keyboard/Mouse Interface | PS/2 and USB |
| Port Control Methods | On-screen display (OSD), pushbuttons, keyboard hotkeys |
| Autoscan Function | User-definable (5–95 seconds, default 10s) |
| External Console Port | Yes (for VGA monitor or remote access unit) |
| Daisy-Chain Support | Up to 15 B042-Series KVM switches |
| Compatibility | All major operating systems |
| Voltage Compatibility | 100–240V AC, 50/60Hz |
| Power Consumption | 30W |
| Construction Material | Heavy-duty cold-rolled steel |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 20%–90% RH, non-condensing |
| Dimensions (H x W x D) | 1.71 x 17.69 x 28.44 in (4.35 x 44.9 x 72.2 cm) |
| Weight | 32 lb (14.5 kg) |
| Compliance | TAA, RoHS, CE, FCC Class A, REACH |
| Warranty | 1-year limited warranty |

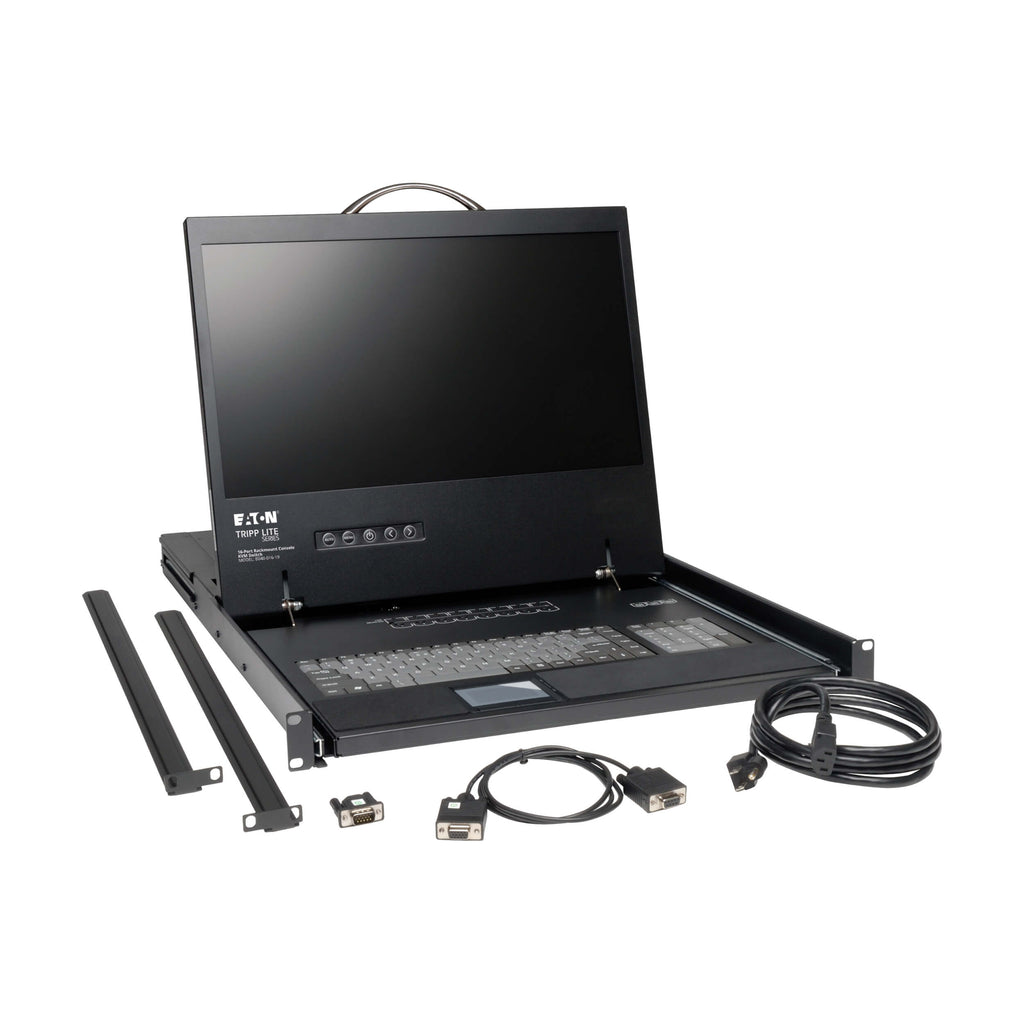

| Package Includes | KVM console switch, HD15–DB9 firmware cable, power cord, VGA terminator, rackmount kit, quick start guide |
