Description

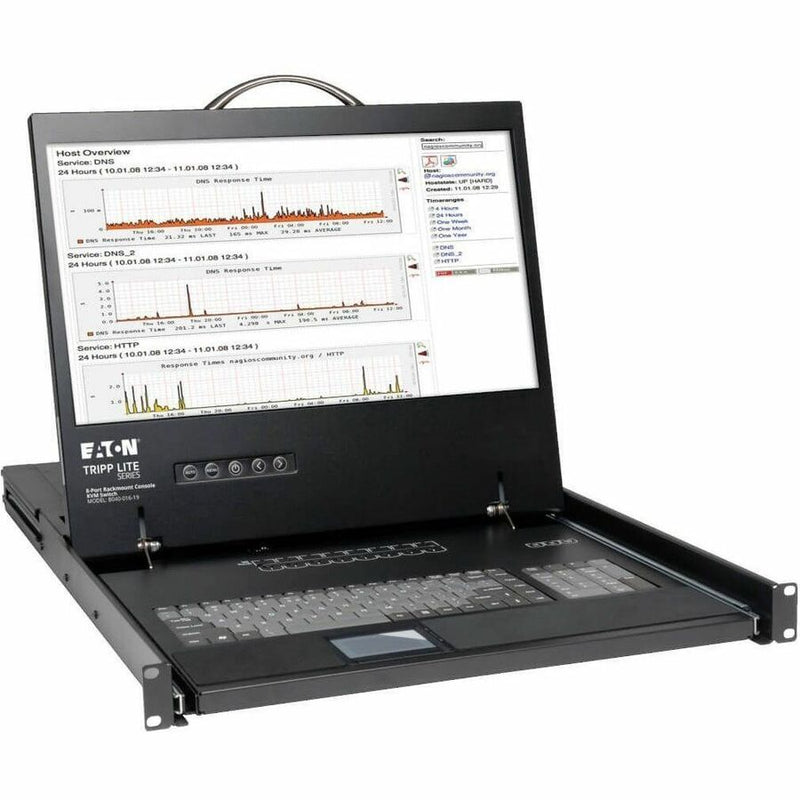

The Eaton Tripp Lite B040-008-19 NetController is an 8-port KVM switch integrated with a 19-inch LCD, keyboard, and touchpad in a compact 1U rack-mountable drawer. Ideal for managing multiple servers and computers from a single console, it supports daisy-chaining up to 15 B042-Series KVM switches for access to as many as 248 systems. With VGA support, USB/PS2 compatibility, and an OSD interface, it simplifies IT control in data centers or server rooms. TAA compliant and built with a rugged steel housing, this unit ensures dependable long-term use in professional environments.
| Specification | Details |
|---|---|
| Model Number | B040-008-19 |
| Form Factor | 1U Rack-Mount Console with 19" LCD |
| Total Ports | 8 (expandable to 248 via daisy-chain) |
| Daisy-Chain Support | Yes, with up to 15 B042-Series KVM switches |
| Display | 19” LCD, 1366 x 768 resolution |
| Input Interfaces | PS/2, USB, VGA |
| Output Interfaces | External VGA, Console |
| Power Input | IEC-320-C14; 100–240V AC, 50/60Hz |
| Power Consumption | 30W typical |
| Switching Methods | Pushbutton, Hotkey, On-Screen Display (OSD) |
| Auto Scan Interval | 5 to 95 seconds (user configurable) |
| Password Protection | Yes (single-level) |
| Remote IP Access | Optional via B051-000 IP Remote Access Unit |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Construction | Steel (Electrogalvanized Cold Rolled Coil) |
| Dimensions (HxWxD) | 1.71 x 17.69 x 28.44 in (43.4 x 449.3 x 722.3 mm) |
| Shipping Dimensions | 6.10 x 23.40 x 32.68 in (15.5 x 59.4 x 83.0 cm) |
| Weight (Net/Shipping) | 31.7 lbs / 40.05 lbs (14.4 kg / 18.2 kg) |
| Certifications | TAA, CE, RoHS, FCC Part 15 Class A, UL 60950-1, REACH |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | Firmware cable, power cord, VGA terminator, rackmount kit, quick-start guide |
