Description

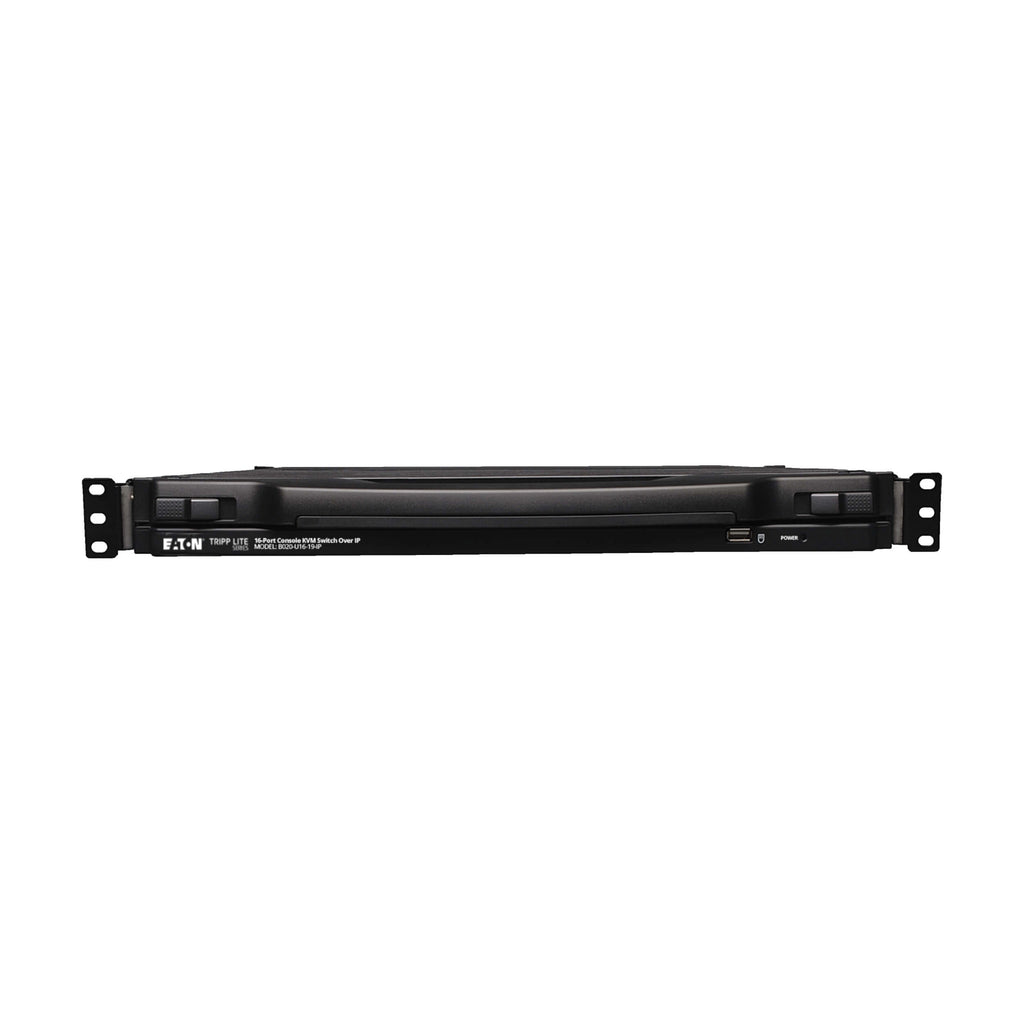

The Eaton Tripp Lite B020-U16-19-IP NetDirector 16-Port Rack-Mount Console IP KVM Switch provides centralized control over up to 16 servers or computers through a single keyboard, mouse, and monitor housed in just 1U of rack space. Its integrated IP access allows secure remote management from anywhere via LAN, WAN, or Internet.

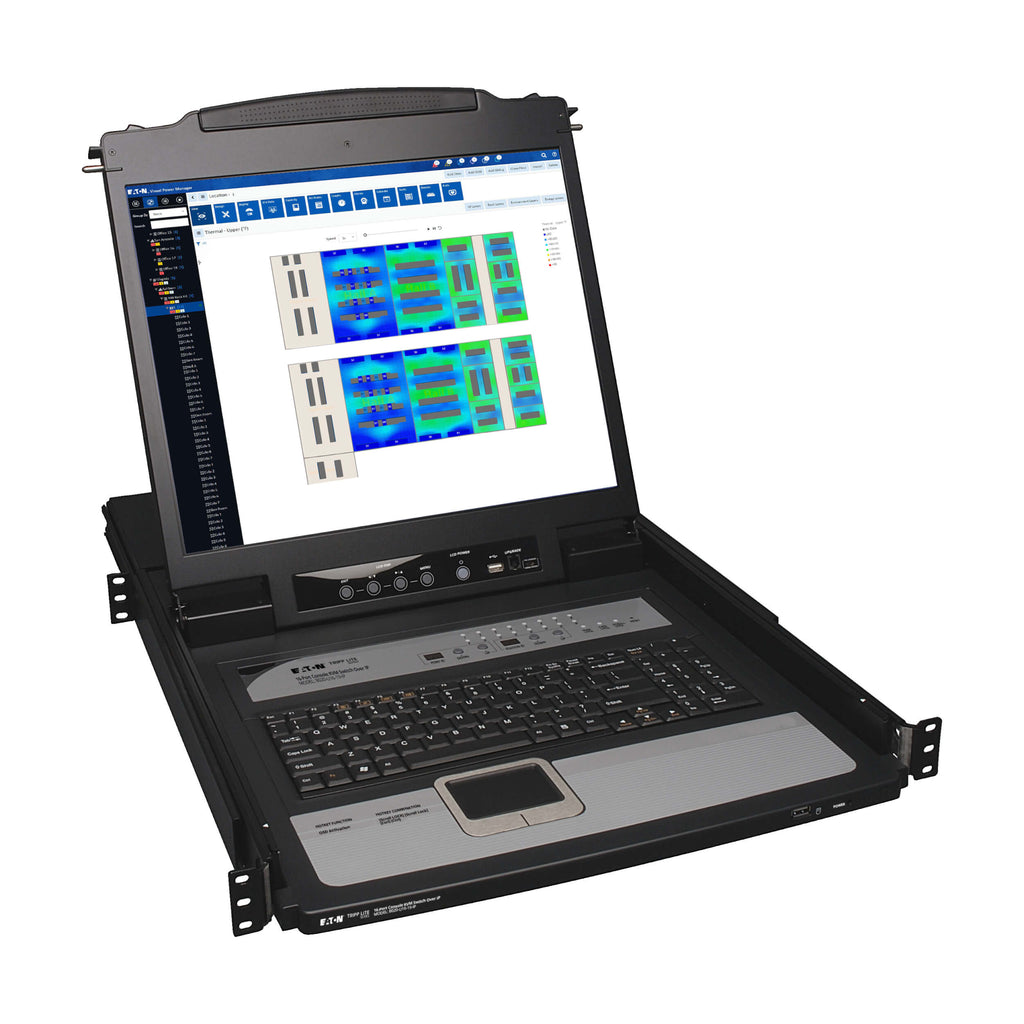

This TAA-compliant KVM features a 19-inch LCD display with support for resolutions up to 1280 x 1024 @ 75 Hz locally and 1600 x 1200 @ 60 Hz remotely. Designed for flexibility, it supports both USB and PS/2 connections, IPv4/IPv6 protocols, and major operating systems. With advanced encryption standards (RSA, AES, DES, 3DES, RC4, SSL) and up to 64 user accounts, it ensures enterprise-grade security.
Ideal for data centers, enterprise IT environments, and government applications, this durable 1U rack console simplifies multi-server management while saving valuable rack space.
| Category | Specification |
|---|---|
| Model Number | B020-U16-19-IP |
| Type | Rack-Mount Console IP KVM Switch |
| Display | 19" LCD (1280 x 1024 @ 75 Hz local, 1600 x 1200 @ 60 Hz remote) |
| Number of Ports | 16 (Expandable to 264 via daisy-chaining) |
| Video Interface | VGA/SVGA |
| Keyboard/Mouse Interface | USB or PS/2 |
| IP Remote Access | Yes (via LAN, WAN, or Internet) |
| Security | Admin/User/Select roles, up to 64 user accounts, supports RSA, AES, DES, 3DES, RC4, SSL |
| Authentication | RADIUS, LDAP/S |
| Network Compatibility | 10/100/1000 Mbps |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Daisy-Chain Support | Yes (Up to 31 additional units) |
| Operating Systems Supported | All major OS (Windows, Linux, macOS, etc.) |
| Management Interface | Web-based (English, Spanish, French, German, Italian) |
| Construction | Metal and Plastic |
| Rack Height | 1U |
| Unit Dimensions (H x W x D) | 1.73 x 17.00 x 27.10 in (4.39 x 48.00 x 68.58 cm) |
| Unit Weight | 31 lbs (14.06 kg) |
| Shipping Weight | 40.3 lbs (18.28 kg) |
| Power Input | 100–240V AC, 50/60Hz, 1A |
| Operating Temperature | 32°–122°F (0°–50°C) |
| Storage Temperature | -4°–140°F (-20°–60°C) |
| Humidity | 0–80% non-condensing |
| Compliance | RoHS, CE, FCC Class A, TAA |
| Certifications | UL 60950-1, EN 60950-1, CAN/CSA C22.2 |
| Warranty | 1-year limited warranty |

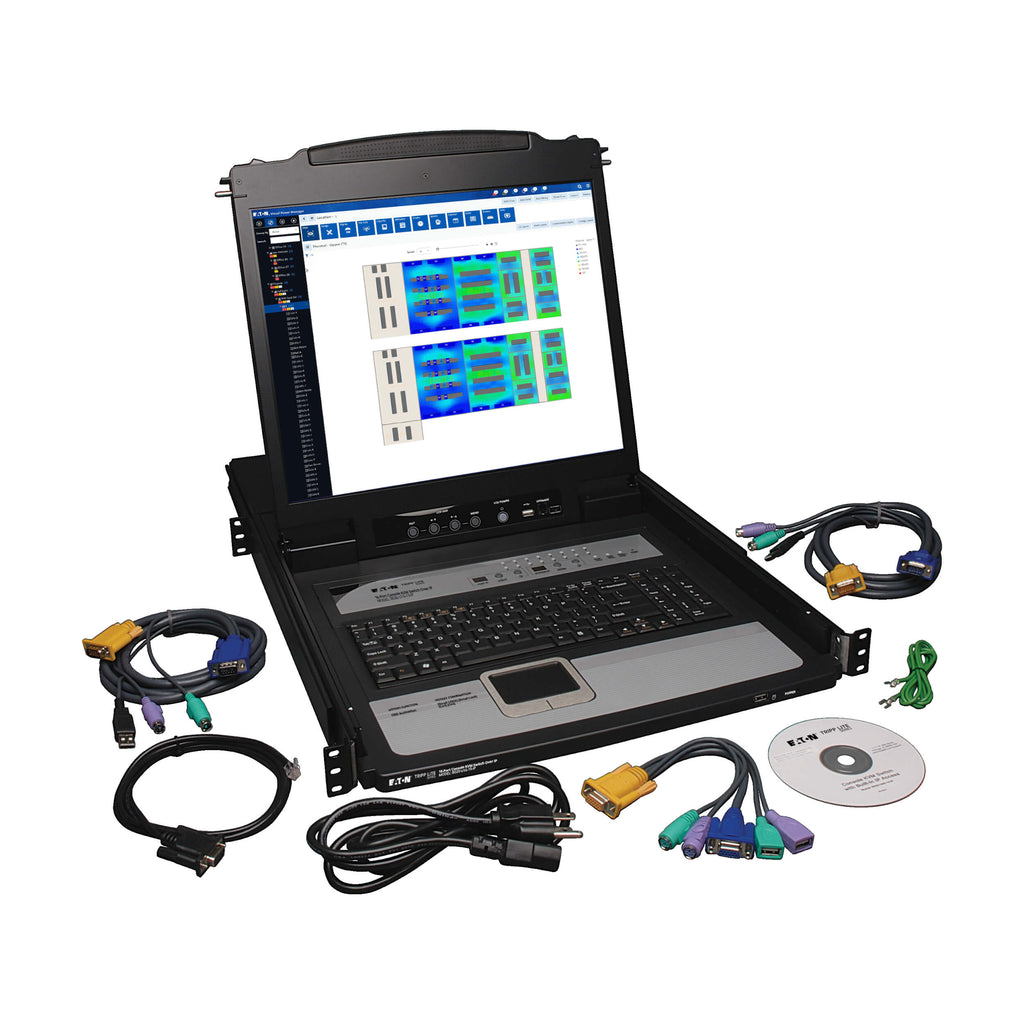

| Included Accessories | (2) P778-Series USB/PS2 Combo KVM Cable Kits (6 ft), USB/PS2 Console Cable, Grounding Wire, Firmware Cable (RJ11-DB9), Power Cord, Mounting Hardware |
