Description

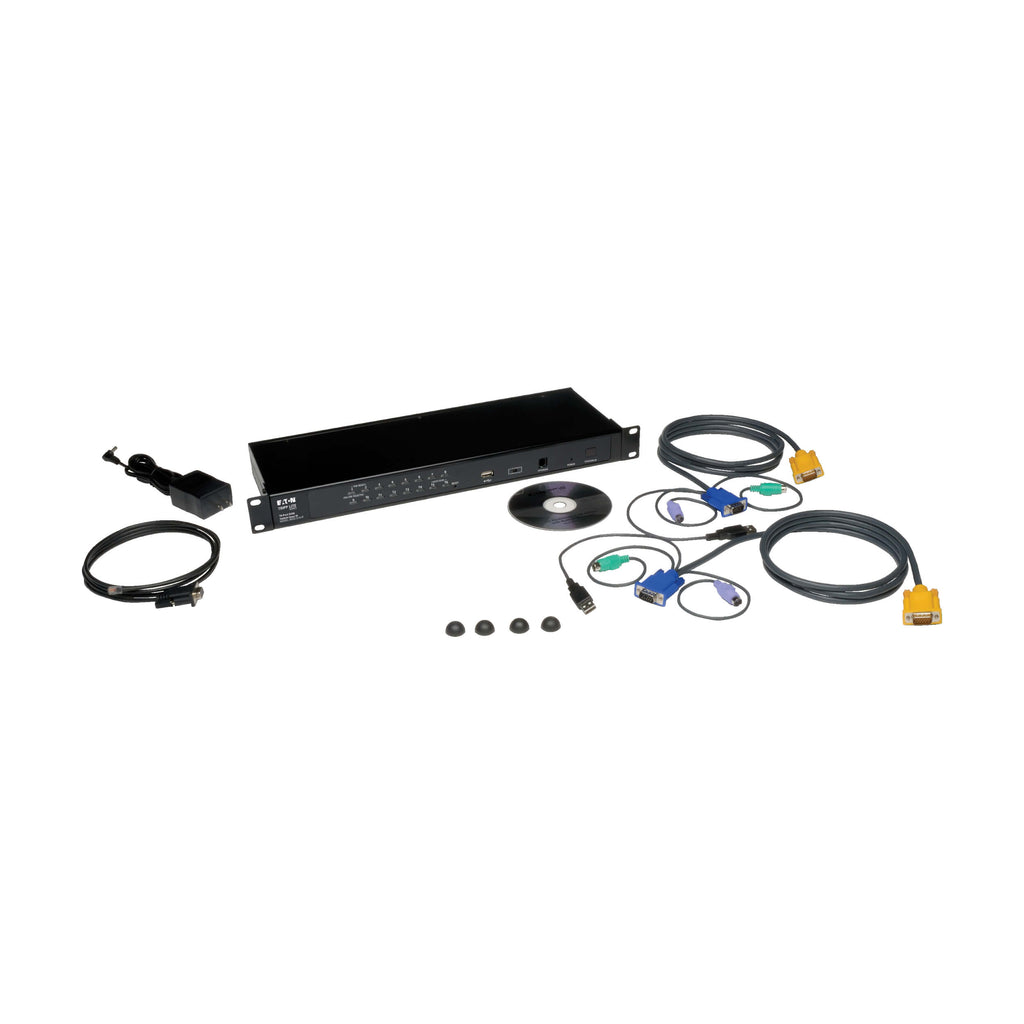

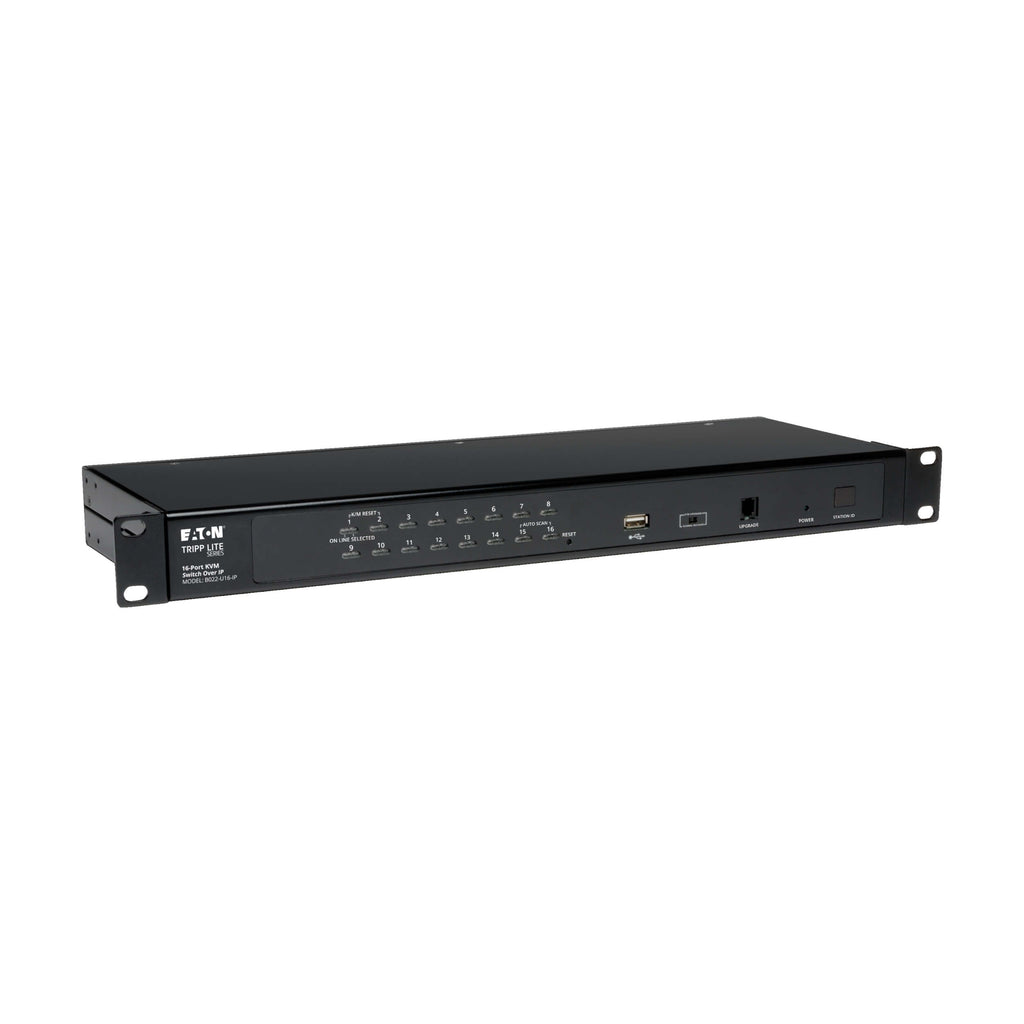

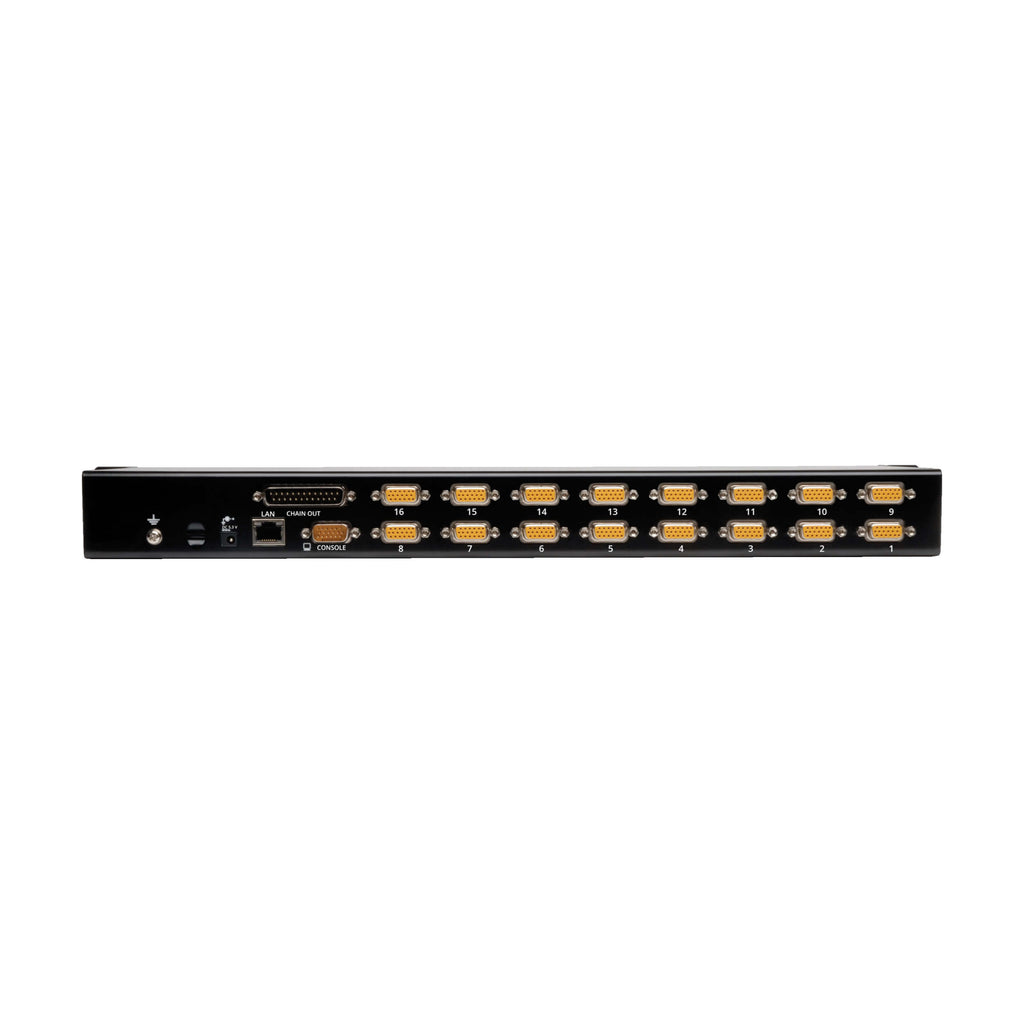

The Tripp Lite NetDirector B022-U16-IP is a secure, enterprise-grade 16-port IP KVM switch designed for centralized server management from anywhere in the world. Built for data centers, network operations, and secure IT environments, this 1U rack-mount solution enables administrators to control up to 16 servers from a single console or remotely over LAN, WAN, or the internet.
Featuring built-in IP access, the B022-U16-IP supports both browser-based and non-browser remote connections, allowing flexible access across multiple operating systems. High-resolution video support ensures clear local and remote visibility, while Panel Array Mode allows simultaneous monitoring of multiple servers.
Advanced security is built in, including strong encryption, user authentication, and role-based access control with support for up to 64 user accounts. The unit supports USB and PS/2 connections and can be expanded via daisy-chaining to manage larger server environments, all while conserving rack space with its compact 1U design.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Series | NetDirector |
| Model | B022-U16-IP |
| KVM Ports | 16 |
| Form Factor | 1U Rack-Mount |
| Remote Access | IP-based (LAN / WAN / Internet) |
| Max Local Video Resolution | Up to 2048 × 1536 |
| Max Remote Video Resolution | Up to 1600 × 1200 @ 60 Hz |
| Supported Interfaces | USB, PS/2, VGA |
| Daisy-Chain Support | Yes (expandable for large deployments) |
| User Accounts Supported | Up to 64 |
| Security Features | Encryption, role-based access control |
| Network Protocols | IPv4 and IPv6 |
| Mounting | Standard 19-inch rack |
| Compliance | TAA Compliant |
| Color | Black |
| Typical Use Case | Data centers, server rooms, NOCs |
