Description

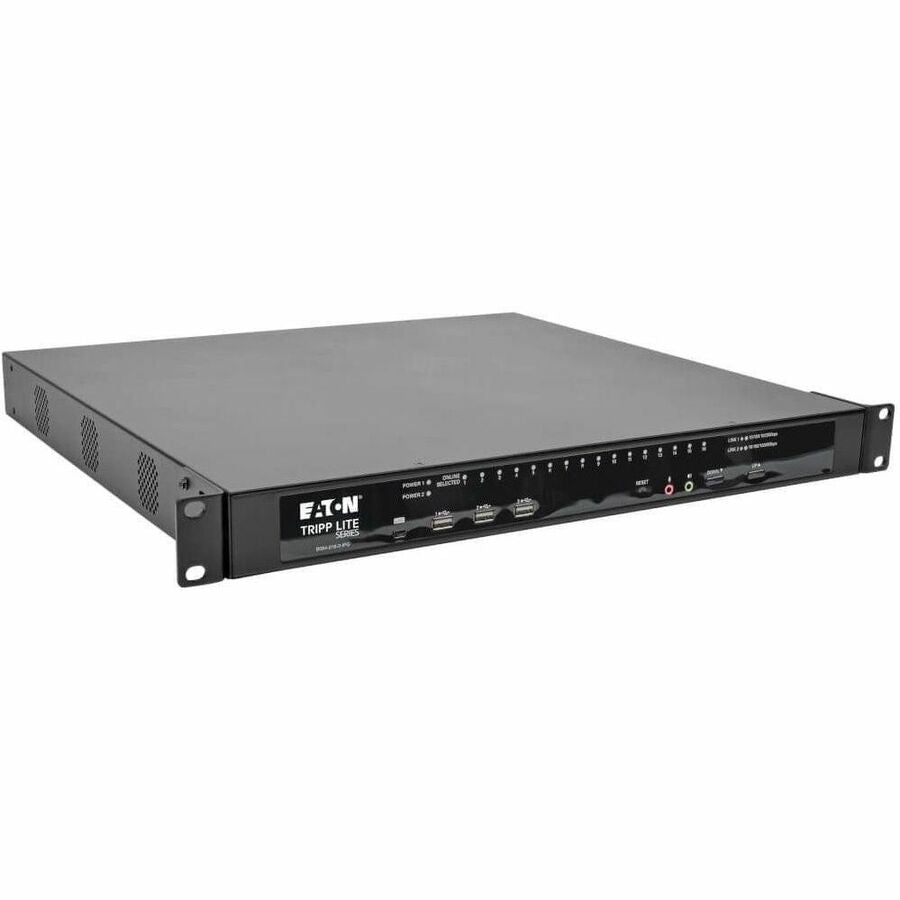

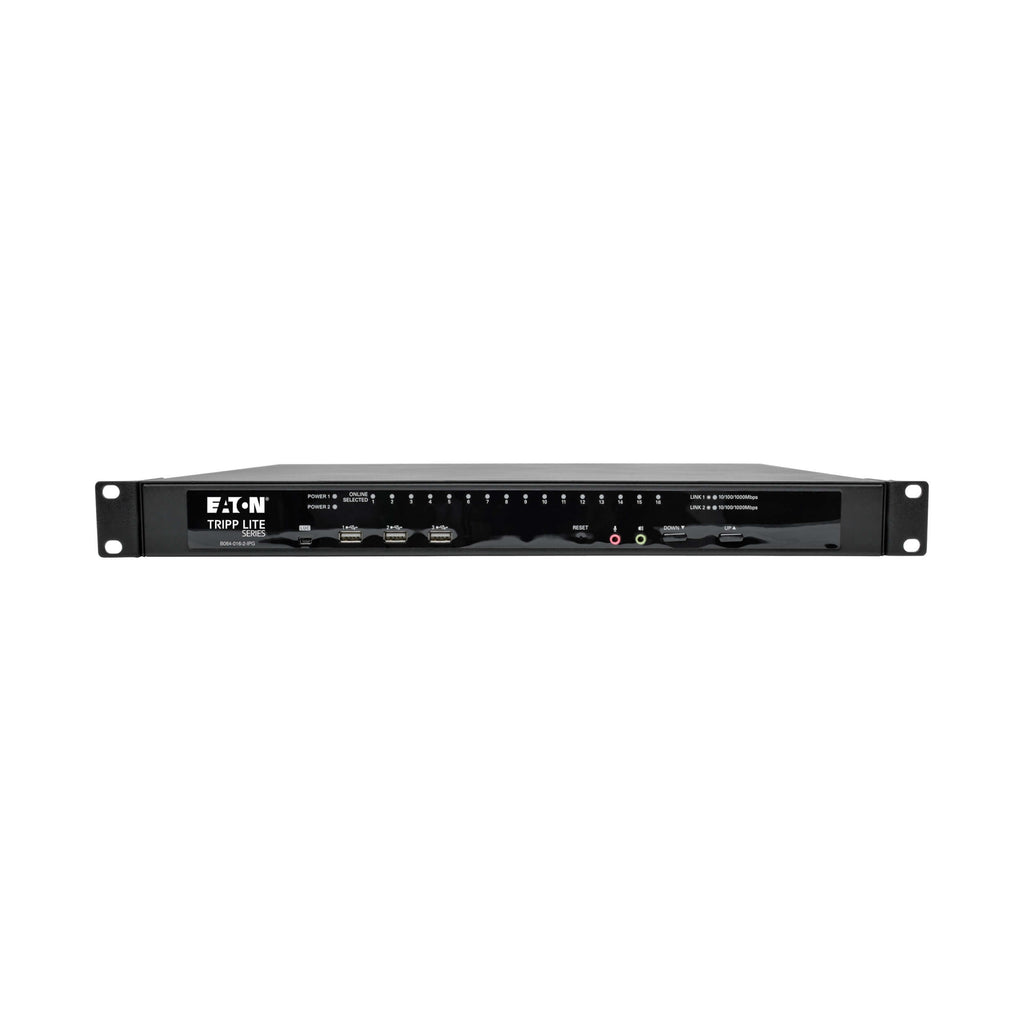

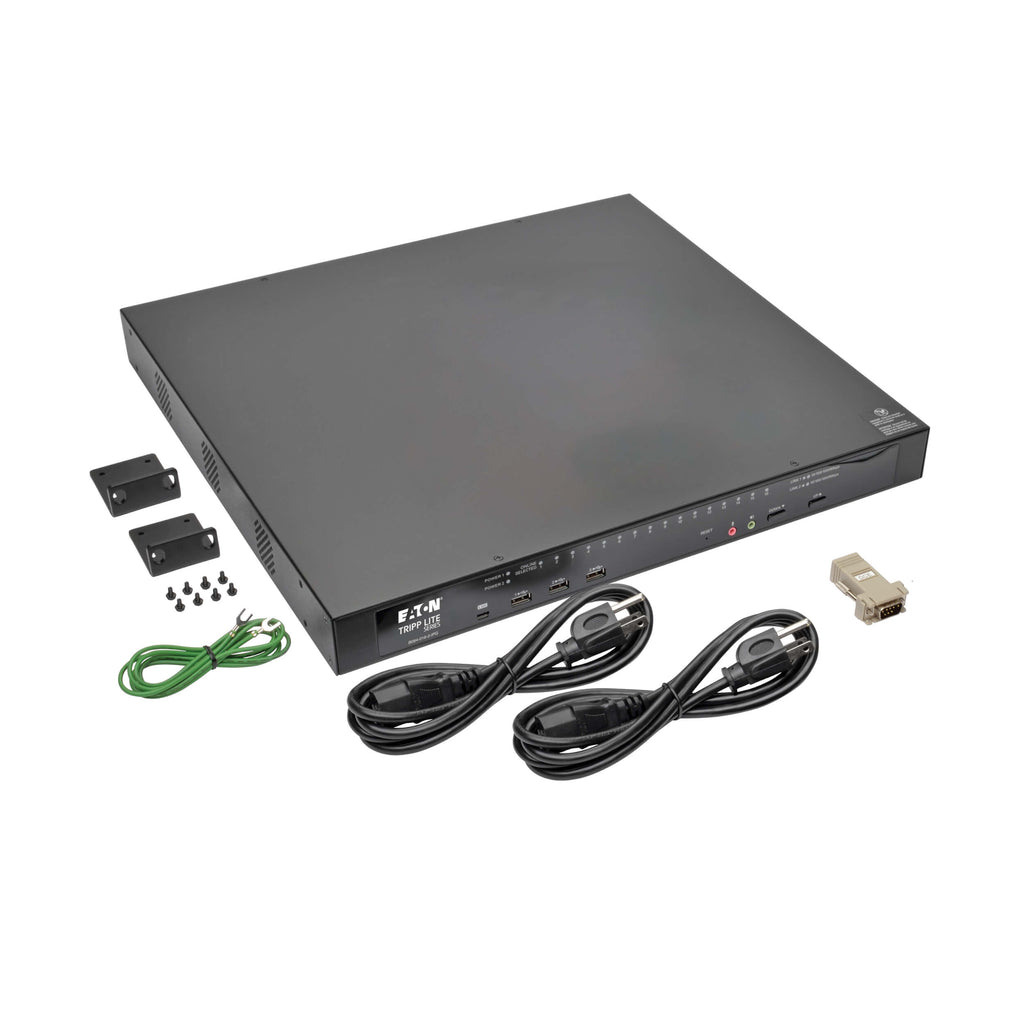

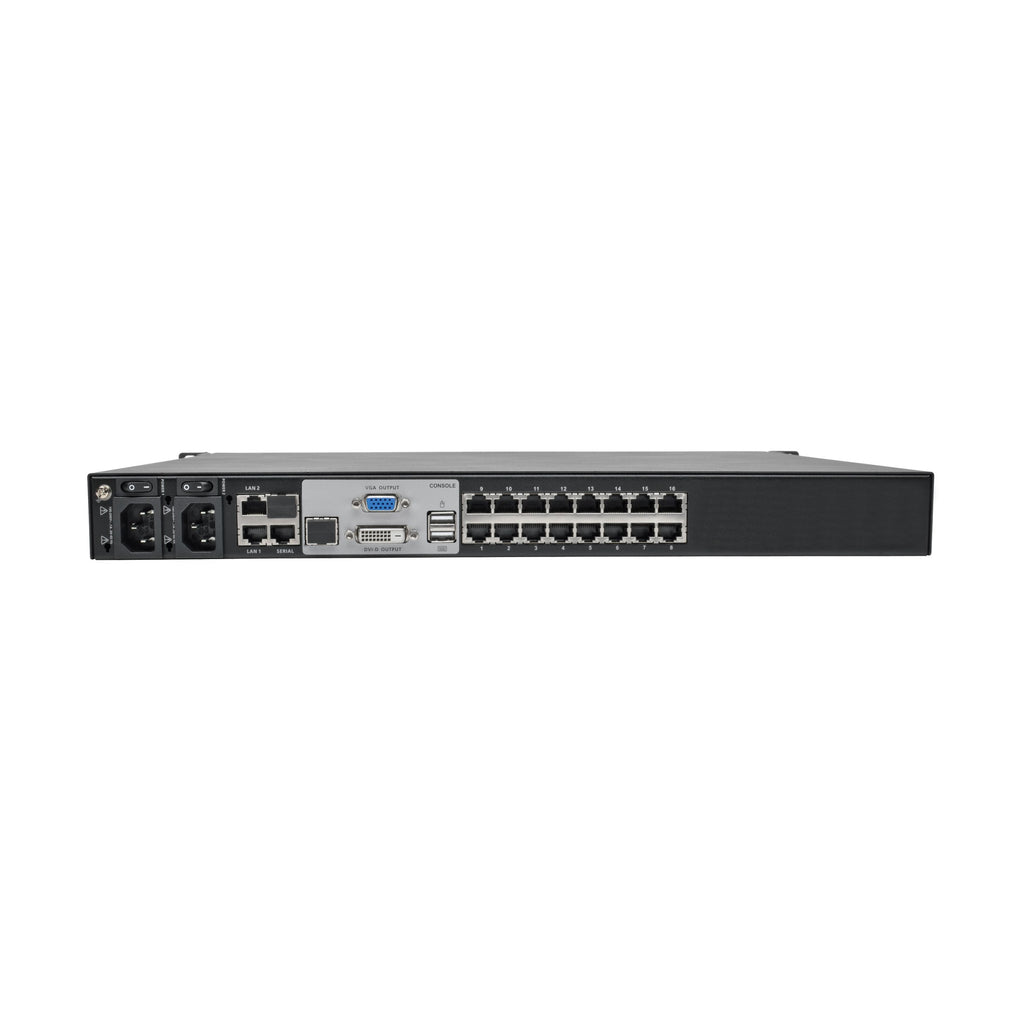

The Eaton Tripp Lite B064-016-02-IPG NetDirector KVM over IP switch provides robust, scalable server management for up to 16 computers or servers, including blade servers, via Cat5 cabling. Designed for data centers and demanding IT environments, it supports simultaneous access by up to 3 users (1 local, 2 remote) and features Virtual Media for remote file access. The unit includes DVI and VGA monitor support, USB/PS2 peripheral support, and a high-resolution OSD with multilingual UI.
With redundant power supplies, advanced security (LDAP, RADIUS, SSL, AES encryption), IPv4/IPv6 support, and TAA compliance, this 1U rackmount KVM is a reliable choice for enterprise IT professionals requiring remote server management with zero downtime.
| Specification | Details |
|---|---|
| Model | B064-016-02-IPG |
| Ports | 16 x RJ45 (Cat5 KVM) |
| Users | 1 Local, 2 Remote |
| Virtual Media | Yes (with USB 2.0 ports and B055-001 interface) |
| Monitor Support | DVI-D Single-Link and VGA |
| Max Video Resolution | 1600 x 1200 @ 60 Hz |
| Console Interfaces | USB / PS2, DVI / VGA |
| Authentication | LDAP, LDAPS, MS Active Directory, RADIUS |
| Security | 128-bit SSL, 1024-bit RSA, 256-bit AES |
| Power Input | 100–240V AC, Dual IEC-320-C14, Redundant |
| Power Consumption | 50W |
| Mounting | 1U Rackmount (hardware included) |
| OS Support | All major OS; browser-based and Java/Windows client |
| Cascading | Yes |
| Dimensions (H x W x D) | 1.75 x 17 x 16 in (4.45 x 43.18 x 40.64 cm) |
| Weight | 17 lbs (7.71 kg) |
| Compliance | TAA, RoHS, UL, cUL, CE, FCC |
| Warranty | 3-Year Limited |
