Description

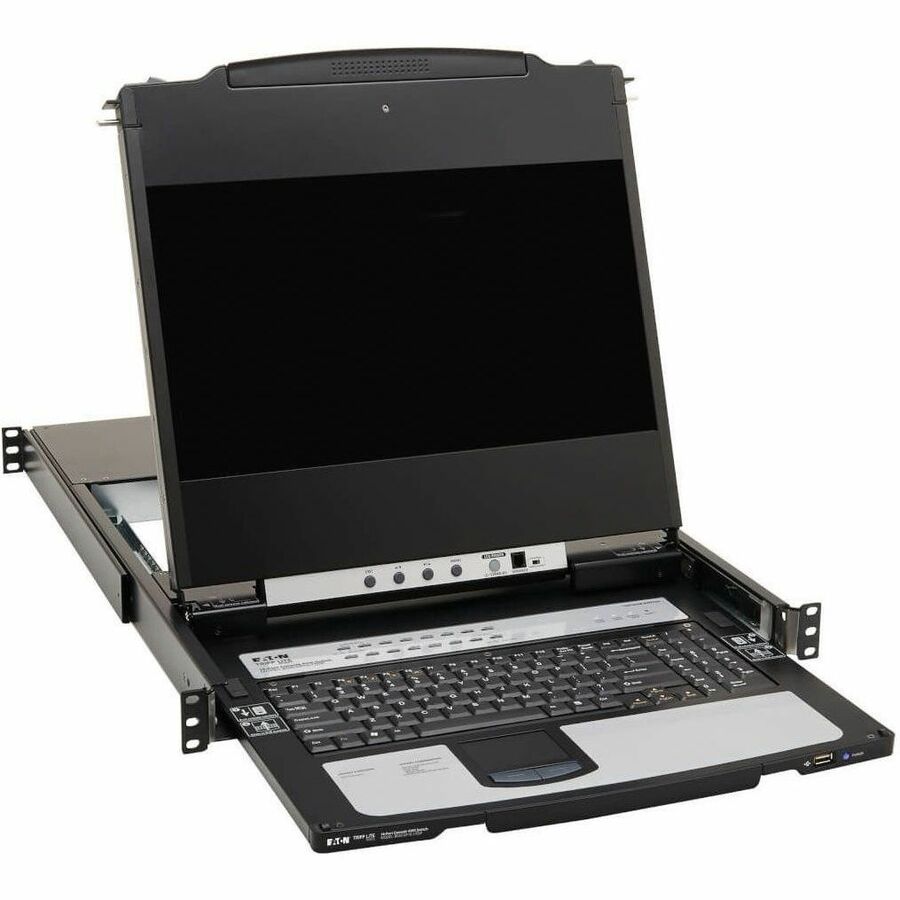

The Eaton Tripp Lite B030-DP16-17DIP is a 16-port DisplayPort KVM switch console with integrated 17-inch LCD, keyboard, and touchpad. Designed for high-density server environments, this dual-rail 1U rack-mount console features built-in IP remote access, enabling centralized control of up to 16 DisplayPort computers or servers from any location via LAN, WAN, or Internet.
Supporting 1080p resolution, advanced password security, and compatibility with major operating systems, this console is ideal for government, corporate, and enterprise data centers seeking streamlined management and maximum uptime. TAA compliance makes it suitable for federal procurement.
| Feature | Details |
|---|---|
| Model Number | B030-DP16-17DIP |
| Form Factor | 1U Rack-Mount, Dual Rail |
| Display | 17 in. LCD, 1920 x 1080 @ 60 Hz |
| Ports | 16 DisplayPort (Female), 16 USB B (Female) |
| Remote Access | Yes – via IP (LAN, WAN, Internet) |
| Authentication Support | LDAP, LDAPS, MS Active Directory, RADIUS |
| User Access Levels | Super Admin, Admin, User (up to 64 users, 32 concurrent) |
| Input Power | 100–240V, 50/60Hz, 1A, IEC-320-C14 |
| Power Consumption | 39.4 Watts |
| USB Hub | 1 x USB 1.1 port (front) |
| Switching Methods | Push Button, Hotkey, OSD, Remote Toolbar |
| Enclosure Material | Metal and Plastic |
| Unit Dimensions (HWD) | 1.73 x 18.9 x 26.77 in. |
| Unit Weight | 31 lbs (14.06 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 0–80% RH, non-condensing |
| Compliance | TAA, RoHS, REACH |
| Warranty | 1-Year Limited Warranty |
