Description

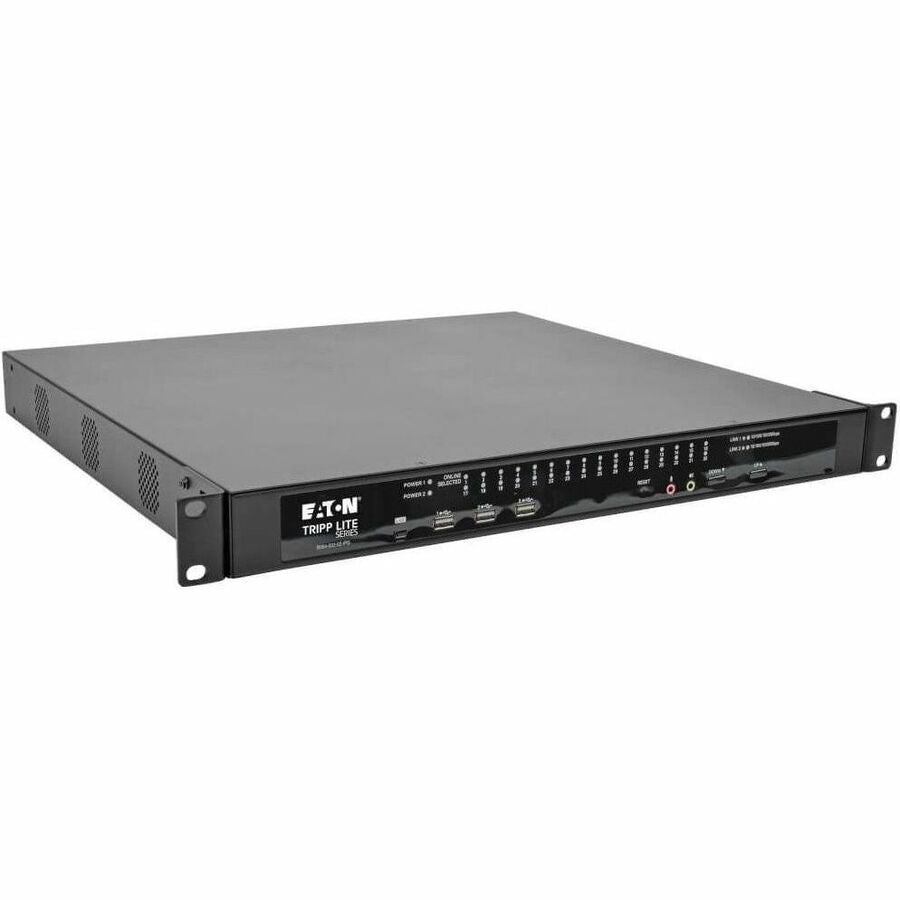

The Eaton Tripp Lite B064-032-02-IPG NetDirector® Cat5 KVM over IP Switch offers comprehensive, secure, and centralized control of up to 32 servers or devices. Supporting simultaneous access by 1 local and 2 remote users, this KVM switch is ideal for enterprise environments requiring 24/7 system monitoring and management.
Equipped with both DVI and VGA console ports, it provides flexibility for various display configurations. Advanced features such as Virtual Media support, multi-level user authentication, SNMP alerts, and compatibility with all major operating systems ensure streamlined access and heightened security. Dual redundant power supplies, temperature-regulated fans, and remote authentication protocols (RADIUS, LDAP, LDAPS, Active Directory) make this unit highly reliable. TAA-compliant and housed in a rugged steel chassis, this KVM switch is built for demanding IT infrastructures.
| Specification | Details |
|---|---|
| Model Number | B064-032-02-IPG |

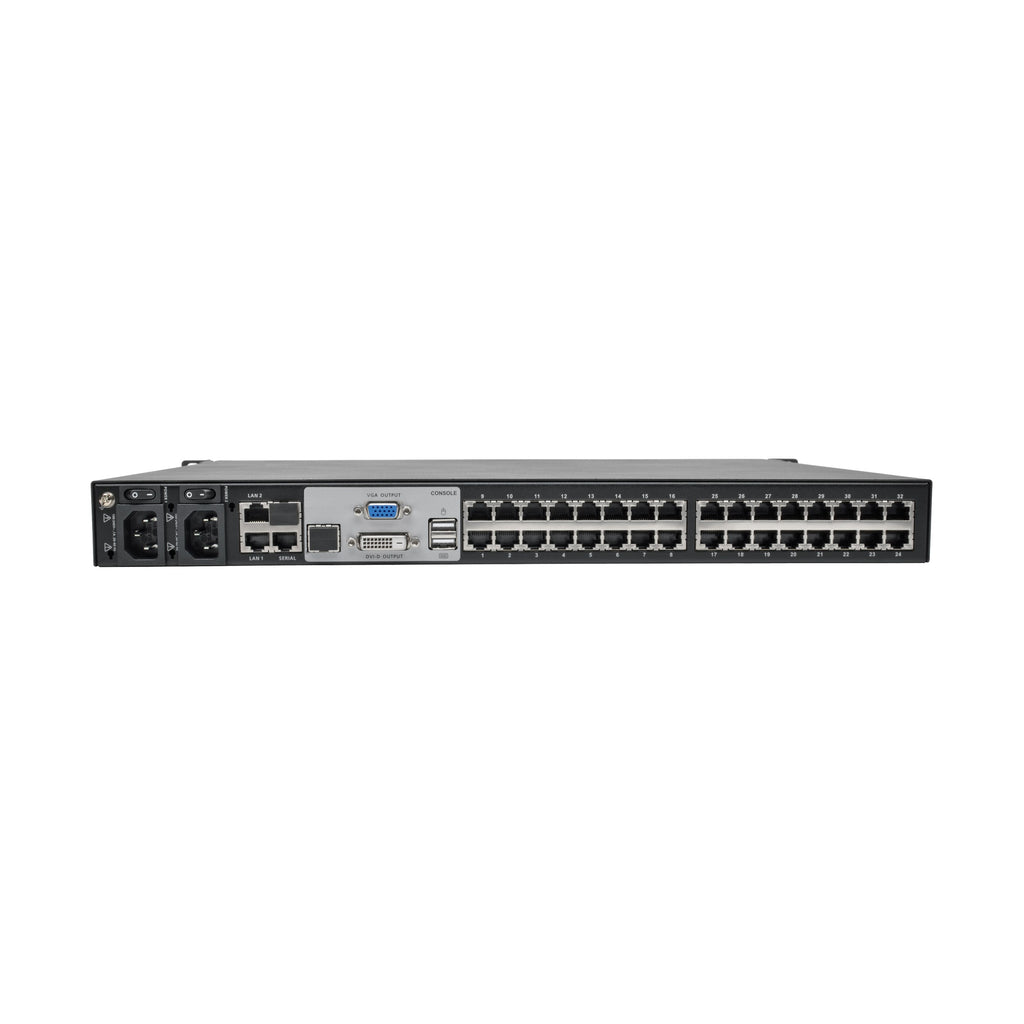

| Ports | 32 RJ45 (Cat5) |
| User Access | 1 Local + 2 Remote (Simultaneous) |
| Console Ports | DVI-D Dual Link, VGA (HD15), USB A, USB Mini-B |
| Resolution | Up to 1600 x 1200 @ 60Hz (local and remote) |
| Virtual Media Support | Yes, via B055-001-USB-V2 SIU |
| Authentication | Super Admin, Admin, User; RADIUS, LDAP, LDAPS, Active Directory |
| Security Protocols | 1024-bit RSA, 256-bit AES, 128-bit SSL, FIPS 140-2 Level 1 |
| Network Support | IPv4, IPv6 (Stateless), Link Local IPv6, 10/100/1000 Mbps |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Power Input | 100–240V AC, 50/60Hz, 0.8A (120V) / 0.4A (230V), Dual IEC-320-C14 |
| Material | Heavy-duty steel housing |
| Dimensions (H x W x D) | 1.72 x 17.06 x 16.27 in (4.45 x 43.18 x 40.64 cm) |
| Weight | 12.1 lbs (5.49 kg) |
| Compliance | TAA, UL, cUL, FCC, CE, RoHS |
| Warranty | 3-Year Limited Warranty |

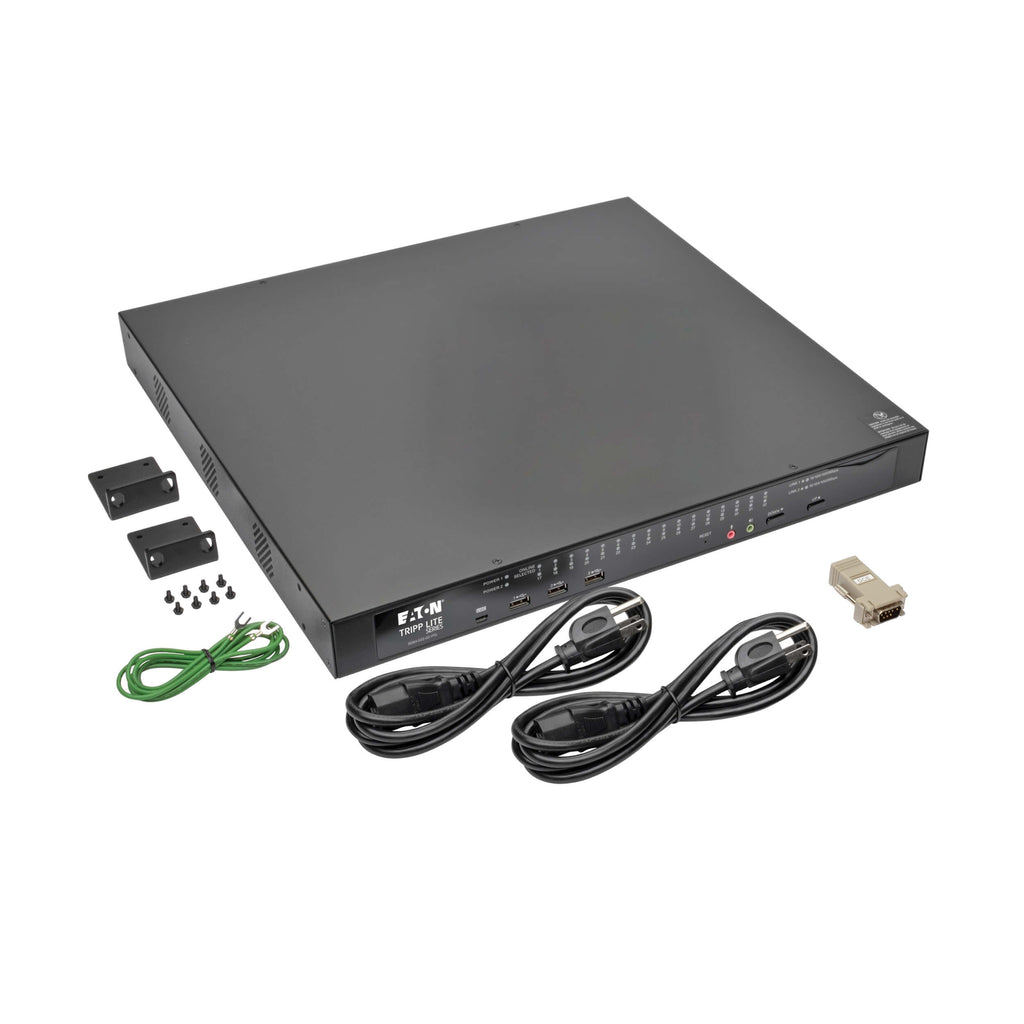

| Included Accessories | Power cords (x2), Rackmount kit, Modem adapter, Ground wire, Foot pads |
