Description

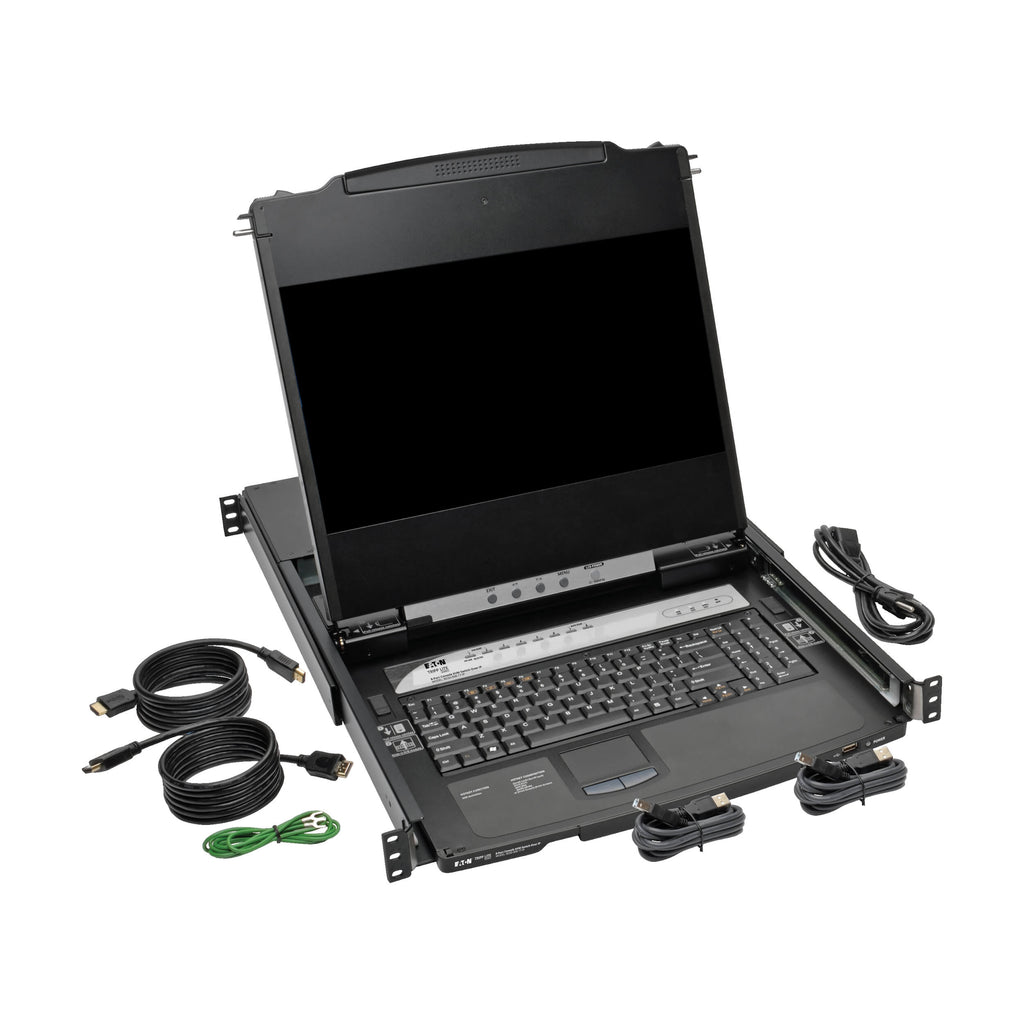

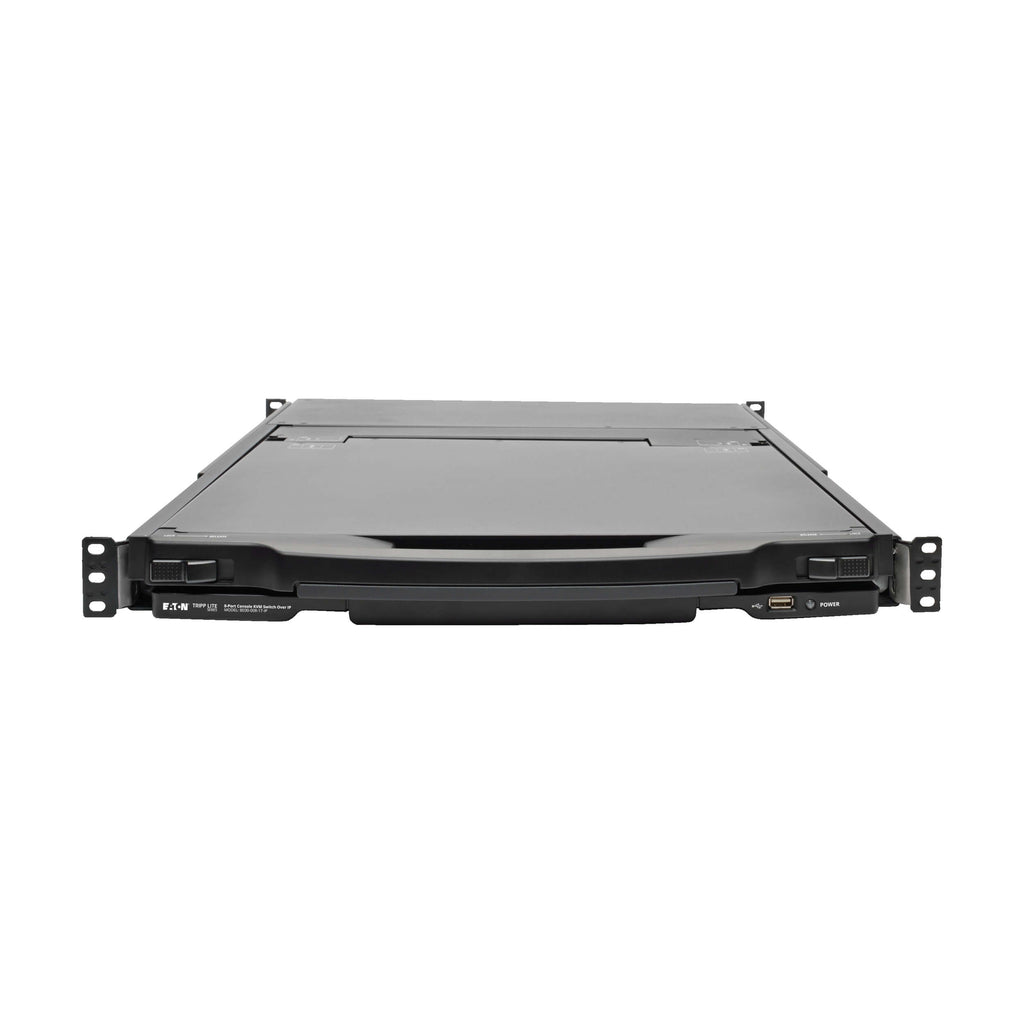

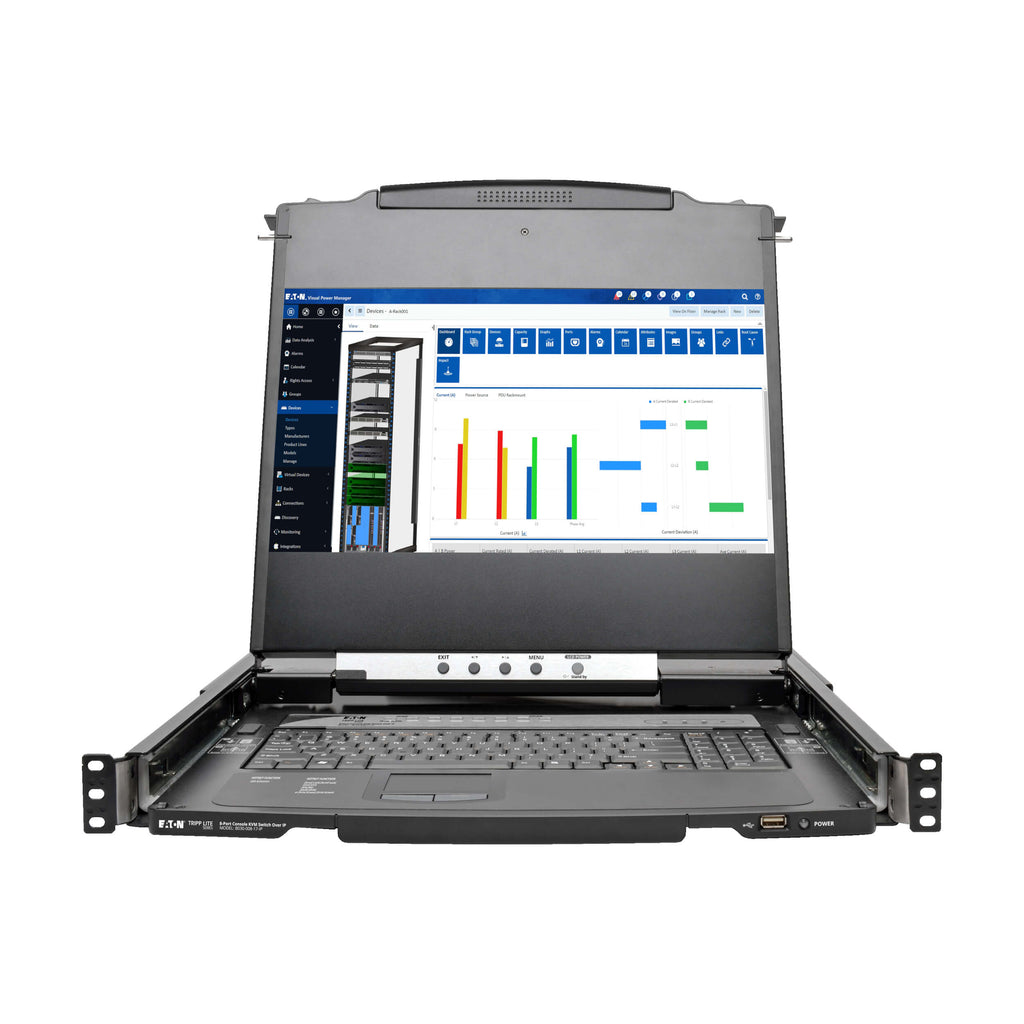

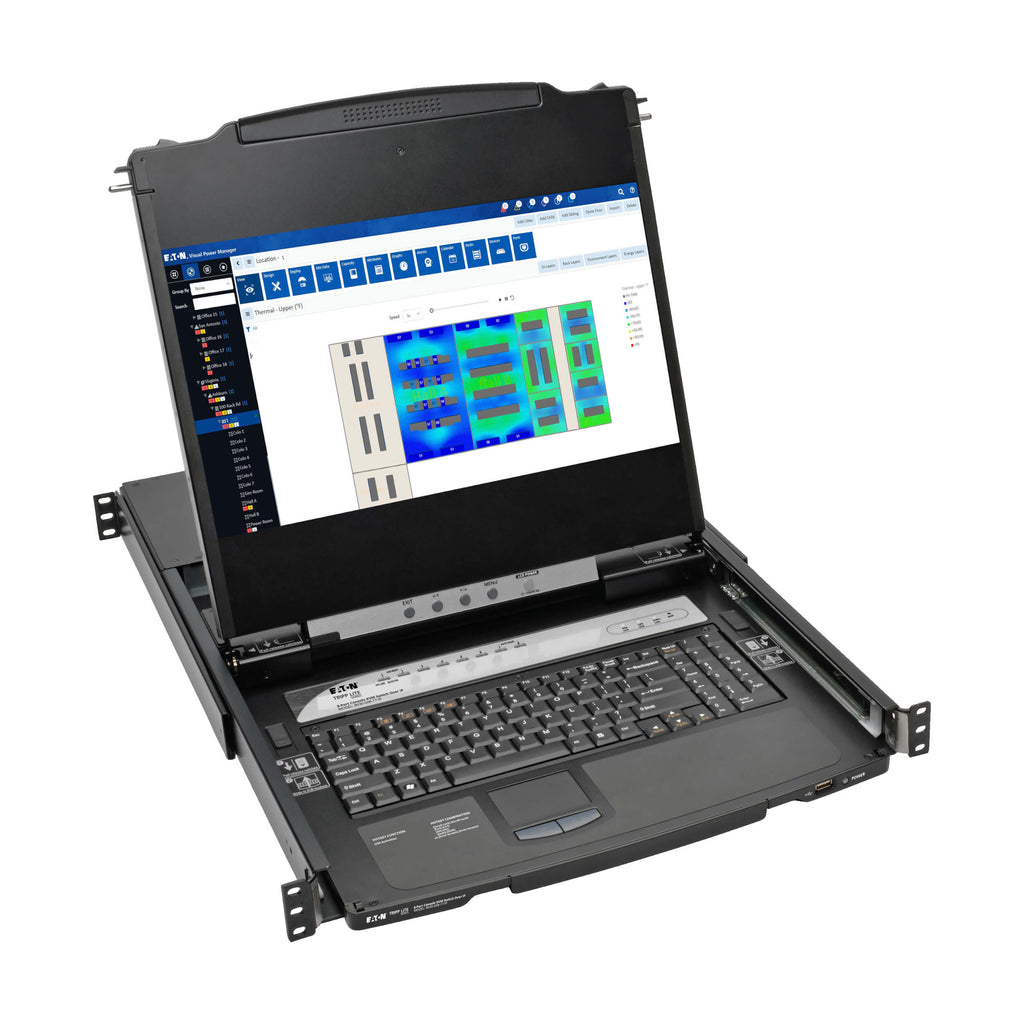

The Tripp Lite B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch provides full control of up to eight servers or computers from a single integrated console. Designed for efficiency in data centers, control rooms, and enterprise environments, this dual-rail unit combines a 17-inch LCD display, keyboard, and touchpad into a 1U rack-mountable housing.
Built-in IP remote access allows administrators to manage connected systems securely from anywhere via LAN, WAN, or the Internet. Supporting resolutions up to 1920x1080, this KVM switch simplifies IT operations through multi-user access (up to 32 concurrent sessions), advanced 256-bit AES encryption, and LDAP/RADIUS authentication.
With its heavy-duty steel construction, TAA compliance, and hot-swappable port design, the B030-008-17-IP is engineered for reliable, long-term use in mission-critical deployments.
| Category | Specification |
|---|---|
| Model Number | B030-008-17-IP |
| Product Type | 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17" LCD |
| Display | 17" LCD screen, 1920x1080 resolution |

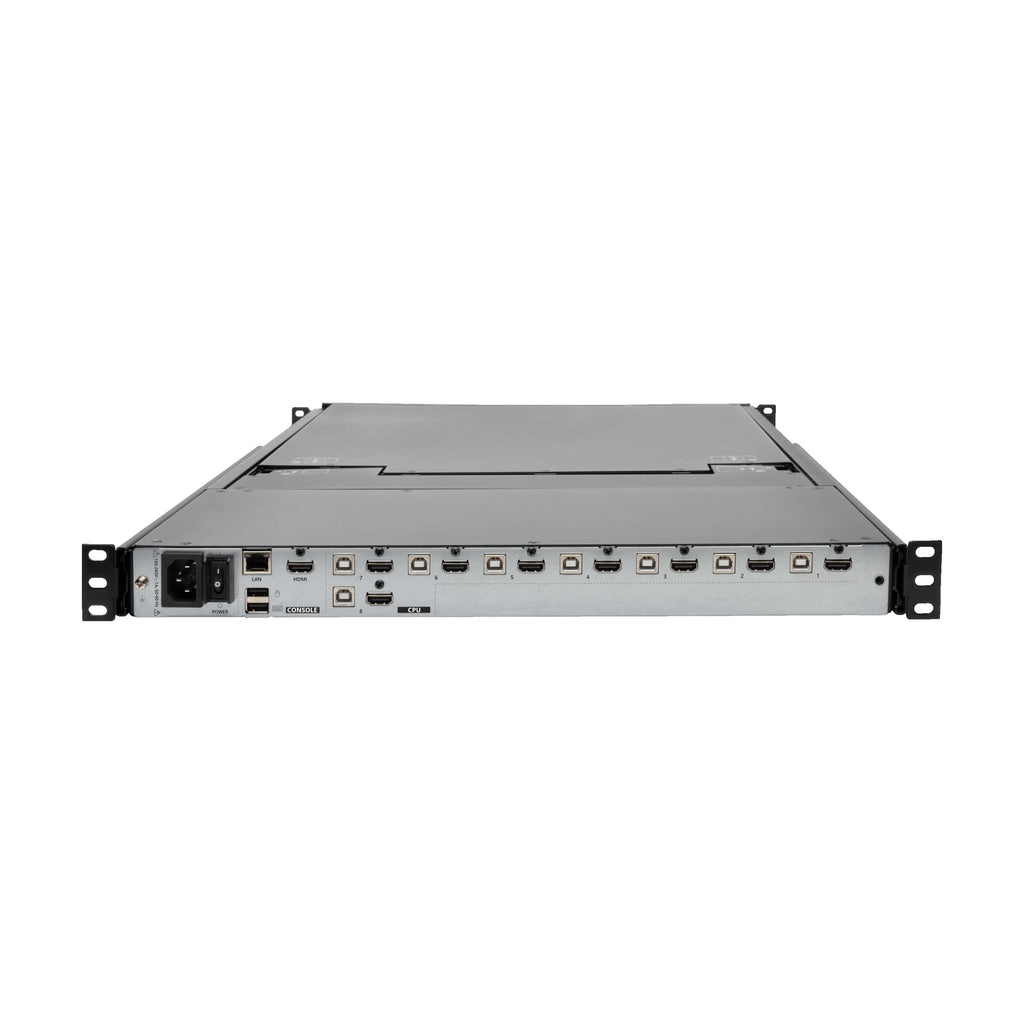

| Video Ports | 8 x HDMI (female) |
| Computer Connections | USB and HDMI via P782-XXX-DH Series Cable Kit (sold separately) |
| Network Access | IP remote access over LAN, WAN, or Internet |
| Supported Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, DNS, 10Base-T/100Base-TX |
| Authentication | RADIUS and LDAP/S server authentication |
| Concurrent Users | Up to 32 remote users; 64 total user accounts |
| Video Resolution | Up to 1920x1080 @ 60Hz |
| Power Input | 100–240V AC, 50/60Hz, 1A |
| Power Consumption | 27.5W |
| Construction | Metal and plastic; dual-rail design |
| Unit Dimensions (H x W x D) | 1.73 x 18.9 x 26.77 in (4.39 x 48.01 x 68.0 cm) |
| Unit Weight | 26.01 lbs (11.8 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 0–80% non-condensing |
| Compliance | TAA, RoHS, CE, FCC Part 15 Class A, UL 60950-1, CAN/CSA C22.2 |
| Warranty | 3-Year Limited Warranty |
| Included Accessories | (2) HDMI cables (6 ft), (2) USB 2.0 A/B cables (6 ft), power cord, owner’s manual |
