Description

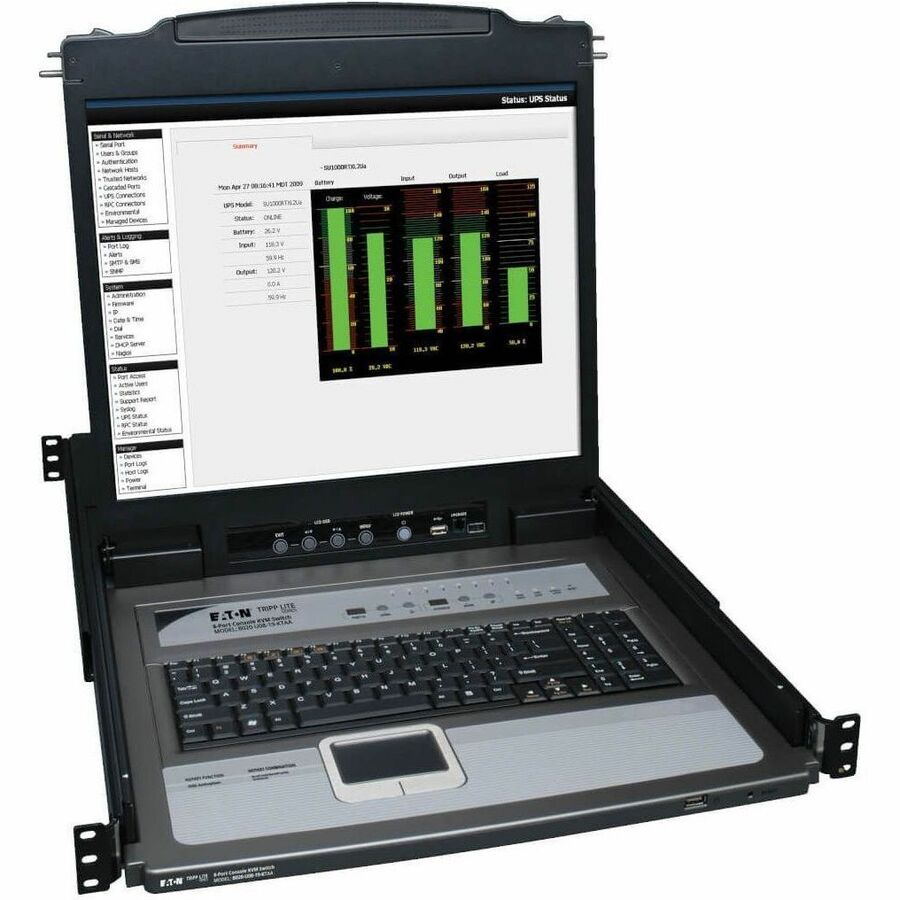

The Eaton Tripp Lite NetDirector B020-U08-19KTAA is a space-saving 1U rack-mount console KVM switch with an integrated 19” LCD monitor, keyboard, and touchpad. Ideal for data centers, server rooms, and IT environments, it allows centralized control of up to 8 computers via USB or PS/2 connections. The unit includes 8 PS/2-USB combo KVM cables and supports video resolutions up to 1280 x 1024. With multi-level password security, hot-swappable ports, and daisy-chain support for up to 256 servers, it’s a robust, TAA-compliant solution for government or commercial installations.
| Specification | Details |
|---|---|
| Model Number | B020-U08-19KTAA |
| Brand | Eaton Tripp Lite |
| Form Factor | 1U Rack-Mount Console Drawer |
| Display | 19” LCD, 1280 x 1024 resolution |
| Number of Ports | 8 |
| Supported Connections | PS/2, USB, VGA (HD15) |
| Included Cables | (8) P778-006 PS/2-USB combo cables |
| Console Access | Built-in LCD, keyboard, touchpad |
| External Console Support | Yes (with included console cable kit) |
| Daisy Chain Support | Yes, up to 256 computers with B022-U08 |
| Port Control | OSD, hotkeys, push buttons |
| Power Input | 100–240V AC, 50/60Hz |
| Power Consumption | 28.5W @ 120V / 29.1W @ 230V |
| Security | Multi-level password (Admin + 4 users) |
| Compliance | TAA, RoHS, CE, FCC, UL, cUL, CAN/CSA |
| Operating Temperature | 0 to 50°C (32 to 120°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Humidity | 0–80% RH, non-condensing |
| Unit Dimensions (H x W x D) | 1.75 x 17 x 27 in (4.45 x 43.18 x 68.58 cm) |
| Unit Weight | 30.6 lbs (13.88 kg) |
| Shipping Dimensions | 5.9 x 26.77 x 32.68 in (14.99 x 68.00 x 83.01 cm) |
| Shipping Weight | 41 lbs (18.60 kg) |
| Warranty | 1-Year Limited Warranty |
