Description

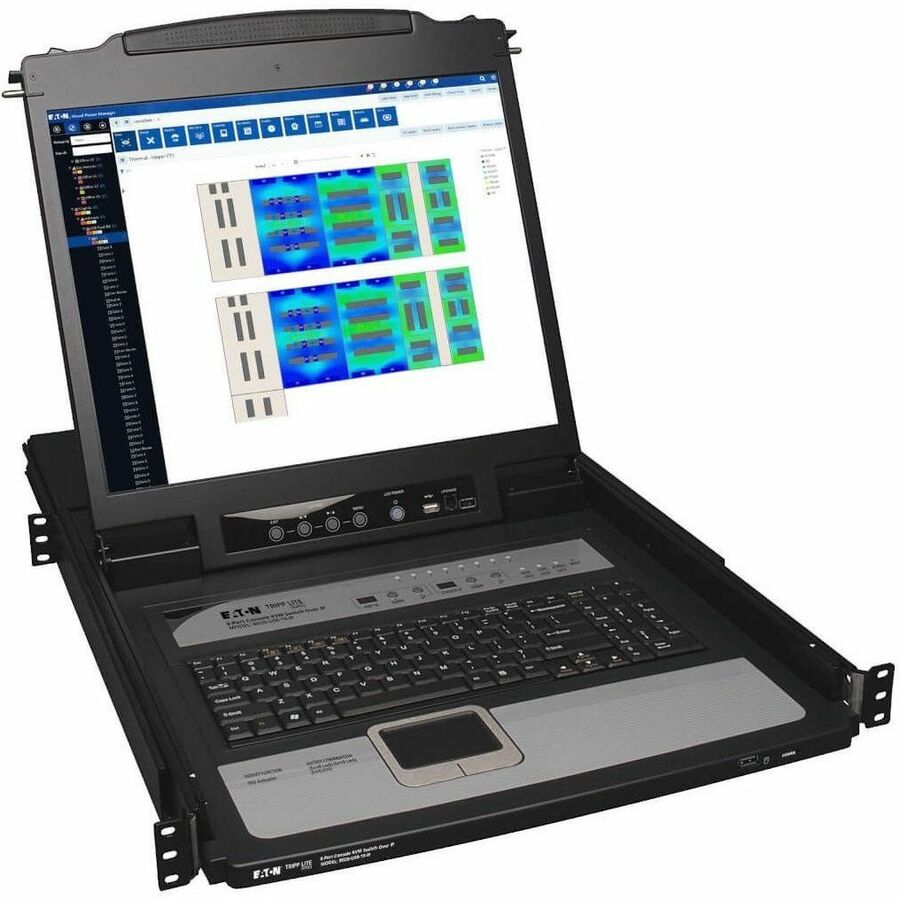

The Eaton Tripp Lite B020-U08-19-IP is a compact and secure 8-port KVM switch with a built-in 19" LCD console and IP remote access. Designed for data centers and server rooms where space, security, and remote access are essential, this all-in-one KVM occupies only 1U of rack space while allowing local and remote control of up to 8 servers. Its integrated keyboard, touchpad, and wide-screen LCD streamline IT administration, while multi-platform compatibility, IPv4/IPv6 support, and 64-user management make it enterprise-ready. TAA-compliant for government applications.
| Specification | Details |
|---|---|
| Model Number | B020-U08-19-IP |
| Form Factor | 1U Rack-Mount Console |
| Ports | 8 x SPHD-18 (VGA + PS/2 + USB) |
| Console Display | 19" LCD, 1280 x 1024 (local); 1920 x 1080 (remote max) |
| Remote Access | Yes (IP-based, HTTPS, SSL, RADIUS, LDAP/S) |
| User Access | 64 accounts; 3-level security |
| Hotkey/OSD Access | Yes |
| Auto Scan Mode | Yes, 1–255 seconds |
| Video Connections | VGA (console and computers) |
| Keyboard/Mouse Interface | USB or PS/2 |
| Expansion | Supports daisy-chaining up to 31 B022-U08 switches (up to 256 servers) |
| Construction | Metal + Plastic |
| Power Consumption | 33.5W @ 120V / 34W @ 230V |
| Input Voltage Compatibility | 100–240V AC |
| Operating Temp Range | 32°F to 122°F (0°C to 50°C) |
| Dimensions (H x W x D) | 1.75 x 17 x 27 in (4.39 x 48 x 68.58 cm) |
| Weight | 31 lbs (14.06 kg) |
| Certifications | UL, CE, FCC, RoHS, TAA Compliant |
| Included Accessories | 2x P778 KVM cables, USB/PS2 console cable, power cord, firmware cable, rackmount kit |
| Warranty | 1-Year Limited Warranty |
