Description

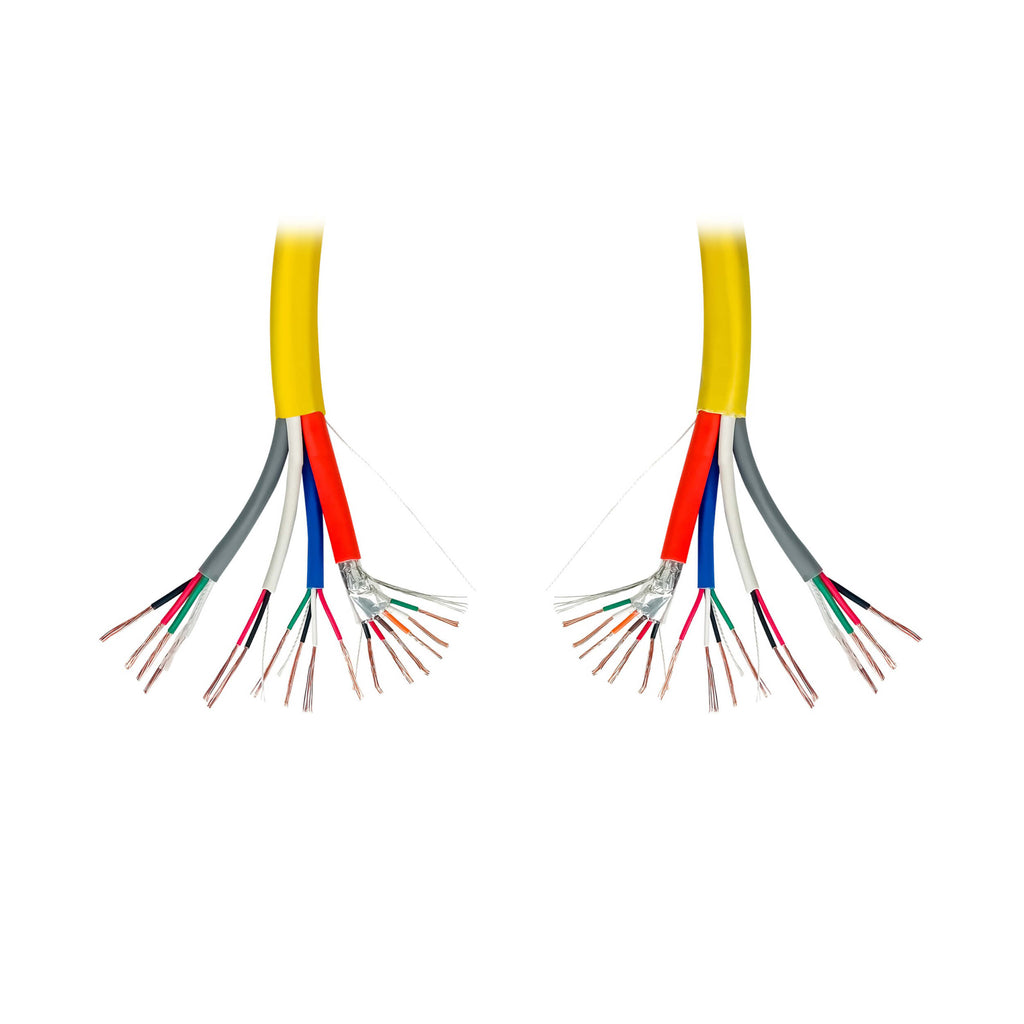

The Eaton A300-01K-YW is a 1000-foot plenum-rated access control cable designed for professional security installations in commercial, industrial, and institutional environments. This durable PVC-jacketed cable houses four color-coded bundles for connecting multiple devices—such as card readers, electronic door locks, and request-for-exit (REX) sensors—through a single run.
Engineered for performance and compliance, it supports Gigabit data speeds and is rated CMP for plenum spaces requiring low-smoke materials. With stranded copper conductors and clear bundle identification, it simplifies setup and ensures reliable, long-term operation across your access control network.
| Category | Specification |
|---|---|
| Model Number | A300-01K-YW |
| Product Type | Plenum-Rated Access Control Cable |
| Length | 1000 ft (305 m) |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMP (Plenum) |
| Cable Shielding | UTP (Unshielded Twisted Pair) |
| Outer Diameter | 11.5 ± 0.30 mm |
| Conductor Material | Stranded Copper |
| Conductor Gauge | Card Reader: 22 AWG / Lock Power: 18 AWG / REX: 22 AWG / Door Contact: 22 AWG |
| Number of Conductors | Card Reader: 6 / Lock Power: 4 / REX: 4 / Door Contact: 2 |
| Connectors | Bare Wire (Both Ends) |
| Network Compatibility | 1 Gbps (Gigabit) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Certifications | CAN/CSA-C22.2 No. 214-17 (Canada), UL 444 |
| Compliance | RoHS, REACH |
| Dimensions (H x W x D) | 9.44 x 20.47 x 20.47 in (24 x 52 x 52 cm) |
| Unit Weight | 100 lbs (45.36 kg) |
| Warranty | Lifetime Limited Warranty |
