Description

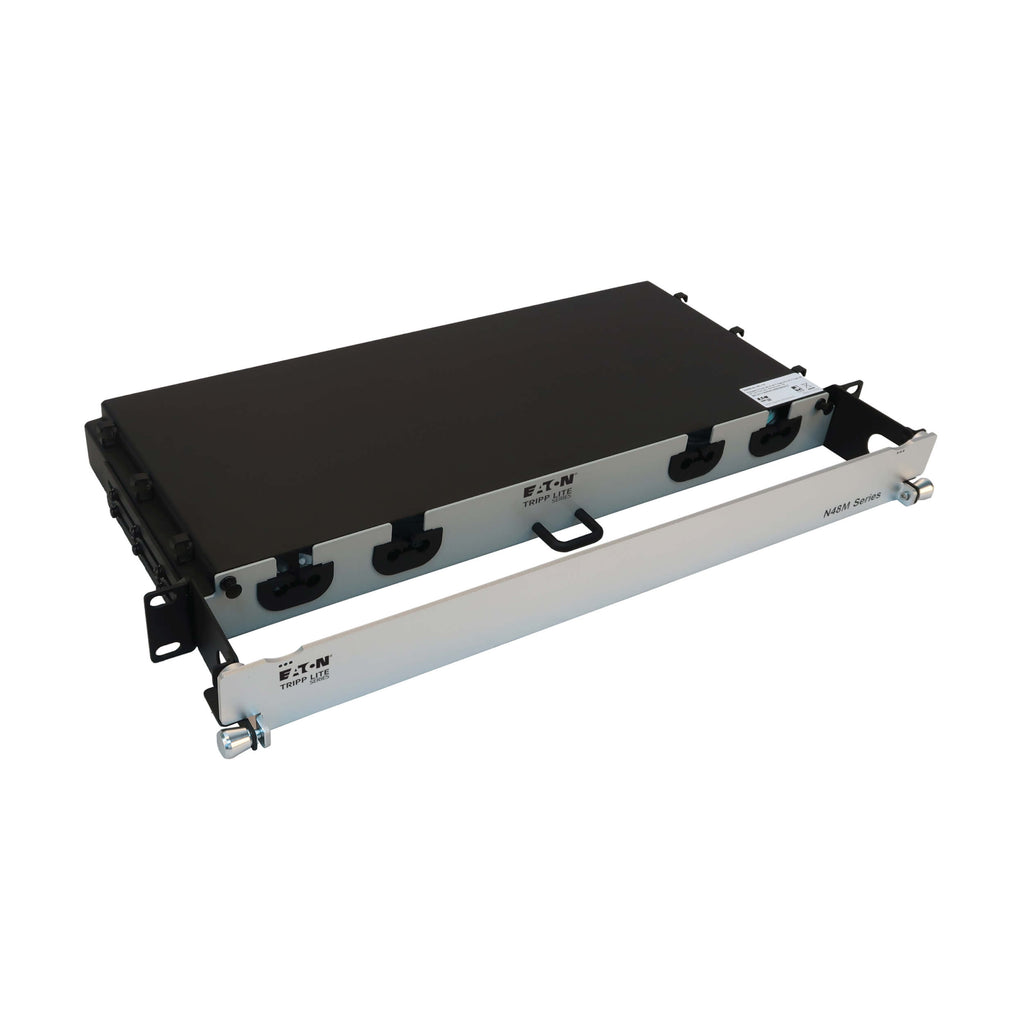

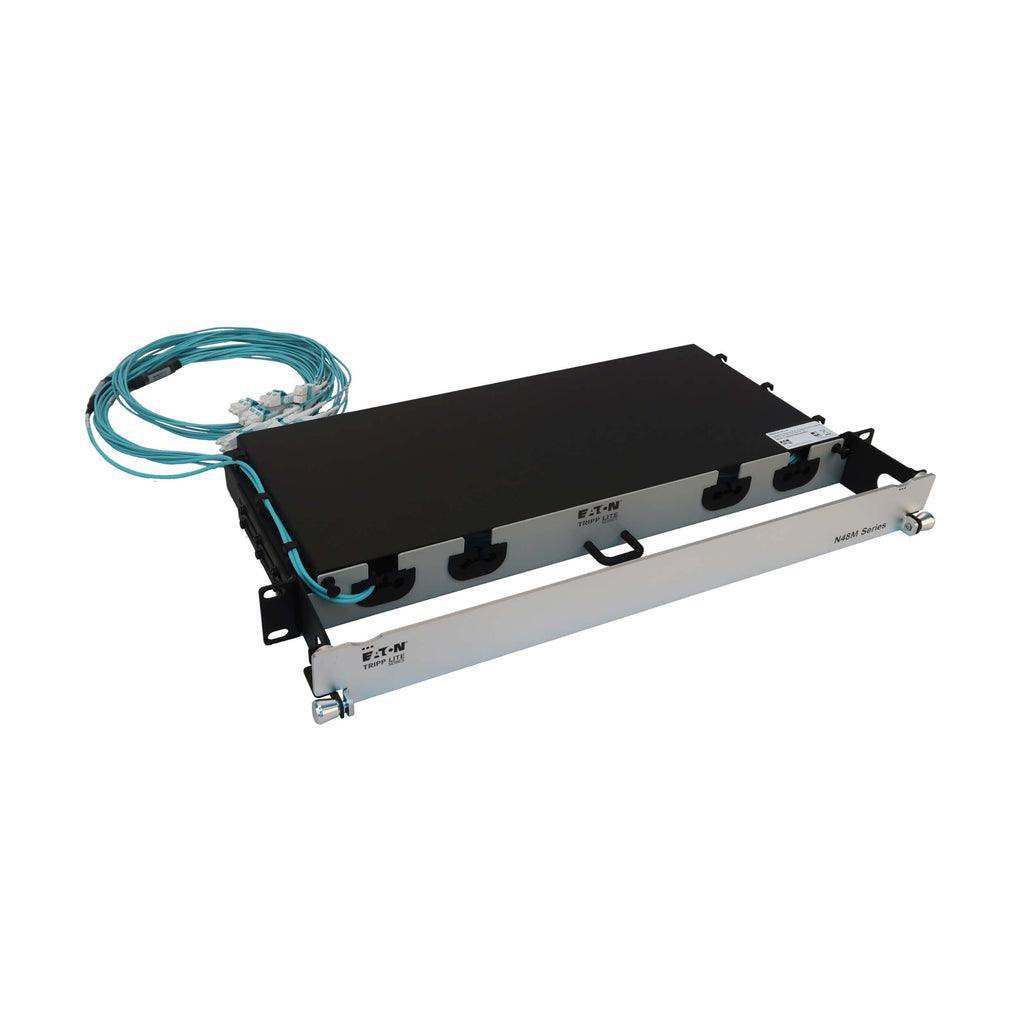

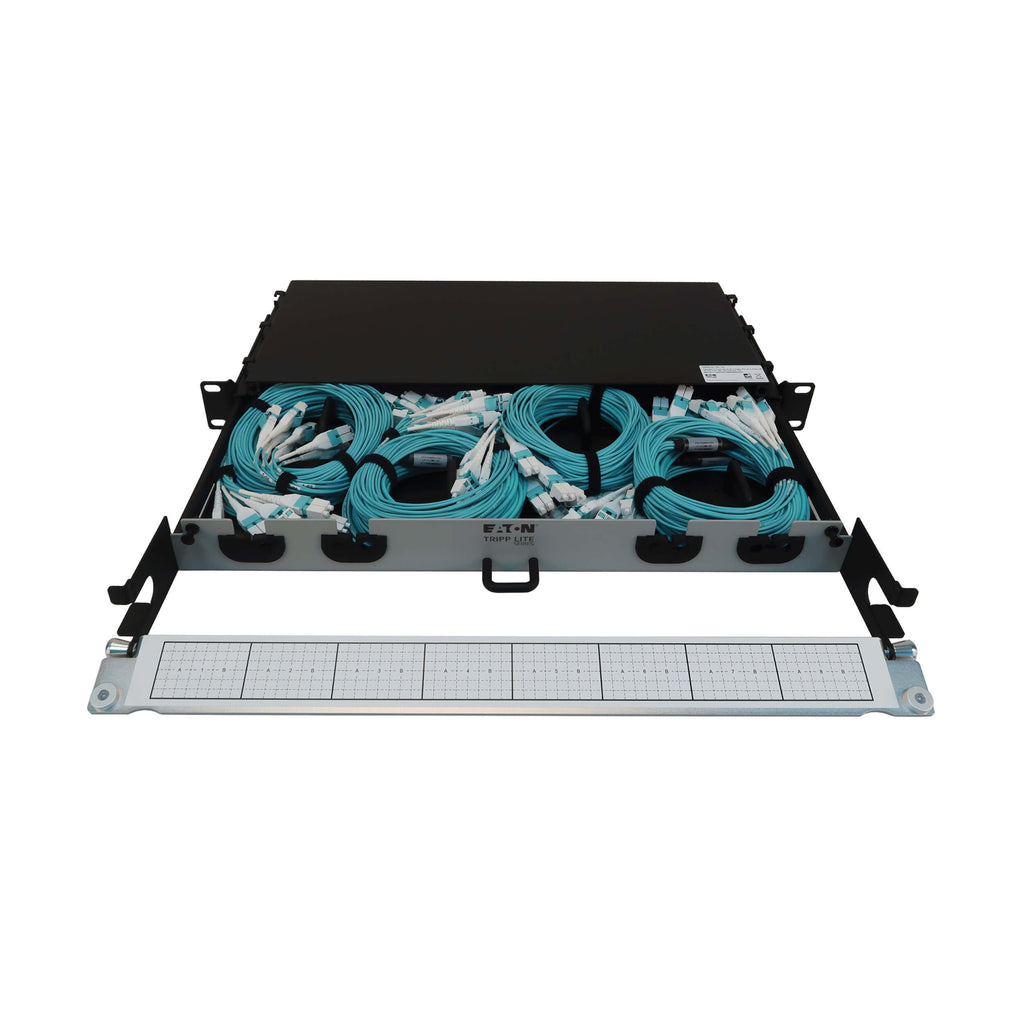

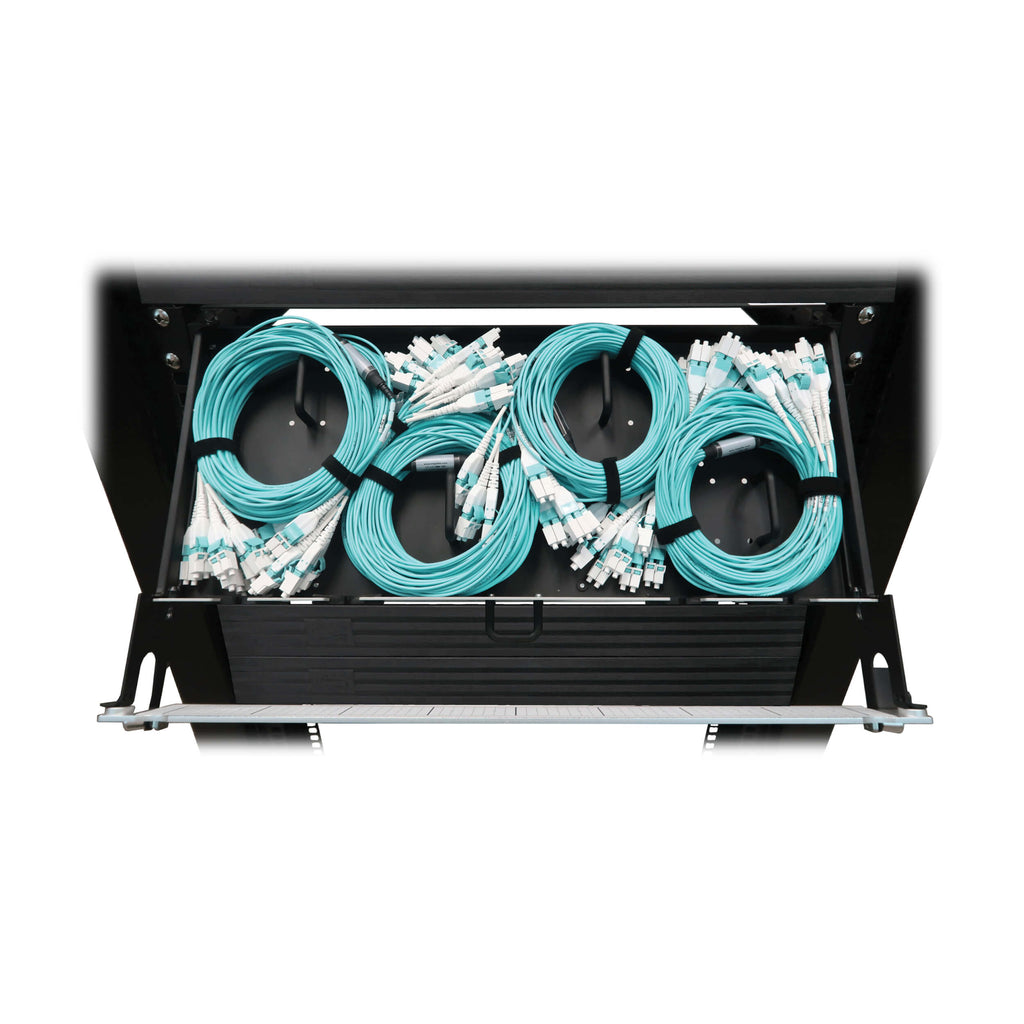

The Eaton N48M-4L16L-10 Preloaded Fiber Panel delivers a ready-to-deploy cabling solution that reduces setup time and cost. Designed for efficiency and flexibility, this 1U rackmount panel comes preloaded with four 16-fiber OM4 multimode LC duplex trunk cables, each 10 meters (32.8 ft.) long, coiled inside for immediate use. Simply extend the length you need while keeping excess neatly stored within the chassis to maintain a clean, organized rack environment.

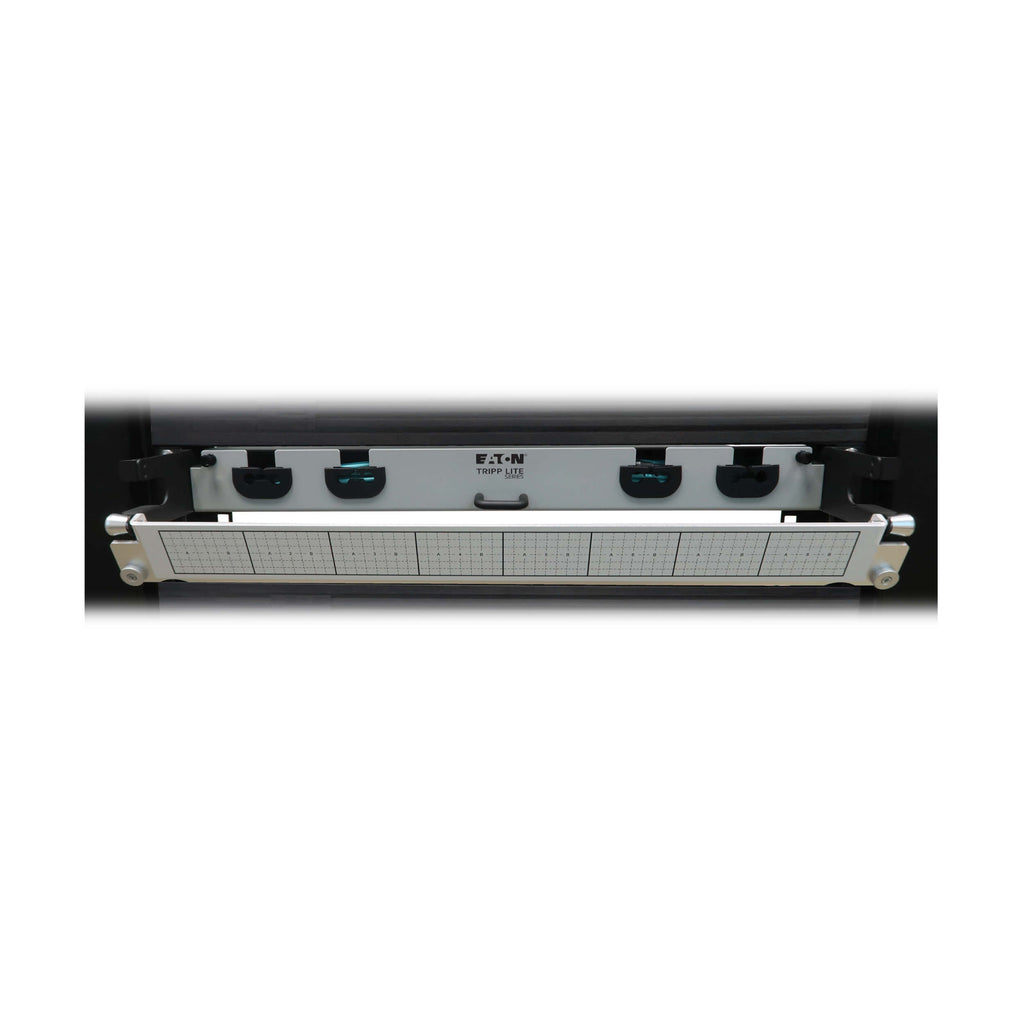

Its lightweight aluminum design fits EIA-standard 19-inch racks, promoting better airflow and simplified maintenance. Ideal for high-speed data environments supporting 1G to 100G network compatibility, this all-in-one panel eliminates the need for custom cabling and allows easy reuse when rearranging equipment.
| Category | Details |
|---|---|
| Brand | Eaton |
| Model | N48M-4L16L-10 |
| Product Type | Preloaded Fiber Panel |
| Form Factor | 1U Rackmount |
| Panel Material | Aluminum |
| Panel Dimensions (W × H × D) | 17.32 × 1.73 × 10.20 in |
| Cable Type | OM4 Multimode Fiber |
| Number of Cables | 4 × (8× LC Duplex M/M) |
| Number of Fibers | 16 |
| Cable Length | 10 m (32.8 ft.) |

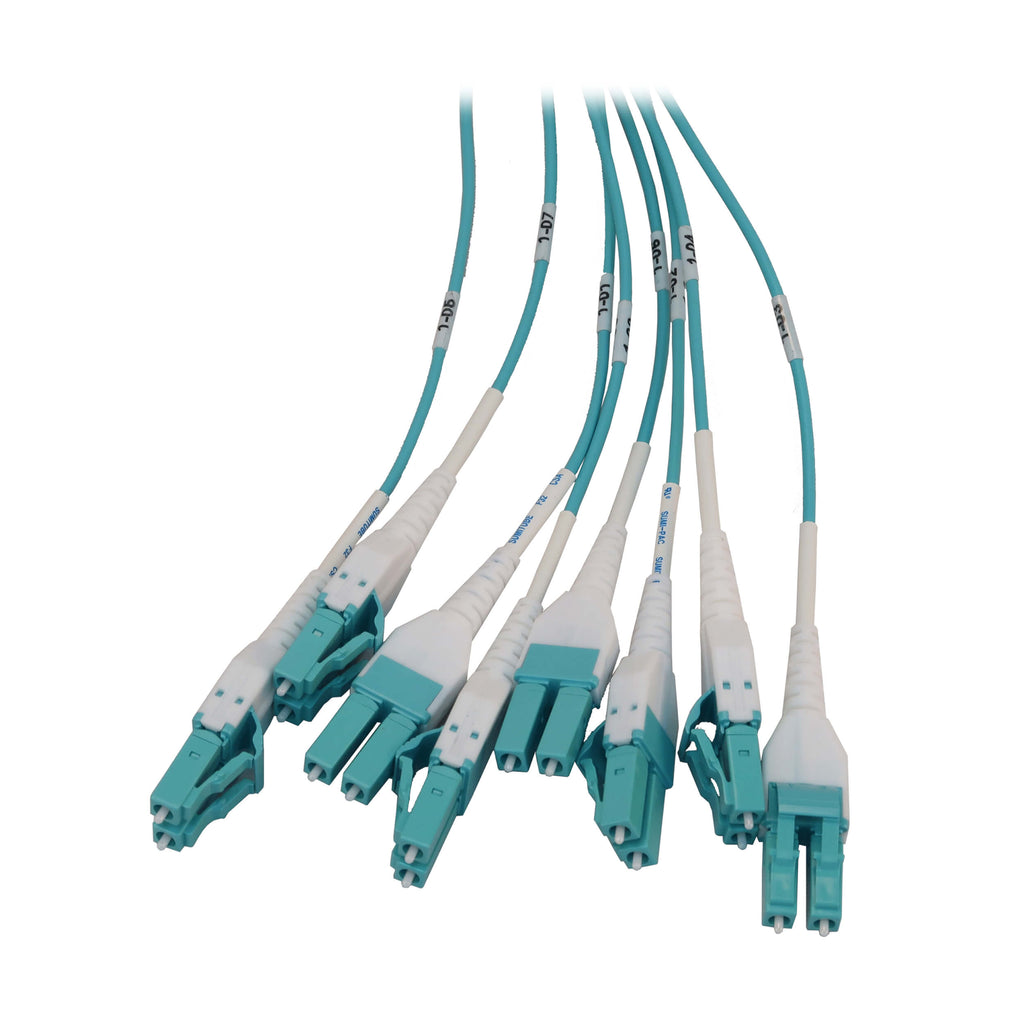

| Connector Type | LC Duplex (Male–Male) |
| Endface Polish | PC |
| Cable Jacket Color | Aqua |
| Connector Color | Aqua, White |
| Cable Jacket Rating | OFNP |
| Core / Clad Diameter | 50 / 125 µm |
| Outer Diameter | 2.9 mm |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Wavelengths Supported | 850 nm, 1300 nm |
| Attenuation | 3.0 dB/km @ 850 nm; 1.0 dB/km @ 1300 nm |
| Insertion Loss | 0.20 dB |
| Network Compatibility | 1G / 10G / 25G / 40G / 100G |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 5%–85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
