Description

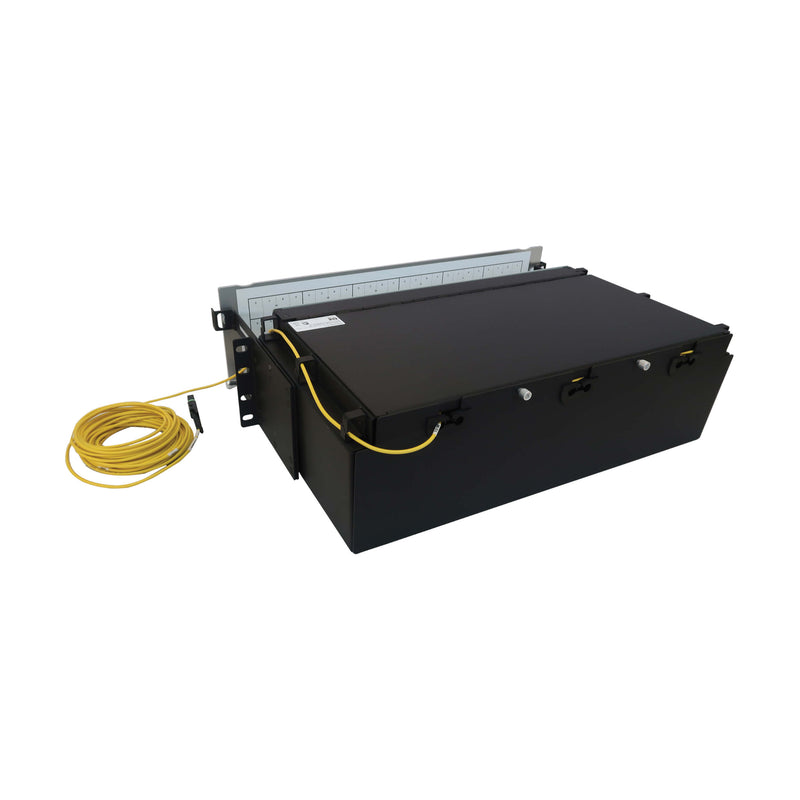

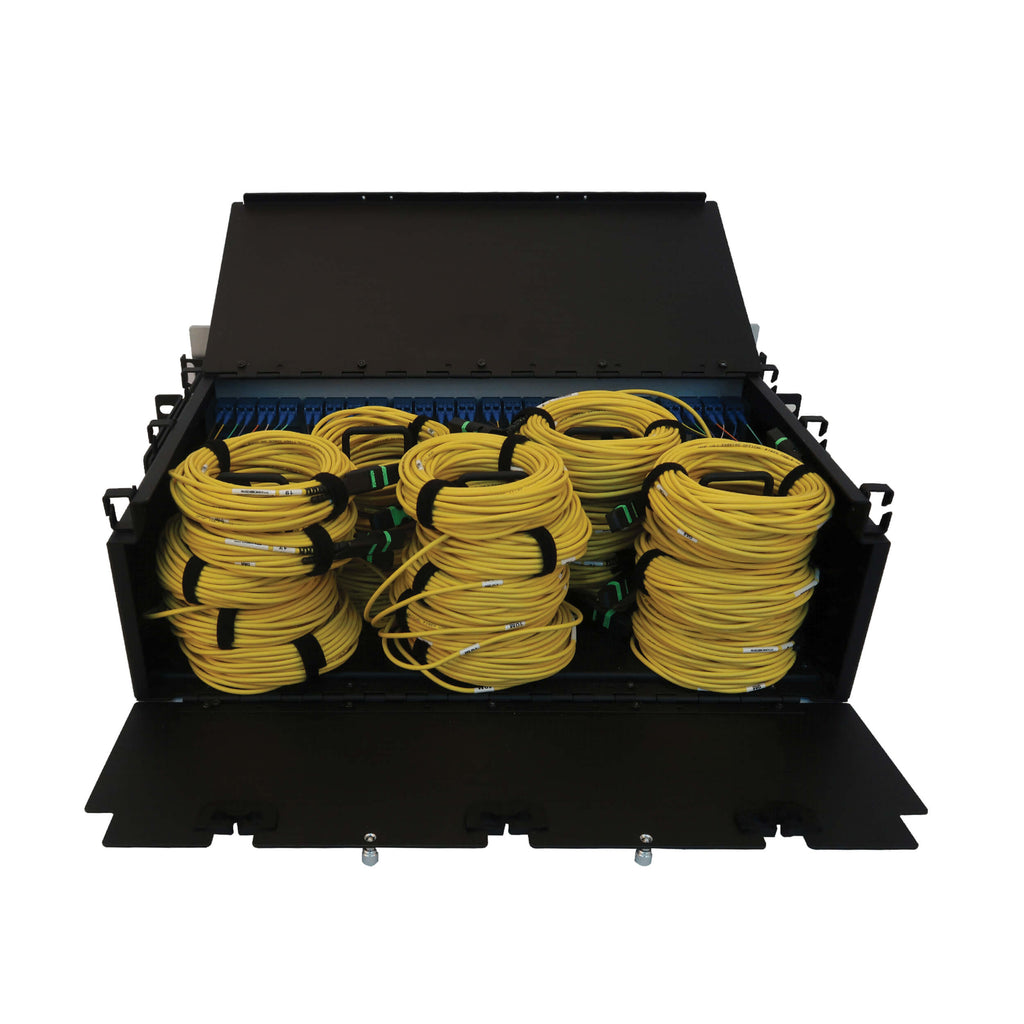

The Eaton N48S-24M8L4-10 Preloaded Fiber Patch Panel delivers a streamlined, ready-to-install cabling solution designed for high-density fiber management in enterprise and data center environments. This 3U rackmount panel comes preloaded with 24 MTP/MPO-APC to LC Duplex 8-fiber OS2 singlemode trunk cables, each 10 meters (32.8 feet) long, neatly coiled inside the chassis for immediate use.

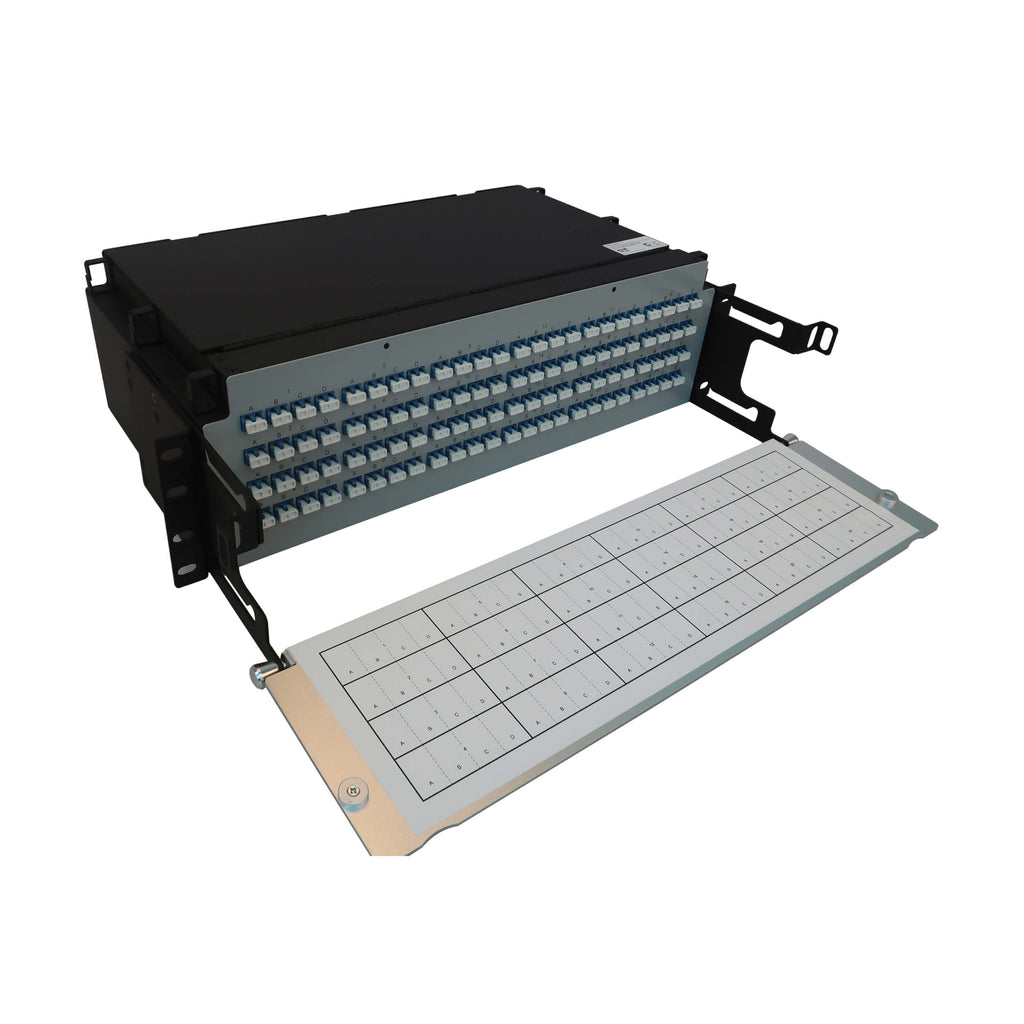

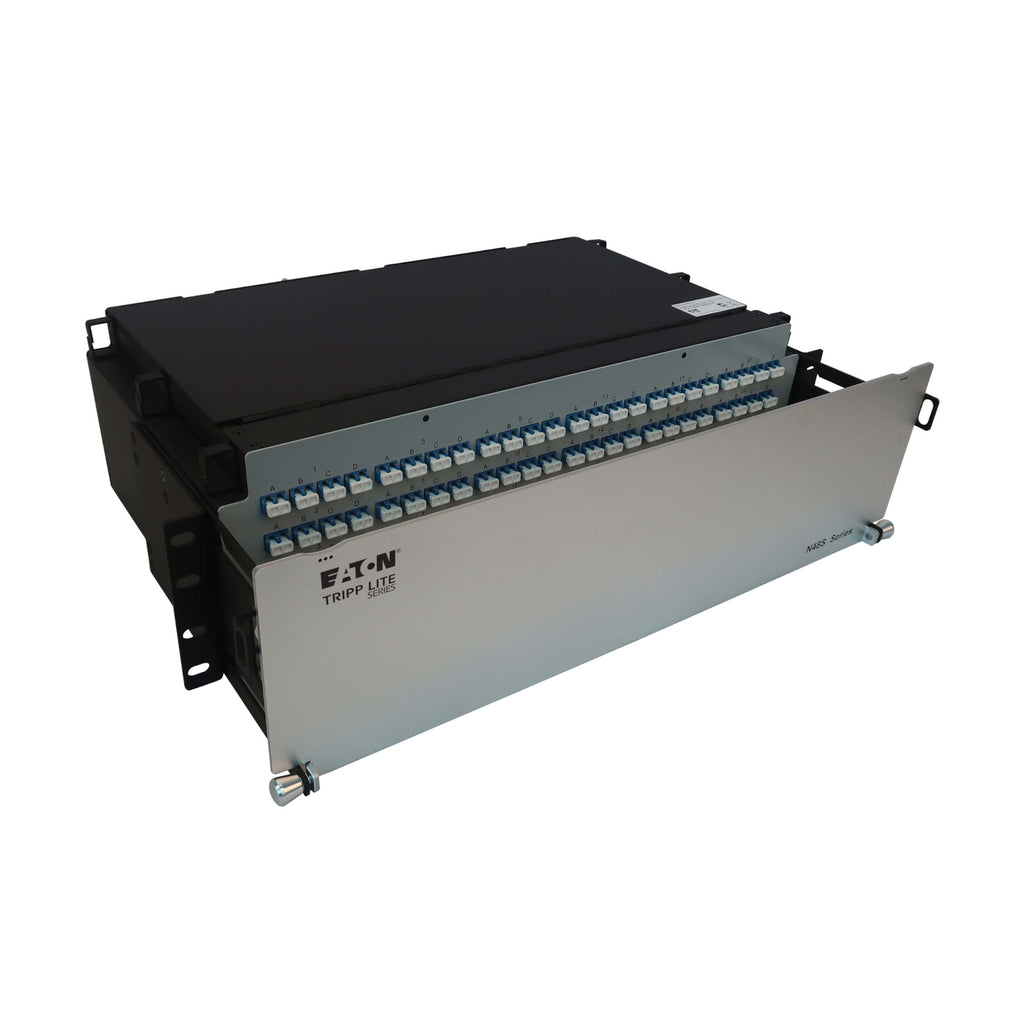

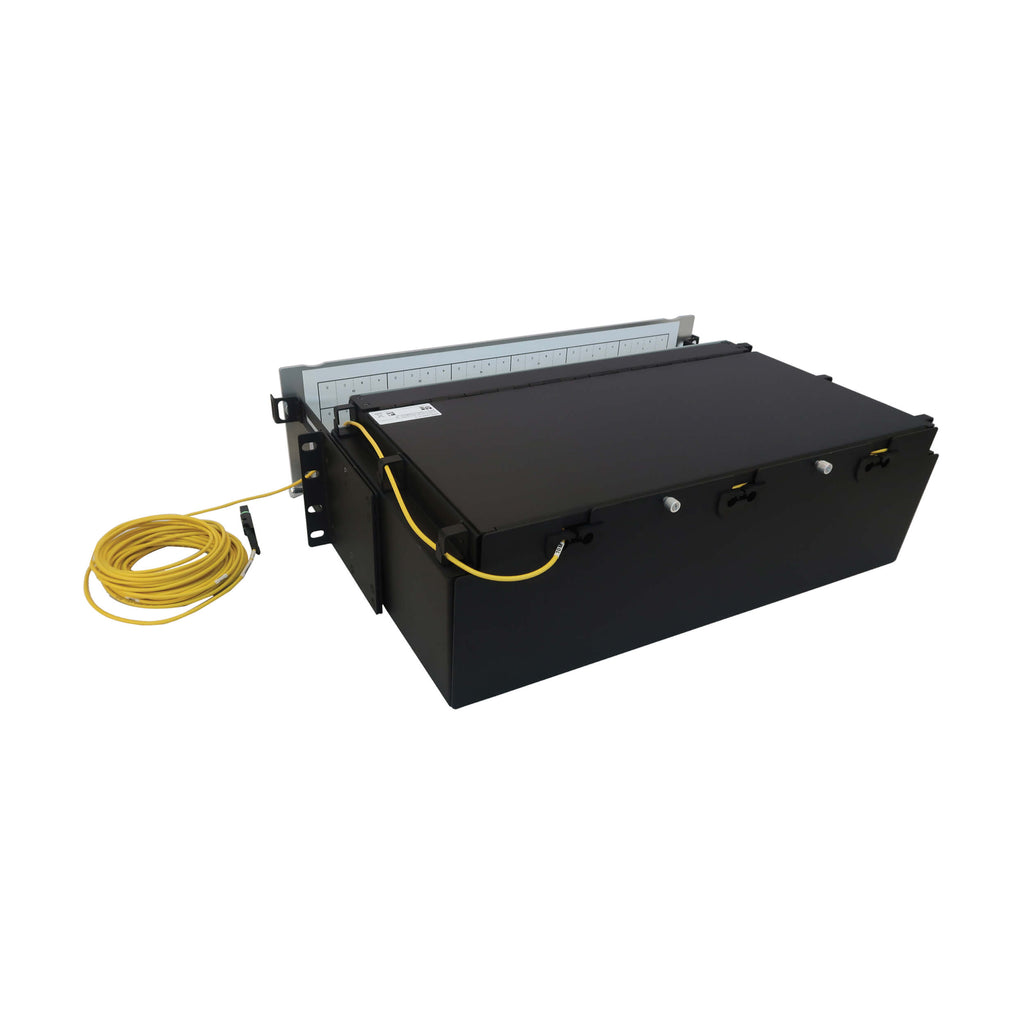

Engineered to optimize space and airflow, the panel allows users to extend only the required cable length while storing excess internally, reducing clutter and ensuring flexible reuse if equipment is relocated. With 96 LC Duplex ports protected by a fold-down front panel and clear labeling, it simplifies maintenance and improves organization.
Ideal for integrating 10 Gb to 40 Gb or 25 Gb to 100 Gb networks, the N48S-24M8L4-10 provides a cost-efficient, all-in-one solution for scalable fiber connectivity without the need for custom cabling.
| Category | Specification |
|---|---|
| Model Number | N48S-24M8L4-10 |
| Product Type | Preloaded Fiber Patch Panel |
| Rack Height | 3U |
| Mounting Type | Rackmount (EIA-standard 19 in.) |
| Cable Type | OS2 Singlemode Fiber |

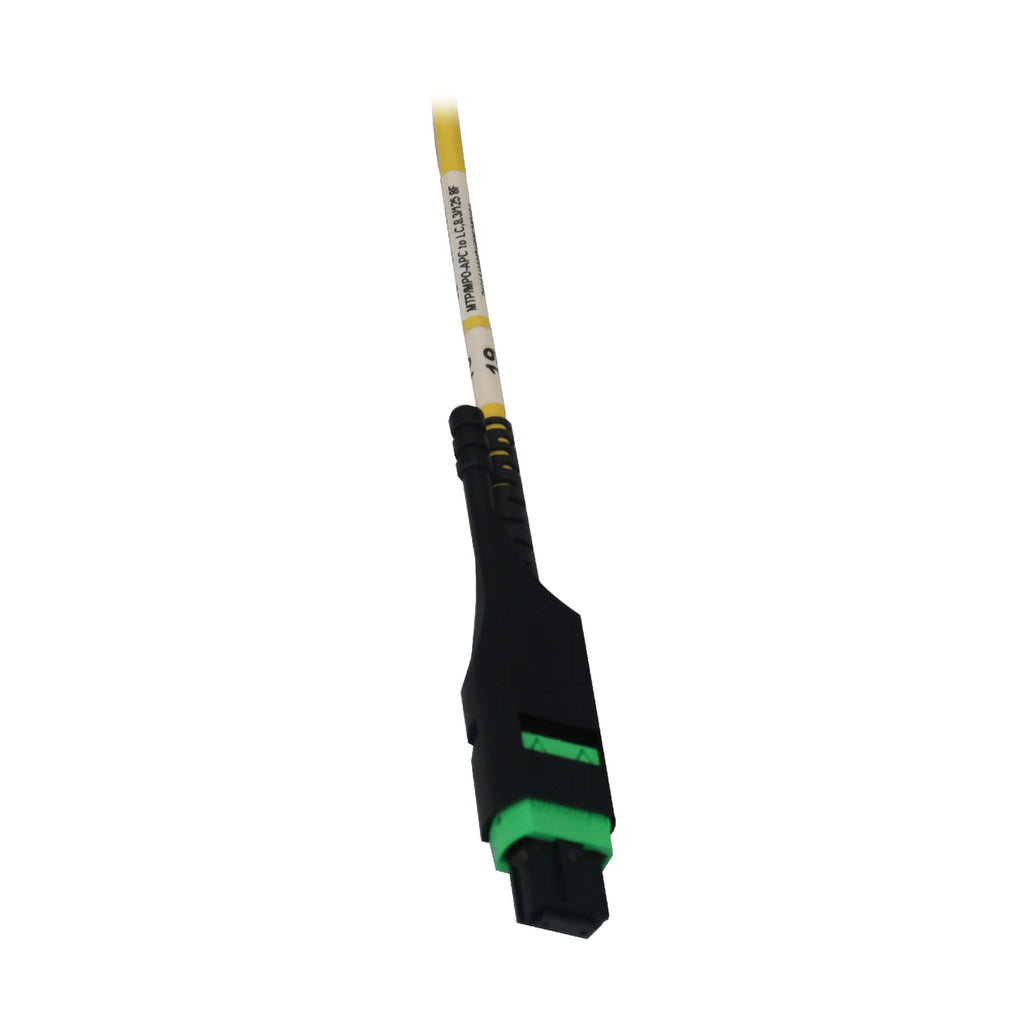

| Connector Type (Side A) | (24) 12F MPO Female (APC) |
| Connector Type (Side B) | (96) LC Duplex Female (UPC) |
| Fiber Count | 8-Fiber per Trunk |
| Cable Length | 10 m (32.8 ft) |
| Material | Aluminum Chassis |
| Cable Jacket Color | Yellow |
| Cable Jacket Rating | OFNP |
| Core / Cladding Diameter | 9 µm / 125 µm |
| Min. Bend Radius | Dynamic 20 mm / Static 10 mm |
| Network Compatibility | 40 Gbps / 100 Gbps / 400 Gbps |
| Wavelengths | 1310 nm, 1550 nm |
| Attenuation | 0.36 dB/km @ 1310 nm / 0.22 dB/km @ 1550 nm |
| Insertion Loss | MTP/MPO < 0.70 dB; LC < 0.30 dB |
| Operating Temp. Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 5 % to 85 % RH (non-condensing) |
| Dimensions (W × H × D) | 17.42 × 5.24 × 12.99 in (44.2 × 13.3 × 33 cm) |
| Shipping Weight | 8 kg |
| Features | Built-in Cables, Push/Pull Tabs, Numbered Ports, Fold-Down Front Panel |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
