Description

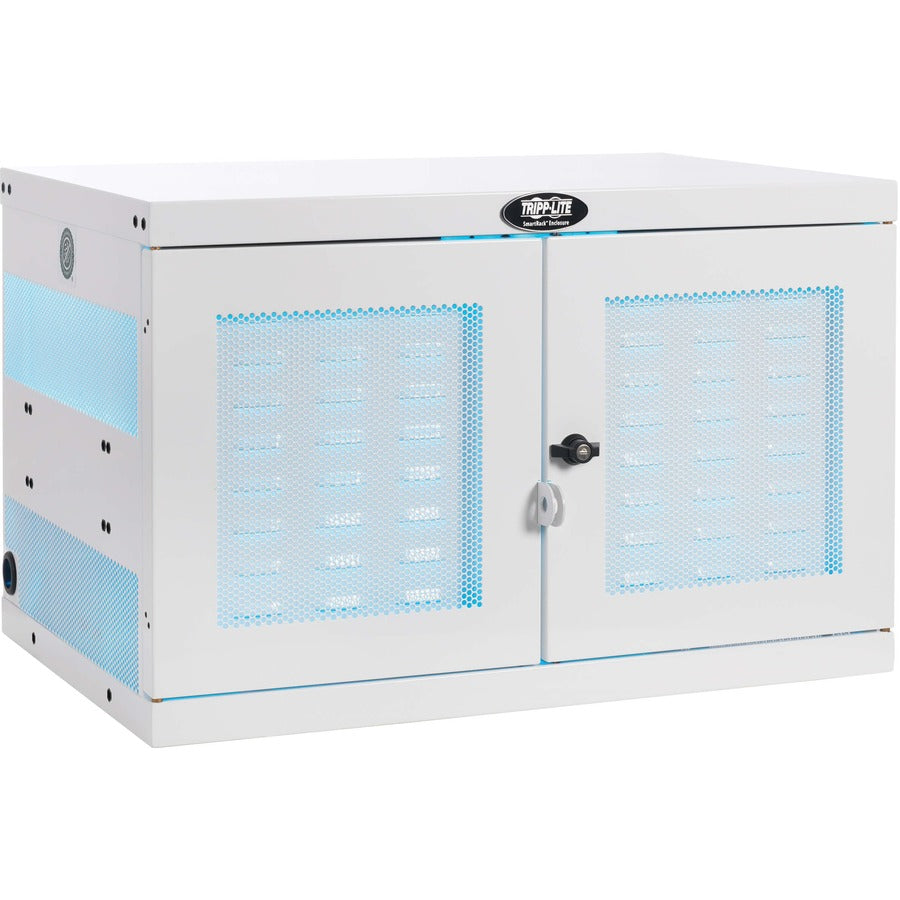

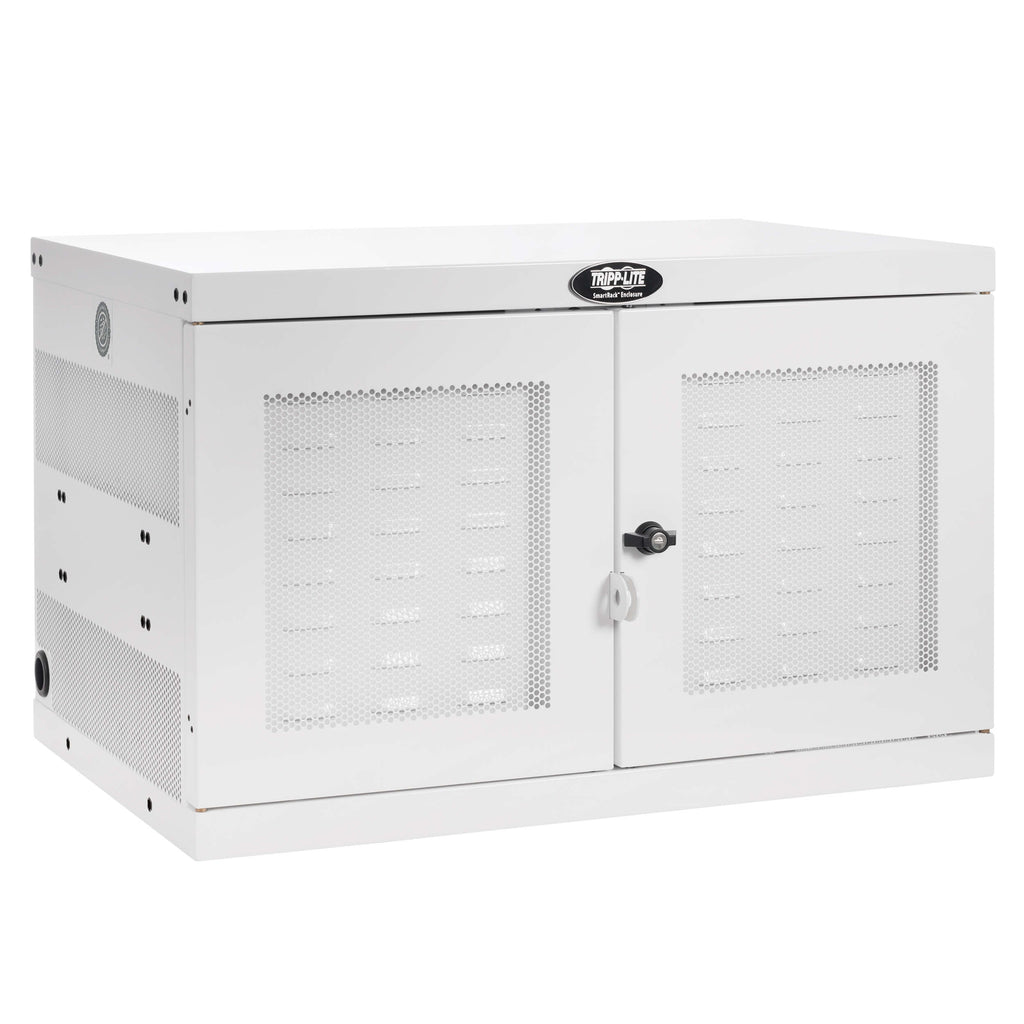

The Eaton Tripp Lite Safe-IT CS16USBWHG is a hospital-grade UV charging station designed for healthcare, education, and business environments. This wall-mountable steel cabinet provides safe and secure charging, syncing, and UV sanitization for up to 16 mobile devices, including tablets and smartphones. Each USB-A port delivers up to 2.4A of power for fast charging, while built-in ultraviolet (UVC) lights disinfect devices without heat or chemicals. The antimicrobial coating on internal and external surfaces helps inhibit the growth of bacteria and viruses. Additional features include lockable steel doors, flow-through ventilation, and a 10 ft. power cord with a hospital-grade NEMA 5-15P plug.
| Specification | Details |
|---|---|
| Model Number | CS16USBWHG |
| Device Capacity | 16 USB-powered mobile devices |
| Charging Ports | 16 USB-A ports (2.4A per port, total 40A) |
| Charging Functions | Charge, Sync, Secure, Sanitize |

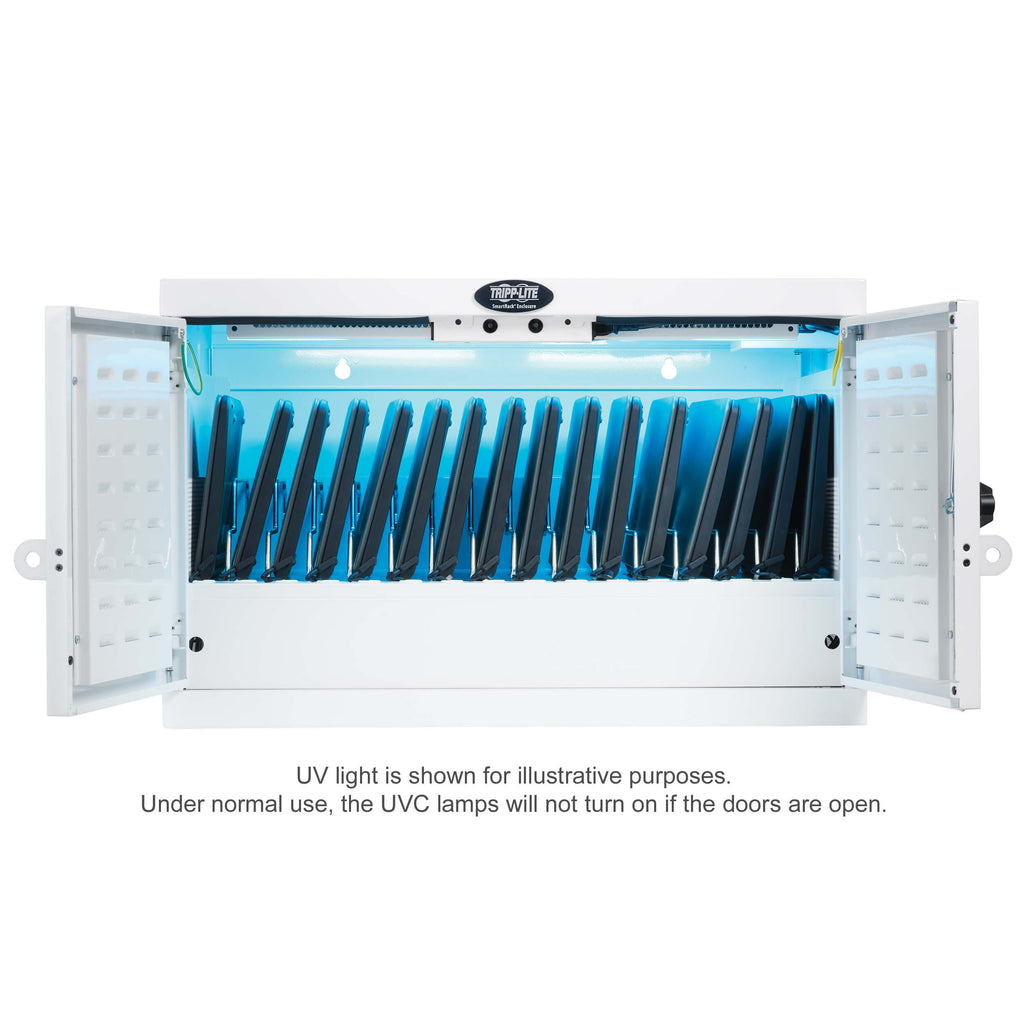

| UV Sterilization | Yes, built-in UVC lights with 10-minute timer |
| Antimicrobial Coating | Yes, internal and external surfaces |
| Construction | Heavy-duty steel with locking front doors |
| Input Voltage | 120V AC |
| Input Plug Type | NEMA 5-15P Hospital-Grade |
| Cord Length | 10 ft. (3.05 m) |
| External Dimensions (in) | 18.80 (H) x 30.33 (W) x 20.20 (D) |
| Internal Slot Dimensions | 10.6 (H) x 1.5 (W) x 15.4 (D) in |
| Mounting Options | Wall-mountable or desktop/floor placement |
| Lock Type | Key lock (included); padlock compatible (user-supplied) |

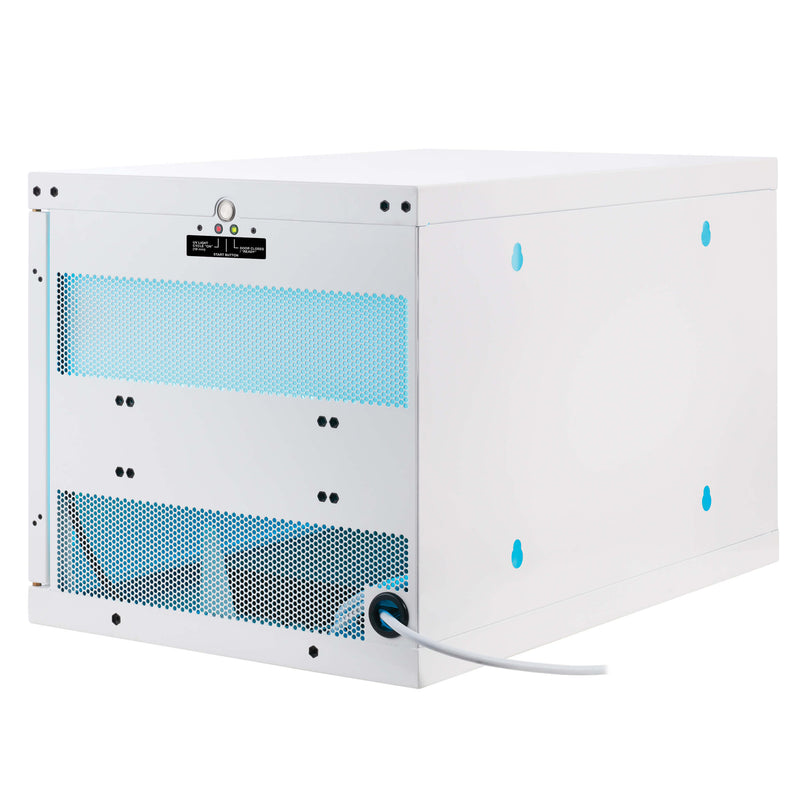

| Ventilation | Flow-through ventilation system |
| Weight | 84.66 lb (38.40 kg) |
| Certifications | UL 60950-1, FCC Part 15 Class B, CE, RoHS, REACH, NOM |
| Warranty | 2-Year Limited Warranty |
