Description

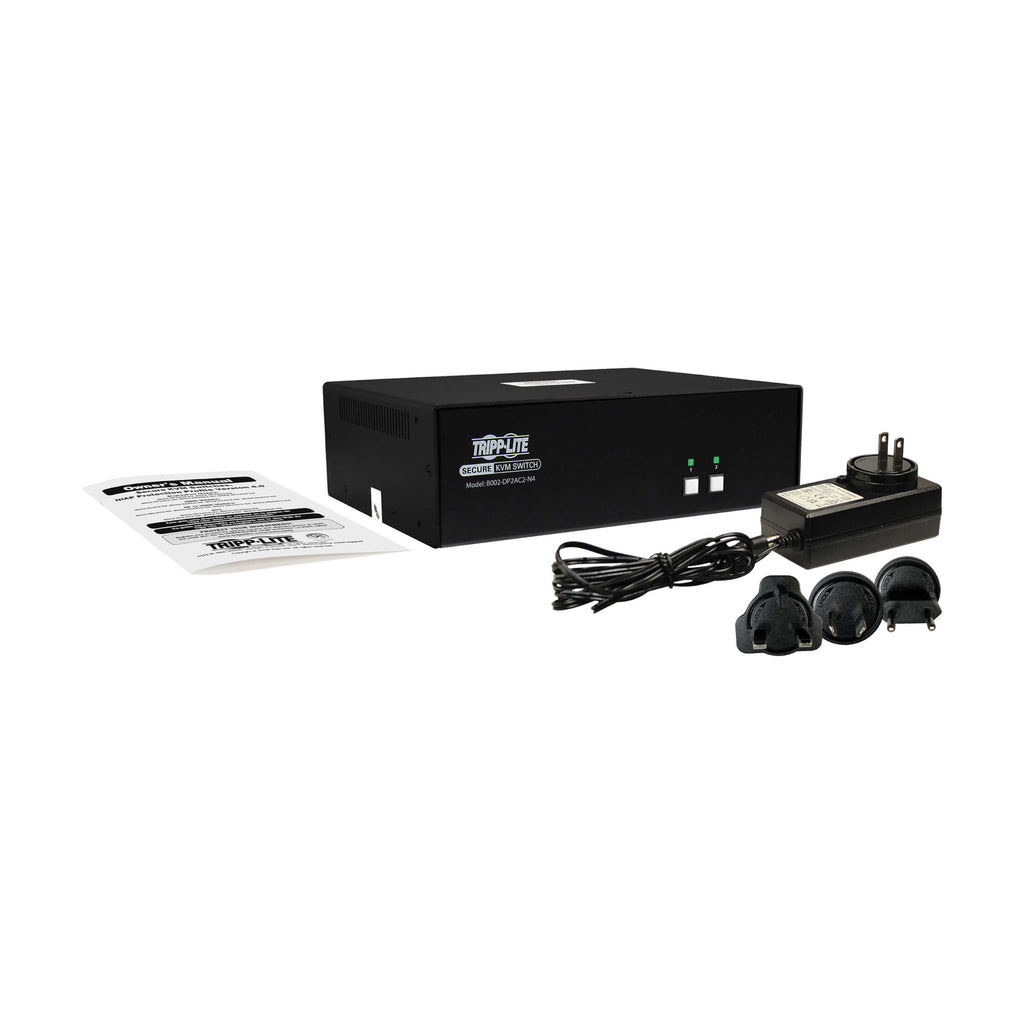

The B002-DP2AC2-N4 Secure KVM Switch provides highly secure access to two isolated computers from a single dual-monitor workstation. Designed for government, military, financial, healthcare, and enterprise environments, this NIAP PP4.0-certified KVM ensures strict data isolation between connected systems operating at different security levels.
Each port is electronically isolated to prevent data leakage, crosstalk, or unauthorized peripheral sharing. Dual-head DisplayPort support delivers clear Ultra HD video resolutions up to 4K at 30 Hz. Integrated Common Access Card (CAC) support enables secure authentication using smart cards, biometric readers, and scanners.
Advanced protections include anti-tamper detection, non-reprogrammable firmware, secure USB filtering, constant keyboard and mouse emulation, and EDID learning to eliminate data exposure during switching. Port selection is restricted to physical pushbuttons only, eliminating hotkeys and on-screen menus for maximum security. Fully TAA-compliant, this secure KVM switch is ideal for classified and regulated environments requiring the highest level of assurance.
| Category | Specification |
|---|---|
| Model | B002-DP2AC2-N4 |
| KVM Type | Secure KVM Switch |
| Number of Computers | 2 |
| Monitor Support | Dual-Head DisplayPort |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| DisplayPort Standard | DisplayPort 1.2 |
| Color Depth | 36-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| Keyboard / Mouse Interface | USB |
| USB Support | USB 1.1 / USB 2.0 (CAC) |
| CAC Support | Yes (Smart Cards, Biometric Readers) |
| Security Certification | NIAP PP4.0 (Common Criteria) |
| Port Isolation | Electronic, Fully Isolated Channels |
| Switching Method | Front-Panel Pushbuttons Only |
| On-Screen Display | No |
| EDID Support | Yes |
| Anti-Tamper Protection | Yes (Unit Disables if Opened) |
| Audio Support | 3.5 mm Stereo |
| Power Supply | External AC Adapter (100–240V, 50/60 Hz) |
| TAA Compliant | Yes |
| Housing Material | Metal |
| Color | Black |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Warranty | 3-Year Limited |
