Description
The Eaton Tripp Lite B002-DP1A4 Secure KVM Switch is designed for high-security environments that require strict data isolation between systems. Ideal for government, military, financial, and healthcare applications, this 4-port DisplayPort KVM allows a single user to control up to four isolated computers using one monitor, keyboard, and mouse.
Each port operates as a fully isolated channel, preventing data leakage, crosstalk, or unauthorized transfer between connected systems. Certified to NIAP Common Criteria Protection Profile 3.0, the B002-DP1A4 meets rigorous information assurance standards required in classified and sensitive installations.

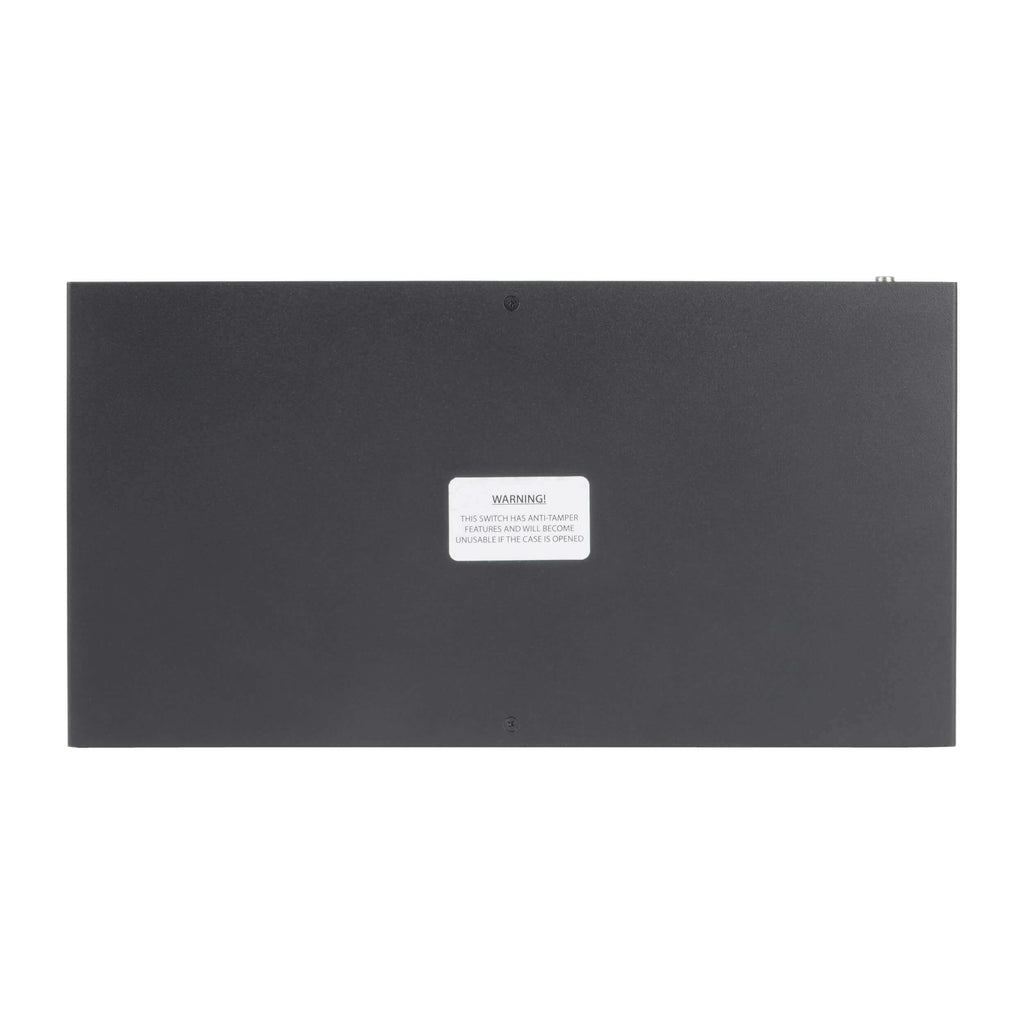

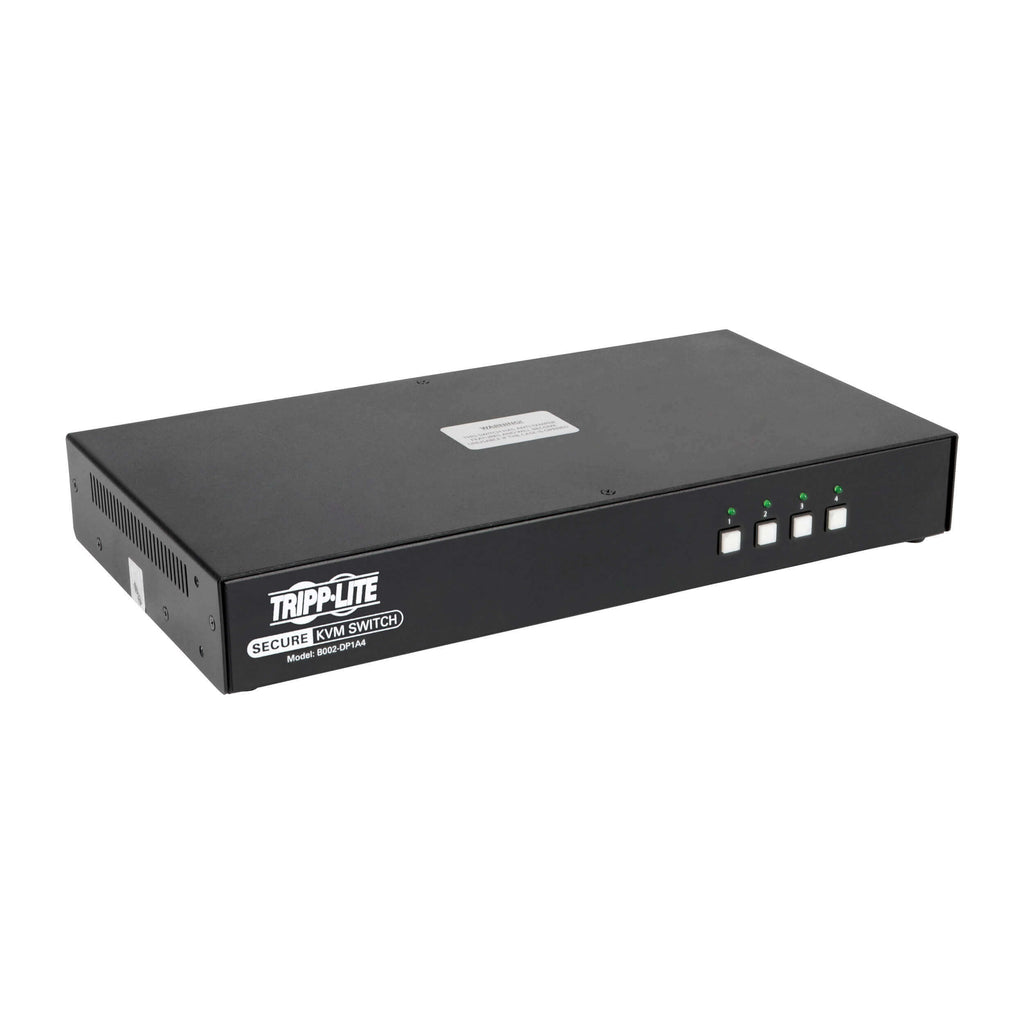

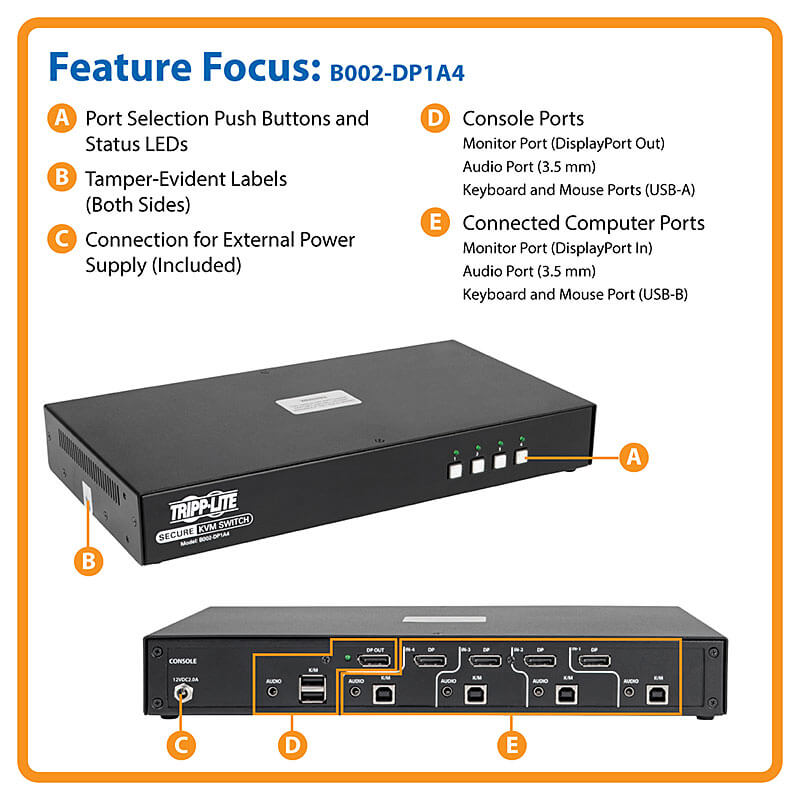

The switch supports crystal-clear 4K UHD video (3840 × 2160 @ 30 Hz) with secure video emulation and EDID learning to ensure consistent display performance. Port selection is restricted to front-panel pushbuttons only—hotkeys and on-screen displays are intentionally disabled to maintain maximum security. Anti-tamper protection disables the unit if physical intrusion is detected.
TAA-compliant and built with a rugged metal enclosure, the B002-DP1A4 delivers trusted, long-term security for mission-critical workstations.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | B002-DP1A4 |
| Product Type | Secure KVM Switch |
| Number of Ports | 4 |
| Video Interface | DisplayPort 1.2 |
| Max Video Resolution | 3840 × 2160 @ 30 Hz |
| Color Depth | Up to 36-bit |
| Chroma Subsampling | 4:4:4 |
| Keyboard / Mouse Interface | USB (wired only) |
| Port Selection Method | Front-panel pushbuttons |
| NIAP Certification | Common Criteria PP v3.0 |
| Secure Port Isolation | Yes |
| On-Screen Display (OSD) | No |
| Hotkey Switching | No |
| Anti-Tamper Protection | Yes |
| Audio Support | 3.5 mm stereo (optional) |
| Power Supply | External AC adapter |
| Voltage Compatibility | 100–240V AC, 50/60 Hz |
| Material | Metal enclosure |
| Color | Black |
| Rackmountable | No |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | NIAP PP3.0, TAA, RoHS |
| Warranty | 3-Year Limited |
