Description

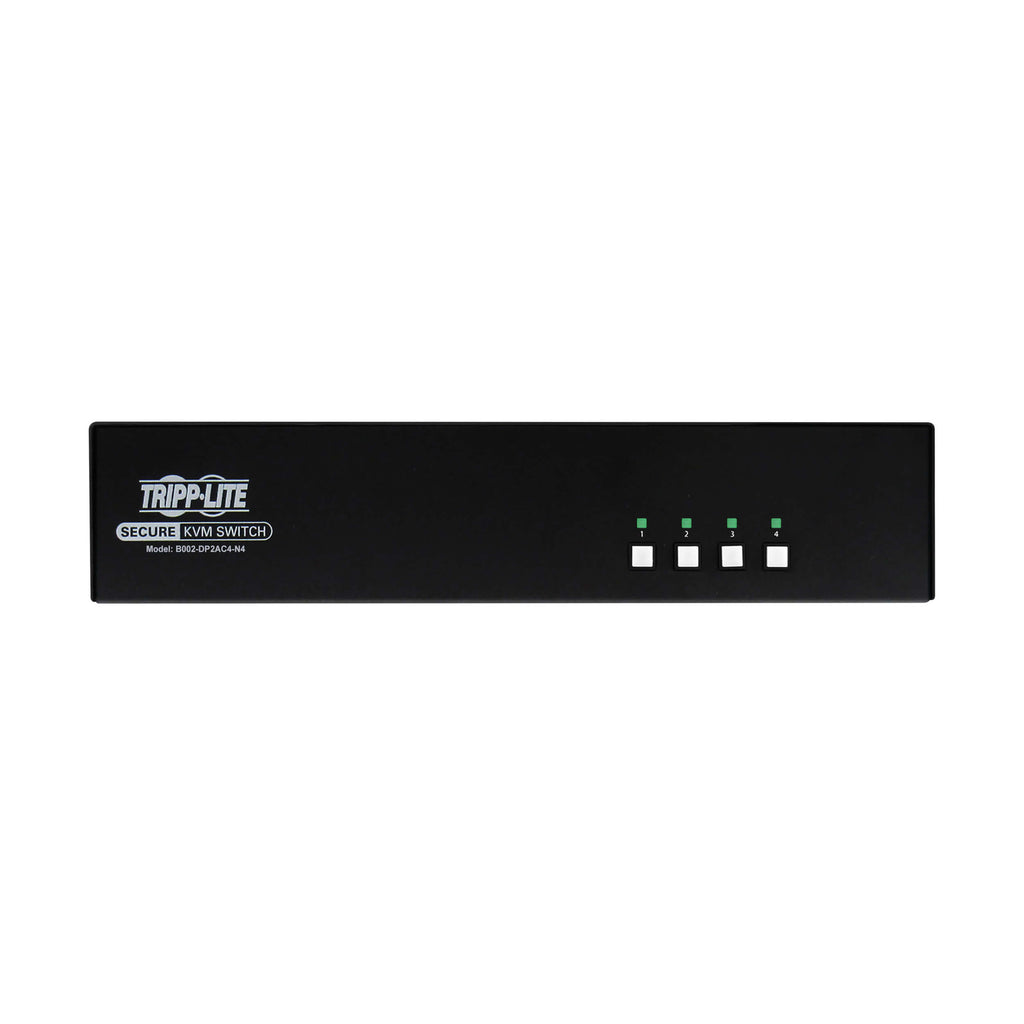

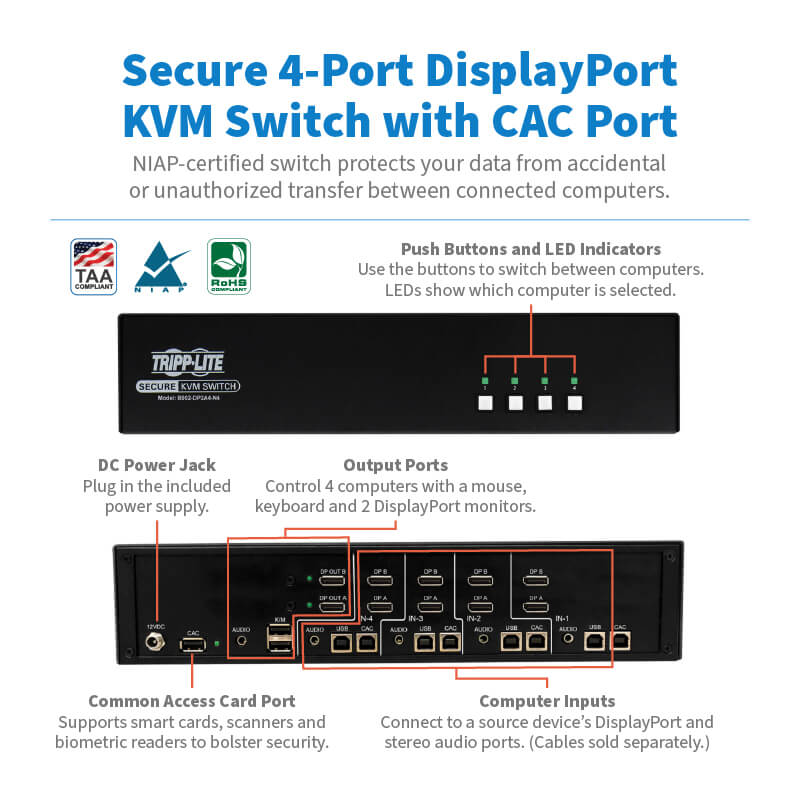

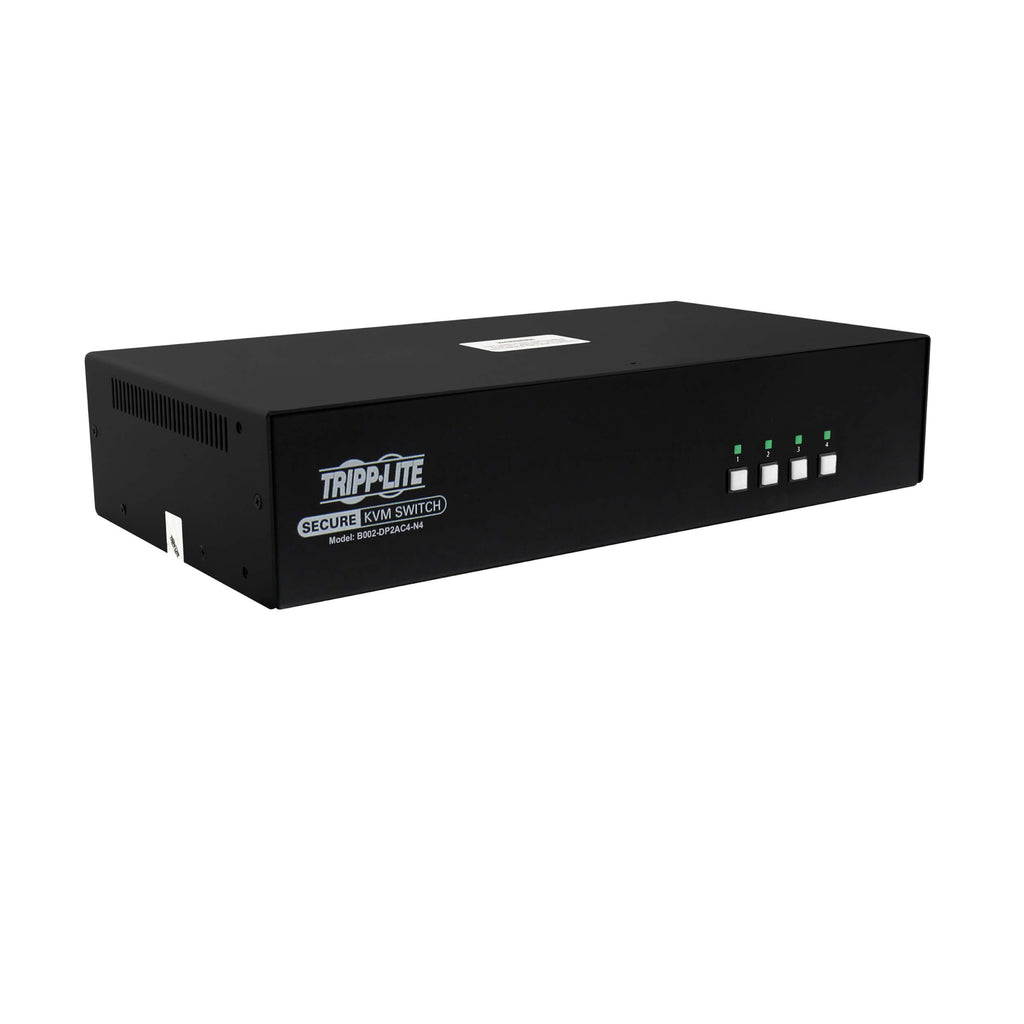

The Eaton Tripp Lite B002-DP2AC4-N4 Secure 4-Port Dual-Head DisplayPort KVM Switch delivers uncompromising data protection and high-performance video for secure multi-computer environments. NIAP PP4.0 certified, this KVM is engineered for government, military, financial, and healthcare networks that demand the highest levels of information assurance.
Each of its four DisplayPort channels is electronically isolated to prevent data leakage or transfer between connected systems. Supporting UHD resolutions up to 3840 x 2160 @ 30Hz, the switch ensures crisp, detailed visuals across dual monitors. Integrated Common Access Card (CAC) functionality enables secure biometric and smart card authentication, while anti-tampering protection disables the unit if breached.
Designed for TAA compliance, the B002-DP2AC4-N4 also features USB device filtering, EDID learning, and automatic keyboard buffer clearing for enhanced security. With metal construction and push-button switching, this KVM guarantees reliability, precision, and security for critical installations.
| Category | Specification |
|---|---|
| Model Number | B002-DP2AC4-N4 |
| Type | Secure Dual-Head DisplayPort KVM Switch |
| Video Resolution | Up to 3840 x 2160 @ 30Hz (4K UHD) |
| Color Depth / Sampling | 36-bit Deep Color / 4:4:4 |
| DisplayPort Standard | DisplayPort 1.2 |
| Ports | 4 computers, Dual DisplayPort per system |

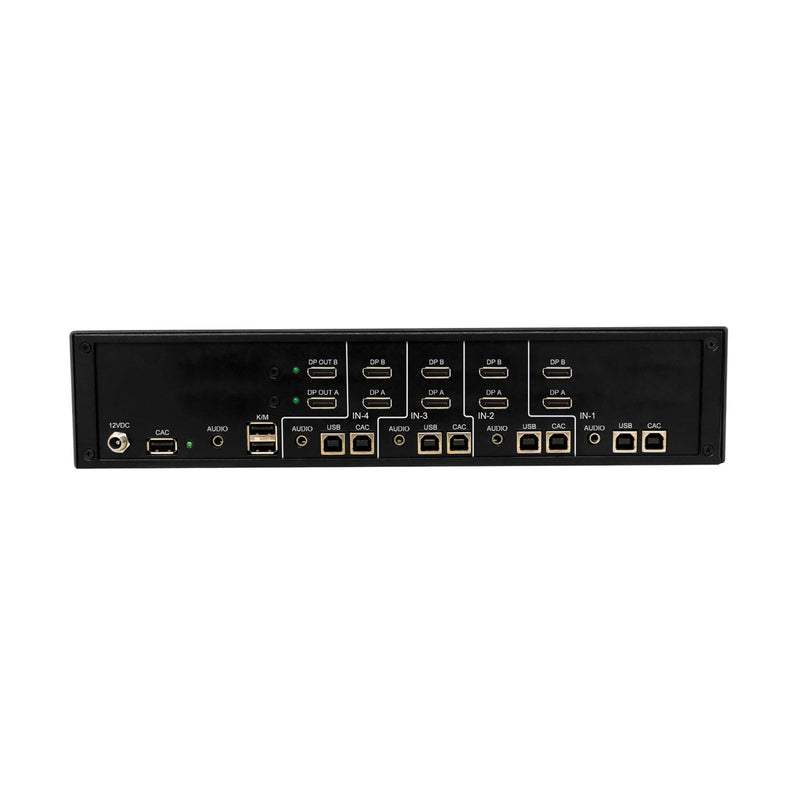

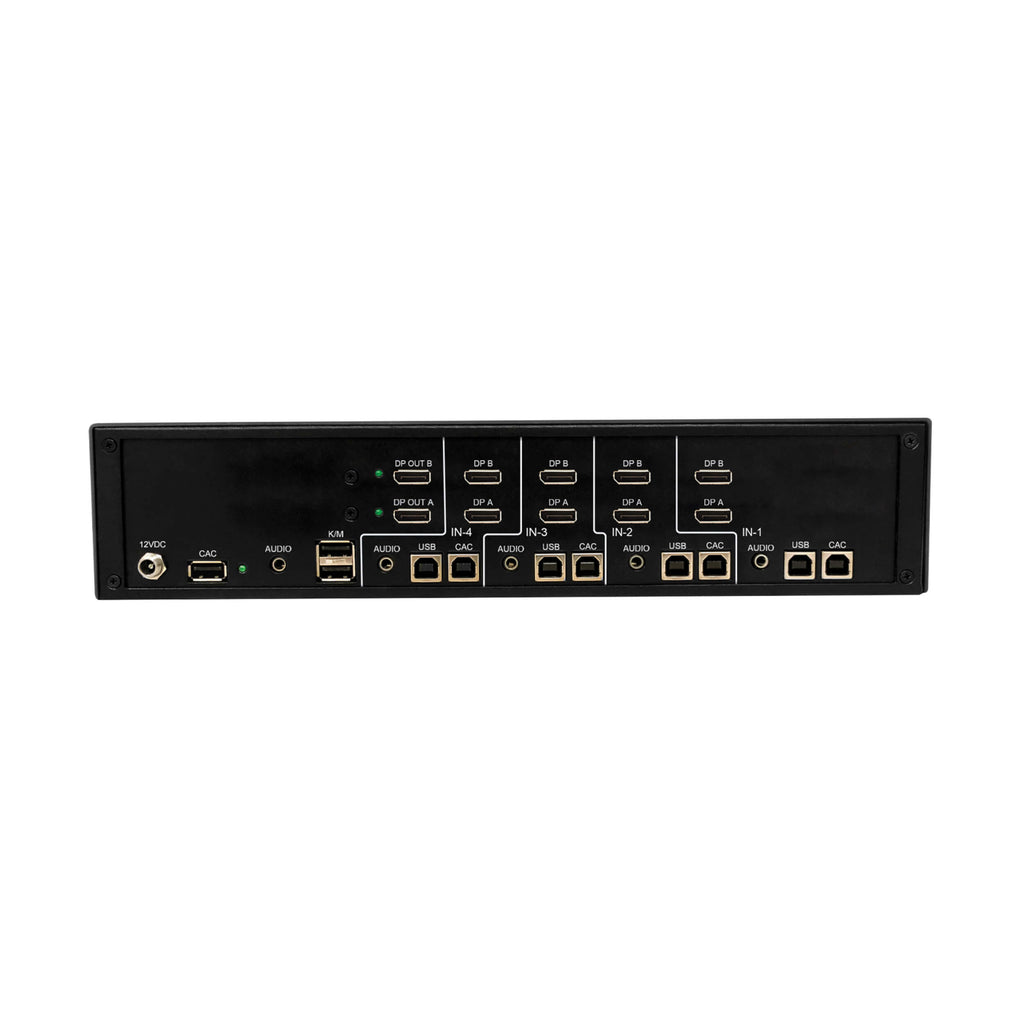

| Connections (Input/Output) | (8) DisplayPort (F), (8) USB-A (F), (4) 3.5mm (F) audio jacks |
| Keyboard/Mouse Interface | USB (wired only) |
| Audio Support | 3.5mm stereo (optional) |
| Common Access Card (CAC) | Supported (smart card, biometric reader compatible) |
| Port Selection Method | Front-panel pushbutton only |
| Management Software | Administration & Security Management 1.2 (Windows only) |
| Video Emulation / EDID Learning | Yes |
| Anti-Tamper Protection | Internal disable mechanism with LED alert |
| Certifications | NIAP PP4.0, TAA, FCC, CE, RoHS, UKCA |
| Power Input / Output | 100–240V AC, 50/60Hz, 1.3A / 12V DC, 3A |
| Power Adapter Plugs | US (NEMA 1-15P), UK (BS 1363), EU (Schuko), AU (AS/NZS 3112) |
| Power Source | External AC adapter (included) |
| Material / Color | Metal chassis / Black |
| Dimensions (H x W x D) | 6.85 x 31.7 x 16.9 cm |
| Weight | 1.91 kg (unit) / 2.72 kg (shipping) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 0–80% non-condensing |
| TAA Compliance | Yes |
| Warranty | 3-year limited warranty |

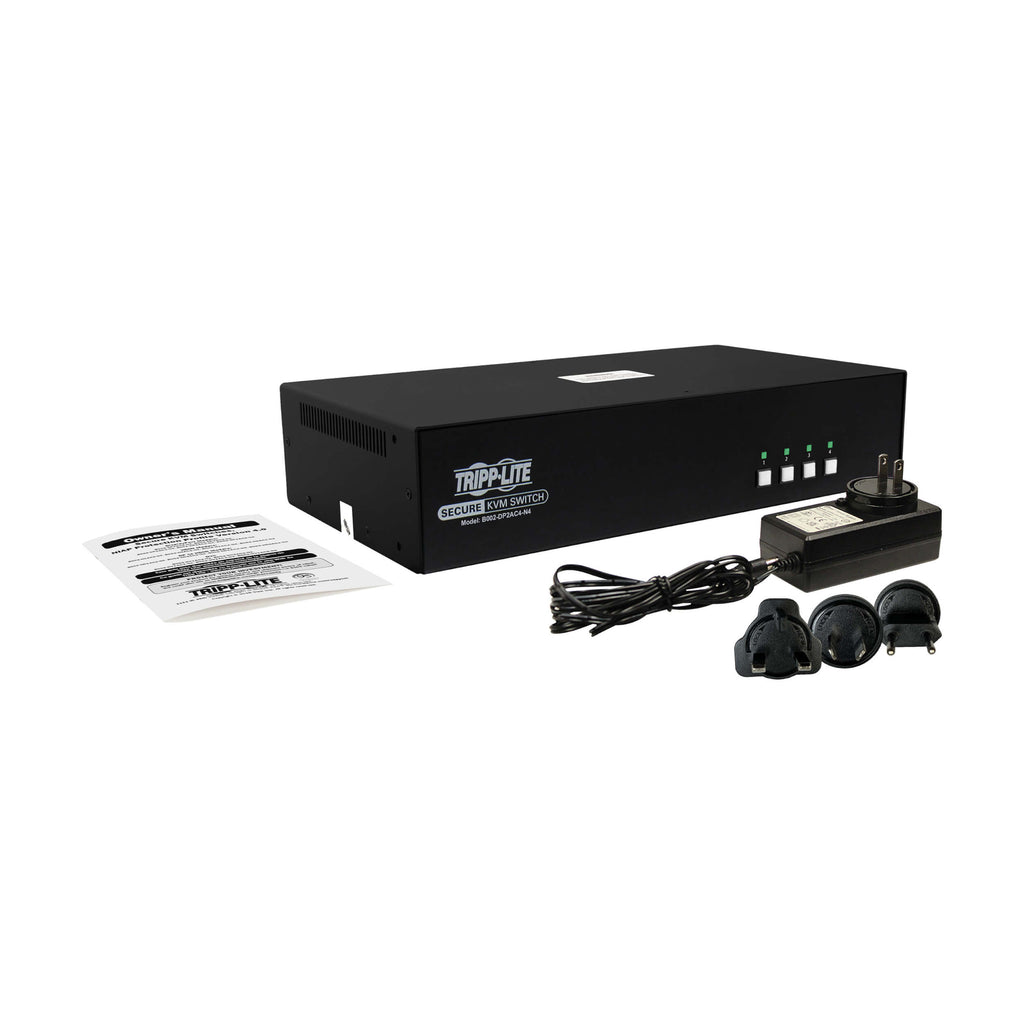

| Included Accessories | Power supply (with 4 plug heads), owner’s manual |
| UPC Code | 037332274243 |
