Description
The Eaton Tripp Lite B002-DP2A4-N4 Secure 4-Port DisplayPort KVM Switch allows you to safely manage up to four computers with dual-monitor DisplayPort outputs from a single console while maintaining the highest levels of data protection.
Designed for government, military, finance, healthcare, and enterprise security environments, this NIAP PP4.0-certified KVM ensures complete channel isolation to prevent data leakage or unauthorized transfer between connected systems.
With Ultra HD 4K @ 30 Hz video support, 36-bit Deep Color, and TAA compliance, it’s ideal for secure workstations requiring crystal-clear visuals. Its advanced anti-tampering protection, automatic keyboard buffer clearing, and firmware-lock safeguards provide uncompromising security.
A metal-enclosed chassis, intuitive push-button switching, and constant USB keyboard/mouse emulation ensure dependable, no-delay operation in mission-critical applications.
| Category | Details |
|---|---|
| Brand | Eaton (Tripp Lite Series) |
| Model | B002-DP2A4-N4 |
| Product Type | 4-Port Dual-Monitor Secure KVM Switch |
| Certification | NIAP PP4.0, TAA Compliant, RoHS, CE, FCC, UKCA |
| Video Standard | DisplayPort 1.2 |
| Max Video Resolution | 3840 × 2160 @ 30 Hz (4K UHD) |
| Color Depth / Sampling | 36-bit Deep Color / 4:4:4 |
| Number of Ports | 4 isolated computers |

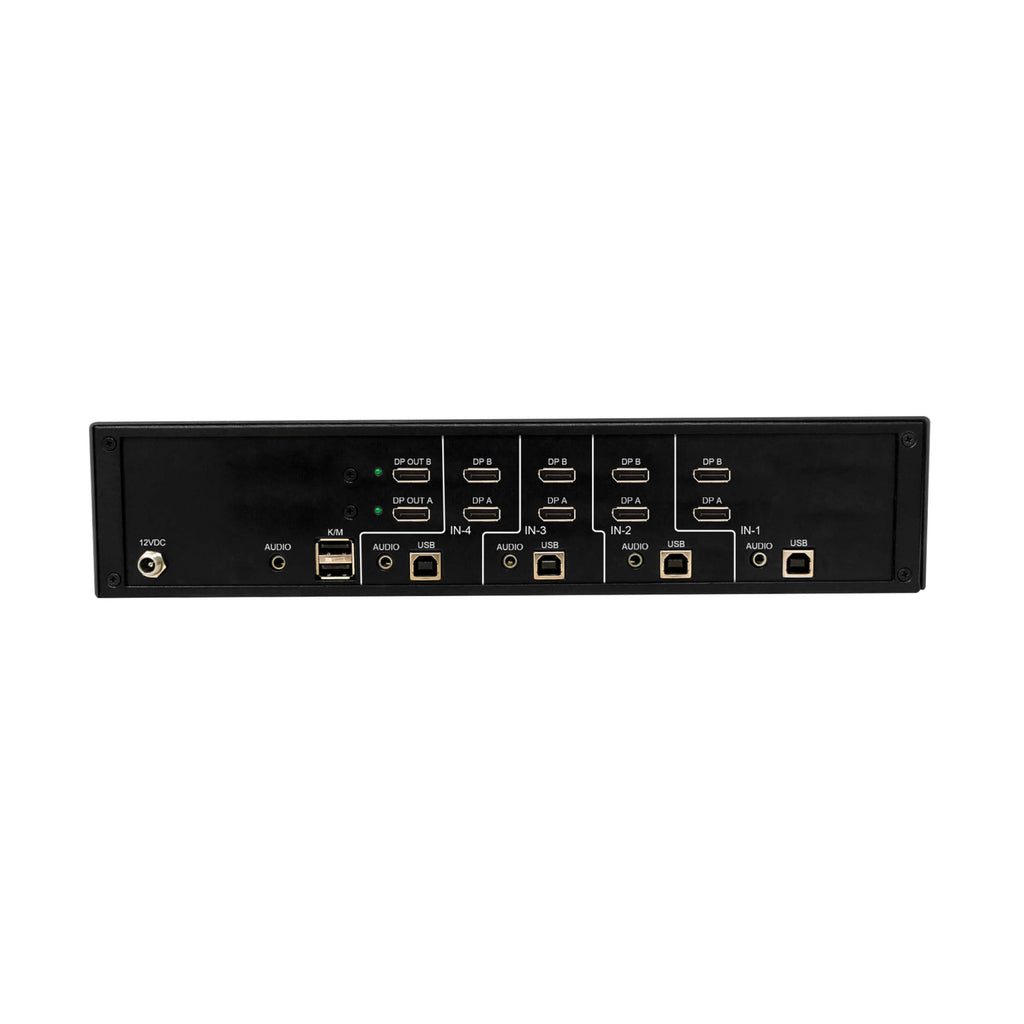

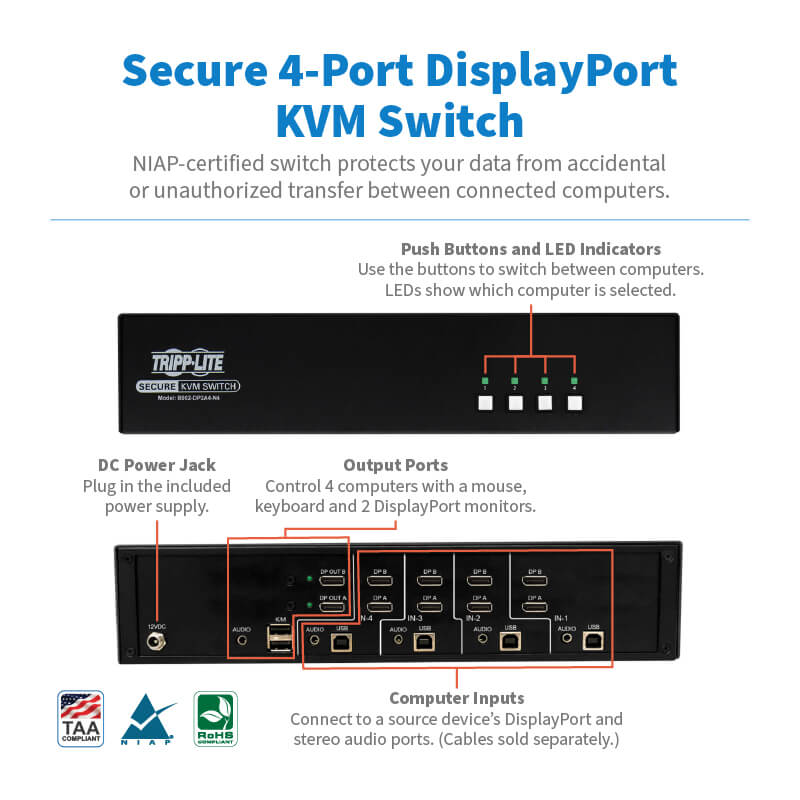

| Console Connections | (2) DisplayPort (F), (2) USB A (F), (1) 3.5 mm Audio (F) |
| PC Connections | (8) DisplayPort (F), (4) USB B (F), (4) 3.5 mm Audio (F) |

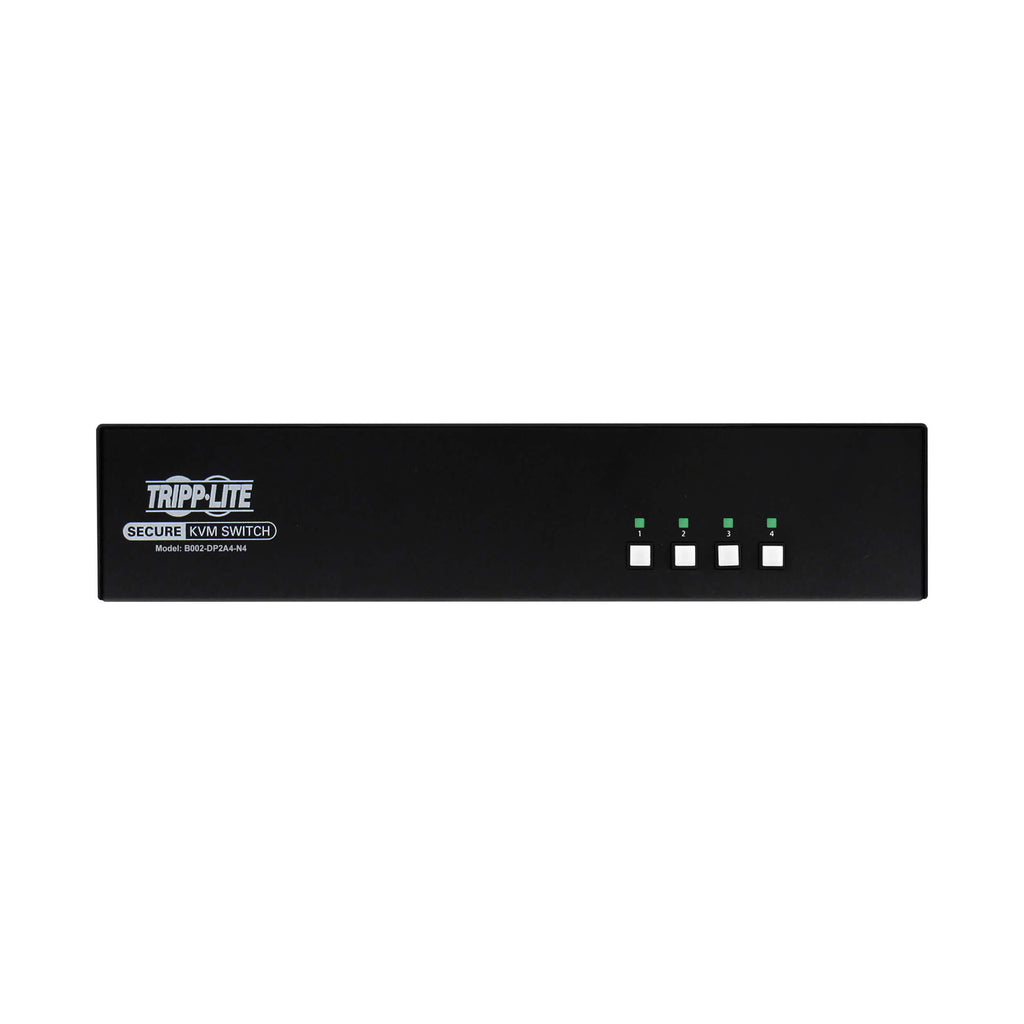

| Port Selection | Front-panel push-button only (no OSD or hotkeys) |
| USB Specification | USB 1.1 (Keyboard/Mouse only) |
| Security Features | Channel isolation, firmware lockout, automatic keyboard buffer clearing, anti-tampering detection |
| Management Utility | Administration & Security Management 1.2 (for Windows) |
| Supported OS | Any major operating system |
| Power Input | 100–240 V AC @ 50/60 Hz (1.3 A) |
| Power Output | 12 V DC @ 3 A adapter (included with US/UK/EU/AU heads) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | –4 – 140 °F (–20 – 60 °C) |
| Humidity | 0 – 80% non-condensing |
| Construction | Metal enclosure, black finish |
| Dimensions (W × D × H) | 31.7 × 16.9 × 6.85 cm (12.48 × 6.65 × 2.7 in) |
| Weight | 1.91 kg (4.2 lb) |

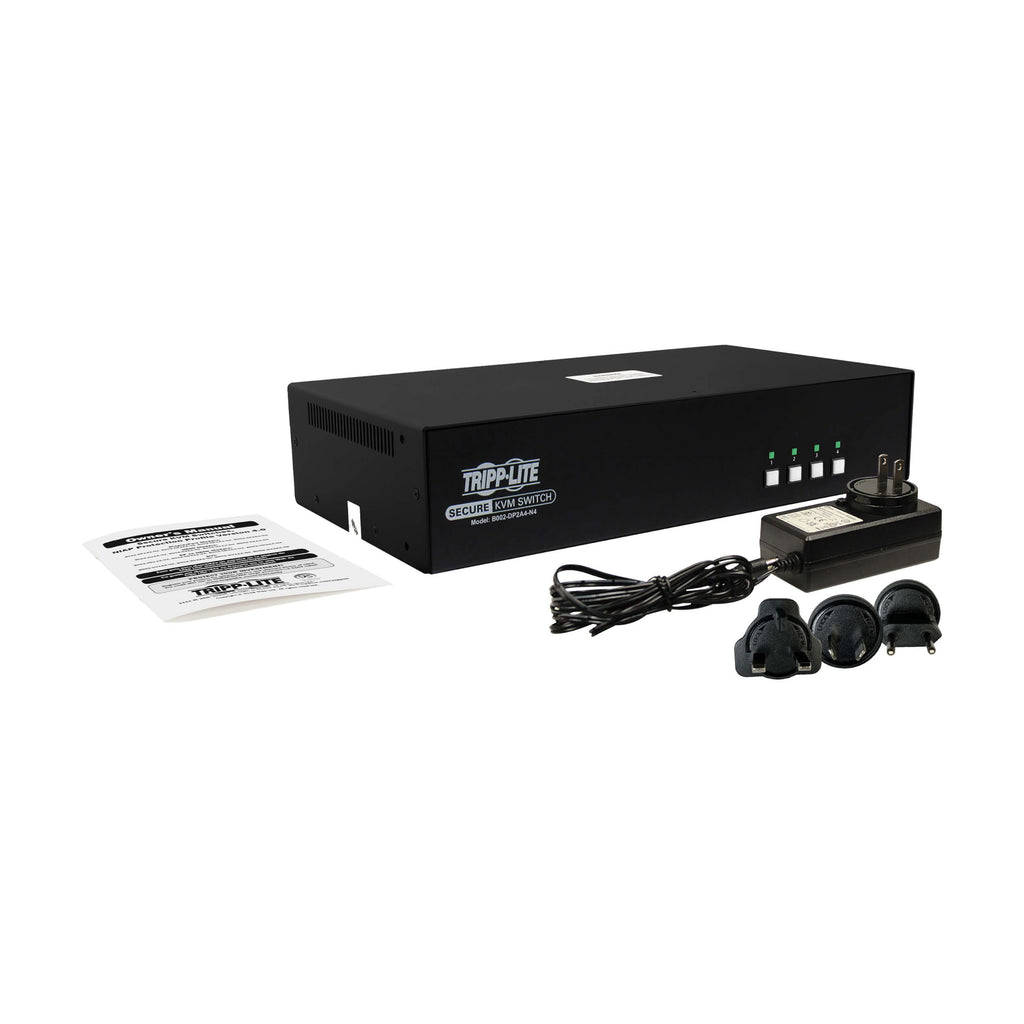

| Included Accessories | External power supply (4 plug types), owner’s manual |
| Warranty | 3-Year Limited Warranty |
