Description

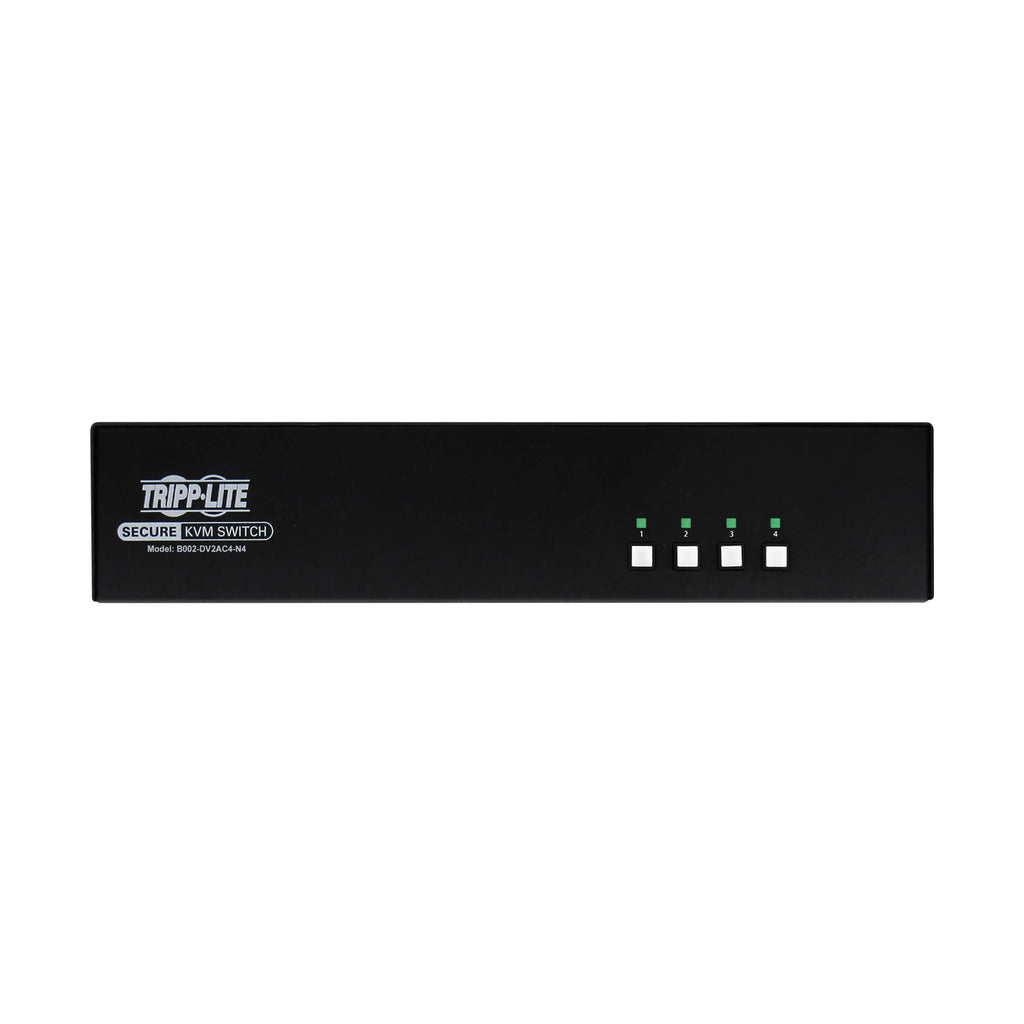

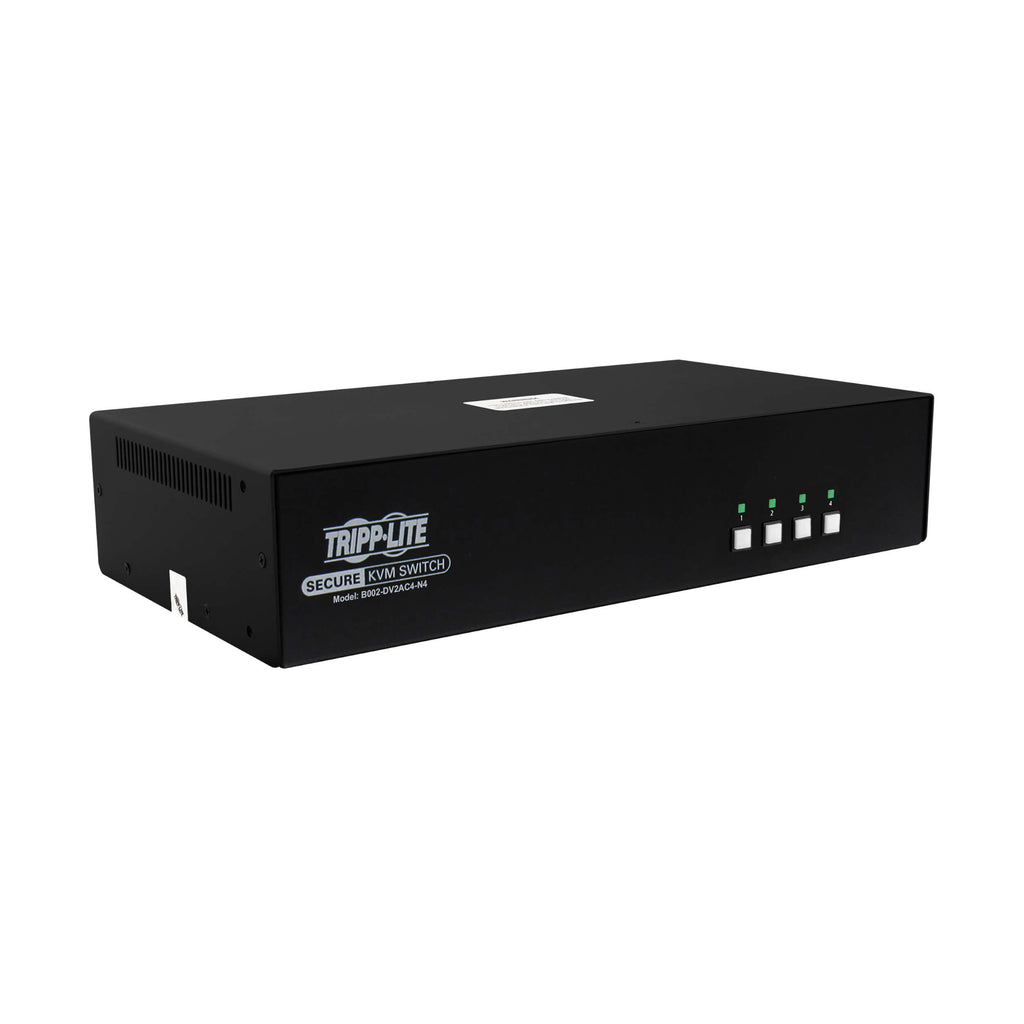

The Eaton B002-DV2AC4-N4 is a 4-port dual-head DVI secure KVM switch designed for government, defense, finance, and healthcare environments that demand strict data protection and secure system control. Certified to NIAP PP4.0 standards, this KVM switch provides isolated channel switching, ensuring no data leakage or crossover between connected systems of varying security levels.
It supports high-definition resolutions up to 2560 x 1600 @ 60 Hz, while the integrated CAC (Common Access Card) port enables secure user authentication with smart card and biometric readers. Featuring firmware protection, automatic keyboard buffer clearing, and anti-tampering technology, the B002-DV2AC4-N4 guarantees uncompromised system integrity.
This KVM also supports audio switching, secure video emulation, and USB device filtering, maintaining seamless operation and preventing unauthorized data transfer. TAA compliance makes it suitable for GSA Schedule and other federal procurement requirements.
| Category | Specification |
|---|---|
| Model Number | B002-DV2AC4-N4 |
| Type | Secure KVM Switch |
| Ports | 4 |
| Video Interface | DVI-I Dual-Link |
| Max Video Resolution | 2560 × 1600 @ 60 Hz |

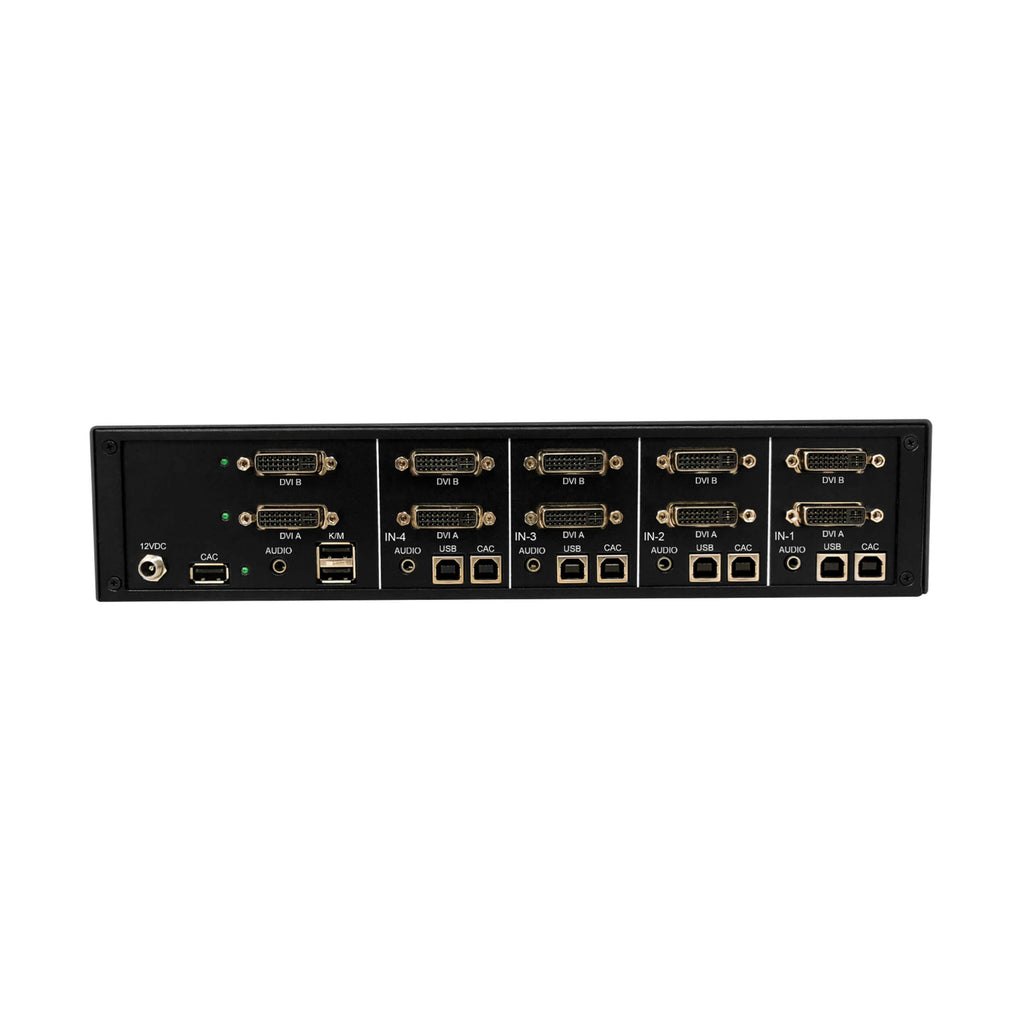

| Computer Connections | DVI, USB |
| Console Connections | DVI, USB, 3.5mm Audio |
| Audio Support | Yes, Stereo 3.5mm |
| Common Access Card (CAC) Support | Yes, for smart card/biometric readers |
| Switching Method | Pushbutton (No OSD or Hotkey) |
| Security Certification | NIAP PP4.0, Common Criteria Protection Profile |
| Compliance | TAA, RoHS, CE, UKCA, FCC |
| Firmware Protection | Enabled (prevents reprogramming) |
| Anti-Tampering Protection | Yes (disables unit if housing is opened) |
| Keyboard/Mouse Emulation | Yes, with automatic buffer clearing |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 0–80% non-condensing |
| Power Input | 100–240V AC, 50/60Hz, 1.3A |
| Power Output | 12V DC, 3A |
| Power Source | External AC Adapter |

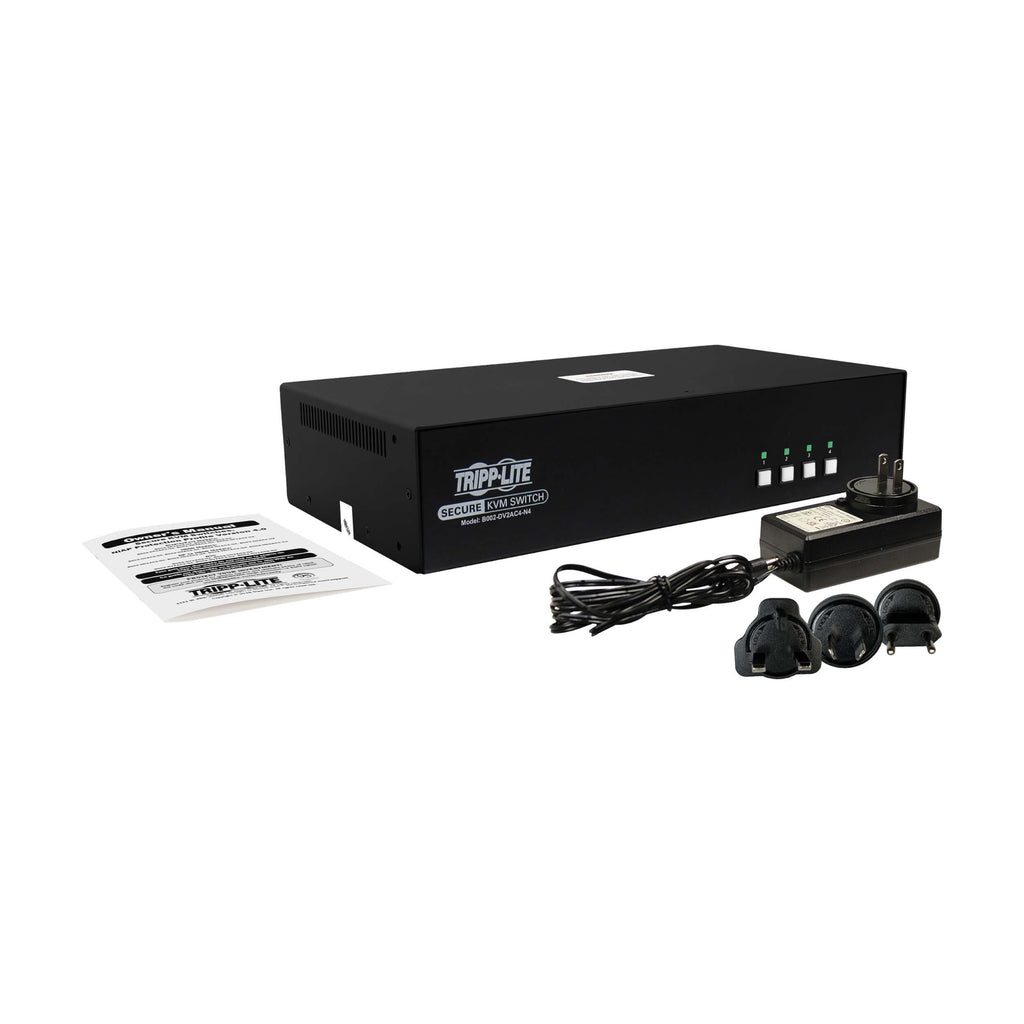

| Included Accessories | Power supply with US, UK, EU, AU plugs; Owner’s manual |
| Material | Metal |
| Color | Black |
| Dimensions (H×W×D) | 6.85 × 31.7 × 16.9 cm |
| Weight | 1.91 kg (4.2 lb) |
| Warranty | 3-Year Limited Warranty |
